'79 Heater Hoses help
Thread Starter
7th Gear
Joined: Jan 2006
Posts: 7
Likes: 1
From: Long Island
'79 Heater Hoses help
I posted this in the general section as well, but it probably makes more sense here
I changed out the heater valve and hoses today on the '79 but I need a hand. I have an "S" tube that came with the parts I ordered but the car did not have one installed. I found it in the assembly manual (number 7, attached) but cannot seem to figure out how it gets installed. If anyone has this "S" tube installed, can you post a pic or PM me?
Thanks,
Jim
I changed out the heater valve and hoses today on the '79 but I need a hand. I have an "S" tube that came with the parts I ordered but the car did not have one installed. I found it in the assembly manual (number 7, attached) but cannot seem to figure out how it gets installed. If anyone has this "S" tube installed, can you post a pic or PM me?
Thanks,
Jim
Team Owner
Joined: Sep 2006
Posts: 31,267
Likes: 4,362
From: Westminster Maryland
Hi Jim,
Is this it?

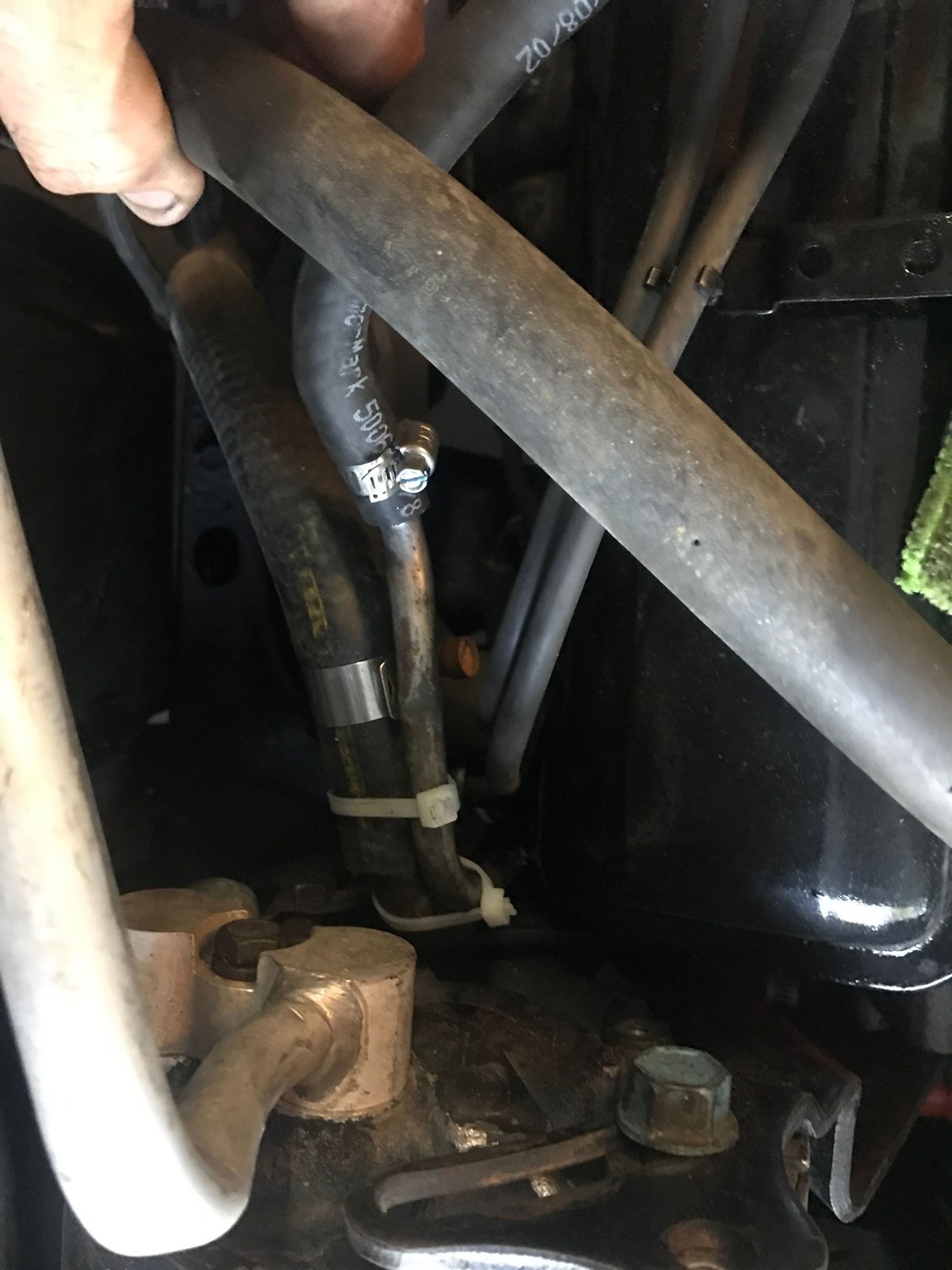

It APPEARS the purpose of the tube is to route the coolant OVER the duct for the air cleaner and then UNDER the a/c compressor bracket.
If this were done with just the hose it would 'kink' because of the sharp bends required.
Maybe?
Regards,
Alan
The configuration of the tube in the photo appears to be a bit different than the one shown in the AIM.
?
Is this it?
It APPEARS the purpose of the tube is to route the coolant OVER the duct for the air cleaner and then UNDER the a/c compressor bracket.
If this were done with just the hose it would 'kink' because of the sharp bends required.
Maybe?
Regards,
Alan
The configuration of the tube in the photo appears to be a bit different than the one shown in the AIM.
?
Last edited by Alan 71; Oct 30, 2017 at 09:46 AM.
Melting Slicks
Joined: Dec 2009
Posts: 3,232
Likes: 656
From: Thunder Bay
Hi Jim,
Is this it?
It APPEARS the purpose of the tube is to route the coolant OVER the duct for the air cleaner and then UNDER the a/c compressor bracket.
If this were done with just the hose it would 'kink' because of the sharp bends required.
Maybe?
Regards,
Alan
The configuration of the tube in the photo appears to be a bit different than the one shown in the AIM.
?
Is this it?
It APPEARS the purpose of the tube is to route the coolant OVER the duct for the air cleaner and then UNDER the a/c compressor bracket.
If this were done with just the hose it would 'kink' because of the sharp bends required.
Maybe?
Regards,
Alan
The configuration of the tube in the photo appears to be a bit different than the one shown in the AIM.
?
Instructor
Joined: Oct 2016
Posts: 211
Likes: 20
From: Raleigh NC

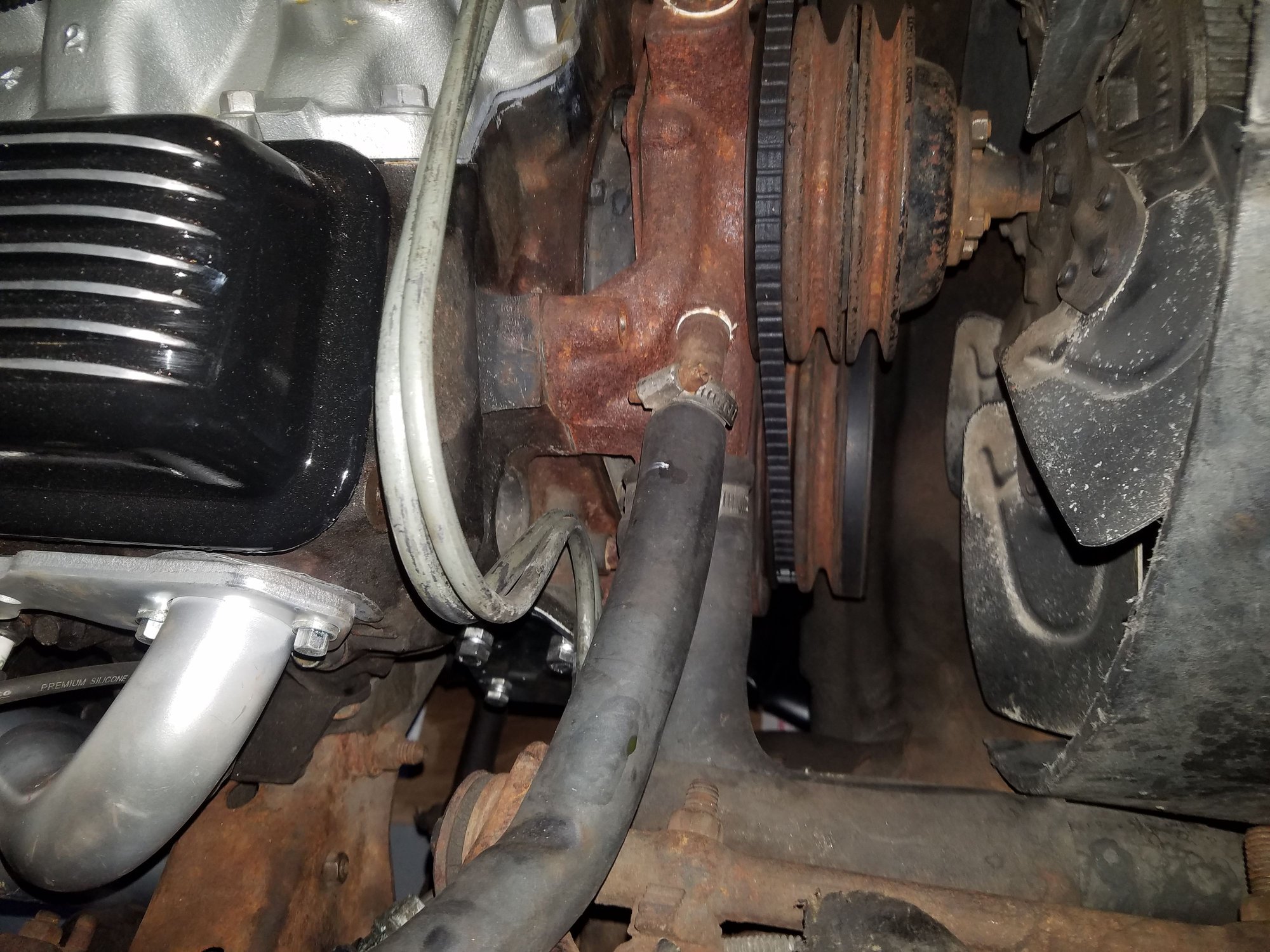

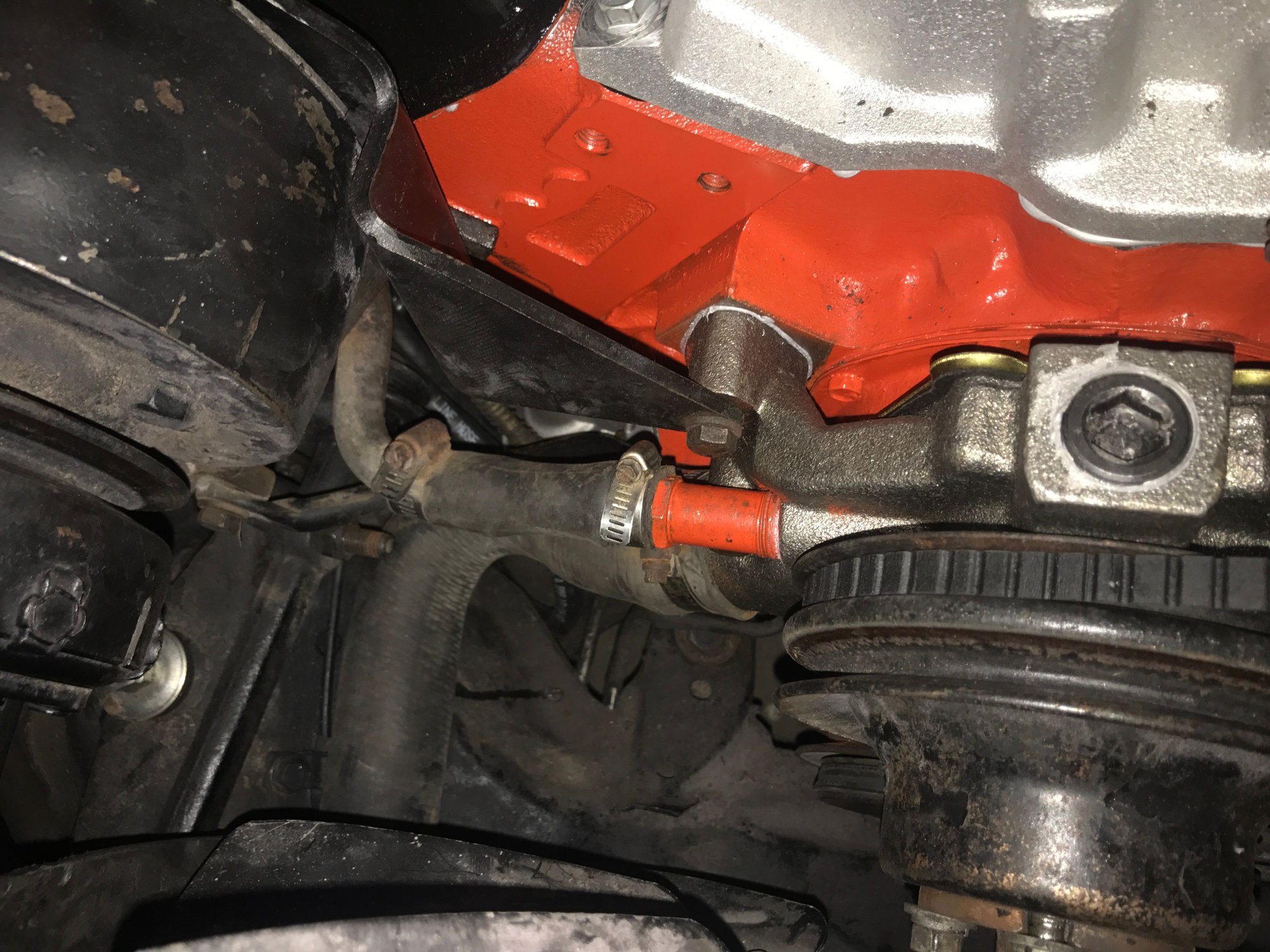

The s pipe connects to the water pump with a short rubber hose, routes behind the compressor then goes up and the top of the s pipe points back towards the firewall.
Last edited by 2airtime2; Oct 30, 2017 at 05:12 PM.
Thread Starter
7th Gear
Joined: Jan 2006
Posts: 7
Likes: 1
From: Long Island
Matt81, thanks. That is how I have it now.
2airtime2, I am going to place it in as you have it and see how it goes. There is also a bracket attched. Is yours free hanging or screwed down? I will send pix later.
Jim
2airtime2, I am going to place it in as you have it and see how it goes. There is also a bracket attched. Is yours free hanging or screwed down? I will send pix later.
Jim
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Instructor
Joined: Aug 2014
Posts: 103
Likes: 5
From: Barnstble Mass.
Heater Hose "S" Pipe

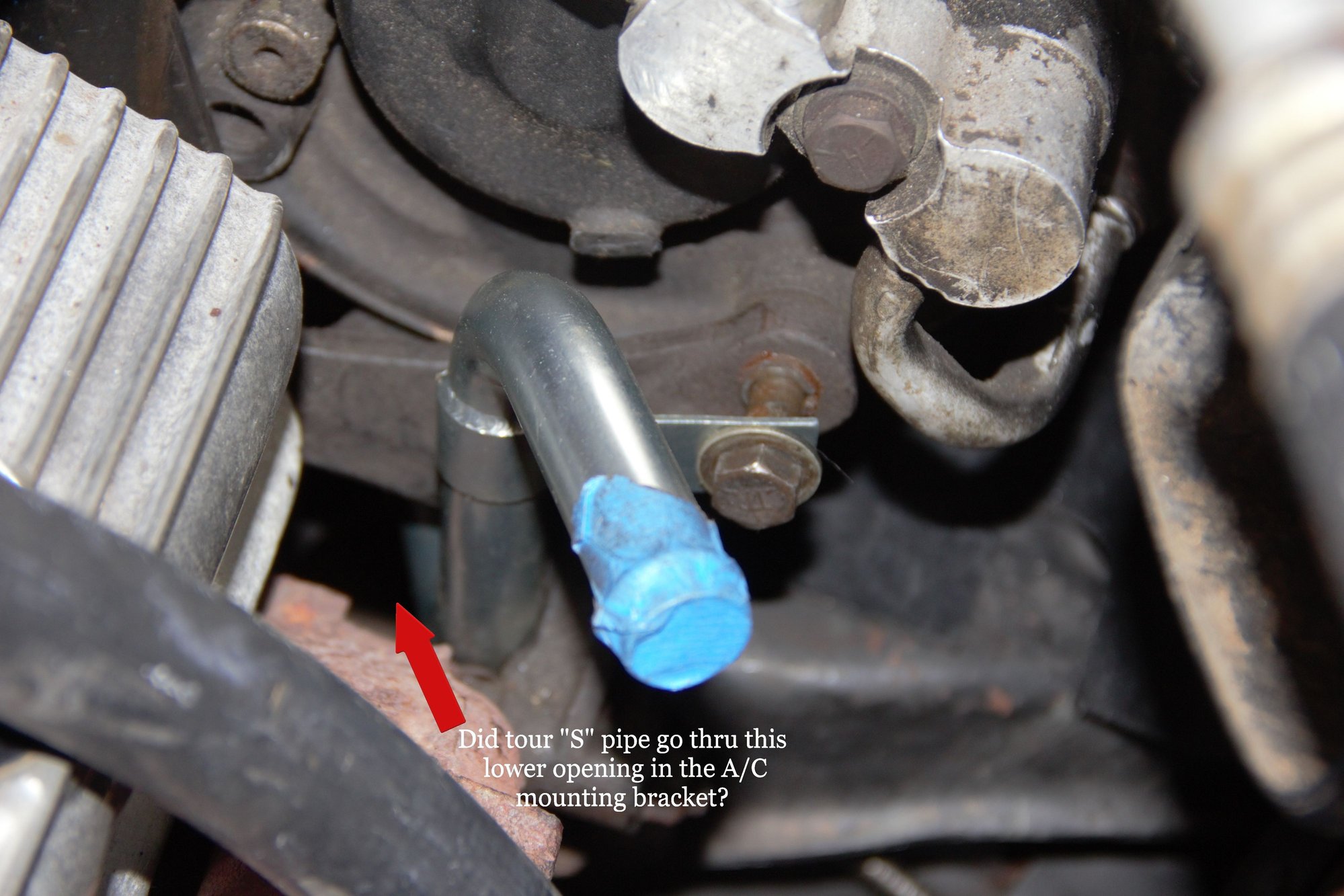

I've been trying to figure out just how the "S" pipe goes in the heater hose, I'm replacing both,the AIM is really vague in regards of it's installation, some po had removed mine, and had the hose pinched between the bottom of the A/C bracket and "A" arm. I have found the pic. you had posted in a reply to another member, did your pipe go thru the lower opening in the A/C mounting bracket?
Attached is a photo of how I think it goes
Appreciate any help
Thank You
Brian
Advanced
Joined: Jun 2016
Posts: 83
Likes: 20
From: Allentown,Pa
Hi 2airtime2
I've been trying to figure out just how the "S" pipe goes in the heater hose, I'm replacing both,the AIM is really vague in regards of it's installation, some po had removed mine, and had the hose pinched between the bottom of the A/C bracket and "A" arm. I have found the pic. you had posted in a reply to another member, did your pipe go thru the lower opening in the A/C mounting bracket?
Attached is a photo of how I think it goes
Appreciate any help
Thank You
Brian
Instructor
Joined: Aug 2014
Posts: 103
Likes: 5
From: Barnstble Mass.
Melting Slicks
Joined: May 2015
Posts: 2,365
Likes: 428
From: Cape Girardeau Missouri
My '79 L82 (late production) is the same but I'm sure at least a portion of the hoses had been replaced before I replaced them entirely. My assembly manuals are from '78 and '80 as the on-line source I found did not have '79. Anyhow that pipe is not included in either. Perhaps it it was a part year only item. I know that '80 was a "weight reduction" year and that some of the minor smaller/lighter/alternate material parts for '80 [seem] to be in my '79.;
Instructor
Joined: Aug 2014
Posts: 103
Likes: 5
From: Barnstble Mass.
Hi Mike,
Thanks for the reply, my '79 is an early production, you could be right (part year only item) probably most "s" pipes were done away with (if they were originally installed) by PO with hose changes, just easier to run the hose right to the water pump. Mine was partially pinched between the bottom of the compressor and A frame, I'm sure sooner or later it was going to wear thru.
Well at this point It's all back together and no leaks so far.
Thanks again
Brian
Thanks for the reply, my '79 is an early production, you could be right (part year only item) probably most "s" pipes were done away with (if they were originally installed) by PO with hose changes, just easier to run the hose right to the water pump. Mine was partially pinched between the bottom of the compressor and A frame, I'm sure sooner or later it was going to wear thru.
Well at this point It's all back together and no leaks so far.
Thanks again
Brian
