Cigar lighter socket outlet has no wiring.
Thread Starter
Melting Slicks
Joined: Oct 2012
Posts: 2,156
Likes: 273
From: Dunedin NZ.
Cigar lighter socket outlet has no wiring.
My '70 has never had a working socket outlet and looking in the console I found that it isn't wired up. According to the wiring diagram it should have an orange wire feeding it from a common point between it and the fusebox somewhere, before I start tearing into the dash can anyone advise where this point is because there is no sign an orange wire in the console:-(
I often use an Innovate O2 meter and have to connect it directly to the battery, it would be easier if I could use the cigar lighter outlet:-)
Also, I assume this circuit was "hot" regardless of ignition key position?
I often use an Innovate O2 meter and have to connect it directly to the battery, it would be easier if I could use the cigar lighter outlet:-)
Also, I assume this circuit was "hot" regardless of ignition key position?
Race Director
Joined: Apr 2009
Posts: 19,294
Likes: 2,754
From: Charlotte NC
I can say that the orange wire is in your harness. Where the last person who decided to remove it or use it for something else is unknown. A photo or photos would be great.
YES...the orange wire is HOT all the time...regardless if the ignition key is in the ignition and turned on or not.
DUB
YES...the orange wire is HOT all the time...regardless if the ignition key is in the ignition and turned on or not.
DUB
Race Director
Joined: Jan 2007
Posts: 10,687
Likes: 697
From: Danville Illinois
2025 Corvette of the Year Finalist - Modified
2024 C3 of the Year Winner - Modified
2021 C3 of the Year Finalist - Modified
2019 C3 of Year Finalist (appearance mods)
I would like to have it so the lighter on my 75 is Not hot when the key is off.
Thread Starter
Melting Slicks
Joined: Oct 2012
Posts: 2,156
Likes: 273
From: Dunedin NZ.
Thread Starter
Melting Slicks
Joined: Oct 2012
Posts: 2,156
Likes: 273
From: Dunedin NZ.
Thanks Alan, I will have to dig into the wiring behind the gauge cluster and see where this orange wire is at because it is definitely not where it should be under the lighter location, the light for it is also missing but I'm not concerned about that. Cheers and Merry Xmas.
Thread Starter
Melting Slicks
Joined: Oct 2012
Posts: 2,156
Likes: 273
From: Dunedin NZ.
I can say that the orange wire is in your harness. Where the last person who decided to remove it or use it for something else is unknown. A photo or photos would be great.
YES...the orange wire is HOT all the time...regardless if the ignition key is in the ignition and turned on or not.
DUB
YES...the orange wire is HOT all the time...regardless if the ignition key is in the ignition and turned on or not.
DUB
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Every 2027 Corvette Engine Explained
Joe Kucinski
Designer Imagines A Corvette That Looks More Like a Corvette Than the Corvette
Verdad Gallardo
10 Ugly Corvettes That We Still Kinda Love
Joe Kucinski
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Thread Starter
Melting Slicks
Joined: Oct 2012
Posts: 2,156
Likes: 273
From: Dunedin NZ.

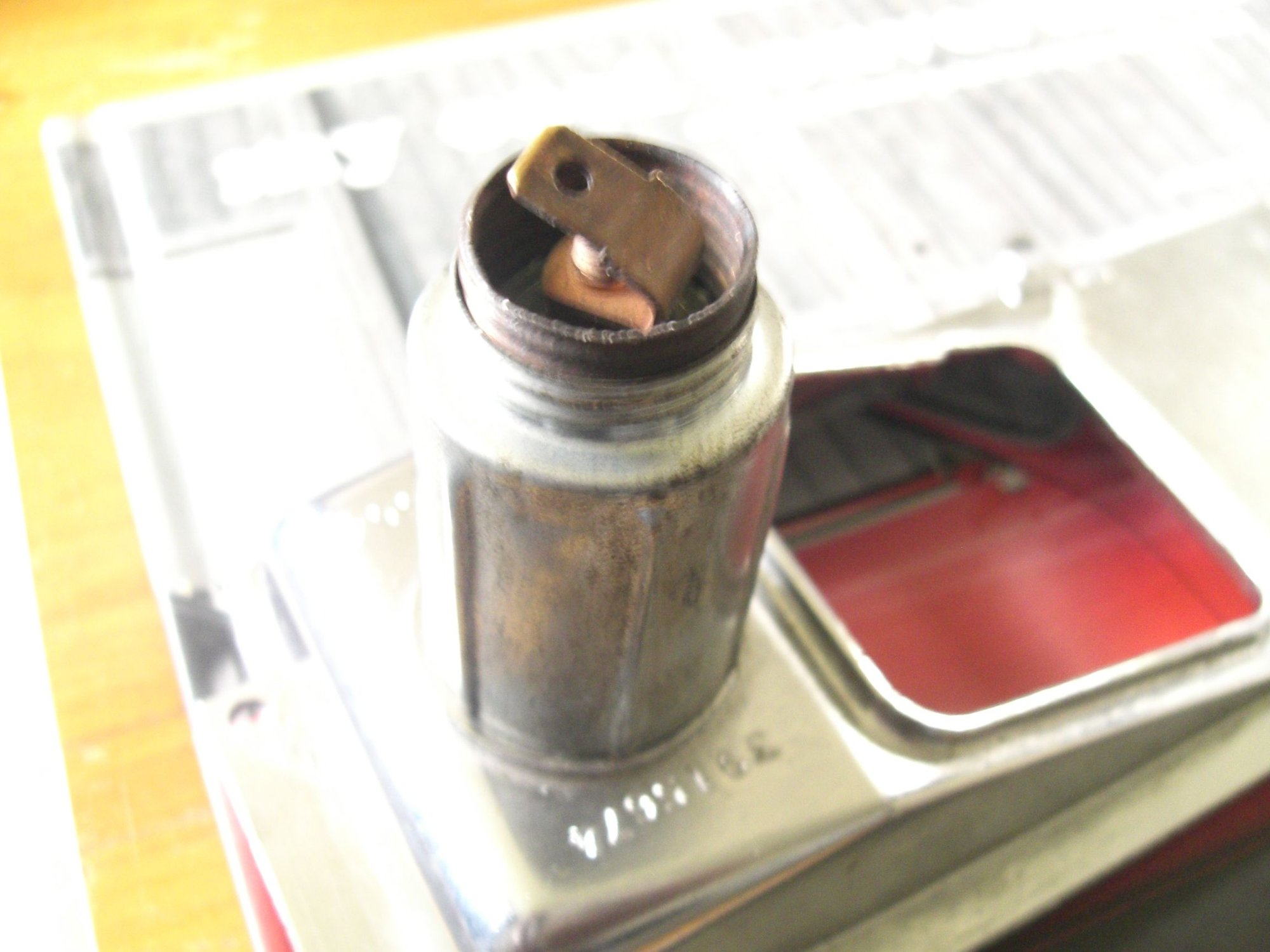

Mystery solved, I found a red wire taped up and pushed under the radio, seems my orange wire is now red and the light fitting is missing from the cigar lighter but there is a grey wire there that seems to belong to it. The cigar lighter body is pretty shabby inside so I think I will replace it just as soon as I can figure out how it is attached to the plate in the pic!
