Rear Camber


Old 01-24-2019, 10:16 AM
  #1
motogotro
CF Member
Thread Starter

Member Since: Aug 2018
Posts: 66
Thanked 1 Time in 1 Post
Default Rear Camber

I took my '81 in to have a 4-wheel alignment but they were not able to get the rear wheels to come into spec. They couldn't tell me exactly what was wrong but when I look at the car from the back the camber is easily visible, the tires lean in significantly at the top. I've ordered the strut rod bushings although I cannot tell for sure that they are bad. I had the car jacked up yesterday and tried to find some slop in the rear suspension but did not find anything excessive. I know there is a busing at the front of the rear trailing arm, is it likely that this bushing is bad as well? Is it replaceable? What else will cause this camber issue with the rear wheels?
motogotro is offline
Old 01-24-2019, 11:09 AM
  #2
Bikespace
CF Senior Member

Bikespace's Avatar

Member Since: Mar 2017
Location: Vienna VA
Posts: 1,426
Thanked 222 Times in 207 Posts
Default

Short answer: If they don't understand enough about how these cars work to tell you what is wrong, they have no business working on your car. Find a Corvette shop, or a mechanic who works on old cars.

Long answer: You can absolutely do this yourself! There are many informative threads on how to do this. The trailing arm bushing will affect rear toe, but even if it is all the way out, making the car undriveable, the camber shouldn't be visually affected. Your strut rods are too long, or your half-shafts are too short. The only adjustment on a stock car is on the inboard strut rod bolts. Barring any bent components (which would likely add positive camber, top angled out), I'm hard pressed to imagine why they can't adjust the camber within spec. Even if your strut rod bushings are worn out, the slop would fall within range. Perhaps your differential is shot, and your yokes are buried inside the case? Can you post some pics?

If you do replace components, heim-jointed strut rods will make this adjustment much easier in the future.

EDIT: Please post pictures! If your rear end is jacked way up, and your half-shafts droop way down, you could run into this, too.

Last edited by Bikespace; 01-24-2019 at 11:15 AM.
Bikespace is offline
The Following User Says Thank You to Bikespace For This Useful Post:
motogotro (01-24-2019)
Old 01-24-2019, 11:19 AM
  #3
gr8t73
CF Senior Member
Support Corvetteforum!

Member Since: Dec 2003
Location: Hot Springs AR
Posts: 590
Thanked 13 Times in 13 Posts
Default

You can get a lot more adjustment with these and they are a fairly easy install.
https://www.zip-corvette.com/80-82-a...trut-rods.html
gr8t73 is offline
The Following User Says Thank You to gr8t73 For This Useful Post:
motogotro (01-24-2019)
Old 01-24-2019, 11:31 AM
  #4
MelWff
CF Senior Member

MelWff's Avatar

Member Since: May 2006
Location: Danbury CT
Posts: 10,311
Thanked 602 Times in 582 Posts
Default

either the bushings are worn in the strut rods or the yokes are coming out of the differential, either one should be easy to see/check. Jack either side of the car up towards the rear of the frame, support it with a jack stand, and grab the bottom of the tire and try moving it in and out. If you have play watch whether the yoke is moving in and out of the differential.
MelWff is offline
The Following User Says Thank You to MelWff For This Useful Post:
motogotro (01-24-2019)
Old 01-24-2019, 11:57 AM
  #5
GUSTO14
CF Senior Member

GUSTO14's Avatar

Member Since: Sep 2003
Location: eastern NC
Posts: 7,082
Thanked 766 Times in 675 Posts
Default

By all means check the simplest things first, the strut rod bushings. More often than not this is what results in too much negative camber.



As MelWff said, the differential side yokes can contribute to this, but usually not enough as to be visible from the rear of the car.

You haven't mentioned how many miles are on the car and the overall condition of the suspension. As others have mentioned pictures do tell a story, so add some if and when you can.

Good luck... GUSTO
GUSTO14 is offline
Old 01-24-2019, 12:24 PM
  #6
motogotro
CF Member
Thread Starter

Member Since: Aug 2018
Posts: 66
Thanked 1 Time in 1 Post
Default

The car has 90k miles and looks to be all original and in very good shape. I had the car jacked up by the frame yesterday and I pushed and prodded on everything I could find/see/get to with no significant movement. I was not able to twist the tire in and out of alignment. The tire did move just a bit but it was almost insignificant. Not enough I would think to cause the camber issues I am seeing. I will post some pics as soon as I can. Thanks for all of the responses already.

My thought was that the rear suspension only has two real components that keep the tire in line, the trailing arm with it's front bushing and the strut rod and it all pivots around the half shaft? The strut rod only applies force to the bottom of the rear spindle/hub/trailing arm so it must be up to the trailing arm bushing to keep the top side of the trailing arm from moving in/out and affecting camber. If the front bushing is shot the trailing arm would be free to twist in place around the strut rod pivot point. It would seem to me that the strut rod is more of a fine tuning component so if the trailing arm front bushing is shot and all of the other components are in good shape, would the camber still go out of alignment?

I have the strut rod bushings on order and will replace those for sure. The more I think about it the more I think I should just go ahead and do the trailing arm bushings too and be done with it.
motogotro is offline
Old 01-24-2019, 12:54 PM
  #7
GUSTO14
CF Senior Member

GUSTO14's Avatar

Member Since: Sep 2003
Location: eastern NC
Posts: 7,082
Thanked 766 Times in 675 Posts
Default

The forward trailing arm pick-up, by virtue of it's rubber bushing does allow a degree of twisting of the trailing arm regardless of the condition of the strut rod bushings. However, what maintains control of camber is is the strut rods and the half shafts. The half shafts (when fully functional) remain fixed so adjustment of the camber, under normal circumstances is controlled by the strut rods. Focus on that first and if you still want or need to replace the control arm bushings do it then.

With 90,000 miles on the car the rear wheel bearing may well be due for servicing (if they've never been serviced before) and that would be a good time to change out the control arm bushings.

Good luck... GUSTO
GUSTO14 is offline
The Following User Says Thank You to GUSTO14 For This Useful Post:
motogotro (01-24-2019)
Old 01-24-2019, 12:56 PM
  #8
Sayfoo
CF Senior Member

Sayfoo's Avatar

Member Since: Sep 2005
Location: Orange County Ca
Posts: 1,592
Thanked 33 Times in 30 Posts
Default

A COMPETENT alignment shop would be able to tell you what the problem is if they couldn't align it.
Go to another shop.
If you post your location, you might get a recommendation.

Last edited by Sayfoo; 01-24-2019 at 12:59 PM.
Sayfoo is offline
The Following User Says Thank You to Sayfoo For This Useful Post:
motogotro (01-24-2019)
Old 01-24-2019, 12:59 PM
  #9
Bikespace
CF Senior Member

Bikespace's Avatar

Member Since: Mar 2017
Location: Vienna VA
Posts: 1,426
Thanked 222 Times in 207 Posts
Default

The OP has Negative camber, top of the wheel is in, bottom is out. A few pictures will save a lot of speculation. I don't see how worn bushings could cause anything but excess positive camber.

Please post pics before you buy anything.
Bikespace is offline
Old 01-24-2019, 01:10 PM
  #10
lars
Tech Contributor

lars's Avatar

Member Since: Aug 1999
Location: At my Bar drinking and wrenching in Lafayette Colorado
Posts: 10,790
Thanks: 0
Thanked 924 Times in 453 Posts
Default

Originally Posted by motogotro View Post
My thought was that the rear suspension only has two real components that keep the tire in line, the trailing arm with it's front bushing and the strut rod and it all pivots around the half shaft? .
The half shaft is what provides the third link to stabilize and establish the camber. A common problem on the Vette rear ends is that the half shaft yokes wear against the spider gear pin inside the differential, until they wear right through the thrust surface and into the snap ring groove. This wear will make the yoke (and the halfshaft) move inward when the suspension is loaded, thus tilting the top of the tire inwards. It can be severe enough that the strut rods cannot compensate for the wear. Someone unfamiliar with this problem would not be able to identify why the camber cannot be adjusted. When the car is jacked up, the yokes will move outwards, allowing the top of the tire to tilt out.

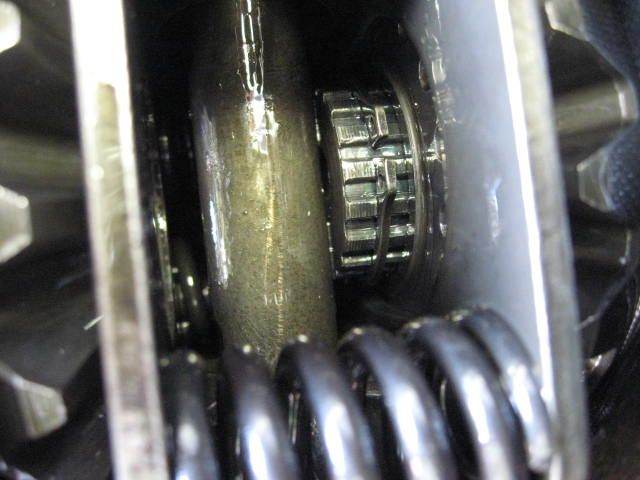

Here is a rear end with just moderate wear on the ends of the yokes. Here the yoke is all the way "out" and up against the snap ring:


When the suspension is loaded, the yoke will move inwards until it hits the spider gear pin. Here the yoke have moved almost 1/4" inward, which will dramatically tilt the top of the tire inwards:


Here is what the worn-out end of the yoke looks like - it has been ground off through the case hardened surface, and will keep getting worse:


There should only be very slight movement of the yoke in the differential case (.010").

Go to my post on this (post #12 in this thread):
https://www.corvetteforum.com/forums...-end-play.html

Lars
lars is offline
The Following User Says Thank You to lars For This Useful Post:
motogotro (01-24-2019)
Old 01-24-2019, 02:24 PM
  #11
motogotro
CF Member
Thread Starter

Member Since: Aug 2018
Posts: 66
Thanked 1 Time in 1 Post
Default


Hopefully you can see the camber in this picture. The strut rod in this picture is already adjusted as far as possible to pull the strut rod inboard.
motogotro is offline
Old 01-24-2019, 02:33 PM
  #12
motogotro
CF Member
Thread Starter

Member Since: Aug 2018
Posts: 66
Thanked 1 Time in 1 Post
Default

So no slip joint in the half shafts like you find in a regular driveshaft? That makes things clearer. I will check to see if the yokes on the inboard end of the half shafts move in and out significantly.
motogotro is offline
Old 01-24-2019, 02:51 PM
  #13
lars
Tech Contributor

lars's Avatar

Member Since: Aug 1999
Location: At my Bar drinking and wrenching in Lafayette Colorado
Posts: 10,790
Thanks: 0
Thanked 924 Times in 453 Posts
Default

Originally Posted by motogotro View Post
So no slip joint in the half shafts like you find in a regular driveshaft?
You can't have a slip joint since the half shaft takes the full load as the 3rd member in the triangle geometry. The driveshaft cannot shift or move inward or outward. If it does, the entire wheel will tilt in and out incontrollably. It's really clear in the photo posted by Gusto14 above: You can see that the halfshaft is the "upper a-arm." The strut rod is the "lower a-arm." The control arm then forms the 3rd link going forward, controlling the toe-in.

Last edited by lars; 01-24-2019 at 02:54 PM.
lars is offline
The Following User Says Thank You to lars For This Useful Post:
motogotro (01-24-2019)
Old 01-25-2019, 02:09 PM
  #14
motogotro
CF Member
Thread Starter

Member Since: Aug 2018
Posts: 66
Thanked 1 Time in 1 Post
Default

Originally Posted by lars View Post
The half shaft is what provides the third link to stabilize and establish the camber. A common problem on the Vette rear ends is that the half shaft yokes wear against the spider gear pin inside the differential, until they wear right through the thrust surface and into the snap ring groove. This wear will make the yoke (and the halfshaft) move inward when the suspension is loaded, thus tilting the top of the tire inwards. It can be severe enough that the strut rods cannot compensate for the wear. Someone unfamiliar with this problem would not be able to identify why the camber cannot be adjusted. When the car is jacked up, the yokes will move outwards, allowing the top of the tire to tilt out.

Here is a rear end with just moderate wear on the ends of the yokes. Here the yoke is all the way "out" and up against the snap ring:


When the suspension is loaded, the yoke will move inwards until it hits the spider gear pin. Here the yoke have moved almost 1/4" inward, which will dramatically tilt the top of the tire inwards:


Here is what the worn-out end of the yoke looks like - it has been ground off through the case hardened surface, and will keep getting worse:


There should only be very slight movement of the yoke in the differential case (.010").

Go to my post on this (post #12 in this thread):
https://www.corvetteforum.com/forums...-end-play.html

Lars
if this turns out to be my problem, does the differential have to come out to replace the half-shaft yokes?
motogotro is offline
Old 01-25-2019, 02:32 PM
  #15
Bikespace
CF Senior Member

Bikespace's Avatar

Member Since: Mar 2017
Location: Vienna VA
Posts: 1,426
Thanked 222 Times in 207 Posts
Default

Originally Posted by motogotro View Post
if this turns out to be my problem, does the differential have to come out to replace the half-shaft yokes?
Unfortunately, yes you will. Removing the rear cover (which has the integrated batwing support), would be more work than pulling the differential out of the car, and with the diff out, you can do more things to restore your differential.

If that is the problem. Did you get the car back up on a lift, and do you have photos from when it was?
Bikespace is offline
Old 01-25-2019, 02:47 PM
  #16
lars
Tech Contributor

lars's Avatar

Member Since: Aug 1999
Location: At my Bar drinking and wrenching in Lafayette Colorado
Posts: 10,790
Thanks: 0
Thanked 924 Times in 453 Posts
Default

Originally Posted by Bikespace View Post
Unfortunately, yes you will.

You have to drop the rear crossmember out of the car with the differential case attached to it. It's not as bad as it sounds...


To get a good and accurate indication of the condition of your yokes, disconnect your halfshafts from the yokes once you have the car raised. This will allow you to freely move the yokes in-and-out without fighting the rear suspension, which will not allow you to move the yokes to check the endplay.

Lars
lars is offline
Old 01-25-2019, 03:09 PM
  #17
motogotro
CF Member
Thread Starter

Member Since: Aug 2018
Posts: 66
Thanked 1 Time in 1 Post
Default

Originally Posted by Bikespace View Post
Unfortunately, yes you will. Removing the rear cover (which has the integrated batwing support), would be more work than pulling the differential out of the car, and with the diff out, you can do more things to restore your differential.

If that is the problem. Did you get the car back up on a lift, and do you have photos from when it was?
I do not have access to a lift and I have not had a chance to see if I can determine if this is my problem yet; however, from what I am hearing there are not too many things that will cause this condition with strut rods being the other likely candidate. My strut rods are already adjusted as far as they can go and I still have significant camber. My strut rod bushings are showing some signs if bushing deterioration but they are not completely shot and I was told that even if they were I should be able to pull the wheel back into alignment so I don't think they are the root problem. So I'm hoping for the best and preparing for the worst. I hope to have a chance to get back under the car this weekend and see if I can confirm one way or the other.
motogotro is offline
Old 01-25-2019, 06:59 PM
  #18
drwet
CF Senior Member

drwet's Avatar

Member Since: Dec 2009
Location: Thunder Bay
Posts: 2,019
Thanked 128 Times in 125 Posts
Default

This is a really common problem with Corvettes and I can't believe it took 10 posts before someone figured it out. The procedure for replacing the yokes isn't really all that bad. The bigger problem is likely to be finding quality replacements.
drwet is offline
The Following User Says Thank You to drwet For This Useful Post:
motogotro (01-26-2019)
Old 01-26-2019, 05:55 PM
  #19
motogotro
CF Member
Thread Starter

Member Since: Aug 2018
Posts: 66
Thanked 1 Time in 1 Post
Default

Originally Posted by drwet View Post
This is a really common problem with Corvettes and I can't believe it took 10 posts before someone figured it out. The procedure for replacing the yokes isn't really all that bad. The bigger problem is likely to be finding quality replacements.
I found some new reproduction yokes on ebay for $220 that fit my car. It looks like they are different for automatic vs manual cars....not sure why but the ones on ebay fit the '81 manual which is what I have.
motogotro is offline
Old 01-26-2019, 09:45 PM
  #20
Wee
CF Senior Member

Wee's Avatar

Member Since: Apr 2010
Location: Cartersville GA
Posts: 1,603
Thanked 177 Times in 161 Posts
Default

Be careful....Some of the eBay ones are junk. I do not know how to tell the good ones from the bad but someone else might.

Brian
Wee is offline
The Following User Says Thank You to Wee For This Useful Post:
motogotro (01-27-2019)
