Default Old School SHP Engine Build

Thought it might be time to show off my latest old school SHP small block engine project. Several forum members here helped me acquire pieces for this build so I thought they might like to see what I am actually doing with all that stuff. We started with nearly nothing so there was a LOT to find and source. Those of you who expect to see aftermarket aluminum heads, EFI and roller cams need not scroll down any further - We are not using any of that here. Just the best good old school GM parts being used and modifications were kept to a minimum. Changes were made only where it was absolutely no question about the need. Dennis (bmans vette) shipped me a nice clean 4-bolt main engine block and core plug set that only needed a stone hone to make it ready for use. Joel (JoeMinnesota) shipped me a very clean set of factory big valve fuelie heads that just needed 8 intake valves and a set of screw-in studs to finish them off. I got a factory steel crank off Ebay that turned out to be a little problematic but more about that in a bit. The oil pan, windage tray, mounting studs, harmonic damper, oil pump, pickup and numerous fasteners system came from Adam (NewbVetteGuy). Nicolas (Strokemyaxe) sent me Holley 650 DP that just might get installed once we rebuild it. Phil (Griff2002) sent me a take-off GM '71 LT-1 Intake manifold that will look perfect on top of this period correct SHP engine. Other parts were either laying around here in my stash or bought new.



crank is in! The pilot bushing and lower timing gear were installed before the crank was dropped in. We don't want to hammer on the thrust bearing if we can avoid it.

You can see where the dip stick goes in this shot. Look at those sexy brass core plugs. The GM windage tray attaches to those 5 extended main cap bolts.

The crank miked up good on the rod journals but the mains were all a bit too much on the loose side. I ended up installing a set of race bearings in .021" undersized in order to close up the clearances just a bit. We will have more engine **** pix as the as the rest of the assembly comes together.
stingr69 is online now
Old 02-07-2019, 04:50 PM
  #2
gkull
CF Senior Member

gkull's Avatar

Member Since: Apr 1999
Location: Reno Nevada
Posts: 19,098
Thanked 330 Times in 299 Posts
Default

When ever I see SHP I think of the SHP dart block. I have my original hot rodded L-82 with smeared Hyper pistons in the bores. I always thought about throwing it back together. 186 double hump ported heads .030 over. Just fun to work on something so simple
gkull is online now
Old 02-07-2019, 06:50 PM
  #3
suprspooky
CF Senior Member

Member Since: Jul 2016
Location: Blaine MN
Posts: 458
Thanked 30 Times in 29 Posts
Default

I'm stumped, what does SHP stand for in this thread (I had the same thought as George)?
suprspooky is offline
Old 02-07-2019, 07:09 PM
  #4
stingr69
CF Senior Member
Thread Starter

stingr69's Avatar

Member Since: Mar 2004
Location: Little Rock AR
Posts: 4,074
Thanked 106 Times in 102 Posts
Default

GM speak for "Special High Performance".
The solid lifter, high RPM, high compression.... and so on.
stingr69 is online now
Old 02-07-2019, 08:41 PM
  #5
OldCarBum
CF Senior Member

Member Since: Mar 2016
Location: Napa California
Posts: 2,140
Thanked 350 Times in 302 Posts
Default

Nice start to see something new.
OldCarBum is offline
The Following User Says Thank You to OldCarBum For This Useful Post:
dan1495 (02-07-2019)
Old 02-07-2019, 09:10 PM
  #6
v2racing
CF Senior Member

v2racing's Avatar

Member Since: Mar 2008
Location: Spring Park MN
Posts: 2,565
Thanked 224 Times in 199 Posts
Default

Back in my younger poorer days I used to build engines like that. Me and a couple of my other gearhead buddies would use a lot of GM high performance parts because they were inexpensive, especially used, and they worked. Fun project!

Mike
v2racing is online now
Old 02-08-2019, 12:20 AM
  #7
OldCarBum
CF Senior Member

Member Since: Mar 2016
Location: Napa California
Posts: 2,140
Thanked 350 Times in 302 Posts
Default

I remember owning, driving and building 60"-70's big blocks in Chevelle's, Camaro's, Buick GS's, and Firebirds.
Throw in a cam, some headers, an intake and a Holley on a Saturday, and you had a monster right off the car lot.
Good times!
OldCarBum is offline
The Following User Says Thank You to OldCarBum For This Useful Post:
KNOT-HEAD (02-14-2019)
Old 02-08-2019, 07:51 AM
  #8
Rescue Rogers
CF Senior Member
Support Corvetteforum!

Rescue Rogers's Avatar

Member Since: Oct 2015
Location: YUPPY HELL Westford MASS
Posts: 4,673
Thanked 642 Times in 593 Posts
2016 C3 of Year Finalist
Default

I built my 327 up to L76 specs last winter (l79 but with solid cam) runs awesome, lots of pep. But I decided I wanted 400 HP so Im popping in a new cam this winter. Love small block SHP motors. easy and fun to play with.

Good luck. Keep up with the pics
Rescue Rogers is offline
Old 02-08-2019, 09:32 AM
  #9
CA-Legal-Vette
CF Senior Member

CA-Legal-Vette's Avatar

Member Since: Jul 2004
Location: Scottsdale Arizona
Posts: 8,502
Thanked 139 Times in 131 Posts
Default

Subscribed

Looking forward to following along. Always fun to watch any engine build but this should be especially so.
CA-Legal-Vette is offline
Old 02-08-2019, 12:14 PM
  #10
cuisinartvette
CF Senior Member

Member Since: Oct 2004
Location: Valencia Ca.
Posts: 67,537
Thanked 1,073 Times in 986 Posts
St. Jude Donor '05
Default

Still like old school basic builds, they dont have to cost a fortune and can be plenty of fun.
Wish GM would start producing all the old performance parts they offered back in the 70s/80s guys would buy them .
Maybe even update some (like camel humps) wiht a better runner, vortec CC, cams etc. Those nitrided steel cranks they had were sweet!
Think they get their crate motor cranks from Scat now.
cuisinartvette is offline
Old 02-08-2019, 01:03 PM
  #11
Rescue Rogers
CF Senior Member
Support Corvetteforum!

Rescue Rogers's Avatar

Member Since: Oct 2015
Location: YUPPY HELL Westford MASS
Posts: 4,673
Thanked 642 Times in 593 Posts
2016 C3 of Year Finalist
Default

I think its AFR that makes an aluminum head with the camel humps casted in. I saw them in a magazine a while back.

My mistake, its trick flow

https://www.hotrod.com/articles/small-block-chevy-double-hump-head-returns-tensema16/

Last edited by Rescue Rogers; 02-08-2019 at 01:06 PM.
Rescue Rogers is offline
Old 02-08-2019, 02:25 PM
  #12
stingr69
CF Senior Member
Thread Starter

stingr69's Avatar

Member Since: Mar 2004
Location: Little Rock AR
Posts: 4,074
Thanked 106 Times in 102 Posts
Default

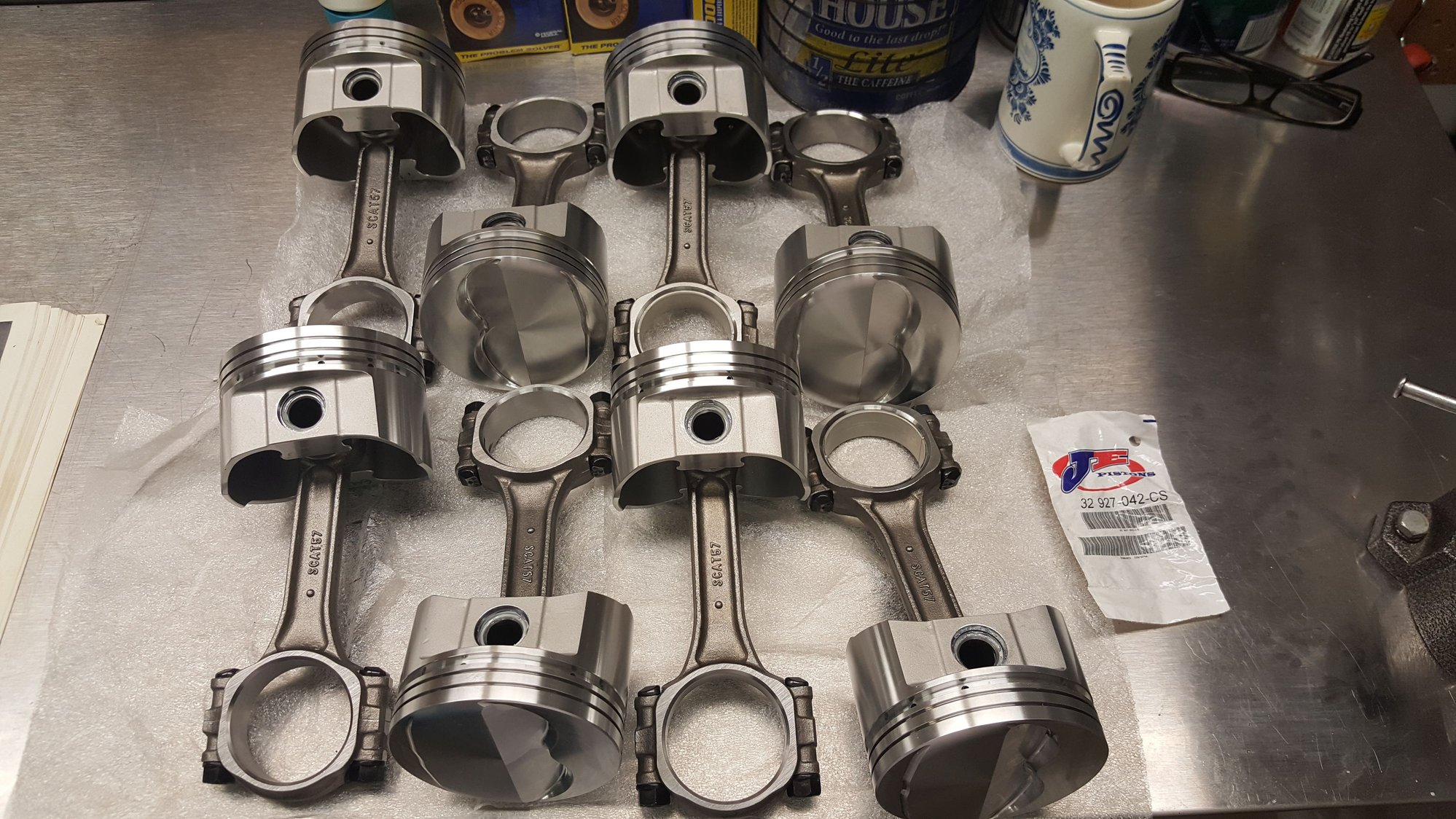

The most painful part of the build is over...The 32 spirolocks piston pin retainers ARE INSTALLED!!!
Those nasty little spring steel torture devices have been responsible for much pain, blood loss and few empty bad-aid boxes. I only got skewered 2 times on this build so I consider myself lucky.

The JE/SRP forged pop-ups used here are designed to use double spirolocks just like the Chevy Power Manual racing modification instructions. I do not worry about the pins falling out on this one. The production line forged pistons used in '69 Z/28's were single spirolocks on babbit plated full floating pink rods but that was an expensive setup even back then. Crazy high to try to do today. '70 and up LT-1's used pressed pin pink rods but those are expensive now too if you can find them. Now, we just have to make do with the well respected SCAT forged rods with bronze bushings in the small end. These SCAT rods come with the better bolts already installed. For the money, you can not build a stock rod up to this level even if the cores came free in a box with an extra $50 bill in it.

stingr69 is online now
Old 02-08-2019, 04:44 PM
  #13
gkull
CF Senior Member

gkull's Avatar

Member Since: Apr 1999
Location: Reno Nevada
Posts: 19,098
Thanked 330 Times in 299 Posts
Default

I can't swear to this as to being 100% accurate, but back before the proliferation of all kinds of speed parts manufactures the "Pink" chevy forged rods were what every hot rodder wanted. So anyway I took my 79 L-82 motor down to have the block bored and all the pistons which were pressed fit removed and then balance all the new assembly. Anyway they were looking at the forged L-82 rods and it was brought up that they looked exactly like "Pink Rods" They were the same thing down to the forging numbers on the beams.

So it might be possible that GM continued to use the supplies of Pink rods in all the forged crank, windage trayed, 4 bolt L-82 motors through the 70's. does anyone here know for sure?
gkull is online now
Old 02-08-2019, 06:01 PM
  #14
stingr69
CF Senior Member
Thread Starter

stingr69's Avatar

Member Since: Mar 2004
Location: Little Rock AR
Posts: 4,074
Thanked 106 Times in 102 Posts
Default

I believe there was really only one rod forging design used from that time period but "pink" rods got the special inspection and surface treatment before the pink paint was applied. All the rod forgings were lightened up in the early '80's

Can't say I remember any paint on mine but I was not looking for it either. I need to look thru my pictures and see. It was built in the last 2 weeks of L-82 production.
stingr69 is online now
Old 02-08-2019, 06:04 PM
  #15
jim2527
CF Senior Member

jim2527's Avatar

Member Since: Apr 2003
Location: Tampa Florida
Posts: 15,455
Thanked 158 Times in 138 Posts
Default

George, Im no expert by any stretch but some Googling around seems to say all L82s got the pink rod. IDK...
jim2527 is offline
Old 02-08-2019, 06:11 PM
  #16
gkull
CF Senior Member

gkull's Avatar

Member Since: Apr 1999
Location: Reno Nevada
Posts: 19,098
Thanked 330 Times in 299 Posts
Default

Originally Posted by stingr69 View Post
I believe there was really only one rod forging design used from that time period but "pink" rods got the special inspection and surface treatment before the pink paint was applied. All the rod forgings were lightened up in the early '80's

Can't say I remember any paint on mine but I was not looking for it either. I need to look thru my pictures and see. It was built in the last 2 weeks of L-82 production.
There is no paint on my l-82 rods, but the shop had sets of Pink rods. When we did side beside comparisons they were the same down to the size and forging stamped numbers. What i'm saying is it possible that GM bought tons of rods thinking that life was good and no problems making LT1 motors in the future and then smog laws and the gas crunch ended all the fun.
gkull is online now
Old 02-08-2019, 06:46 PM
  #17
gkull
CF Senior Member

gkull's Avatar

Member Since: Apr 1999
Location: Reno Nevada
Posts: 19,098
Thanked 330 Times in 299 Posts
Default

Originally Posted by jim2527 View Post
George, I’m no expert by any stretch but some Googling around seems to say all L82’s got the ‘pink’ rod. IDK...
I have been researching " Pink rods" and came across this:

Large-Journal Rods In 1968 and 1969, the 302-ci engine received a large-journal rod with factory installed full-floating piston pins. These rods receive the same special attention as the early Z28 rod. The part number for these rods was PN 3946841; the big-journal pressed-pin rod used in 1970–1979 Z28 engines was listed as PN 3973386. These large journal rods were fitted with stronger 3⁄8-inch rod bolts, which are adequate for any street application and some automatic transmission bracket cars. Here again, if you want to run the engine at high RPM, install ARP bolts to avoid early failure.



The current standard large-journal, pressed-pin rod (usually referred to as a 350 rod) is PN 14096846. It is the “Pink” rod used in the 350 HO engine. A heavier-duty version of the same rod is PN 14095071. This rod is also the well-known heavy-duty 1038 steel “Pink” rod, but it is Magnafluxed, shot-peened, and heat treated. Both of these rods have 3⁄8-inch-diameter rod bolts. The “Pink” rod was used in the 1970–1972 LT1, 1970–1974 Z28, and all L82 350s. A floating-pin version of this rod for 1969–1970 Z28s is available under the original part number PN 3946841 as listed above.

Last edited by gkull; 02-08-2019 at 06:48 PM.
gkull is online now
The Following User Says Thank You to gkull For This Useful Post:
sagebrush rebel (02-08-2019)
Old 02-08-2019, 10:19 PM
  #18
bmans vette
CF Senior Member
Support Corvetteforum!

bmans vette's Avatar

Member Since: Nov 2006
Location: Athens GA
Posts: 18,575
Thanked 252 Times in 231 Posts
St. Jude Donor '12-'13, '15- '16-'17-'18-'19
Default

Nice build Mark.
Love the old school sbc blocks.
Lots of fun memories from early days building high compression solid lifter cam motors to put in Camaros, Chevelles and my buddy's lead sled Impala...
Looking forward to hearing it run.
Dennis (Bman)
bmans vette is offline
Old 02-09-2019, 01:24 AM
  #19
suprspooky
CF Senior Member

Member Since: Jul 2016
Location: Blaine MN
Posts: 458
Thanked 30 Times in 29 Posts
Default

Will you be running it on a Dyno (Crank HP), it would be cool to see what numbers it puts up. Cool build in any case.
suprspooky is offline
Old 02-09-2019, 08:42 AM
  #20
stingr69
CF Senior Member
Thread Starter

stingr69's Avatar

Member Since: Mar 2004
Location: Little Rock AR
Posts: 4,074
Thanked 106 Times in 102 Posts
Default

Originally Posted by suprspooky View Post
Will you be running it on a Dyno (Crank HP), it would be cool to see what numbers it puts up. Cool build in any case.
I do know a guy with a chassis dyno at his house.
That would be fun!
stingr69 is online now
