clutch Z bar question


Old 03-05-2019, 06:40 PM
  #1
C3 4ME
CF Senior Member
Thread Starter

C3 4ME's Avatar

Member Since: Oct 2005
Location: Mechanicsville VA
Posts: 5,555
Thanked 142 Times in 136 Posts
Default clutch Z bar question


I went to start my Vette a while ago, and I heard a pop and the clutch pedal went to the floor. After looking at the linkage its obvious what happened. My question is, does it look like I can just put the special lock washer and nut back on and be good to go? To my novice eye, I don't see anything wrong. Im thinking the nut just backed off because I didn't stake the lock washer as stated in the AIM (which of course I will be sure to do now). Of course the lock washer and nut are nowhere to be found. I guessing they flew somewhere in the garage, but they're not on the floor under the car.
C3 4ME is offline
Old 03-05-2019, 07:14 PM
  #2
carriljc
CF Senior Member

carriljc's Avatar

Member Since: Jan 2001
Posts: 2,367
Thanked 199 Times in 187 Posts
Default

You need one of these "lock" type washers for that end: I just picked the first vendor I saw. Follow the link and you can see some illustrations of how it is installed.

https://www.zip-corvette.com/63-81-c...ck-washer.html




Originally Posted by C3 4ME View Post
I went to start my Vette a while ago, and I heard a pop and the clutch pedal went to the floor. After looking at the linkage its obvious what happened. My question is, does it look like I can just put the special lock washer and nut back on and be good to go? To my novice eye, I don't see anything wrong. Im thinking the nut just backed off because I didn't stake the lock washer as stated in the AIM (which of course I will be sure to do now). Of course the lock washer and nut are nowhere to be found. I guessing they flew somewhere in the garage, but they're not on the floor under the car.
carriljc is offline
Old 03-05-2019, 07:59 PM
  #3
C3 4ME
CF Senior Member
Thread Starter

C3 4ME's Avatar

Member Since: Oct 2005
Location: Mechanicsville VA
Posts: 5,555
Thanked 142 Times in 136 Posts
Default

yeah, and they know me by name at Zip, as they're right up the street from me. I'll be there tomorrow picking that washer up.
C3 4ME is offline
Old 03-06-2019, 02:06 PM
  #4
carriljc
CF Senior Member

carriljc's Avatar

Member Since: Jan 2001
Posts: 2,367
Thanked 199 Times in 187 Posts
Default

carriljc is offline
Old 03-06-2019, 03:13 PM
  #5
Jebbysan
CF Senior Member

Jebbysan's Avatar

Member Since: Mar 2012
Location: New Braunfels Texas
Posts: 3,077
Thanked 352 Times in 318 Posts
Default

Originally Posted by carriljc View Post
You need one of these "lock" type washers for that end: I just picked the first vendor I saw. Follow the link and you can see some illustrations of how it is installed.

https://www.zip-corvette.com/63-81-c...ck-washer.html


Wow...learn something everyday.....

Jebby
Jebbysan is offline
Old 03-06-2019, 05:11 PM
  #6
jb78L-82
CF Senior Member

jb78L-82's Avatar

Member Since: Oct 2007
Location: Rhode Island
Posts: 6,243
Thanked 426 Times in 382 Posts
Default

Originally Posted by Jebbysan View Post
Wow...learn something everyday.....

Jebby
SAME...
jb78L-82 is offline
Old 03-07-2019, 08:06 PM
  #7
ignatz
CF Senior Member

ignatz's Avatar

Member Since: May 2004
Location: los altos hills california
Posts: 1,859
Thanked 193 Times in 161 Posts
Default

Originally Posted by carriljc View Post
You need one of these "lock" type washers for that end: I just picked the first vendor I saw. Follow the link and you can see some illustrations of how it is installed.

https://www.zip-corvette.com/63-81-c...ck-washer.html

I just went out and looked at my car and this "lock washer" is not there. Where it went I don't know as I am usually pretty careful about this stuff. What I also noticed is that there is nothing that seems to retain the felt washer and nothing seems to be indicated. It seems to be poking out of the shaft a bit. Shouldn't there be something there? Have a few things to take care of under the hood and will add this to the list.

Thanks for posting this.


Last edited by ignatz; 03-07-2019 at 08:07 PM.
ignatz is offline
Old 03-07-2019, 09:22 PM
  #8
69427
Tech Contributor

69427's Avatar

Member Since: Jun 2004
Location: I tend to be leery of any guy who doesn't own either a chainsaw or a handgun.
Posts: 12,472
Thanked 185 Times in 158 Posts
Default

Originally Posted by ignatz View Post
I just went out and looked at my car and this "lock washer" is not there. Where it went I don't know as I am usually pretty careful about this stuff. What I also noticed is that there is nothing that seems to retain the felt washer and nothing seems to be indicated. It seems to be poking out of the shaft a bit. Shouldn't there be something there? Have a few things to take care of under the hood and will add this to the list.

Thanks for posting this.

Looking at a spare C2 shaft I have sitting on the shelf, I believe the felt washer is just a dust shield. The item labeled spring is an internal snap ring that keeps the inner and outer seats (and ball stud) inside the tube. This setup, once the nut is tightened, then keeps the cross shaft from moving laterally.
69427 is offline
Old 03-10-2019, 03:22 PM
  #9
gjhinc
CF Member

gjhinc's Avatar

Member Since: Aug 2018
Location: Flower Mound, TX
Posts: 94
Thanked 14 Times in 5 Posts
Default

Originally Posted by C3 4ME View Post

I went to start my Vette a while ago, and I heard a pop and the clutch pedal went to the floor. After looking at the linkage its obvious what happened. My question is, does it look like I can just put the special lock washer and nut back on and be good to go? To my novice eye, I don't see anything wrong. Im thinking the nut just backed off because I didn't stake the lock washer as stated in the AIM (which of course I will be sure to do now). Of course the lock washer and nut are nowhere to be found. I guessing they flew somewhere in the garage, but they're not on the floor under the car.
Thanks for the timely post. I've been meaning to have a look at my squeaky clutch. When I finally got the z-bar off it was bone-dry and with none of the soft parts were anywhere to be found. The frame bracket was bent inward toward the engine to the point where I had to drive a wedge in-between the z-bar and frame bracket to bend it outward. Don't know how it got in that state. Ordered my missing parts from corvetteparts.com. Thanks again.
gjhinc is offline
Old 03-10-2019, 03:33 PM
  #10
carriljc
CF Senior Member

carriljc's Avatar

Member Since: Jan 2001
Posts: 2,367
Thanked 199 Times in 187 Posts
Default

Don't forget to "stake" the tabs.
Actually on mine I thought they were broken off so I put it off till "later" since I'd have to order that "special" staked lock-washer. I remained like that for at least 10 years till (mostly because I spaced it) I went back in last year to replace my pilot bearing. Amazingly enough everything was still tight (better lucky than good) and yet I was able to remove the old lockwasher and the tabs were actually still there... just had to tweak the part to make it usable again and then "restake" them to lock the nut with the support.
carriljc is offline
The Following 2 Users Say Thank You to carriljc For This Useful Post:
C3 4ME (03-10-2019), gjhinc (03-10-2019)
Old 03-10-2019, 07:13 PM
  #11
C3 4ME
CF Senior Member
Thread Starter

C3 4ME's Avatar

Member Since: Oct 2005
Location: Mechanicsville VA
Posts: 5,555
Thanked 142 Times in 136 Posts
Default

Originally Posted by carriljc View Post
Don't forget to "stake" the tabs.
Actually on mine I thought they were broken off so I put it off till "later" since I'd have to order that "special" staked lock-washer. I remained like that for at least 10 years till (mostly because I spaced it) I went back in last year to replace my pilot bearing. Amazingly enough everything was still tight (better lucky than good) and yet I was able to remove the old lockwasher and the tabs were actually still there... just had to tweak the part to make it usable again and then "restake" them to lock the nut with the support.
I tried to get something down from above to stake the washer but couldn't get any leverage to bend the tabs. Can you tell me how you were able to do yours?
C3 4ME is offline
Old 03-10-2019, 07:27 PM
  #12
CanadaGrant
CF Senior Member

CanadaGrant's Avatar

Member Since: Apr 2006
Location: Blind Bay BC
Posts: 3,677
Thanked 262 Times in 232 Posts
Default

I just use a long flat blade screwdriver inserted between the front of the brake booster and fender then give it a tap with a hammer to knock the tab flat against the nut face.
CanadaGrant is online now
Old 03-10-2019, 07:29 PM
  #13
redvetracr
CF Senior Member

redvetracr's Avatar

Member Since: Aug 1999
Location: WI
Posts: 18,049
Thanks: 0
Thanked 157 Times in 146 Posts
Default

a Nylock nut is all I ever used...
redvetracr is offline
Old 03-10-2019, 10:13 PM
  #14
C3 4ME
CF Senior Member
Thread Starter

C3 4ME's Avatar

Member Since: Oct 2005
Location: Mechanicsville VA
Posts: 5,555
Thanked 142 Times in 136 Posts
Default

I don't think I have a long enough flat blade to do that, but I'll give it a try. For now, I went back and backed the nut off and added loctite blue to the stud.
C3 4ME is offline
Old 03-10-2019, 11:21 PM
  #15
carriljc
CF Senior Member

carriljc's Avatar

Member Since: Jan 2001
Posts: 2,367
Thanked 199 Times in 187 Posts
Default

Originally Posted by CanadaGrant View Post
I just use a long flat blade screwdriver inserted between the front of the brake booster and fender then give it a tap with a hammer to knock the tab flat against the nut face.


Geez..... I didn't encounter much of an issue. I used either a long flat blade screwdriver, or a really short one. Lined it up with the tabs that needed bending/folding over and tapped them down with a hammer. I'm sorry I do not have more detail, but it was such a non-problem that I didn't ponder it very long.

Last edited by carriljc; 03-10-2019 at 11:21 PM.
carriljc is offline
Old 03-11-2019, 03:43 AM
  #16
sug
CF Senior Member

sug's Avatar

Member Since: Aug 2013
Location: perth Aus w.a
Posts: 747
Thanked 113 Times in 94 Posts
Default

Just went and checked mine and yes lock washer is there but is on upside down ,the bottom right angle part is on the top . Put that on the list of things to do this weekend.
sug is offline
Old 03-14-2019, 07:24 AM
  #17
gjhinc
CF Member

gjhinc's Avatar

Member Since: Aug 2018
Location: Flower Mound, TX
Posts: 94
Thanked 14 Times in 5 Posts
Default

I'd like to add a few pix from my reinstallation that might be helpful to others. '67 L79 4-speed...

#1. Engine side seal, ball stud and bushing went in easily. Engine side ball stud with rubber bushing mounted to block. No pic.

#2. Frame side first seal went in easily.


#3. Frame side second seal and ball stud went in easily.


#4. Frame side spring went in easily, but, it seemed odd that there was no channel for it to lock into. Only held by friction?


#5. Frame side stud, fully seated, seemed too low in the z-bar. Less than 3/8". Maybe it's just my z-bar.

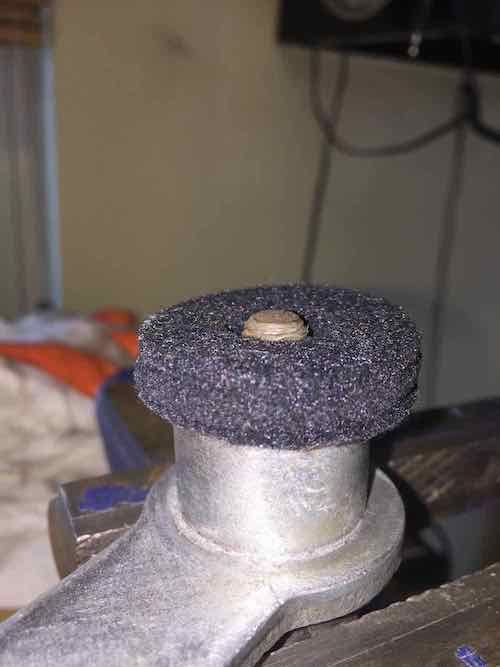

#6. Frame side felt made it obvious something was not right. Again, maybe just my z-bar.


#6. Frame side of my z-bar pre-grinder. 11 1/8" down to 10 7/8". And, it seemed kinda odd, the chamfer at the end. Almost to a point.


I'm guessing my 11 1/8" z-bar was the right length at some point. Maybe the engine shifted the extra 1/4" over the decades? And, I'm sure the right answer would have been to lift the engine, replace motor mounts, etc. I went with the 10 minute grinder path. With the 1/4" shortened z-bar everything fit and the frame side nut could be tightened. If this is a bubba fix, I can live with it.

Last edited by gjhinc; 03-14-2019 at 07:26 AM.
gjhinc is offline
