Possible bent lower arm?
Thread Starter
Pro
Joined: Nov 2017
Posts: 587
Likes: 49
From: Belgium
Possible bent lower arm?
Hi guys!
Passed technical inspection today!
Though, they suspect the car to have a bent lower controlarm.
Is this possible without a collision? Some monkey who replaced the bushings with a big hammer instead of a press?
Is it possible to measure these to check this? (aka, does anyone have these measurements/would be so kind to make these?
)
Would go for tubular arms if this one is bent.
Tia!
Passed technical inspection today!
Though, they suspect the car to have a bent lower controlarm.
Is this possible without a collision? Some monkey who replaced the bushings with a big hammer instead of a press?
Is it possible to measure these to check this? (aka, does anyone have these measurements/would be so kind to make these?
)Would go for tubular arms if this one is bent.
Tia!
Race Director
Joined: Jul 2015
Posts: 13,082
Likes: 3,399
From: SW Florida.
somebody coulda tagged a curb too. you can justify tubulars even if not bent. bad bushing could also make it out of place enough for quickie alignments inspections use to show as possibly bent.
Thread Starter
Pro
Joined: Nov 2017
Posts: 587
Likes: 49
From: Belgium
Bushings are new
Didn't think they could bend as easy as that. I'll probably go down the impala arm route after I've measured them ( if someone could be so kind to measure theirs, front lower passenger side).
Steering pulls to the right as well ( Im saying caster problem, don't have powersteering).
I'll have to wait for my numberplate to arrive anwyay, so would be cool to solve this ( 2 weeks wait)
Didn't think they could bend as easy as that. I'll probably go down the impala arm route after I've measured them ( if someone could be so kind to measure theirs, front lower passenger side).
Steering pulls to the right as well ( Im saying caster problem, don't have powersteering).
I'll have to wait for my numberplate to arrive anwyay, so would be cool to solve this ( 2 weeks wait)
Drifting
Joined: Jul 1999
Posts: 1,542
Likes: 43
From: Plano TX
What gave them the conclusion it might be bent? with the steering straight measure from the center of the rear hub to the center of front on both sides. On the side they suspect is bent is the wheel measurement closer together (shorter distance)?
Also it is easy for the for the frame mounting ears where the control arm shaft mounts to bend. The typical fix would be to push back in place and weld in gussets.
Also it is easy for the for the frame mounting ears where the control arm shaft mounts to bend. The typical fix would be to push back in place and weld in gussets.
Thread Starter
Pro
Joined: Nov 2017
Posts: 587
Likes: 49
From: Belgium
Its indeed closer toghether on that side.
Caster on that side is lower ( if i recall right) made it pull to the right. The wheel is more towards the rear of the arch as well, not really centered in the arch. So the frame ear should have been bent upwards then?
Imma put it on blocks after work and have a better look
Caster on that side is lower ( if i recall right) made it pull to the right. The wheel is more towards the rear of the arch as well, not really centered in the arch. So the frame ear should have been bent upwards then?
Imma put it on blocks after work and have a better look
Thread Starter
Pro
Joined: Nov 2017
Posts: 587
Likes: 49
From: Belgium
1 thick shim on the drivers' side, 1 thick and 1 thin on the passenger side originally.
I added some shims on the passenger side to improve things but didn't work ( shims on the radiator side to increase caster). Or maybe it had an adverse effect?
I added some shims on the passenger side to improve things but didn't work ( shims on the radiator side to increase caster). Or maybe it had an adverse effect?
Melting Slicks
Joined: Jul 2006
Posts: 2,291
Likes: 492
From: Salmon Arm, BC
Just went and measured mine for you.
-Lower A-arm
Widest point 15 1/8" (383mm) pass side, 151/4" (388mm) drivers side.
Inner pivot point outside measurement 14 1/8" (359mm) pass side 14 3/16" (361mm) drivers side
-Lower A-arm
Widest point 15 1/8" (383mm) pass side, 151/4" (388mm) drivers side.
Inner pivot point outside measurement 14 1/8" (359mm) pass side 14 3/16" (361mm) drivers side
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Drifting
Joined: Jun 2012
Posts: 1,990
Likes: 183
From: Port St. Lucie Fl
"Caster is changed by adding or removing different quantities of shims from both studs. Removing a shim from the front stud moves the upper ball joint out and back, creating more positive caster. Adding a shim to the front stud moves the upper ball joint in and forward, creating more negative caster. However, notice the words “in” and “out.” Your camber setting also changes and may need to be reset. If you need a dramatic change you can take a shim off the front stud and add it to the rear stud. This adds more positive caster without changing camber."
but you have to be careful as trying to get the caster where you want it can make your camber way off.
Advanced
Joined: Aug 2017
Posts: 57
Likes: 7
From: Oldenburg/Ohmstede Ghetto Germany
Note: A normal shim pack will leave at least two(2) threads of the bolt exposed beyond the nut. The difference between front and rear shim packs must not exceed 0.40 Inches (10mm) .or check for damaged Control arms and related parts
Thread Starter
Pro
Joined: Nov 2017
Posts: 587
Likes: 49
From: Belgium
Okay;
Did some measurements. Both frame and arm seem to be out of whack.
Measuring from the big hole in the center of what I think is called to cradle to another component :
BH to drivers side nearest 'small' CA mounting bolt : 205mm
BH to passenger side nearest 'small' CA mounting bolt : 215mm
BH to big mounting bolt of the drivers side CA : 270 mm
BH to the big mounting bolt of the passengers side CA: 275mm
Measurements across the car :
Drivers side CA big mounting bolt to passenger side CA big mounting bolt : 440mm
Drivers side inboard 'small' CA mounting bolt to passenger side inboard 'small' mounting bolt : 400mm
Balljoint to balljoint 1210mm
measurements of the control arm :
Drivers side CA :
Balljoint center to big mounting bolt : 398mm
Balljoint center to inboard small mounting bolt : 449mm
Passenger side CA :
Balljoint center to big mounting bolt : 398mm
Balljoint center to inboard small mounting bolt : 455mm
Melting Slicks
Joined: Jul 2006
Posts: 2,291
Likes: 492
From: Salmon Arm, BC
-The way I measured things is from centre line if the big hole to the closest point where the bolt or nut meets the part. My measurements are bold.
-I can't do some of the measurements because mine's up on the lift.
BH to drivers side nearest 'small' CA mounting bolt : 205mm 195mm
BH to passenger side nearest 'small' CA mounting bolt : 215mm 195mm
BH to big mounting bolt of the drivers side CA : 270 mm 252mm
BH to the big mounting bolt of the passengers side CA: 275mm 255mm
Measurements across the car :
Drivers side CA big mounting bolt to passenger side CA big mounting bolt : 440mm 395mm
Drivers side inboard 'small' CA mounting bolt to passenger side inboard 'small' mounting bolt : 400mm 357mm
Balljoint to balljoint 1210mm 1185mm full suspension droop
measurements of the control arm :
Drivers side CA :
Balljoint center to big mounting bolt : 398mm
Balljoint center to inboard small mounting bolt : 449mm
Passenger side CA :
Balljoint center to big mounting bolt : 398mm
Balljoint center to inboard small mounting bolt : 455mm
That passenger tire is way to close to the edge of the ramp.....please fix it
-I can't do some of the measurements because mine's up on the lift.
BH to drivers side nearest 'small' CA mounting bolt : 205mm 195mm
BH to passenger side nearest 'small' CA mounting bolt : 215mm 195mm
BH to big mounting bolt of the drivers side CA : 270 mm 252mm
BH to the big mounting bolt of the passengers side CA: 275mm 255mm
Measurements across the car :
Drivers side CA big mounting bolt to passenger side CA big mounting bolt : 440mm 395mm
Drivers side inboard 'small' CA mounting bolt to passenger side inboard 'small' mounting bolt : 400mm 357mm
Balljoint to balljoint 1210mm 1185mm full suspension droop
measurements of the control arm :
Drivers side CA :
Balljoint center to big mounting bolt : 398mm
Balljoint center to inboard small mounting bolt : 449mm
Passenger side CA :
Balljoint center to big mounting bolt : 398mm
Balljoint center to inboard small mounting bolt : 455mm
That passenger tire is way to close to the edge of the ramp.....please fix it
Last edited by OMF; Apr 17, 2019 at 10:20 PM.
Thread Starter
Pro
Joined: Nov 2017
Posts: 587
Likes: 49
From: Belgium
Brakes used to leak on that side, the new calipers sat too long apperantly, doesnt leak anymore now luckily, need to give it a good wash
I wonder, is that on a 2 post lift?
Wonder if the difference would be frame flex from being on a lift vs on 4 wheels.
Ill be measuring my arms again this afternoon. I need a 2nd C3 to measure here, time to break the piggybank :p
I wonder, is that on a 2 post lift?
Wonder if the difference would be frame flex from being on a lift vs on 4 wheels.
Ill be measuring my arms again this afternoon. I need a 2nd C3 to measure here, time to break the piggybank :p
Race Director
Joined: Apr 2009
Posts: 19,294
Likes: 2,754
From: Charlotte NC
Measuring from the center hole in the front cradle area and outward to the lower ball joints and other areas is not really correct. mainly because you can have sway ion the frame and even IF it is correct....you can still have issues in the frame further back

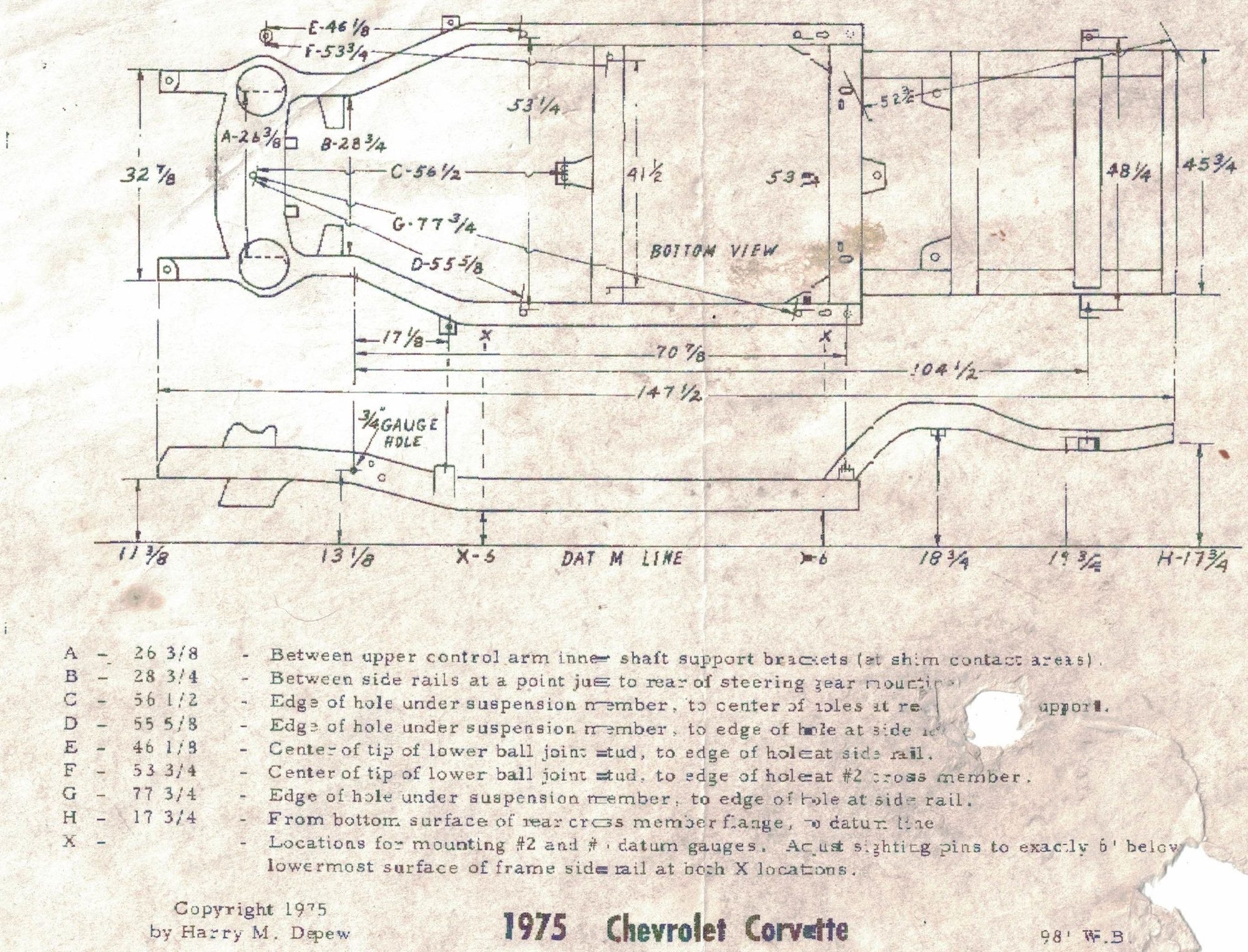

Here is a schematic of a 1975 frame measurements and where to measure from. This schematic also shows measuring the lower ball joint location also.
RULE OF THUMB: Make sure the measurements of the frame is correct at the 'box'...or the CENTER of the frame where your #2 and #3 body mount locations are at FIRST...then measure out from there.
DUB
Here is a schematic of a 1975 frame measurements and where to measure from. This schematic also shows measuring the lower ball joint location also.
RULE OF THUMB: Make sure the measurements of the frame is correct at the 'box'...or the CENTER of the frame where your #2 and #3 body mount locations are at FIRST...then measure out from there.
DUB
Thread Starter
Pro
Joined: Nov 2017
Posts: 587
Likes: 49
From: Belgium
Ill measure tonight when im home!
What do you think about the difference in bottom arms?
I've remeasured those this afternoon ( GMT+1 here) and the passenger side one is 7mm longer on the 'small bolt to balljoint' side ( measuring from the bushing to the balljoint to rule out any suspension height differneces.
Many thanks again!
What do you think about the difference in bottom arms?
I've remeasured those this afternoon ( GMT+1 here) and the passenger side one is 7mm longer on the 'small bolt to balljoint' side ( measuring from the bushing to the balljoint to rule out any suspension height differneces.
Many thanks again!
Thread Starter
Pro
Joined: Nov 2017
Posts: 587
Likes: 49
From: Belgium
found this
"Caster is changed by adding or removing different quantities of shims from both studs. Removing a shim from the front stud moves the upper ball joint out and back, creating more positive caster. Adding a shim to the front stud moves the upper ball joint in and forward, creating more negative caster. However, notice the words “in” and “out.” Your camber setting also changes and may need to be reset. If you need a dramatic change you can take a shim off the front stud and add it to the rear stud. This adds more positive caster without changing camber."
but you have to be careful as trying to get the caster where you want it can make your camber way off.
"Caster is changed by adding or removing different quantities of shims from both studs. Removing a shim from the front stud moves the upper ball joint out and back, creating more positive caster. Adding a shim to the front stud moves the upper ball joint in and forward, creating more negative caster. However, notice the words “in” and “out.” Your camber setting also changes and may need to be reset. If you need a dramatic change you can take a shim off the front stud and add it to the rear stud. This adds more positive caster without changing camber."
but you have to be careful as trying to get the caster where you want it can make your camber way off.
