1969 primary starting circuit question
how do these diagrams overlay? how do I follow a wire through the fuse box?
Does the red wire feed power through the ignition switch to the purple S terminal wire? Or does the switch simply close to complete the circuit?
Do these two halves overlay or are the both one side of the fusebox?
Is the power fed from the red wire to the orange wire and across a fuse to the Purple S terminal circuit here? Or does it go to the horn relay first? If so what route does it take?
solid every time. I know all the power to the car comes to the solenoid first through the Bat. cable. Then travels on the red wire that is on the same large solenoid terminal to the fuse box and to the horn relay. OK Can someone here tell me
1) Does power go through the fuse box to the ignition switch?
2) Does power go to the horn relay first then to the fuse box, then through the ignition switch?

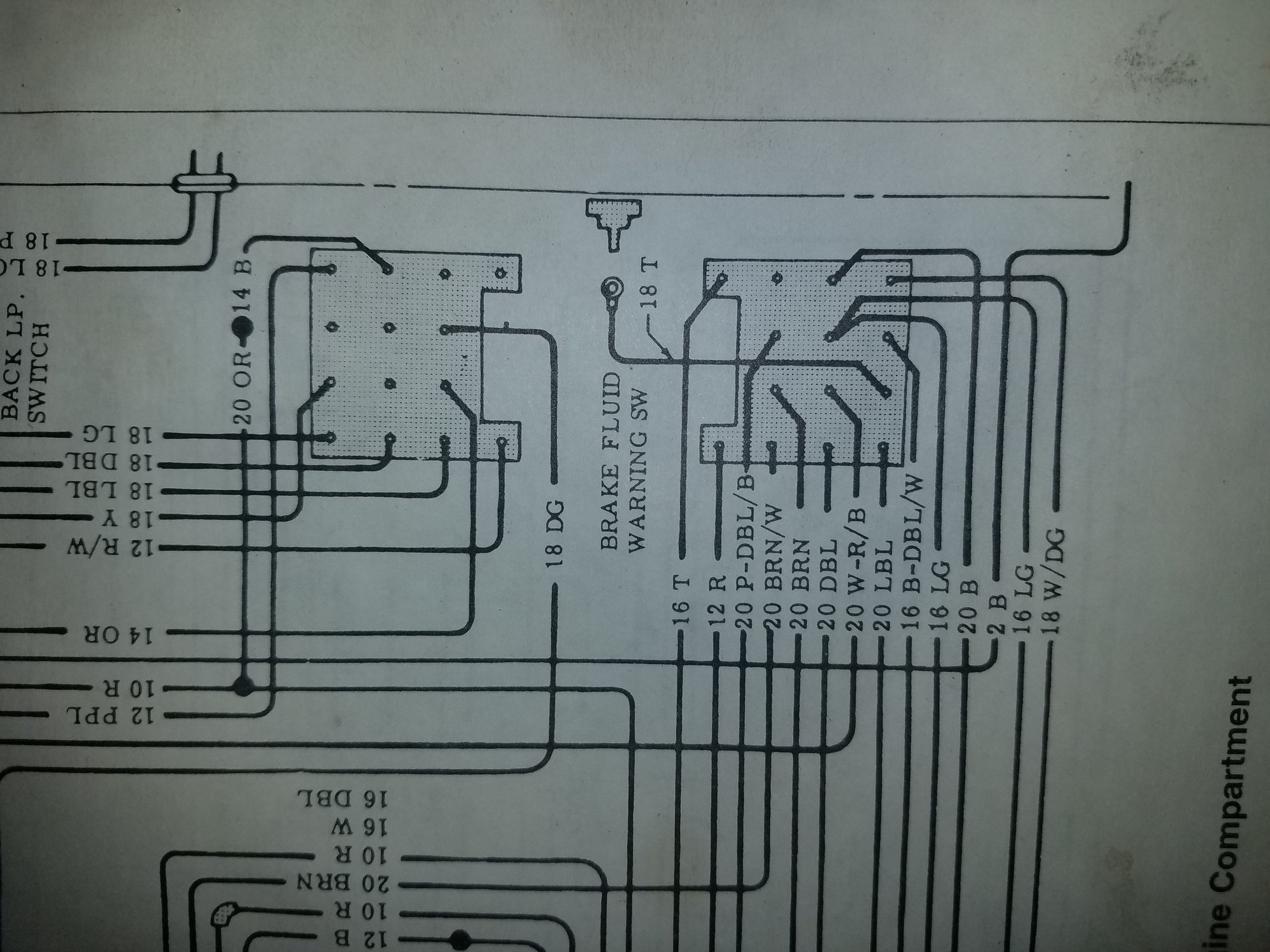

I can follow the schematic fairly easily until I get to the fuse box. how do these diagrams coincide? is each picture one half of the fuse panel? How can I follow a wire through?
I have seen similar threads but none can tell me the exact route of power from the solenoid through the primary starting circuit on the purple wire back to the S terminal.
3) does the purple wire get fed from the ignition switch? if so what color feeds it?I am including some pics and a little coloring project. As you can see I have lots of questions and I have been racking my week brain over this. Maybe someone can help me connect the dots here. Much appreciated. By the way my wiring harness is only a couple years old and it a lectric limited accurate repro and matches the schematic. I'm sure some of you guys know this like the back of your hand and many confused forum members could benefit greatly from this info.
Thanks reading this far and of course any info and or discussion is alway much appreciated. Thanks 69roadster
Make sure these cables are in good condition EXTERNALLY and INTERNALLY. You need to peel back the insulation at the end terminals to be certain the wire has integrity as well as the terminal and the connections.





Then I'd look at the neutral (auto) or clutch safety switch as next the culprit.
Clutch safety switch and wiring-

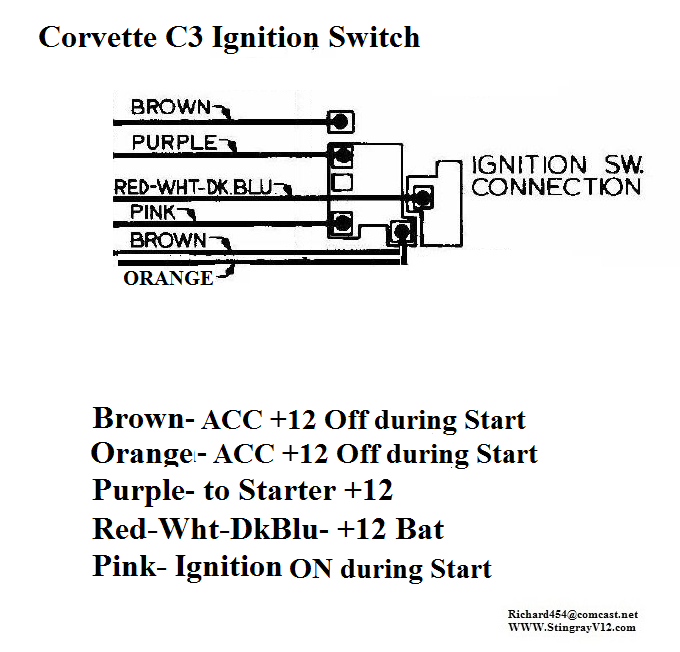

Basic schematic:
The Best of Corvette for Corvette Enthusiasts

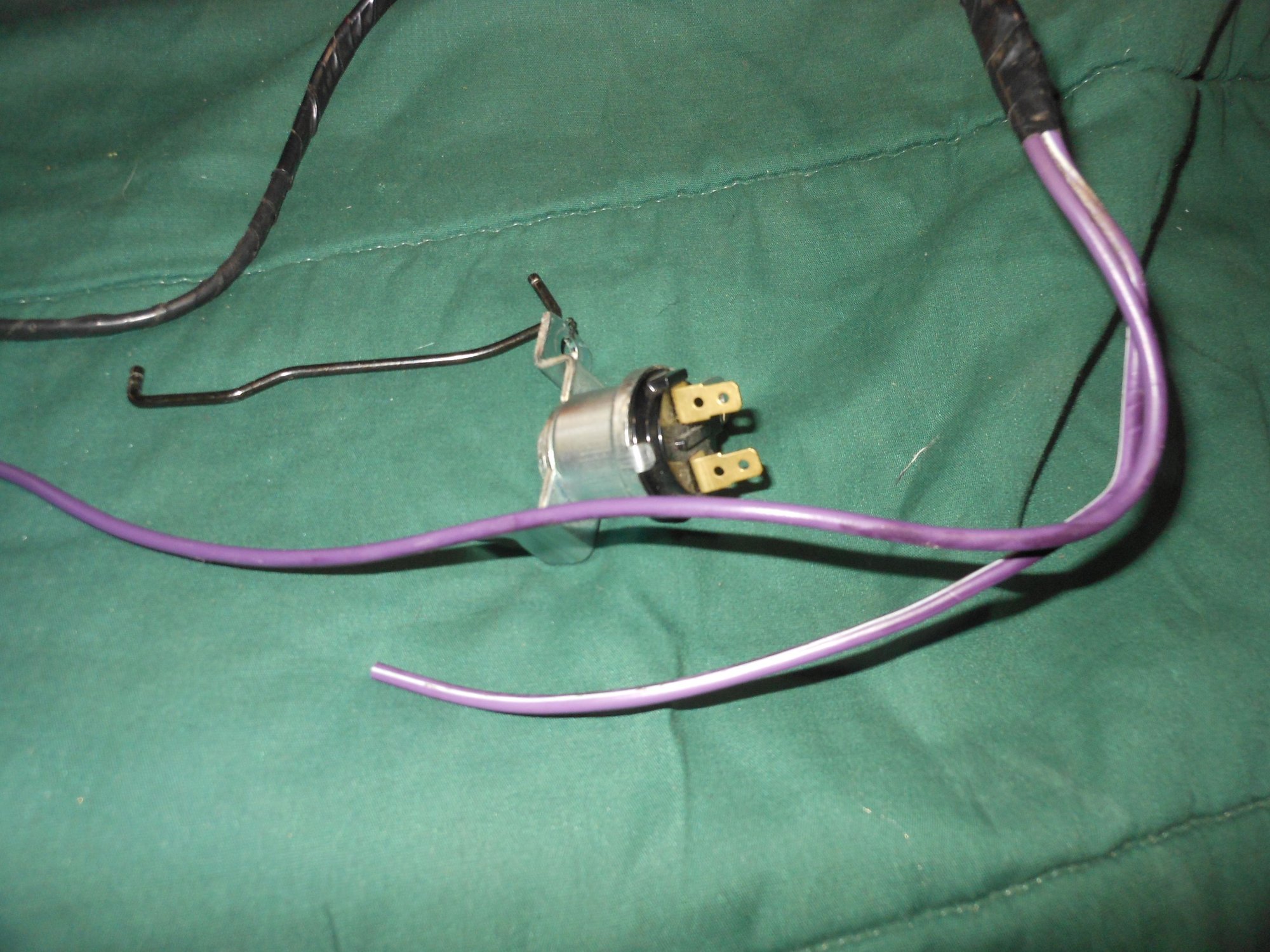

Looking into the passenger cabin from the engine side- purple wire comes through on the top left side


My guess it's easier to install an extra solenoid then to replace that switch inside the steering column.
So, I broke down the column to replace the little rack. This took some time. But I noticed that when I pulled on the ignition switch actuator rod the starter would crank perfectly every time! This lends credence to Cardo0's post. The more I pulled the more juice I got on the meter. Maybe that little rack was already failing or maybe the ignition switch is wearing out or both. The switch is original. Either way they are both getting replaced. Also ordered the ground cable to the motor mount and other ground straps. OK once again waiting on parts. Thanks again for all your input it definitely helps me to keep my diagnosis on the rails


Well the difference between a chevy ignition switch added solenoid and a Ford starter solenoid is the Ford actually moves the bendix gear where the Chevy added solenoid only boosts the voltage to full battery voltage to the starter solenoid which now doesn't see a voltage drop across the ignition switch contacts. Yes I can't stand it when others install an additional solenoid when they have an hot soak problem or an actual bad solenoid/starter. You can read posts by some bozos that can't even explain how to wire a added solenoid but swear it works because that's what Ford uses.
