Need Some AC part location help

Reply Subscribe

Thread Tools

Search this Thread

May 11, 2021 | 01:50 PM

Tim81

Thread Starter

Burning Brakes

Joined: Aug 2006

Posts: 1,058

Likes: 27

From: Eastern North Carolina

Need Some AC part location help

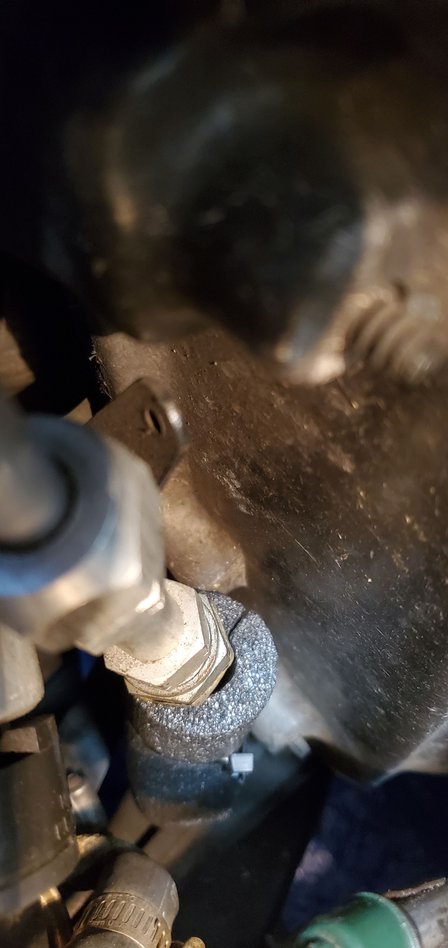

Hello I’m in need of a helping hand. I’m replacing the evaporator and accumulator in my 81. Like a dumb *** I didn’t take any pictures of where everything was located. This picture is of the bracket that attaches some how to the evaporator housing and holds the accumulator securely. Problem is I cannot remember how it was attached to the evaporator. Any help would be greatly appreciated. Thanks

May 11, 2021 | 03:34 PM

81BLACKVETTE

Advanced

Joined: Jun 2016

Posts: 83

Likes: 20

From: Allentown,Pa

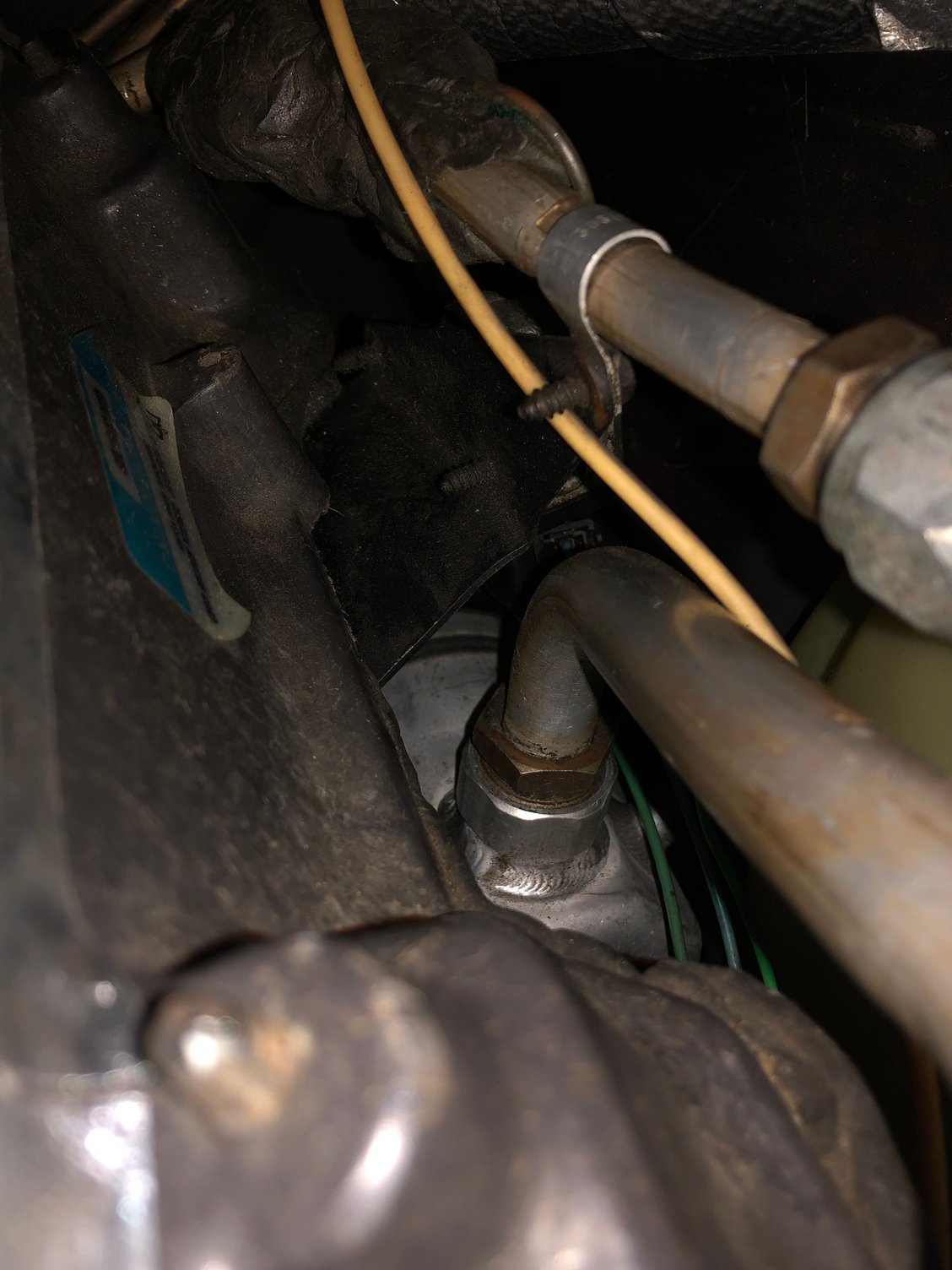

The thinner end of the bracket is peeking though. This is the best picture I can get, not much room. Hope it helps

May 11, 2021 | 03:41 PM

interpon

Le Mans Master

Joined: Jun 2019

Posts: 7,653

Likes: 2,468

From: Indiana

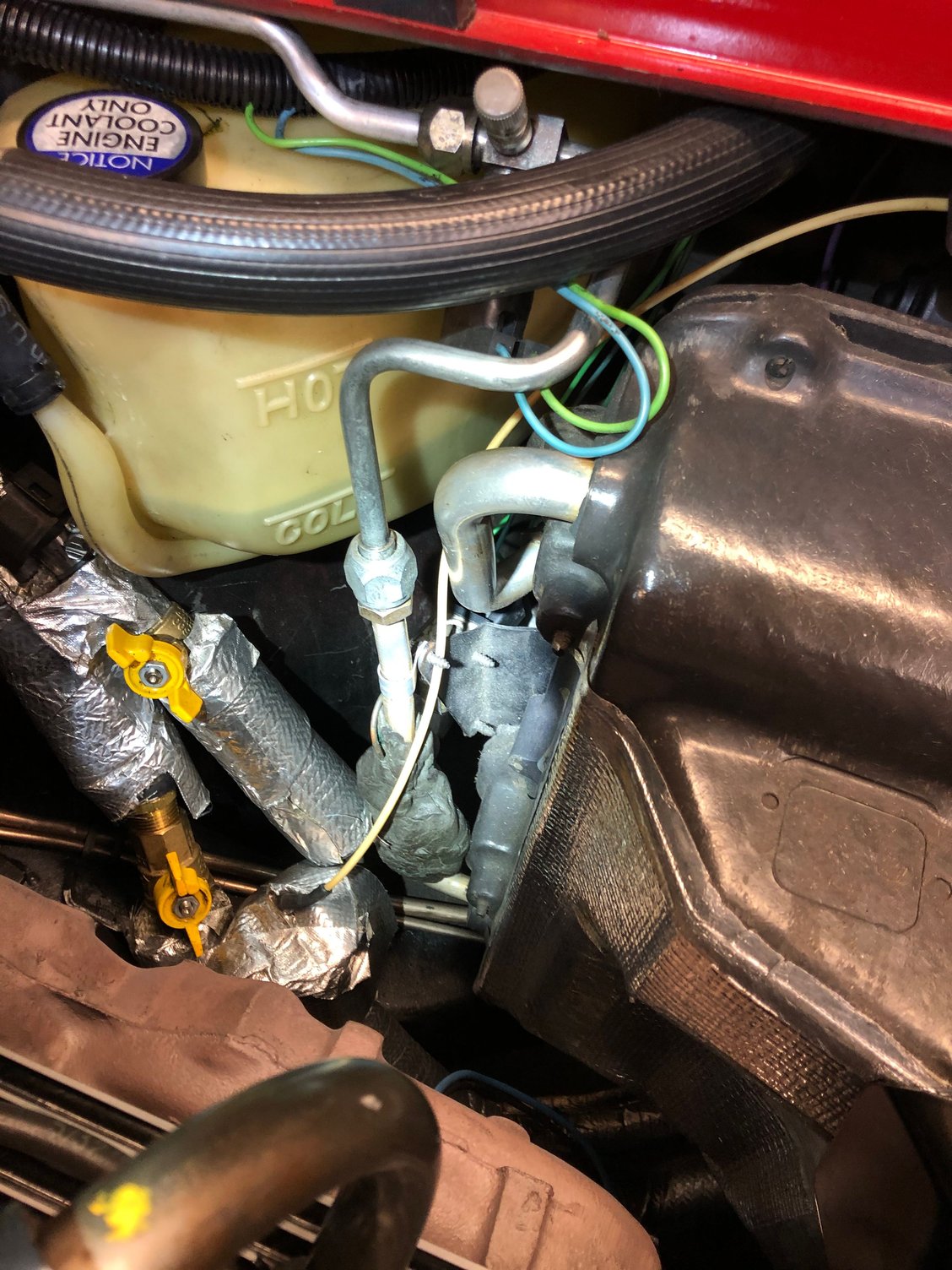

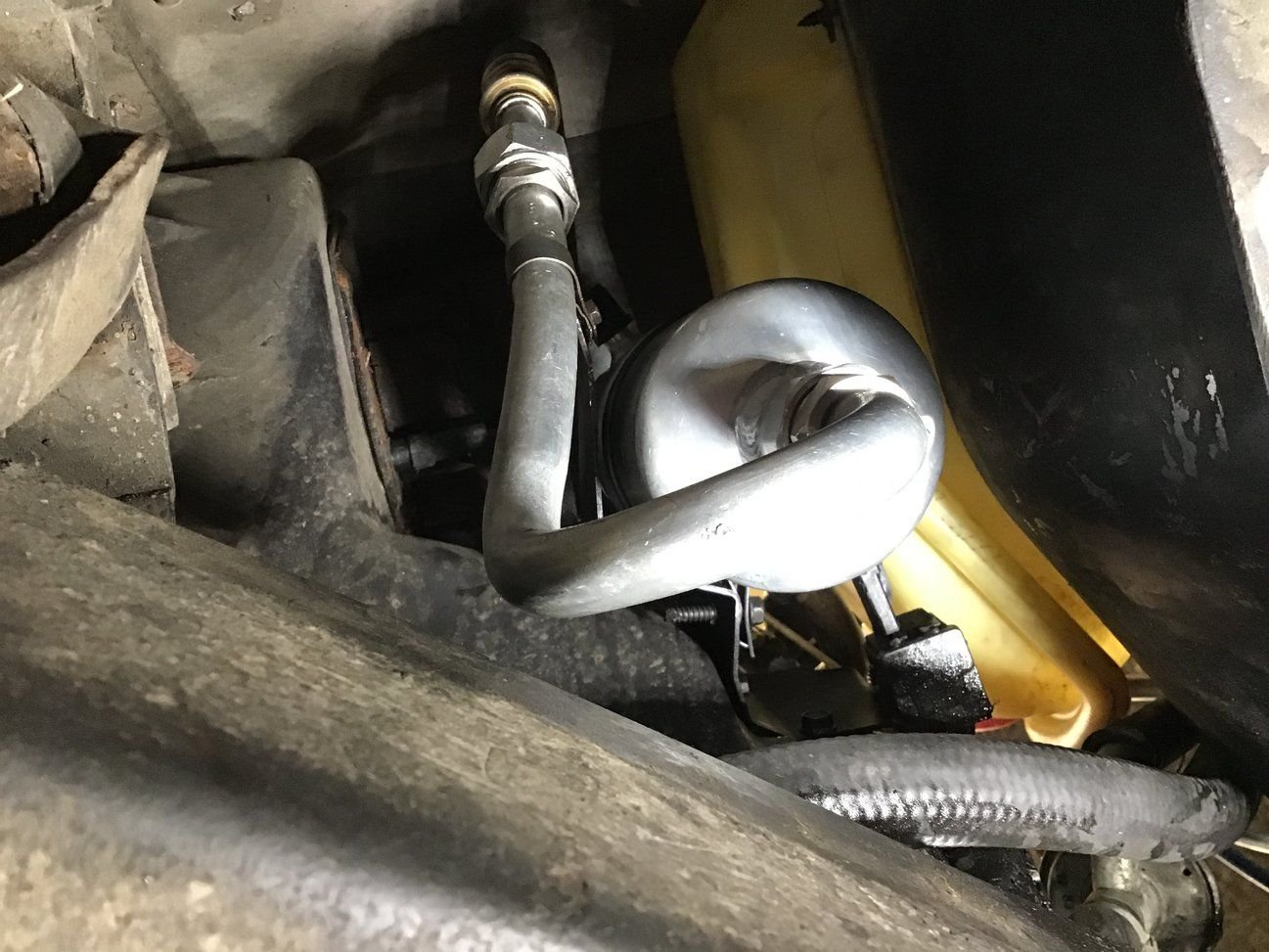

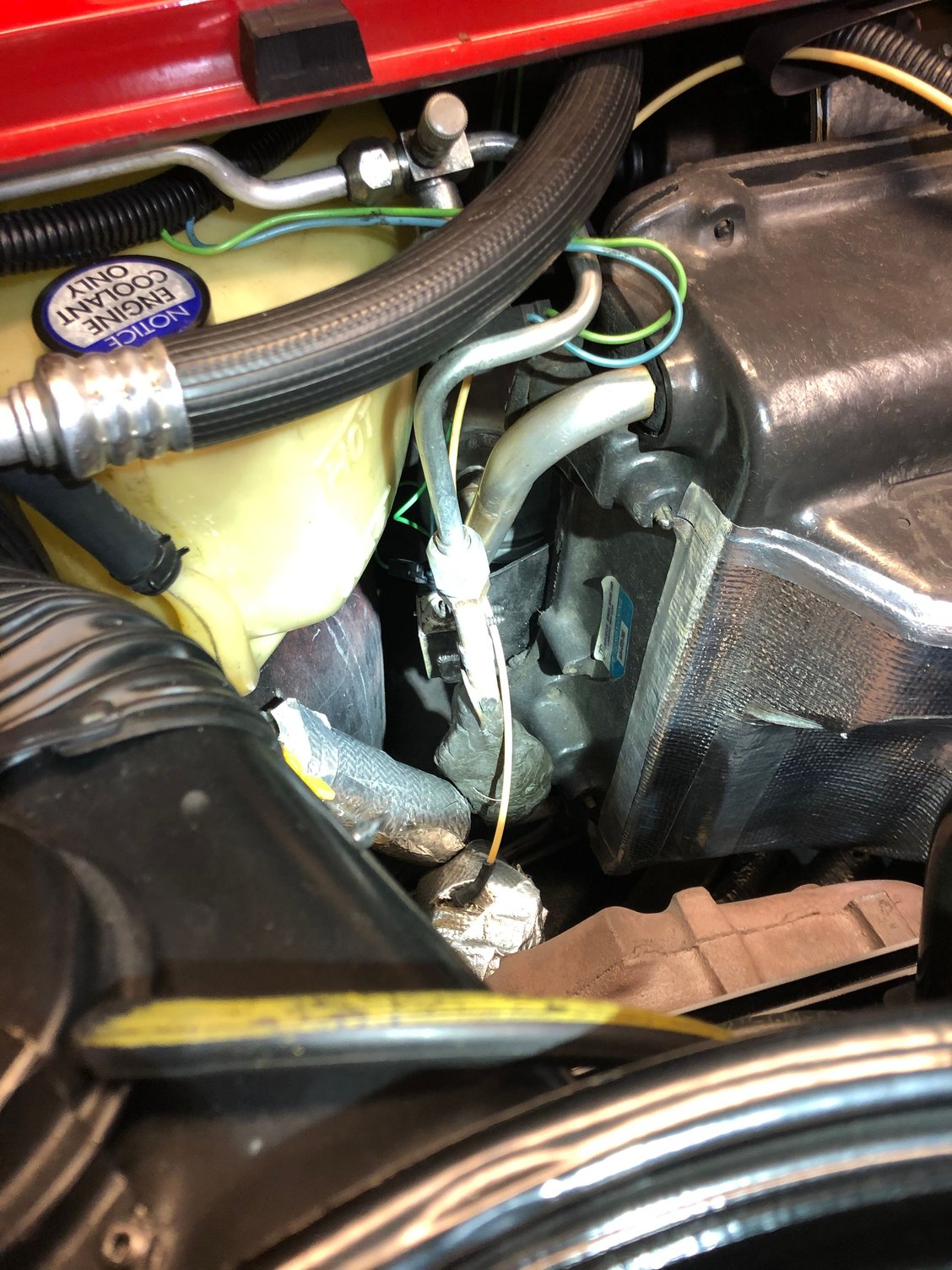

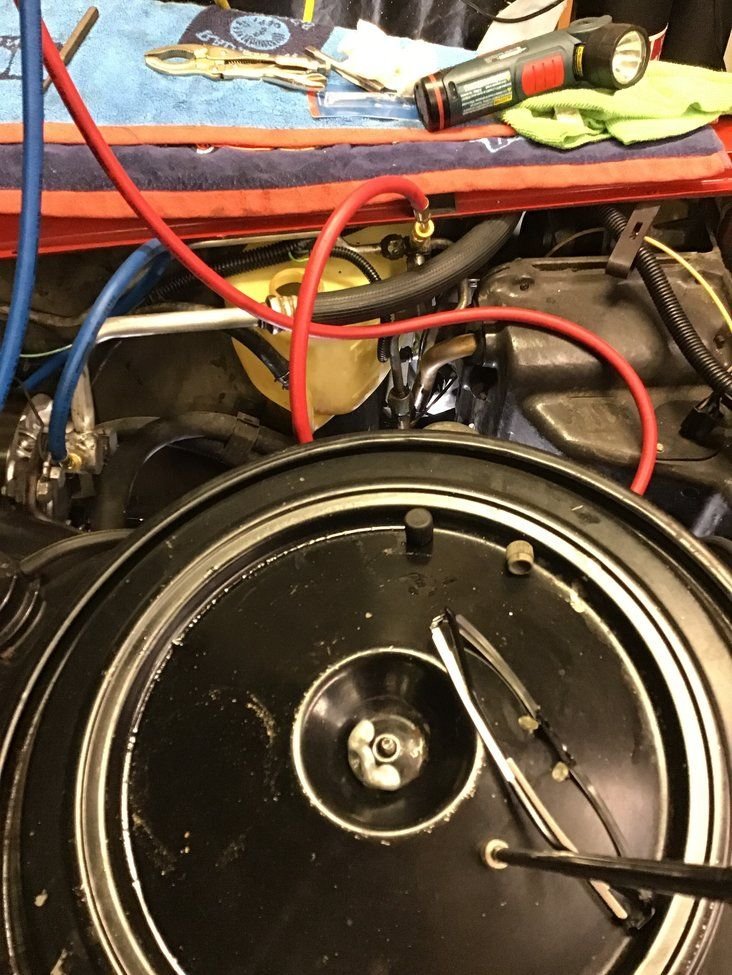

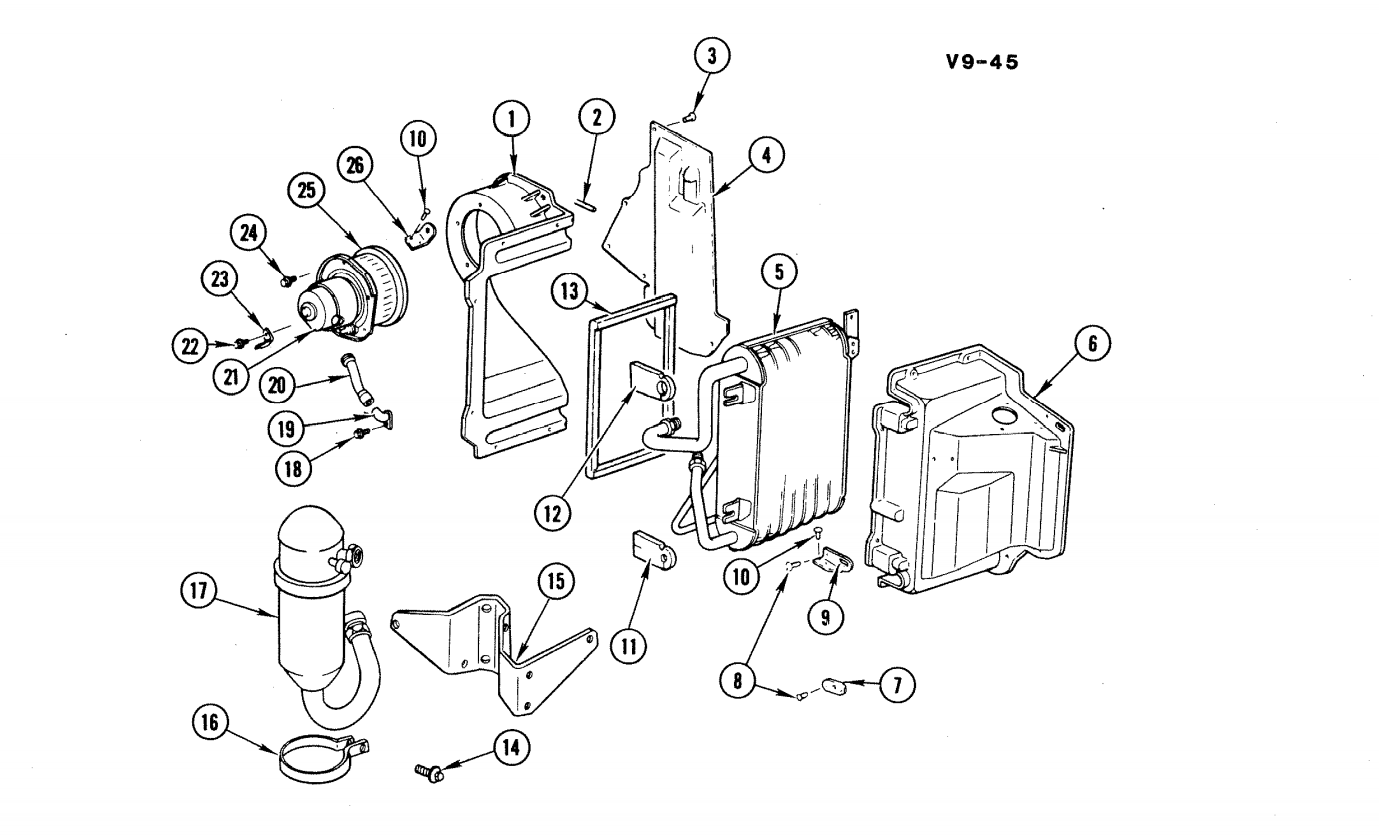

i hear ya.. a couple shots 79.. not sure if same.. let me know and i will dig and try a new pic// pics below from when i did mine
Ac accumulator compressor change where is oriface - Page 2 - CorvetteForum - Chevrolet Corvette Forum Discussion

Last edited by interpon; May 11, 2021 at 04:02 PM.

May 11, 2021 | 04:14 PM

Tim81

Thread Starter

Burning Brakes

Joined: Aug 2006

Posts: 1,058

Likes: 27

From: Eastern North Carolina

Thank You both the picture are very helpful

May 11, 2021 | 04:20 PM

Yadkin

Race Director

Joined: Oct 2019

Posts: 10,735

Likes: 63

From: Deep in the Pisgah National Forest

One of the problems that you might be having is that the generic evaporator could have a fitting that was not on your old one, and that conflicts with the factory bracket. I had to modify mine.

Also, taking out the "shark gill" on the passenger side gives you another way to access that area.
