Quench virus compression ratio.
I'm not factoring in the EFI and the signal it needs to run properly. I know nothing about the aftermarket EFI's and what they need to run properly. Could be it's a tradeoff to get them to work with a dual plane? At least when CR or cam overlap may be an issue.
If you effectively increase the plenum volume and thereby runner volume effectively, you slow down the intake charge.
I agree the dual plane increases the signal to the carb, due to the smaller plenum volume (and longer runners) since it can't "share" with the other cylinders creating a higher velocity charge and better vacuum signal due to the increased velocity.
Don't get me wrong I'm not saying milling down the center divider was not necessary for the EFI, I simply don't know.
But in a low CR or too much overlap cam scenario it would not be beneficial for below peak torque performance. The OP seems to have performance issue below 3000 RPM. The range in which slow intake velocity would be felt. And I'm not sure that this is not at least partially a tuning issue with the EFI.
Without knowing specifically all the specs of the engine we're just kinda shooting in the dark anyhow. I think more light will be shed once we can establish the actual CR of the engine. I'm curious what pistons were used. If they are 4 valve cutout, dish pistons, there is probably most of the problem.
I used a modified open spacer to join left to right sides in my dual plane intake to increase above peak torque performance. I also have 10.6CR with a short duration cam, so intake velocity and capture is not a problem below peak torque.
I understand it's not a "cut and dried" thing. Each engine needs to be evaluated individually and what performance is desired from it.
Last edited by REELAV8R; Jul 26, 2021 at 11:07 AM.





Once we can establish the CR of this engine then it will be possible to determine, or at least eliminate, the cause of some of the problems. Using the 1.5's is sort of a bandaid fix for the current situation assuming low CR and too much cam duration. If in the future you plan on remedying that then you shouldn't need them.
Dug up a thread started by me in 2012. It shows how to cc the piston in the bore. If your pistons look like those pictured then good quench is not possible.
https://www.corvetteforum.com/forums...mber-size.html
It is a similar process for the combustion chamber in the heads. You can even cc the intake runner if you want to. 185cc may actually be 190+cc. Makes a difference in the performance.
Look at a cam spec. card. The cam overlap is only at the start of the lobe ramps. Not up at the peak of max lift. That's why a roller cam with quicker and higher lift will create more vacuum that the same duration flat tappet.
Second the MAP sensor EFI issue reading only one half of a dual plane is a real issue. Holley consistently denies it because they say it is "an inappropriate manifold for the engine combo". However when it occurs the EFI makes the "combo" act up much worse than a carb ever did. And then on some combos it works just fine. But then in the fine print they also suggest a single plane. Possibly the intake divider milling helped that issue. It did on engine masters with a carb engine, the milling added 20 lb TQ at 2500, but that one was not EFI. It may or may not exist any longer in the POs car. A way to test it is two O2 sensors, or just add a cheap 1" 1 hole spacer for an experiment, or maybe some datalogging.
Last edited by leigh1322; Jul 26, 2021 at 01:15 PM.
Look at a cam spec. card. The cam overlap is only at the start of the lobe ramps. Not up at the peak of max lift. That's why a roller cam with quicker and higher lift will create more vacuum that the same duration flat tappet.
Per degree of crankshaft rotation (and per degree of camshaft rotation) the 1.6 rocker opens the valve further in distance. This is what were counting on when upping the RR to 1.6.
But you need sufficient intake velocity to make it work. Just like you need sufficient CR to support the duration of the cam.
Once it opens enough distance to flow THAT starts the valve flow and if both are open, the overlap. If that overlap occurs sooner ( due to greater valve opening distance) you have increased the overlap. Beneficial if you got the CR and velocity to support it.
You have also increased the potential for intake reversion in a lowCR / velocity scenario, due to the opening of the valve in distance relative to the position of the piston. Crankshaft degrees vs valve opening distance. This reduces the volume of charge retained in the combustion chamber if there is insufficient intake velocity.
Due to low intake velocity the inertia of the fresh charge is reduced, thereby increasing charge lost back into the head by the rising piston. Once the air speeds up enough due to RPM the reversal is reduced. Low RPM/below peak torque is going to suffer the most. Peak torque RPM will also occur later.
I know it's a small difference in max valve lift, but a difference none the less, and throughout the entire travel of the valve not just peak lift.
A roller cam developers more vacuum due to later valve opening and more optimized valve opening characteristics. It can open the valve quicker not restricted by the edge riding of the flat tappet.
i didn’t say the 1.6 are causing the problem just that they are not helping. If the problem is low CR and excessive duration, which at this time that appears to be the case.
Last edited by REELAV8R; Jul 26, 2021 at 03:56 PM.
Not just valve opening, valve closing as well.
This means a larger opening for intake charge to escape back into the head during valve closing per degree of crankshaft rotation.
Also means exhaust valve opening and closing. So overlap is increased two fold. Both on intake valve closing and exhaust valve opening NOT in degrees open, but in the distance the valve is off the seat per degree of rotation. which means the CFM that is going to pass through the valve at any given degree of rotation is greater in either direction.
Advertised duration is usually computed @ .006" of valve lift based on 1.5 RR for a small block and will occur at a specific number of degrees of crankshaft/camshaft rotation. If we change that ratio to 1.6 we just changed the degrees of rotation that .006" of lift will occur, as well as the commonly used .050" of lift.
If flow starts earlier, ie the valve achieves .006" of lift, with less crankshaft degrees of rotation the effective duration has been changed. Same on the other side. Now the degrees of crankshaft rotation are greater to get the valve opening down to .006" of lift.
Not only that, we accelerated the movement of the valve. We increased how far it will move but in the same number of degrees of crank rotation, so it has to move faster. Is there enough spring to prevent seat bounce or spring surge?
It's faster movement is what we are banking on for increased intake flow. It can only work effectively if we have sufficient velocity of flow to "pack" it into the cylinder. Lacking that it is easily pushed back into the head with a rising piston while the intake valve is closing.
Also during the overlap period if the intake charge lacks sufficient velocity/energy it is easily sucked out the exhaust valve with the escaping exhaust. slow moving air changes direction much easier than fast moving air.
Increase the effective duration of the exhaust valve and this effect is increased.
Once everything is moving fast enough to prevent these undesirable effects it works great. The question is where does that happen?
Perhaps at an RPM higher than desired if lacking sufficient CR, or too big of runners in the head, or the wrong intake size or type. That RPM may be too high for the application if it's a street driven car.
In gkull's example if the original lift at the valve was .500 and and lobe lift is therefore .3333" then moving to a 1.6 make the valve lift .5333". Yes we can say that is only .033" of increase. But it can also be noted that .033" of valve lift is 6.6%. The percentage is a notable amount and what I would make my comparison with not just the distance increase in inches.
Last edited by REELAV8R; Jul 26, 2021 at 10:13 PM.
Easy and worth a shot.





Last edited by 4-vettes; Jul 26, 2021 at 10:19 PM.
The Best of Corvette for Corvette Enthusiasts
https://forums.holley.com/showthread...=stumbles+2000

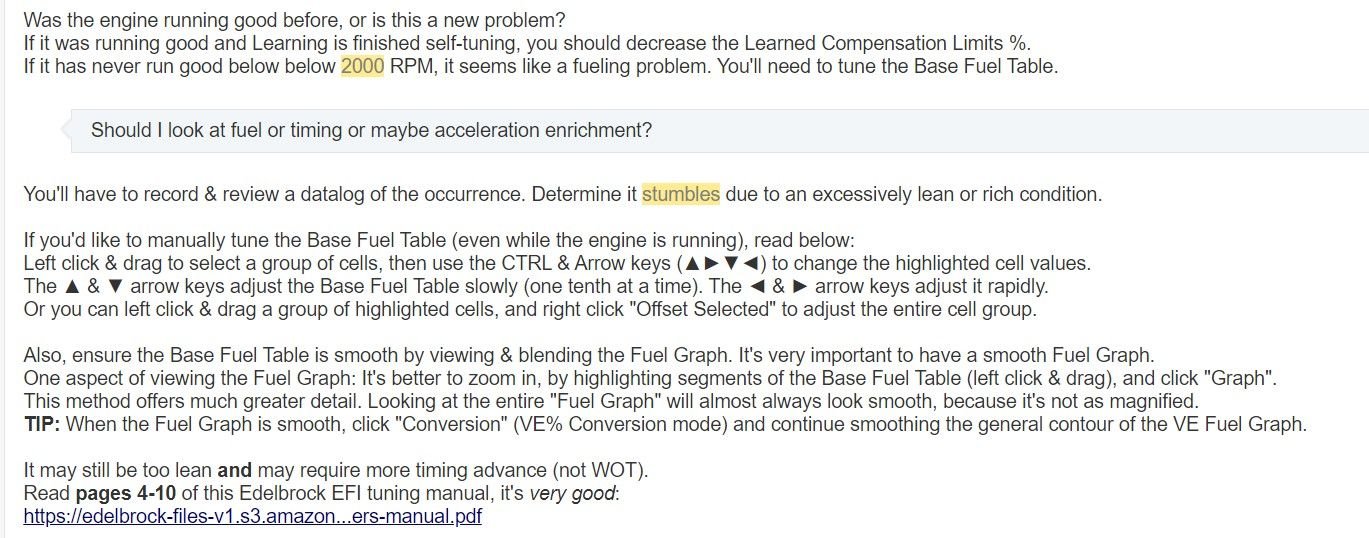

And it really appears as if it could be a fueling issue. Do you know how to do datalogging? And determine if it is lean or rich when you have the stumble?
And that manual mentioned does a great job of
explaining spark and fuel for a "large" 234 degree cam.
Good luck trouble shooting it!
Lee





Funny part is, after rebuilding the engine, I was having the same issues trying to tune my carb, (A Holley).
And said stuff it, and put on the EFI. Which is so nice in so many ways I will perserviere and get this sorted.
I do believe my combination of parts, in spite of what was meant to be good advice from a good friend is flawed.
And yes to those who keep asking. if you read all my posts you will see that I have stated already the piston type. gasket type, specs on the heads and cam.
I am hoping the raise in compression along with a single plane intake will get me to a point where I can tune it.
In the short term, until I can round up all the parts. it does run fine as long as I don't have any fun. Unfortunately that's no fun.





Adjusting the dTPS max gain does seem to have some effect. but not enough. more accelerator shot or less Seems have little effect.
reversion is definitely a probable cause. Also the uneven floor in the RPM manifold and unequal length runners can be causing some real tuning issues.
I have obtained some Fel-Pro. 015 head gaskets. I have a line on a old Torker single plane manifold that I should get my hands on next weekend if this lock down ends. Not certain if I will need to add a spacer on top of this old manifold or not. Any thoughts?
I'm hoping raising the compression a bit, opening up the exhaust a bit with the 2 1/2 inch rams horns into 2 1/2 inch chambered duel exhaust system and putting on this single plane manifold will get me to a point where I can get the tune right.
Exhaust manifolds are still a month away. couldn't find anyone who has the ones I want in stock.





Small cams have very little intake manifold reversion caused by valve over lap.





I have read a fair bit about how these Automotive Intakes with throttle body injection get "Wet" while cruising. Then on decell, they will pull the fuel off the walls. they have adjustments for "Tip out" in the Fi Tech tuning to compensate for this. What in the Harley world we would call de-cell inleanment. However, with my RPM manifold. some runners are almost twice as long as others. so I drop the throttle, then after a few seconds or so I restab the throttle. the short runners have dryed out. the long runners maybe only half dryed out. Now, when suddenly hitting the throttle hard after just letting it decell. it studders and stumbles untill it finally clears.
This isn't reversion in the intake I'm talking about. But I believe a real tuning issue with a dual plane intake with throttle body EFI. This just wouldn't happen if the injectors were spraying right at the intake valve. And, if I didn't wish to drive my Vette aggressively. perhaps I would never even see a problem.
But it's a Corvette. I want to drive it aggressively. And unfortunately I have a very limited budget.
The early Torker manifold is most likely less than ideal.
But the runners are fairly straight and fairly close to equal length.
I started this post to learn. And I have been doing a fair bit of reading elsewhere as well.
I don't think I'll ever have the fastest car in town. that's OK.
But the current hard aceleration is just embarrassing.
If you can shed more light on this I am all ears.
keep in mind this "Junk" single plane is almost free.
You want terrible......look at a Weiand X-Cellerator.....the original design...I think it was part # 7175. This intake is so bad that it can cause a good running engine to run like **** just by installing it.....
All this puddling and theory about runners and all that is not valid to me......what is valid is that your Throttle Body may have MAP vacuum reference only on one side of the primary......a dual plane can and will have two distinctly different vacuum signals form each side......this can trick a Throttle body into doing something it shouldn't be doing.
There is simply no reason to run a dual plane intake on an EFI throttle body.......
GM did it on TBI to "pull" on the cone harder for better atomization......but you can't compare a GM TBI to a radial venturi style TBI.......
A Team G (7530) is a better choice here but seeing on what you all deal with over there to get speed parts.....I would test with the Torker.....just make sure you flat sand the mating faces nice and flat.....
Jebby
Last edited by Jebbysan; Aug 2, 2021 at 08:08 AM.






This should dramatically help throttle response due to fueling issues at low RPM with a dual plane and throttle body. Also, very cheap. Just some time and a set of intake manifold gaskets.
I would definitely try this before you start buying cams and other parts.
Last edited by 73racevette; Aug 2, 2021 at 11:54 AM.





You need to get off the cam... I've done some Fitech builds and the problem usually ends up being bad grounds and not full voltage to the brain. The ECU needs power from the alternator and the battery like the starter positive. Twin leads to both power sources and negative. Which would be the battery and engine block
Yes, my friends 69 Camaro 383 H roller cam 236/244 110 mid .500 lift runs great on a edl air gap with a plenum divider with a cut down area and no spacer. His is a sub 6000 rpm build





Oddly enough, Today is my birthday. None the less. 300 bucks US is about 450 Australian. plus fright. most likely over 200 Australian. I've had my niece ship things over for me in the past trying to save over what a lot of these companies charge. And haven't saved much. Shipping is expensive.
I think for the price of some gaskets I will give this manifold a try. I can always swap it out later if it works out OK.
As per type of injection. Thought I had covered that but perhaps I was unclear. It's the Summit MAX 500 (built by Fi Tech). sitting on a Edlebrock RPM manifold with the center divider milled out. intank pump, LS style filter regulator. power is off the Alternator. grounded to the intake manifold. Runs perfectly in ever situation except hard aceration under 3,000 RPM. Fuel pressure holds perfectly right on 60 psi.
Perhaps I'm missing something in the tuning. But I have tryed a lot of combinations, results vary only slightly until I go way rich or way lean with the dTPS settings. Then of course it gets even worse.
