Console wires
Race Director
Joined: Mar 2017
Posts: 11,949
Likes: 4,507
From: Virginia
What year car?
Wiring diagrams can be found here:
http://wordpress.keystonestatecorvet...m/?page_id=118
I'm sure someone will recognize the connectors, though.
Wiring diagrams can be found here:
http://wordpress.keystonestatecorvet...m/?page_id=118
I'm sure someone will recognize the connectors, though.
Thread Starter
Racer
Joined: May 2021
Posts: 331
Likes: 15
From: Las Vegas
What year car?
Wiring diagrams can be found here:
http://wordpress.keystonestatecorvet...m/?page_id=118
I'm sure someone will recognize the connectors, though.
Wiring diagrams can be found here:
http://wordpress.keystonestatecorvet...m/?page_id=118
I'm sure someone will recognize the connectors, though.
Safety Car
Joined: Oct 2007
Posts: 4,380
Likes: 1,742
From: Seattle Area Washington
Is this a late build NON A/C 77?

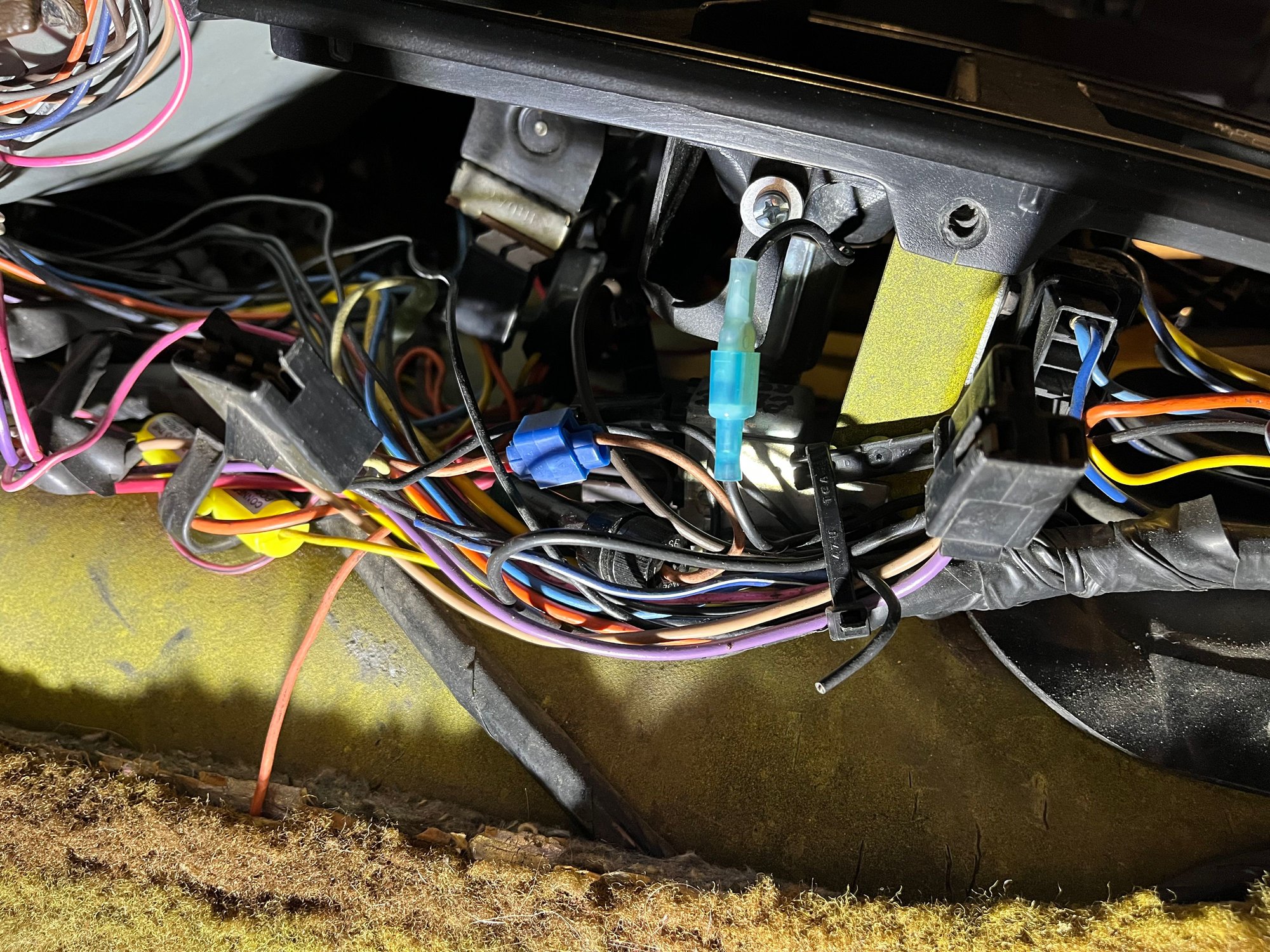

I see 2 connector housings that have no home...
Could you be more specific, the PACK-CON 1 housing or the damaged Series 56 housing?
Also the wire colors at the housing would also help...
I see 2 connector housings that have no home...
Could you be more specific, the PACK-CON 1 housing or the damaged Series 56 housing?
Also the wire colors at the housing would also help...
Safety Car
Joined: Oct 2007
Posts: 4,380
Likes: 1,742
From: Seattle Area Washington
If you have a Late Build 1977 ANY of the online FREE line diagrams will be incorrect...
The only correct manual that covers both early and late build 1977 is the 1977 Electrical Troubleshooting Manual
Along with the Assembly and 1977 Service manual this is a must have...
E-Bay Link:
https://www.ebay.com/sch/i.html?_fro...0&LH_PrefLoc=2
The only correct manual that covers both early and late build 1977 is the 1977 Electrical Troubleshooting Manual
Along with the Assembly and 1977 Service manual this is a must have...
E-Bay Link:
https://www.ebay.com/sch/i.html?_fro...0&LH_PrefLoc=2
Thread Starter
Racer
Joined: May 2021
Posts: 331
Likes: 15
From: Las Vegas

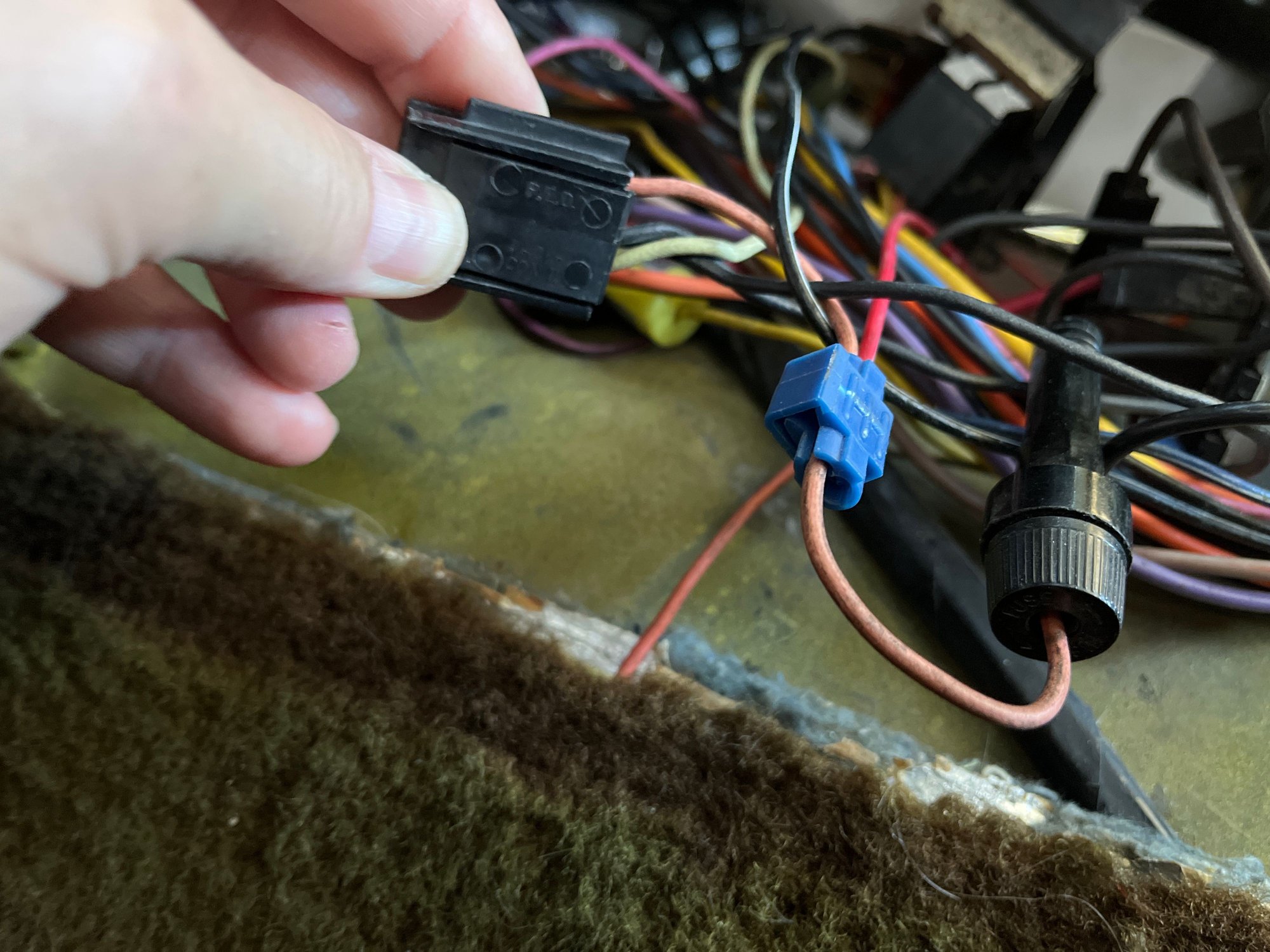

Here’s a picture of that left connector.
Thread Starter
Racer
Joined: May 2021
Posts: 331
Likes: 15
From: Las Vegas

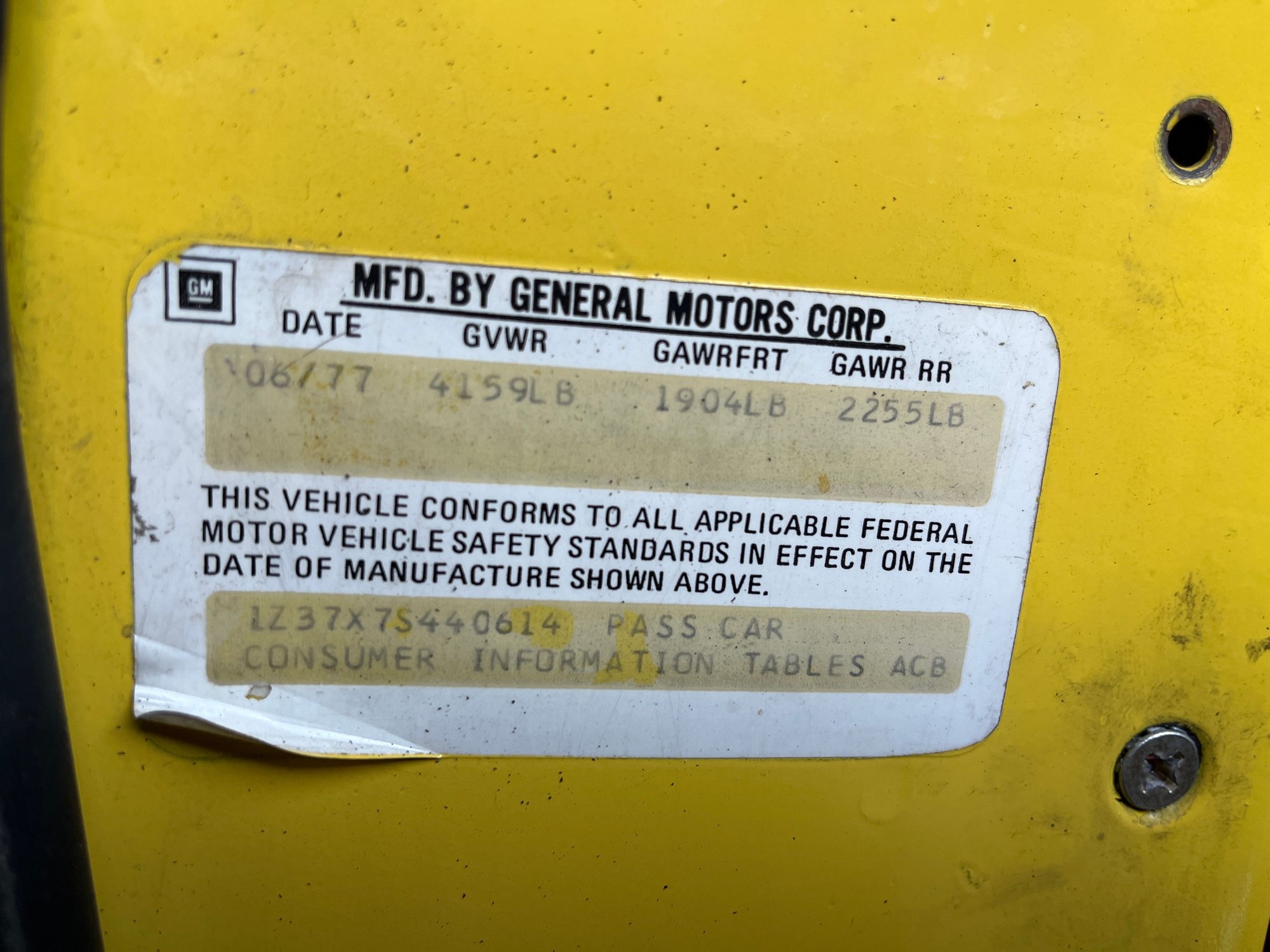

I just found a tag in the door here’s a picture of it I believe my car was built in June 1977.
Safety Car
Joined: Oct 2007
Posts: 4,380
Likes: 1,742
From: Seattle Area Washington
Yes, your 77 is a Late Build.
I'm still not 100% sure if that connector housing you are holding is a 4 cell or 5 cell?
It is definitely a PACK-CON 1 series.
If it is a 4 cell, the only 4 cell PACK-CON 1 series housing(s) I know of in that area is the Speaker Harness connector from radio to speakers, but the Orange wire you say it has doesn't make sense. A Speaker connector at the radio would have 2 Blacks, 1 Dk.Green 1 Lt.Green wire colors for a AM/FM Mono unit.
If it is a 5 cell housing "A Couple" of the wire colors make some sense but the "2 Black" wires don't unless they are DK.Brown?.
That connector housing would also have a Yellow wire if it "WAS" the connector to the HVAC Function Control Switch.
Now for the Series 56 3 wire connector housing with Black,Brown Tan & Purple that would be for your Defogger Switch.
I'm still not 100% sure if that connector housing you are holding is a 4 cell or 5 cell?
It is definitely a PACK-CON 1 series.
If it is a 4 cell, the only 4 cell PACK-CON 1 series housing(s) I know of in that area is the Speaker Harness connector from radio to speakers, but the Orange wire you say it has doesn't make sense. A Speaker connector at the radio would have 2 Blacks, 1 Dk.Green 1 Lt.Green wire colors for a AM/FM Mono unit.
If it is a 5 cell housing "A Couple" of the wire colors make some sense but the "2 Black" wires don't unless they are DK.Brown?.
That connector housing would also have a Yellow wire if it "WAS" the connector to the HVAC Function Control Switch.
Now for the Series 56 3 wire connector housing with Black,
Last edited by bmotojoe; Jul 30, 2022 at 09:09 AM. Reason: Strikeout Brown wire changed to Tan
