Hey, I was wondering if anyone has ever made or bought a rear diffuser for the C4? I see they have them for the C5s and C6s and thought about making one for the C4.
I was also wondering if anyone had any experience with splitters for the front? Another downforce application...
Anyone know about C4 downforce or aerodynamics for the C4? Does anyone know anything about the correct way to make a diffuser so it will work properly?
Lets see some pics if possible!
I was also wondering if anyone had any experience with splitters for the front? Another downforce application...
Anyone know about C4 downforce or aerodynamics for the C4? Does anyone know anything about the correct way to make a diffuser so it will work properly?
Lets see some pics if possible!
Race Director
Joined: Jun 2004
Posts: 13,895
Likes: 691
From: WI
I've been planning to make one for mine, when time allows. I don't expect a big gain but a little help adds up, also partly for filling in the area where the spare tire was. In your first picture you can see how the whole under body is aero. Adding just a diffuser without the rest isn't a complete system.
There was a thread in the C4 ZR1 section with pix of a diffuser being made and several others too IIRC. There was also just a topic in the race section about making a diffuser. Check those threads and also get a decent aero book.
Some pix I saved:
There was a thread in the C4 ZR1 section with pix of a diffuser being made and several others too IIRC. There was also just a topic in the race section about making a diffuser. Check those threads and also get a decent aero book.
Some pix I saved:
Safety Car
Joined: Oct 2008
Posts: 4,689
Likes: 4
From: Yucaipa CA
Used to be a company that made them for C4's that came in a complete body kit. Thought it was sold through ecklers or one of the vette suppliers. Don't remember the company that made them though but was a nice setup.
aci but they refer to it as a tunnel
aci but they refer to it as a tunnel
Last edited by jeffp1167; Jan 31, 2011 at 11:55 AM.
Thread Starter
Safety Car
Joined: Dec 2008
Posts: 3,588
Likes: 10
From: North New Jersey
I've been planning to make one for mine, when time allows. I don't expect a big gain but a little help adds up, also partly for filling in the area where the spare tire was. In your first picture you can see how the whole under body is aero. Adding just a diffuser without the rest isn't a complete system.
There was a thread in the C4 ZR1 section with pix of a diffuser being made and several others too IIRC. There was also just a topic in the race section about making a diffuser. Check those threads and also get a decent aero book.
Some pix I saved:
There was a thread in the C4 ZR1 section with pix of a diffuser being made and several others too IIRC. There was also just a topic in the race section about making a diffuser. Check those threads and also get a decent aero book.
Some pix I saved:
Burning Brakes
Joined: Aug 2010
Posts: 833
Likes: 1
Shouldn't be too hard to make a rear diffuser if you have the right skills. That greenwood kit That jeffp posted up is more for aesthetics than aerodynamics. I've actually seen a splitter for the front of a C4 that bolts in place of the spoiler and had reinforcements bolted to the bottom of the front bumper. However, these aero devices don't really work unless you have them as close to the ground as possible.
Race Director
Joined: Jun 2004
Posts: 13,895
Likes: 691
From: WI

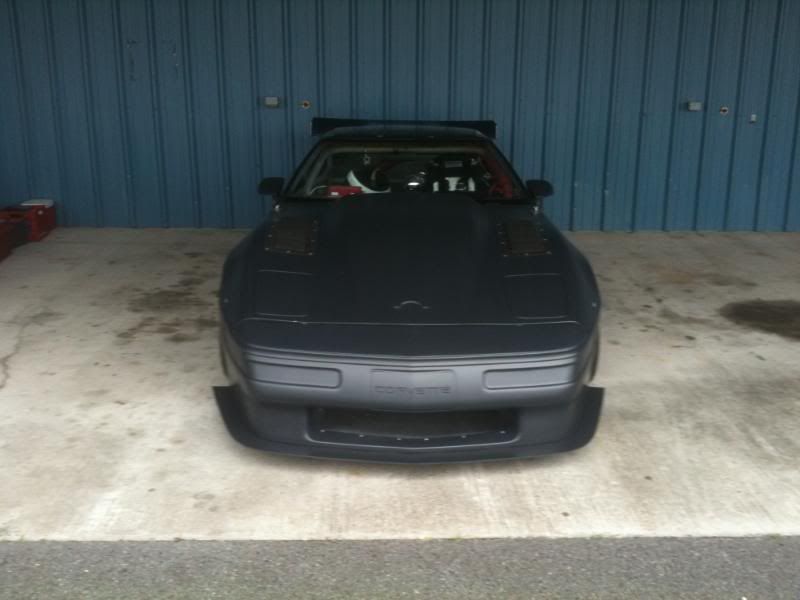

I forgot to comment on the splitter, there was just a topic in the race section on that too.
http://forums.corvetteforum.com/auto...-race-car.html
As for the front end my friend has the mold and he has them made as ordered.
He also got the hood and the wing for me.
He knows his shet when if comes to corvettes.
His name is Mike and runs Mike Poupart Motorsports.
You can contact him at (504)472-0400
He can get you any info on the front end, hood or the wing that you need.
http://forums.corvetteforum.com/auto...-race-car.html
As for the front end my friend has the mold and he has them made as ordered.
He also got the hood and the wing for me.
He knows his shet when if comes to corvettes.
His name is Mike and runs Mike Poupart Motorsports.
You can contact him at (504)472-0400
He can get you any info on the front end, hood or the wing that you need.
Team Owner
Joined: Dec 1999
Posts: 34,873
Likes: 487
From: Lacey WA RVN 68-69
NCM Sinkhole Donor
Greenwood was the company. You could get different levels of the kit; rocker panels alone, spoiler alone, rockers and diffuser, or all of the pieces. IIRC, the Greenwood diffuser fit over the spare tire carrier, but it was a royal PITA to get to the spare. The diffuser used something like Dzus fasteners to hold it in place and you had to remove the entire piece to get to the spare.
Melting Slicks
Joined: Aug 2009
Posts: 3,028
Likes: 2,105
From: Schaller Iowa
Ok...I really hope I'm not the only one on CF that has no idea what a diffuser is for. I gather it's for a racing application. Does it somehow add downforce to the rear end?
