95 OBD reader
Le Mans Master
Joined: Jun 2009
Posts: 6,528
Likes: 752
From: South Dakota
A link to help explain the process and the codes is below. It is from Corvette Central's website.
http://tech.corvettecentral.com/2011...trouble-codes/
Thread Starter
Racer
Joined: May 2009
Posts: 256
Likes: 0
Problem is my SES light dont work. Until we get it hooked up right I cant do paperclip but its good to know that will work cuz I thought it only worked for OBD I.
Does paperclip trick work on new cars too with those same ports being jumped (#4 & #12)
Does paperclip trick work on new cars too with those same ports being jumped (#4 & #12)
Le Mans Master
Joined: Jan 2006
Posts: 5,621
Likes: 206
From: Orlando FL
Pins 4 & 12 only work for the 94 and 95 models (OBD1) with the OBD2 connector. The 93 and earlier have a different connector and the 96 is OBD2 and a scanner is required to get the codes from that.
You can get information on how to read the codes on the Forum and other sources. The FSM is best as it has all the codes for all modules plus the SIR module and more things you can do than you can imagine.
Thread Starter
Racer
Joined: May 2009
Posts: 256
Likes: 0
You don’t need the SES light to see the codes, does not work like the earlier cars. The actual module numbers (1,4&9) and code numbers for each are displayed on the speedometer. There are specific code numbers for each module.
Pins 4 & 12 only work for the 94 and 95 models (OBD1) with the OBD2 connector. The 93 and earlier have a different connector and the 96 is OBD2 and a scanner is required to get the codes from that.
You can get information on how to read the codes on the Forum and other sources. The FSM is best as it has all the codes for all modules plus the SIR module and more things you can do than you can imagine.
Pins 4 & 12 only work for the 94 and 95 models (OBD1) with the OBD2 connector. The 93 and earlier have a different connector and the 96 is OBD2 and a scanner is required to get the codes from that.
You can get information on how to read the codes on the Forum and other sources. The FSM is best as it has all the codes for all modules plus the SIR module and more things you can do than you can imagine.
Thats why I am lookin for a scanner that will read the comp. Autozone and advanced auto parts didnt work. Next would be local chevy dealer!
And being that I may not be able to pull all the codes from my SES light, I may want to get the scanner myself So I can read them... But need one that works.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Le Mans Master
Joined: Jan 2006
Posts: 5,621
Likes: 206
From: Orlando FL
Hard to know how to approach your situation. Are you using a PCM for a 95 for engine control. And do you have a CCM that is working with the whole deal?
Before you go and get a scanner or computer, get someone with one just to try it to see if it even works.
Before you go and get a scanner or computer, get someone with one just to try it to see if it even works.
Thread Starter
Racer
Joined: May 2009
Posts: 256
Likes: 0
What is the CCM? YOu may have to break those down for me.
Sry but I had someone get me into this project and bail on me, and I see he didnt really know much about this swap either.
WE took the old computer out from the 87 being in the dash passenger side (ECM I believe).
We installed the 95 computer (PCM I'm thinking).
We had the engine harness modified by LT1 wiring so he eliminated stuff that wouldn't work in the 87... and labeled out what we had to hook up to the chassis wiring so that the dash display worked and ignition worked. He also cleared the vats on the computer.
So am I missing a component? Could you explain how the 95 brain works?
Also tried my friends reader which is wireless to his phone but wouldnt link.
Le Mans Master
Joined: Aug 2004
Posts: 5,141
Likes: 7
From: Metairie Louisiana
Here's what I use for tuning and datalogging my 95...
http://www.moates.net/aldu1-and-cabl....html?cPath=64 (Cable)
http://www.tunercat.com/ (OBDI Tuning Software)
http://www.ttspowersystems.com/DataM...ownloads2.html (Data Logging Software)
http://www.pcmforless.com/ (Mail Order Tune)

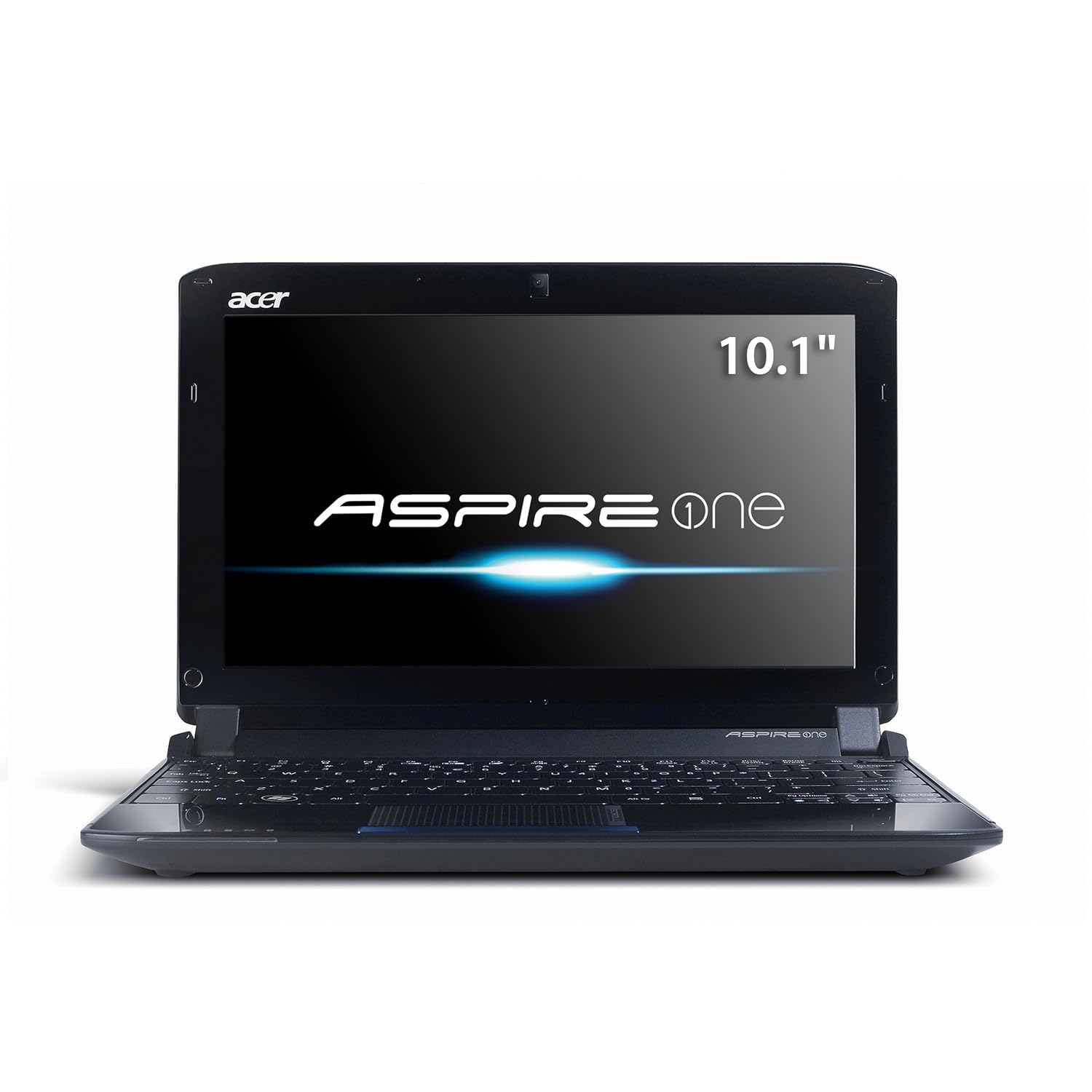

+Netbook
