Pinto steering rack in a C4, pictures


Old 01-28-2015, 11:00 PM
  #1
383vett
CF Senior Member
Thread Starter

383vett's Avatar

Member Since: Apr 2003
Location: moraga ca
Posts: 16,018
Received 734 Likes on 544 Posts
Default Pinto steering rack in a C4, pictures

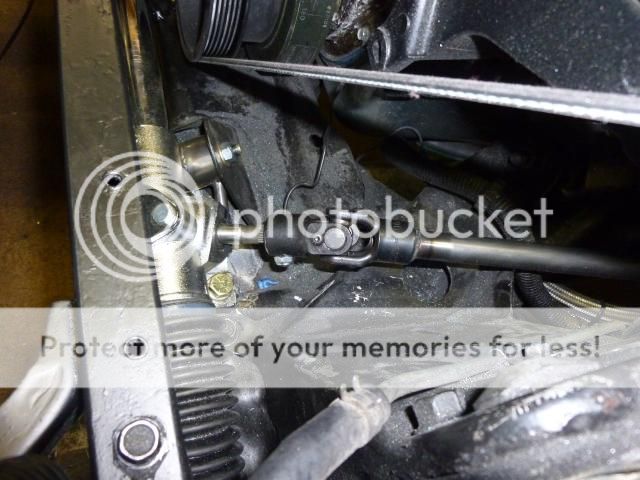

Last week I had my fabricator friend install a Pinto manual steering rack in my 84. On my last race, I removed the power steering assembly and ran the Z51 rack with no pump or belt. I gained a tenth but you don't want to do this for long unless you are Charles Armstrong. The Z51 rack was 2 turns lock to lock. The Pinto is almost 4 turns. Obviously the steering effort is a lot less than the Corvette rack with no power assist. The weight difference of the racks is about 4.5 lbs. I weighed the stock rack at about 14 lbs. The Pinto was 9.5 lbs. The pump and bracketry was 7 lbs. The total weight savings is approximately 15 lbs. That doesn't include the chromemoly steering shaft. Along with the less engine drag and lighter weight, I think a tenth or more quicker in the quarter is a good estimate. My fabricator is very meticulous in his work and fabricated my 12 bolt rearend install years ago and I trust him 100%. I wouldn't have anyone do this work who didn't have a lot of experience. You've got to be able steer these things at 130+mph. A perch had to be welded on the crossmember on the passenger side to mount the rack. He was able to use the existing mount, with some fabrication, along with notching the crossmember on the drivers side. You can see how much lower the heim joints are below the control arm. This bump steer spacing allowed at most 1/8" of toe change from full compression to full extension. This should provide good control of the car when it settles back on the ground. The shocks are revalved double adjustable Afco shocks. I had 90-10 Lakewood shocks for years and my friend thought controlling the extension of the front shocks would keep the front end down and the car would be quicker. Here are some pictures...











383vett is offline
Old 01-29-2015, 08:57 AM
  #2
rklessdriver
CF Senior Member

rklessdriver's Avatar

Member Since: Apr 2005
Location: Dale City VA
Posts: 3,374
Received 187 Likes on 156 Posts
Default

Looks really good.

Are you saying he built 1/8" additional bump steer into it or that by lowering the tie rods he reduced the 1/8" of factory toe change?
Will
rklessdriver is offline
Old 01-29-2015, 11:44 AM
  #3
383vett
CF Senior Member
Thread Starter

383vett's Avatar

Member Since: Apr 2003
Location: moraga ca
Posts: 16,018
Received 734 Likes on 544 Posts
Default

Originally Posted by rklessdriver View Post
Looks really good.

Are you saying he built 1/8" additional bump steer into it or that by lowering the tie rods he reduced the 1/8" of factory toe change?
Will
Hi Will. As you know, most factory cars have built in bump steer or toe change throughout the suspension cycle. My car's front suspension is designed to have very minimal toe change throughout the range so as not to affect handling with a toe out situation or scrub off speed with excessive toe in.
383vett is offline
Old 01-29-2015, 12:21 PM
  #4
rklessdriver
CF Senior Member

rklessdriver's Avatar

Member Since: Apr 2005
Location: Dale City VA
Posts: 3,374
Received 187 Likes on 156 Posts
Default

I totally understand now. I was misreading your bumpsteer amount....

I've never measured the factory bump steer, so I had no idea if 1/8" toe change was more or less than whatever the factory design produced.

Your install looks really good.

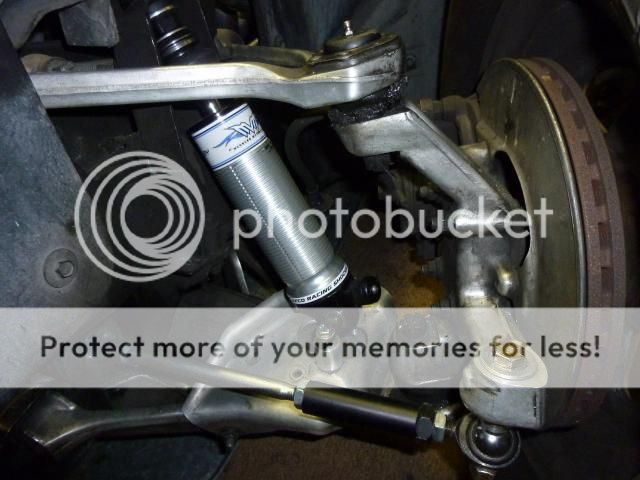

When I went to double adjustable shocks on the front of mine it was totally night and day difference. Those new shocks should allow you to make a huge change in the how the car leaves. I see you bought threaded body shocks so you have the option to go to coilovers later if you want as well.

Nice stuff! I hope it gets the car where you want it.
Will
rklessdriver is offline
Old 01-29-2015, 01:31 PM
  #5
383vett
CF Senior Member
Thread Starter

383vett's Avatar

Member Since: Apr 2003
Location: moraga ca
Posts: 16,018
Received 734 Likes on 544 Posts
Default

Thanks for the encouragement

Last edited by 383vett; 01-29-2015 at 01:43 PM.
383vett is offline
Old 01-29-2015, 02:57 PM
  #6
desertmike1
CF Senior Member

desertmike1's Avatar

Member Since: Aug 2008
Location: Palmdale CA
Posts: 2,082
Received 44 Likes on 43 Posts
Default

That's a pretty slick set up.. curious how it fairs out..
desertmike1 is offline
Old 01-29-2015, 11:16 PM
  #7
Rockcrushervette
CF Senior Member

Rockcrushervette's Avatar

Member Since: Aug 2014
Location: Ca
Posts: 144
Received 2 Likes on 2 Posts
Default

Have built a few rods here and there! My uncle hooked me up on this! Run tranny cooler lines throught rack n pinion before cooler ! Use tranny power to run rack! Have done this on 2 pre 30'z rodz helps keep engine clean of pump and drives good! If your an auto tranny!

Just saying !
Cliff
Rockcrushervette is offline
Old 01-30-2015, 10:14 AM
  #8
383vett
CF Senior Member
Thread Starter

383vett's Avatar

Member Since: Apr 2003
Location: moraga ca
Posts: 16,018
Received 734 Likes on 544 Posts
Default

Originally Posted by Rockcrushervette View Post
Have built a few rods here and there! My uncle hooked me up on this! Run tranny cooler lines throught rack n pinion before cooler ! Use tranny power to run rack! Have done this on 2 pre 30'z rodz helps keep engine clean of pump and drives good! If your an auto tranny!

Just saying !
Cliff
Interesting concept. Too late for me, the Pinto rack is a manual unit. I'd like to see someone try your idea, though.
383vett is offline
Old 01-30-2015, 12:18 PM
  #9
project C4
CF Senior Member

project C4's Avatar

Member Since: Apr 2004
Location: Texas
Posts: 502
Received 9 Likes on 9 Posts
Default

Originally Posted by 383vett View Post
Interesting concept. Too late for me, the Pinto rack is a manual unit. I'd like to see someone try your idea, though.
It does sound good. I didnt know there was any pressure there at the cooler lines.
project C4 is offline
Old 01-30-2015, 07:05 PM
  #10
Rockcrushervette
CF Senior Member

Rockcrushervette's Avatar

Member Since: Aug 2014
Location: Ca
Posts: 144
Received 2 Likes on 2 Posts
Default

Originally Posted by project C4 View Post
It does sound good. I didnt know there was any pressure there at the cooler lines.
I have done it on 2 builds there is enough flow to run the rack! i never checked pressure just hooked them up and it made a big change ! Works good on old rodz gets rid of needing a power steering pump! but never on a Vette I have always cruzed old cars last Rod was a 29 chevy sedan! Dropped a 350/350 !
Rockcrushervette is offline
Old 01-31-2015, 05:16 AM
  #11
project C4
CF Senior Member

project C4's Avatar

Member Since: Apr 2004
Location: Texas
Posts: 502
Received 9 Likes on 9 Posts
Default

Great info, Thank you Cliff
project C4 is offline
Old 01-31-2015, 05:58 PM
  #12
tpi 421 vette
CF Senior Member

tpi 421 vette's Avatar

Member Since: Mar 2002
Location: S.L.C. UT
Posts: 2,906
Received 26 Likes on 20 Posts
Default

Nice job Willie
tpi 421 vette is offline
Old 01-31-2015, 08:07 PM
  #13
bjankuski
CF Senior Member

Member Since: Sep 2001
Location: Glenbeulah Wi
Posts: 3,285
Received 188 Likes on 171 Posts
Default

Looks good, how hard is it to steer?
bjankuski is offline
Old 01-31-2015, 11:29 PM
  #14
cudamax
CF Senior Member

cudamax's Avatar

Member Since: Mar 2013
Location: Illinois/Wisconsin Line
Posts: 1,131
Likes: 0
Received 1 Like on 1 Post
Default

Great Job but u want Zero Bump otherwise ur car can get potentially dangerous if ur able to lift the wheels of the ground or close to it with enough lift. When ur car comes back down it can go the the left or right REAL HARD.I've seen cars totaled/hit the wall and roll. You want the tie-rod ends perfectly level with the knuckle's. Also have it put on an Alignment rack and raised an Inch at a time until the wheels come off the ground, measuring toe. You want ZERO TOE CHANGE
cudamax is offline
Old 02-01-2015, 12:00 AM
  #15
383vett
CF Senior Member
Thread Starter

383vett's Avatar

Member Since: Apr 2003
Location: moraga ca
Posts: 16,018
Received 734 Likes on 544 Posts
Default

Originally Posted by cudamax View Post
Great Job but u want Zero Bump otherwise ur car can get potentially dangerous if ur able to lift the wheels of the ground or close to it with enough lift. When ur car comes back down it can go the the left or right REAL HARD.I've seen cars totaled/hit the wall and roll. You want the tie-rod ends perfectly level with the knuckle's. Also have it put on an Alignment rack and raised an Inch at a time until the wheels come off the ground, measuring toe. You want ZERO TOE CHANGE
Ideally, zero toe change is the goal. The car is aligned at 1/8" toe in in at track altitude. There is a maximum of 1/8" toe change, that is at most 1/16" at either direction or 1/32' at each side which is near negligable, certainly not a toe out condition which would result in instability. Bushing deflection will give more than 1/16" toe change.

Last edited by 383vett; 02-01-2015 at 11:45 AM.
383vett is offline
Old 02-02-2015, 11:52 PM
  #16
red L98
CF Senior Member

red L98's Avatar

Member Since: Jul 2003
Location: Canton MI
Posts: 2,284
Likes: 0
Received 1 Like on 1 Post
Default

Menscer Motorsports shocks .. I should have went to dental school .. haha
red L98 is offline
Old 02-02-2015, 11:54 PM
  #17
red L98
CF Senior Member

red L98's Avatar

Member Since: Jul 2003
Location: Canton MI
Posts: 2,284
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by Rockcrushervette View Post
Have built a few rods here and there! My uncle hooked me up on this! Run tranny cooler lines throught rack n pinion before cooler ! Use tranny power to run rack! Have done this on 2 pre 30'z rodz helps keep engine clean of pump and drives good! If your an auto tranny!

Just saying !
Cliff

Can you please further explain this ?
red L98 is offline
