Lt1 piston orientation

Thread Tools

Search this Thread

Old Mar 20, 2015 | 10:14 PM
Share
  #1
JD1964's Avatar
JD1964
Thread Starter
Burning Brakes
10 Year Member
Liked
Loved

Joined: Apr 2014
Posts: 829
Likes: 192
Default Lt1 piston orientation
Hip deep in cam swap which includes a valve spring upgrade too. Springs are being changed with heads on block. Havin a brain fart here.

I got #1 at tdc. What other pistons are also at the top of thier bores on this position. I know 4 of them are ar the top in this position. Then move the crank 180 degrees and the other 4 are at top.

Is it 1-7-4-6. Then turn crank 180 degrees and 3-5-2-8. Is this right?

You must be wondering why I'm thinking like this. Well, I'll be changing the springs for 4 cylinders in one position, the turning 180 degrees and changing the other 4.
Reply
0
Old Mar 20, 2015 | 10:23 PM
Share
  #2
LTxDave's Avatar
LTxDave
Safety Car
25 Year Member
Liked
Loved
Community Favorite

Joined: Jul 1999
Posts: 3,946
Likes: 63
From: Marianna FL
Default
The pistons are going to approach TDC in the firing order 1-8-4-3-6-5-7-2. Only one piston is at TDC at a time.
Reply
0
Old Mar 20, 2015 | 11:23 PM
Share
  #3
JD1964's Avatar
JD1964
Thread Starter
Burning Brakes
10 Year Member
Liked
Loved

Joined: Apr 2014
Posts: 829
Likes: 192
Default
Originally Posted by LTxDave
The pistons are going to approach TDC in the firing order 1-8-4-3-6-5-7-2. Only one piston is at TDC at a time.

I'm not asking about firing order but thanks. I'm asking what pistons are at the top of their respective bores at the same time.
Reply
0
Old Mar 20, 2015 | 11:32 PM
Share
  #4
JD1964's Avatar
JD1964
Thread Starter
Burning Brakes
10 Year Member
Liked
Loved

Joined: Apr 2014
Posts: 829
Likes: 192
Default
Damn!!! Crappy overhead spring compressor can't grab dual springs. I shot a retainer into the air. I heard it hit the roof but I can't find it now. Guess I gotta buy a whole new set. And a worthy overhead spring compressor too.
Reply
0
Old Mar 20, 2015 | 11:38 PM
Share
  #5
JackDidley's Avatar
JackDidley
Race Director
20 Year Member
Active Streak: 30 Days
Liked
Loved

Joined: Sep 2003
Posts: 16,838
Likes: 341
From: Database Error Indiana
Default
# 6 is at TDC same time as #1.
Reply
0
Old Mar 20, 2015 | 11:41 PM
Share
  #6
joeld's Avatar
joeld
Racer
15 Year Member

Joined: Sep 2007
Posts: 375
Likes: 18
From: Lawrenceville Georgia
Default
No #1 at TDC:
Intake # 1, 2, 5, 7
Exhaust# 1, 3,4, 8

Rotate engine ONE full turn
Intake # 3, 4, 6, 8
Exhaust # 2, 5, 6, 7

Hope this helps

Joel
Reply
0
Old Mar 21, 2015 | 12:53 AM
Share
  #7
JD1964's Avatar
JD1964
Thread Starter
Burning Brakes
10 Year Member
Liked
Loved

Joined: Apr 2014
Posts: 829
Likes: 192
Default
Anybody know of an overhead valve spring compressor that works good with dual springs?

The finger tips on mine don't go in far enough to grab, compress and hold the inner spring.
Reply
0
Old Mar 21, 2015 | 08:29 AM
Share
  #8
C409's Avatar
C409
Le Mans Master
20 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2005
Posts: 6,479
Likes: 565
From: Clearwater Florida
Default
..... I use this valve spring compressor ... it works on triple valve springs .........

http://www.summitracing.com/parts/sum-906784/overview/

..... there are two pistons at TDC at a time , for example ... #1 and #6 ... #8 and #5 ... #4 and #7 ... #3 and #2 ..... when the timing marks are lined up on the cam and crank gears #6 is on its compression stroke ........
Reply
0
Corvette Stories

The Best of Corvette for Corvette Enthusiasts

story-0

10 Ugly Corvettes That We Still Kinda Love

 Joe Kucinski
story-1

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

 Brett Foote
story-2

10 Things Every Corvette Owner Needs (2026 Edition)

 Michael S. Palmer
story-3

8 Most "Only Corvette Owners Understand" Quirks and Problems

 Pouria Savadkouei
story-4

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

 Joe Kucinski
story-5

How Much Horsepower Every Corvette Engine "LOST" in 1972

 Joe Kucinski
story-6

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

 Michael S. Palmer
story-7

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

 Joe Kucinski
story-8

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

 Joe Kucinski
story-9

8 Coolest Corvette Pace Cars (and Replicas) of All Time

 Verdad Gallardo
Old Mar 21, 2015 | 08:49 AM
Share
  #9
LTxDave's Avatar
LTxDave
Safety Car
25 Year Member
Liked
Loved
Community Favorite

Joined: Jul 1999
Posts: 3,946
Likes: 63
From: Marianna FL
Default
C409 is correct, I was thinking tdc on compression and forgetting exhaust stroke. I use the same valve spring compressor that he linked from summit, but if the retainer is on top of the spring, that should be compressing both springs not the tool.
Reply
0
Old Mar 23, 2015 | 08:24 PM
Share
  #10
JD1964's Avatar
JD1964
Thread Starter
Burning Brakes
10 Year Member
Liked
Loved

Joined: Apr 2014
Posts: 829
Likes: 192
Default
Originally Posted by C409
..... I use this valve spring compressor ... it works on triple valve springs .........

http://www.summitracing.com/parts/sum-906784/overview/

..... there are two pistons at TDC at a time , for example ... #1 and #6 ... #8 and #5 ... #4 and #7 ... #3 and #2 ..... when the timing marks are lined up on the cam and crank gears #6 is on its compression stroke ........
10-4. I just received shipment of that very spring compressor.

I'm sure this has been seen a bazillion times but here is my progress thus far. My brother has loaned me the LT1 specialty tools for crank hub and optispark.
Attached Images
Last edited by JD1964; Mar 23, 2015 at 08:30 PM.
Reply
0
Old Mar 29, 2015 | 06:53 PM
Share
  #11
JD1964's Avatar
JD1964
Thread Starter
Burning Brakes
10 Year Member
Liked
Loved

Joined: Apr 2014
Posts: 829
Likes: 192
Default
Got the valve springs all in. Not necessarily an easy job with heads on car.

Soakin up the Lunati rollers now. Pulling the damper, opti and timing cover next.
Reply
0
Old Mar 29, 2015 | 06:56 PM
Share
  #12
JD1964's Avatar
JD1964
Thread Starter
Burning Brakes
10 Year Member
Liked
Loved

Joined: Apr 2014
Posts: 829
Likes: 192
Default
Here's the new attitude.
Reply
0
Old Mar 31, 2015 | 10:15 PM
Share
  #13
JD1964's Avatar
JD1964
Thread Starter
Burning Brakes
10 Year Member
Liked
Loved

Joined: Apr 2014
Posts: 829
Likes: 192
Default

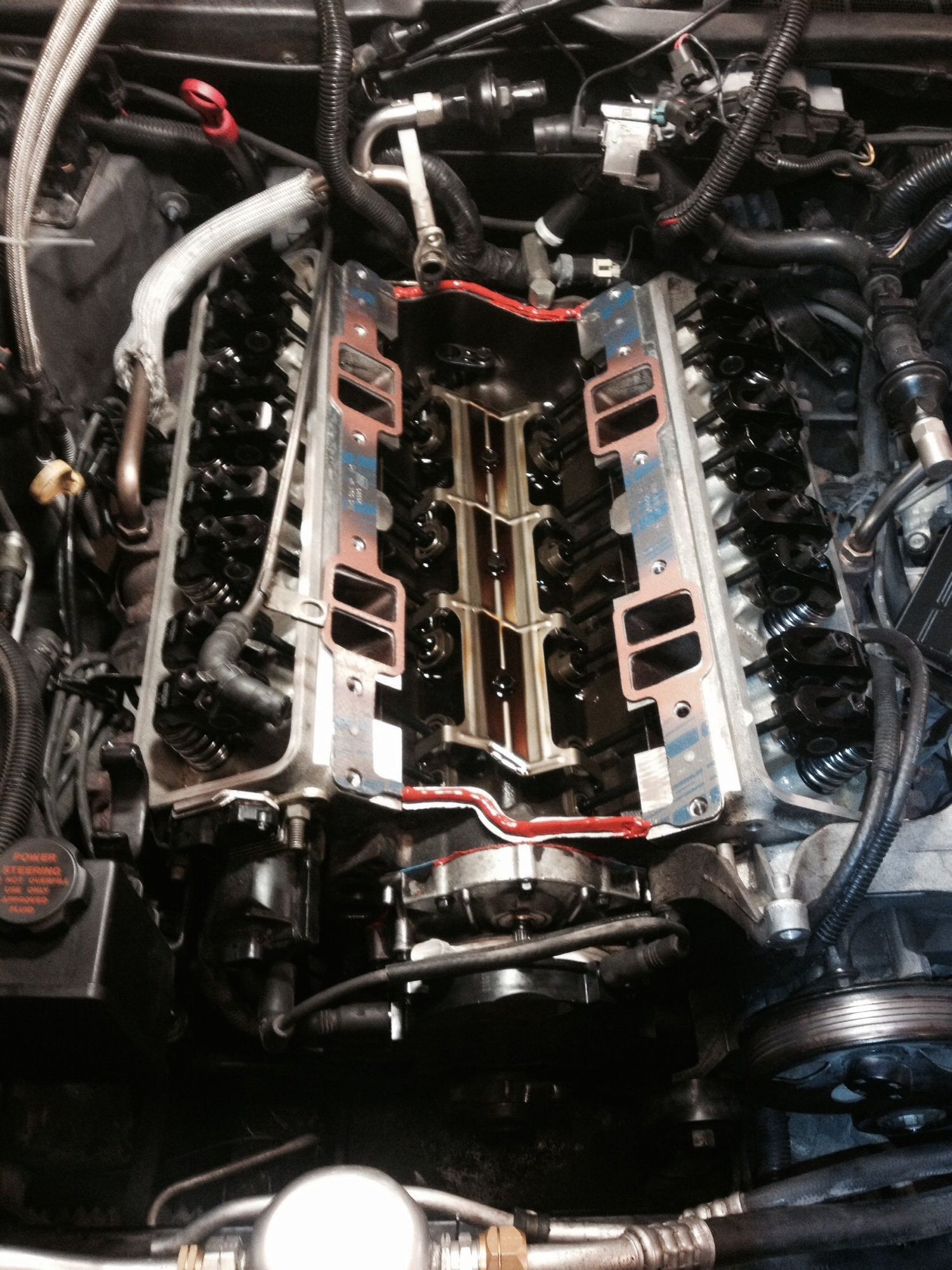

Timing cover, oil pan and opti back on. Dropping the intake on as soon as the sealer beads tack up a bit.
Reply
0
Old Apr 1, 2015 | 09:40 AM
Share
  #14
rklessdriver's Avatar
rklessdriver
Safety Car
20 Year Member
Liked
Loved
Community Favorite

Joined: Apr 2005
Posts: 3,624
Likes: 431
From: Dale City VA
Default
That cam is going to make a big difference in it.

Congrats.
Will
Reply
0
Old Apr 1, 2015 | 12:57 PM
Share
  #15
JD1964's Avatar
JD1964
Thread Starter
Burning Brakes
10 Year Member
Liked
Loved

Joined: Apr 2014
Posts: 829
Likes: 192
Default
Originally Posted by rklessdriver
That cam is going to make a big difference in it.

Congrats.
Will
Agreed. But not only the cam. We've also ditched the factory 2.59 rear gear and put in Richmond 3.54.

It's gonna be a different beast.
Reply
