87 Spk Plg Wire Brackets?
#1
Le Mans Master
Thread Starter
87 Spk Plg Wire Brackets?
Trying to correct previous owners handiwork and route my plug wires the correct way, I looked up the info in the (FSM) Factory Service Manual.... page 6D4-4 and I found major discrepancies between the manual and what the engine actually has on it. The metal brackets that hold the plastic wire brackets are completely different on my 87 than what the manual shows. With the brackets I have, there is no way I can use them and route the wires as depicted in the FSM. The brackets I have appear to be an OEM design, bolted to the head... i.e.- not aftermarket.
Also.... and this is odd... the FSM picture shows perimeter bolt valve covers & spark plug wire holders to match. So obviously, the FSM is wrong.
Was there a production run change for 1987?
(The engine is stamped correct, original)
Also.... and this is odd... the FSM picture shows perimeter bolt valve covers & spark plug wire holders to match. So obviously, the FSM is wrong.
Was there a production run change for 1987?
(The engine is stamped correct, original)
#2
you can't go by the manual. if i'm not mistaken, seems that the tech writers used old L83 drawings in the FSM's. I would say all L98 aluminum head/center bolt VC's route wires pretty much the same way. the metal clips bolt to the head. on my 90, I tried to get it as close to factory as I could. here's several pic of my routing -
#3
This thread is maybe the only one I recall where the hardware is shown attached at the rear of the cylinder heads. The bracket on the RH rear of head I always thought was correct but most that advertise don't ever seem to include that. That's the one/maybe only discrepancy I recall.
Do you have that bracket for the rear of the RH head?
https://www.corvetteforum.com/forums...-l98-pics.html
there's left side view in this thread.
https://www.corvetteforum.com/forums...-for-sale.html
Notice the "split conduit" on the wires. That would be a nice touch in detailing one I'd think.
If you search "Corvette Challenge Engine" you might stumble upon some maybe better snapshots that either "confirm" or contradict the routing.
Do you have that bracket for the rear of the RH head?
https://www.corvetteforum.com/forums...-l98-pics.html
there's left side view in this thread.
https://www.corvetteforum.com/forums...-for-sale.html
Notice the "split conduit" on the wires. That would be a nice touch in detailing one I'd think.
If you search "Corvette Challenge Engine" you might stumble upon some maybe better snapshots that either "confirm" or contradict the routing.
Last edited by WVZR-1; 07-30-2016 at 03:41 PM.
#4
Le Mans Master
Thread Starter

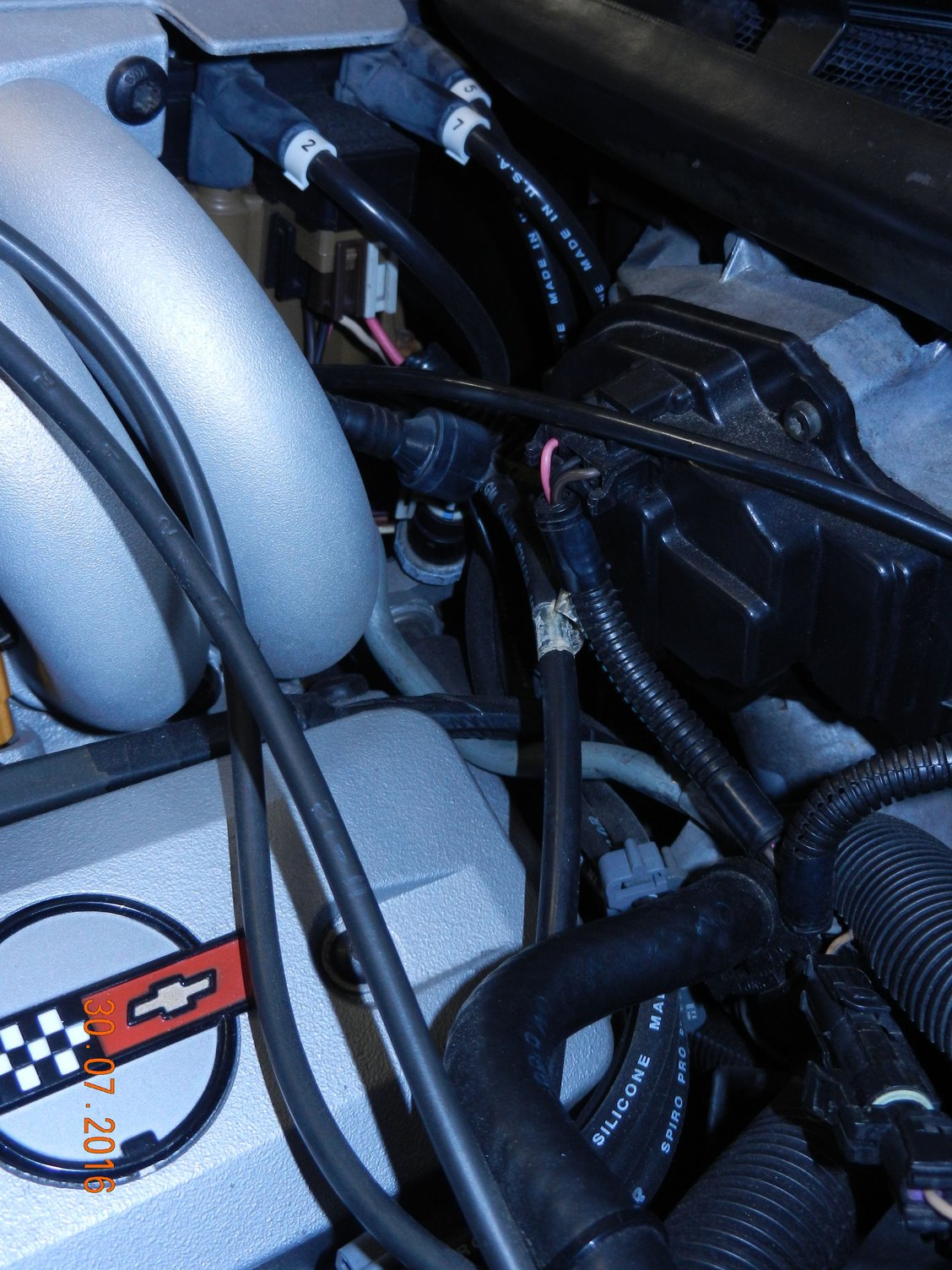

Here is the bracket on the passenger side rear of the head. The bracket on the right rear of the head does not have a stub to mount a plastic wire holder.
Notice it has a spot for 2 separate plastic wire holders.
Notice it has a spot for 2 separate plastic wire holders.
#5
^^^^
I kinda thought that was for the "side" of the RH @ the rear and NOT "rear of rear". 2 wire retainer down to 6 & 8 then 2 wire forward to 2 & 4.
I kinda thought that was for the "side" of the RH @ the rear and NOT "rear of rear". 2 wire retainer down to 6 & 8 then 2 wire forward to 2 & 4.
Last edited by WVZR-1; 07-30-2016 at 04:27 PM.
#6
Le Mans Master
Thread Starter
Here is a summary of what I have:
All 4 side metal brackets have both a vertical tab & a horizontal tab for a plastic plug wire holder. The plastic wire holders used are either for 2 wires or for 4 wires.
The metal bracket on the drivers side rear of the head has 1 horizontal tab for a plastic plug wire holder.
The metal bracket on the passenger side rear of the head does not have any tabs for plastic plug wire holders.
I'm making this guess:
Passenger side front:
vertical 2 wire holder, #2,4 plug wires
horizontal 2 wire holder, #2,4 plug wires
Passenger side rear:
vertical 2 wire holder, #6,8 plug wires
horizontal 2 wire holder, #2,4 plug wires
#2, 4, 6, 8 plug wires held away from the EGR tube (hot) by the
passenger side rear metal bracket. 3 wires above tucked behind, 1 wire below stuffed in slot. (based on pics other threads)
Passenger side rear of head, #2,4,6,8 plug wires stuffed between bracket & head, no plastic wire holders.
Drivers side front:
vertical 2 wire holder, #1,3 plug wires
horizontal 2 wire holder, #1,3 plug wires
Drivers side rear:
vertical 2 wire holder, #5,7 plug wires
horizontal 4 wire holder, #1,3,5,7 plug wires
Drivers side rear of head:
horizontal 4 wire holder, #1,3,5,7 plug wires
Altogether, this would call for (7) plastic 2 wire holders and (2) plastic 4 wire holders
?
Last edited by Tom454; 07-30-2016 at 05:30 PM. Reason: clarity
#7
Both lefts like this:
http://www.ebay.ca/itm/1986-1991c4-c...item2341edeb14
GM# 12043158 X 7 for the 2 wire retainers.
The bracket for the rear of the right head only acts as a "guide" for the right side wires (to the VC contour) that in the link are inserted into "split conduit" they don't actually retain wires and there's no tabs for them.
In the link I see a total of 4 - 4 wire and that seems likely correct looking at an image of a wire set. GM# 12043550 for the 4 wire.
I think I can maybe do an image representative of what I mentioned.
http://www.ebay.ca/itm/1986-1991c4-c...item2341edeb14
GM# 12043158 X 7 for the 2 wire retainers.
The bracket for the rear of the right head only acts as a "guide" for the right side wires (to the VC contour) that in the link are inserted into "split conduit" they don't actually retain wires and there's no tabs for them.
In the link I see a total of 4 - 4 wire and that seems likely correct looking at an image of a wire set. GM# 12043550 for the 4 wire.
I think I can maybe do an image representative of what I mentioned.
Last edited by WVZR-1; 07-30-2016 at 06:05 PM.
