Help Me Identify These Things
Hello everyone,
I have been working on putting my 84, after just having the valve covers and air cleaner cover powder coated. While I was removing the parts I noticed a new vacuum lines disconnected or blocked off. I would like to have the car put back to factory as best as possible. So I need little help figuring out where these go. I have done a tone of research but I am still unclear, so I am hoping you guy could help.
In this picture, the harder hose on the right has what looks to be part of possibly a T broken off inside. The right side did not have a hose connected to it.
In this picture you can see two vacume lines that are T'ed off at the real throttle body. I believe these go under the air cleaner and provide vacuum to the flaps in there. But would like to confirm.
In this last picture you can see these ports have been closed off, is that correct, should they be?
An lastly in this video, I found this tucked away under my carpet under the gas pedal, I have no idea what it is, but I have a feeling it might have to do with the E-Break.
View My Video
Thanks for the help.
I have been working on putting my 84, after just having the valve covers and air cleaner cover powder coated. While I was removing the parts I noticed a new vacuum lines disconnected or blocked off. I would like to have the car put back to factory as best as possible. So I need little help figuring out where these go. I have done a tone of research but I am still unclear, so I am hoping you guy could help.
In this picture, the harder hose on the right has what looks to be part of possibly a T broken off inside. The right side did not have a hose connected to it.
In this picture you can see two vacume lines that are T'ed off at the real throttle body. I believe these go under the air cleaner and provide vacuum to the flaps in there. But would like to confirm.
In this last picture you can see these ports have been closed off, is that correct, should they be?
An lastly in this video, I found this tucked away under my carpet under the gas pedal, I have no idea what it is, but I have a feeling it might have to do with the E-Break.
View My Video
Thanks for the help.
Safety Car
Joined: Sep 2004
Posts: 3,953
Likes: 550
From: Mission Viejo CA
Pic #1: The vacuum check valve goes to hose at the left port of the rear TB. This hose is visible at the left edge of picture (with date code printed on the hose).
Pic #2: These hoses should be attached the air filter base, and are for the thermal sensors and the warm-up flaps. There are clips on the air filter base to hold the hoses. When you remove the air filter base, disconnect this hose from the TB, and leave these hoses attached to the filter base.
Pic #3: These ports are for balancing the TB's, if the TB's are ever removed from the manifold top plate. They should remain sealed except for testing. The plastic tube shown from the front TB must not touch the EGR body, as it will melt!
Pic #2: These hoses should be attached the air filter base, and are for the thermal sensors and the warm-up flaps. There are clips on the air filter base to hold the hoses. When you remove the air filter base, disconnect this hose from the TB, and leave these hoses attached to the filter base.
Pic #3: These ports are for balancing the TB's, if the TB's are ever removed from the manifold top plate. They should remain sealed except for testing. The plastic tube shown from the front TB must not touch the EGR body, as it will melt!
Zen Vet Master Level VII
Joined: Mar 2016
Posts: 5,214
Likes: 1,173
From: Southlake, TX
http://repairguide.autozone.com/znet...528008fdc5.gif
Here you go; diagrams made easy.
I had an '82 with the identical set up. Your engine will run WAY better if you put it all back to factory. Also, keep an eye on the hose condition as cracks in the ends could cause a vacuum leak and your engine will run like Sh*t.
Here you go; diagrams made easy.
I had an '82 with the identical set up. Your engine will run WAY better if you put it all back to factory. Also, keep an eye on the hose condition as cracks in the ends could cause a vacuum leak and your engine will run like Sh*t.
Thread Starter
Heel & Toe
Joined: Feb 2017
Posts: 19
Likes: 0
From: IL
Still need help
I still have no idea what this part is (in green) or where it connects. Anyone out there have some more info on this. I am so close to having this done, everyone here has been a big help.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
Thread Starter
Heel & Toe
Joined: Feb 2017
Posts: 19
Likes: 0
From: IL
New Finding
Latest finding, is this little hose I found tucked away basically under the distributer. A buddy of mine has an older Camaro that has the same line connected to his check valve. I have just the one last line left to figure out.
Any ideas, or should someone take a picture of there 84 for me. This is driving me nuts.
also while I was following the line from the check valve, that lead to the circular vacuum container I found this disconnected, anyone know what this is or where is connects?
Any ideas, or should someone take a picture of there 84 for me. This is driving me nuts.
also while I was following the line from the check valve, that lead to the circular vacuum container I found this disconnected, anyone know what this is or where is connects?
Safety Car
Joined: Sep 2004
Posts: 3,953
Likes: 550
From: Mission Viejo CA

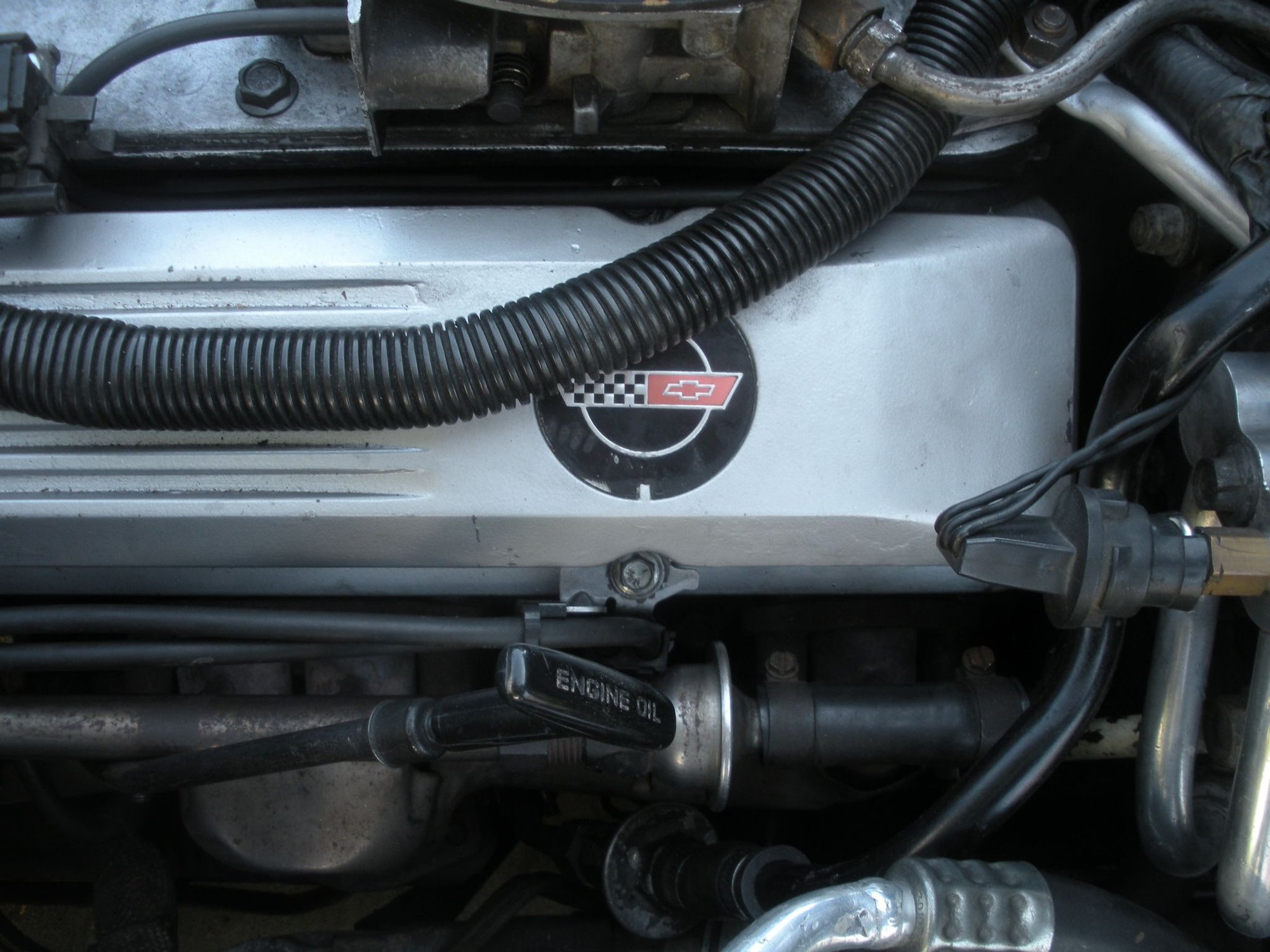

Your tach filter needs to be mounted to a manifold bolt for a good electrical ground. Yes, I swapped L/R rocker covers, to stay away from that delicate pressure switch on the a/c compressor and the bulky wiring bundle on the right side of the engine.
Thread Starter
Heel & Toe
Joined: Feb 2017
Posts: 19
Likes: 0
From: IL
So Here is what is working for me
After checking your photos and also looking at a friends older camaro, they also have the same check valve. After a ton of research and some trial by error, this is basically my setup. Everything seems to be working very well, and the car idles perfectly fine. If I have a chance I will do what I can to take a video also. Lastly sorry my Microsoft Paint skills are not the best lol.
Thanks everyone for the help.
