Air filter box

Old 05-07-2018, 12:09 PM
  #1
DMITTZ
CF Senior Member
Thread Starter

DMITTZ's Avatar

Member Since: Mar 2016
Location: Langley BC
Posts: 1,452
Thanked 164 Times in 155 Posts
Default Air filter box

I am getting ready to do a MAF to MAP cpnversion on my 88' because I am going to swap computer systems.

So I am trying to decide what to do with the air intake from the throttle body forward.

My engine is modded so I think the small diameter of the stock MAF was a bit of restriction.

I was thinking of putting a 1990-1996 Air filter box, with a 1990-1991 coupler (throttle body to filter box).

Will the later style air filter box fit over the early style radiator shroud? ( I know the mounting bolt points are different). Anyone done this?

I have seen a picture of the SLP claw intake on an early C4 but that is kind of expensive for little to no HP gain vs a late style filter box.

My air filter box is broken anyway so I need to replace it regardless.

Thanks for any help.
DMITTZ is offline
Old 05-08-2018, 07:20 AM
  #2
MikeP84
CF Senior Member

MikeP84's Avatar

Member Since: Jun 2017
Location: Montana
Posts: 290
Thanked 23 Times in 20 Posts
Default

Good to see you are starting the swap! I also need to build/buy a new system for the air filter so I will be following for inspiration!
MikeP84 is offline
Old 05-08-2018, 11:57 AM
  #3
Tom400CFI
CF Senior Member

Tom400CFI's Avatar

Member Since: Aug 2004
Location: Park City Utah
Posts: 13,409
Thanked 550 Times in 489 Posts
Default

I think your solution is a good one; the later air box with the '90-'91 ducting.



What is involved with swapping to MAP? I was to ditch the MAF on the 'Vette Kart. It hangs off the front of the motor like a limp d--k.
Tom400CFI is online now
Old 05-08-2018, 12:48 PM
  #4
DMITTZ
CF Senior Member
Thread Starter

DMITTZ's Avatar

Member Since: Mar 2016
Location: Langley BC
Posts: 1,452
Thanked 164 Times in 155 Posts
Default

Yes, as long as the later filter box fits under the hood then I think it will work well, just can't seem to find any reference to if it will fit under or not with the early fan shroud?

I am going to do the EBL flash computer swap which requires switching from MAF to MAP. My EBL kit should arrive at the end of this week with instructions on exactly how to do the swap, So I will have a better idea once it arrives exactly what is required. But from what I hear it uses the existing MAF wiring and us fairly strait forward... I'll update once I do the swap with the details.
DMITTZ is offline
The Following User Says Thank You to DMITTZ For This Useful Post:
Yariv (05-08-2018)
Old 05-08-2018, 01:57 PM
  #5
Tom400CFI
CF Senior Member

Tom400CFI's Avatar

Member Since: Aug 2004
Location: Park City Utah
Posts: 13,409
Thanked 550 Times in 489 Posts
Default

Originally Posted by DMITTZ View Post
Yes, as long as the later filter box fits under the hood then I think it will work well, just can't seem to find any reference to if it will fit under or not with the early fan shroud?
Ohhh....that's a good point. I didn't think about the fan shroud. IDK how the newer filter assy would fit or lay against the older shroud. Sorry, I can't help. I have both...but I recently chopped up my early filter housing and shroud. A week ago, I could have answered this for you.
Tom400CFI is online now
Old 05-08-2018, 02:26 PM
  #6
DMITTZ
CF Senior Member
Thread Starter

DMITTZ's Avatar

Member Since: Mar 2016
Location: Langley BC
Posts: 1,452
Thanked 164 Times in 155 Posts
Default

Ya hopefully someone one here has tried to do this swap, worst case I guess if it doesn't fit I can make an air filter box, but it would be a lot less work to just use a later style box if it fits...

I was suprised when I searched around there was nothing on this subject of the air filter box swaps, other than that a magazine had used an SLP claw intake on an LS swap early C4 corvette but they said it didn't just bolt up and took some adjustments....
DMITTZ is offline
Old 05-08-2018, 05:30 PM
  #7
ShadowC4
CF Senior Member

ShadowC4's Avatar

Member Since: Aug 2007
Location: Chandler Arizona
Posts: 141
Thanks: 0
Thanked 2 Times in 2 Posts
Default

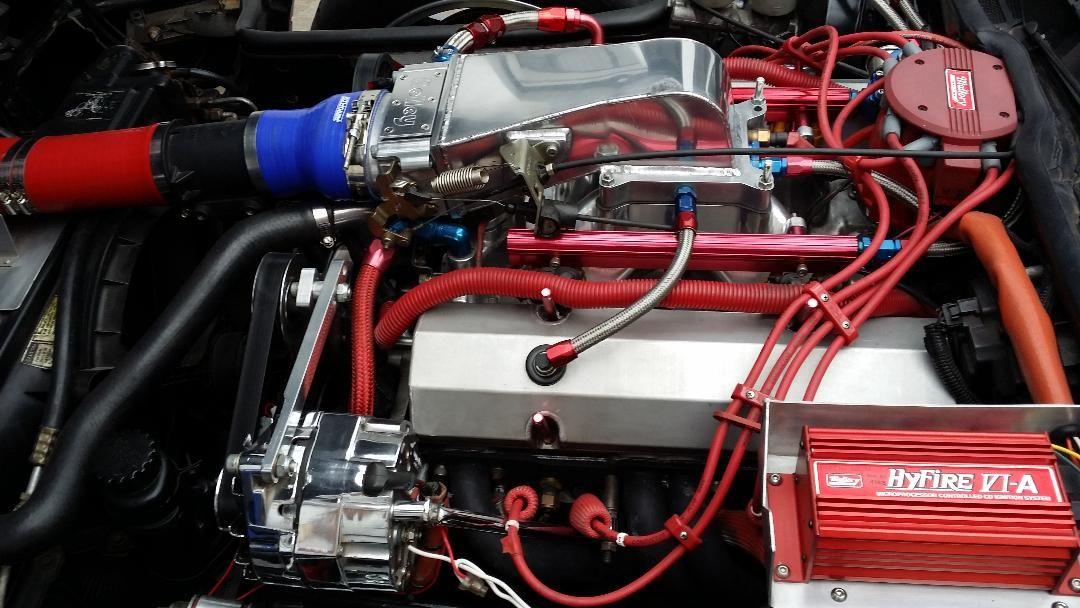

I did the claw swap when I changed my computer over to the holley efi on my 88. I had to cut a bit from the front of the radiator shroud to make room for the claw to clear the hood and drill new bolt holes.
