WOT tuning with wideband again please help
Thread Starter
Instructor
Joined: Oct 2014
Posts: 162
Likes: 1
From: Steinbach
WOT tuning with wideband again please help
Current bin
Hi
I’m doing it again and would like some input with formulas and which way to go. It’s been 3 years since last time.
Wideband is close but I’d like to riches it up a little.
Around 12.8-13.1 WOT around 3000k
Safety Car
Joined: Sep 2001
Posts: 4,137
Likes: 531
From: Glenbeulah Wi
Depends if you need to add fuel at all RPM bands or just 3000 RPM and up? If 3000 RPM and up add it to power enrichment vs RPM table. Make the numbers larger.
Thread Starter
Instructor
Joined: Oct 2014
Posts: 162
Likes: 1
From: Steinbach
Thx,
I’m trying to understand why the stock tune would lean the mixture as the rpm increases . Also the bump in at 2400 and 2800?
Its pretty close and the last time I tuned I stayed at 12.7 and lower, anyone running at 13.0 with any long term effects to the engine?
I’m trying to understand why the stock tune would lean the mixture as the rpm increases . Also the bump in at 2400 and 2800?
Its pretty close and the last time I tuned I stayed at 12.7 and lower, anyone running at 13.0 with any long term effects to the engine?
Safety Car
Joined: Nov 2005
Posts: 3,532
Likes: 1,185
From: Arizona - If you don’t know CFI, STOP proliferating the myths around it...
Your title says WOT. So, if you are running 12.7 - 13.1 all the way out at WOT, that's ok. Anywhere from 12.6 - 13.2 is fine. OR are you just concerned with PE? What software are you using?
Last edited by Buccaneer; Sep 17, 2019 at 07:33 PM.
Thread Starter
Instructor
Joined: Oct 2014
Posts: 162
Likes: 1
From: Steinbach
Just concerned with PE as installed a wideband to check after new injectors. It’s running great and pulls really strong up top.
The searches I’ve done have people saying 12.5-12.7.
Using tunerpro to tune with $32B mask and stock bin modified maf tables I datalogged with datamaster.
24lb Bosch 3 . Got it really close with injector constant at 27.5.
isnt it weird that there are negative numbers on the enrichment? That’s why I was considering adjusting the maf tables more and zeroing out the PE
The searches I’ve done have people saying 12.5-12.7.
Using tunerpro to tune with $32B mask and stock bin modified maf tables I datalogged with datamaster.
24lb Bosch 3 . Got it really close with injector constant at 27.5.
isnt it weird that there are negative numbers on the enrichment? That’s why I was considering adjusting the maf tables more and zeroing out the PE
Safety Car
Joined: Sep 2001
Posts: 4,137
Likes: 531
From: Glenbeulah Wi
Just concerned with PE as installed a wideband to check after new injectors. It’s running great and pulls really strong up top.
The searches I’ve done have people saying 12.5-12.7.
Using tunerpro to tune with $32B mask and stock bin modified maf tables I datalogged with datamaster.
24lb Bosch 3 . Got it really close with injector constant at 27.5.
isnt it weird that there are negative numbers on the enrichment? That’s why I was considering adjusting the maf tables more and zeroing out the PE
The searches I’ve done have people saying 12.5-12.7.
Using tunerpro to tune with $32B mask and stock bin modified maf tables I datalogged with datamaster.
24lb Bosch 3 . Got it really close with injector constant at 27.5.
isnt it weird that there are negative numbers on the enrichment? That’s why I was considering adjusting the maf tables more and zeroing out the PE
Safety Car
Joined: Nov 2005
Posts: 3,532
Likes: 1,185
From: Arizona - If you don’t know CFI, STOP proliferating the myths around it...
OK, I assume you are using TP version 5? I use TP, but an older version 4 that I like. With that said, all I can say is that when I was going through tuning school at EFI University we always shot for 12.6 at WOT, but it has gone up a tad since then on what they say is right or ok now. I personally wouldn't worry about it at all IMO. Anywhere in there is good, just feed the motor what it wants to get your AF where you want it. If you start going for the sky at WOT on the AF, then its time to add some fuel in those cells.
Last edited by Buccaneer; Sep 17, 2019 at 11:44 PM.
Le Mans Master
Joined: Aug 2015
Posts: 6,085
Likes: 1,972
From: St. Charles MO
That seems suspiciously like the torque peak created by the TPI intake, where the engine is getting a mild supercharger effect from the intake's resonant tuning. It would make sense that the tuning would some enrichment here, since the cylinder pressures are getting an extra spike, and this would help guard against detonation. Further up in the rpm range, it then follows that cylinder pressures start to fall rapidly due to the small cam and the out-of-phase resonance causing a drop in cylinder filling (as bjankuski noted).
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
5 MOST and 5 LEAST Popular Corvette Model Years in History!
Joe Kucinski
2027 Corvette Buyer's Guide: Everything You Need to Know!
Joe Kucinski
Safety Car
Joined: Sep 2001
Posts: 4,137
Likes: 531
From: Glenbeulah Wi
FYI, The target AFR is set by the PE vs temperature table (in your case 14.7/1.226 = 12.00 AFR) and the fine tuning of the AFR by RPM is taken care of by the PE vs RPM table. Since you are getting 12.7 to 13 AFR that means your injector constant, or MAF table or both are slighty off. That does not really matter that much, if the car runs well and you can achieve your desired AFR by tweaking the PE vs RPM table then it is fine. There are many ways to acheive a good tune so find the way that works for you.
Is your MAS stock, if it is I leave the MAF tables alone and adjust injector constants to acheive a close AFR and then adjust PE vs RPM to fine tune the AFR.
Is your MAS stock, if it is I leave the MAF tables alone and adjust injector constants to acheive a close AFR and then adjust PE vs RPM to fine tune the AFR.
Thread Starter
Instructor
Joined: Oct 2014
Posts: 162
Likes: 1
From: Steinbach
88 L98 Headman longtubes 1.6 RR Ported plenum Unknown cam 3.54 Dana 44 , 52 BBK

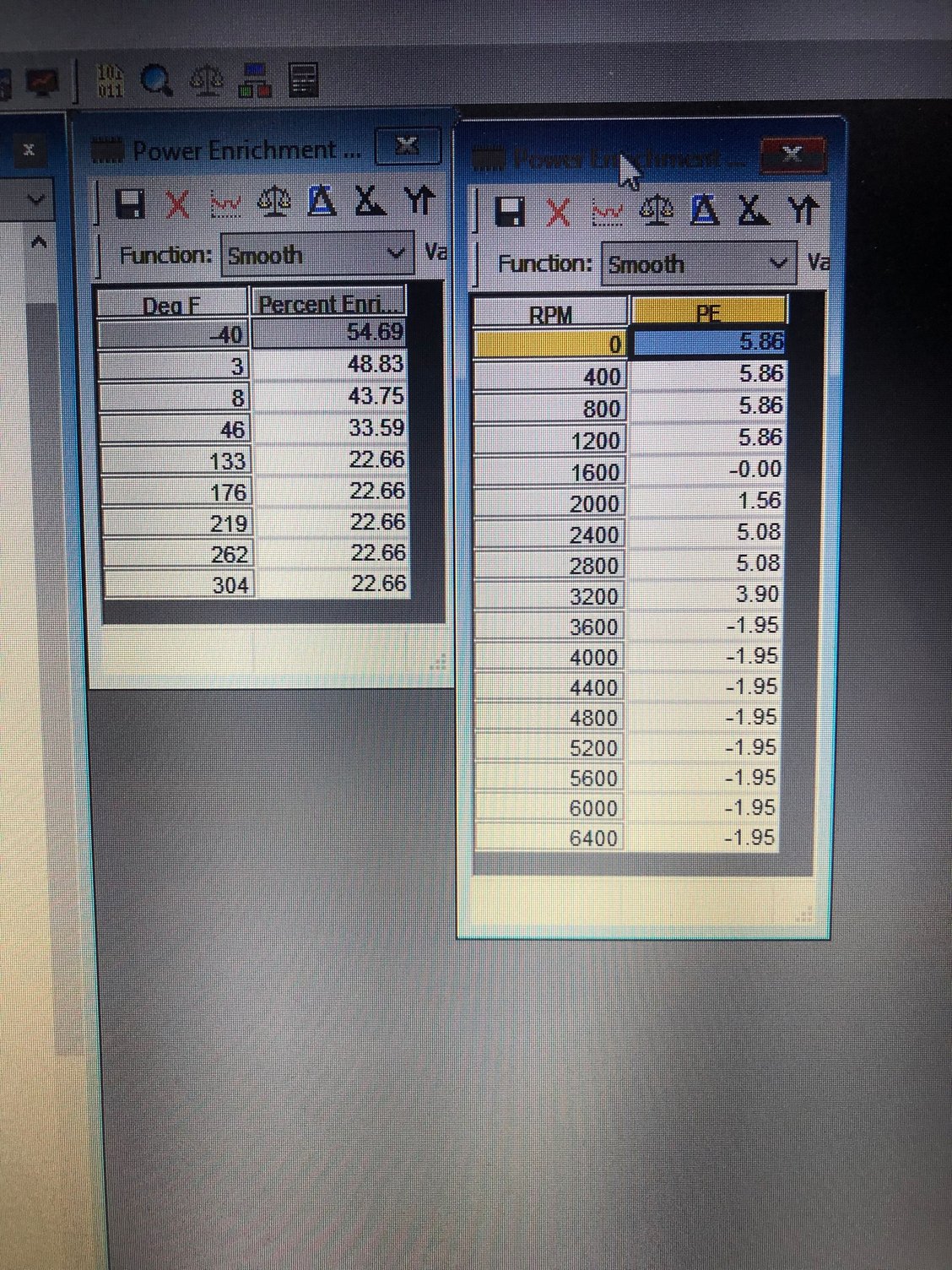

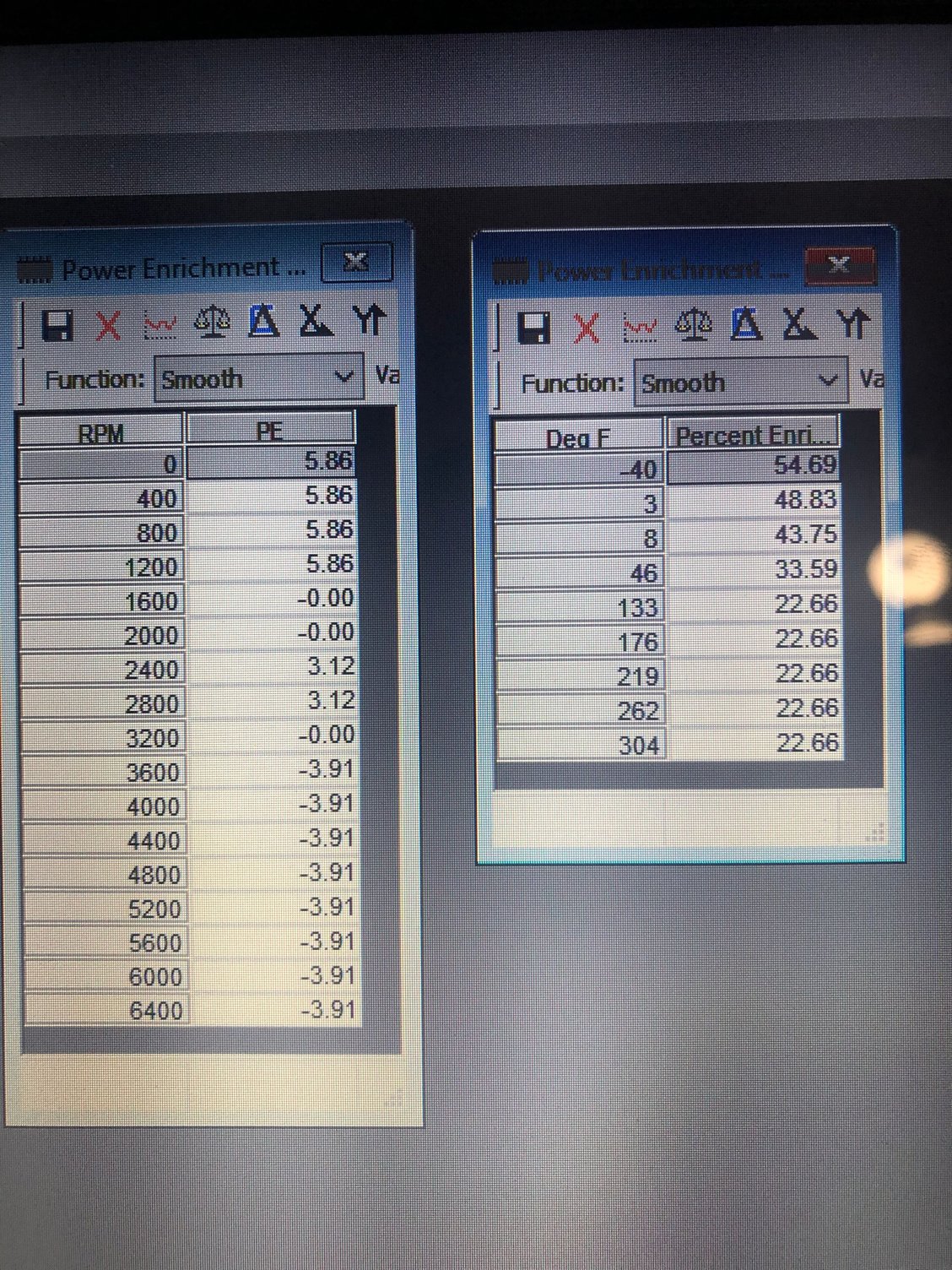

The new numbers on PE
it was reading around 12.7 when I was going through the gears.
i noticed if I go wot in 4th from around 2000 it was running rich . Closer to 12 then started climbing as I accelerated. Must be load factors when calculating afr
Last edited by Billygoatkid; Sep 18, 2019 at 10:13 PM. Reason: Add info
Melting Slicks
Joined: Aug 2003
Posts: 3,386
Likes: 390
From: Lakeville MI
Please verify your resulting target AFR with a datalog (or do the math up-front). Data is your friend, don't try and do this blindly.
Here's an example of good correlation between Target AFR and WBO2. Data is from a dyno pull of a D1 Procharger, 383, miniram, maf car. Hot boost with water/methanol injection. Note: the tuning has already been compensated a bit for the additional fuel (methanol), so would tend to be a bit lean without the water/methanol injection and is therefore a bit risky if the tank runs dry or the pump fails.
https://datazap.me/u/tequilaboy/test...0-248&mark=195
Here's an example of good correlation between Target AFR and WBO2. Data is from a dyno pull of a D1 Procharger, 383, miniram, maf car. Hot boost with water/methanol injection. Note: the tuning has already been compensated a bit for the additional fuel (methanol), so would tend to be a bit lean without the water/methanol injection and is therefore a bit risky if the tank runs dry or the pump fails.
https://datazap.me/u/tequilaboy/test...0-248&mark=195
Last edited by tequilaboy; Sep 19, 2019 at 12:18 PM.
Melting Slicks
Joined: Aug 2003
Posts: 3,386
Likes: 390
