Need Instructions for Hurricane Intake

Reply Subscribe

Thread Tools

Search this Thread

Apr 18, 2010 | 12:48 PM

1SHADYZ

Thread Starter

Pro

Joined: Jun 2008

Posts: 688

Likes: 1

From: Levittown New York

Need Instructions for Hurricane Intake

Last time I attempt to do the install I went from the top to install it but it was not working. Do I have to put it in from bottom?

Thank you.

Apr 18, 2010 | 04:45 PM

ls2alex

Burning Brakes

Joined: Mar 2010

Posts: 761

Likes: 2

From: sf bay CA

just installed mine yesterday. it takes a little effort, but it will drop down from the top

Apr 18, 2010 | 08:09 PM

1SHADYZ

Thread Starter

Pro

Joined: Jun 2008

Posts: 688

Likes: 1

From: Levittown New York

I see on the sides of the system there's a hole on each side but I don't see any spot on the car for that to line up too. Do you make new spots ? It seems like the 2 air flow spots on the 1st peice doesn't fit correct. There's no cuttng? Thank you.

Apr 19, 2010 | 01:07 AM

ls2alex

Burning Brakes

Joined: Mar 2010

Posts: 761

Likes: 2

From: sf bay CA

No, no cutting needed. The 7 holes at the bottom match up to the ones that were used for the stock radiator shroud.

Apr 19, 2010 | 05:23 AM

Choreo

Le Mans Master

Joined: May 2006

Posts: 6,774

Likes: 361

From: Midland TX

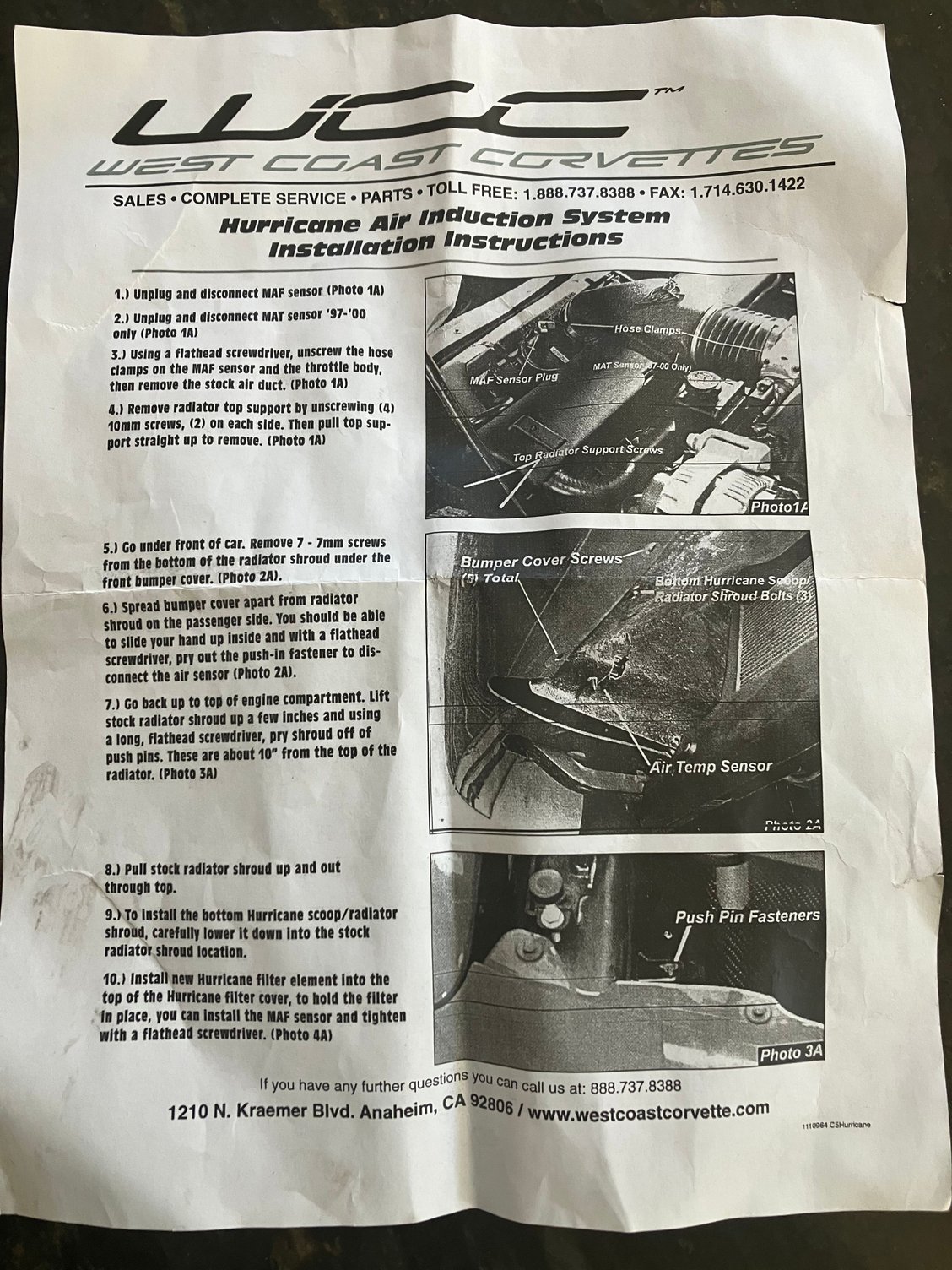

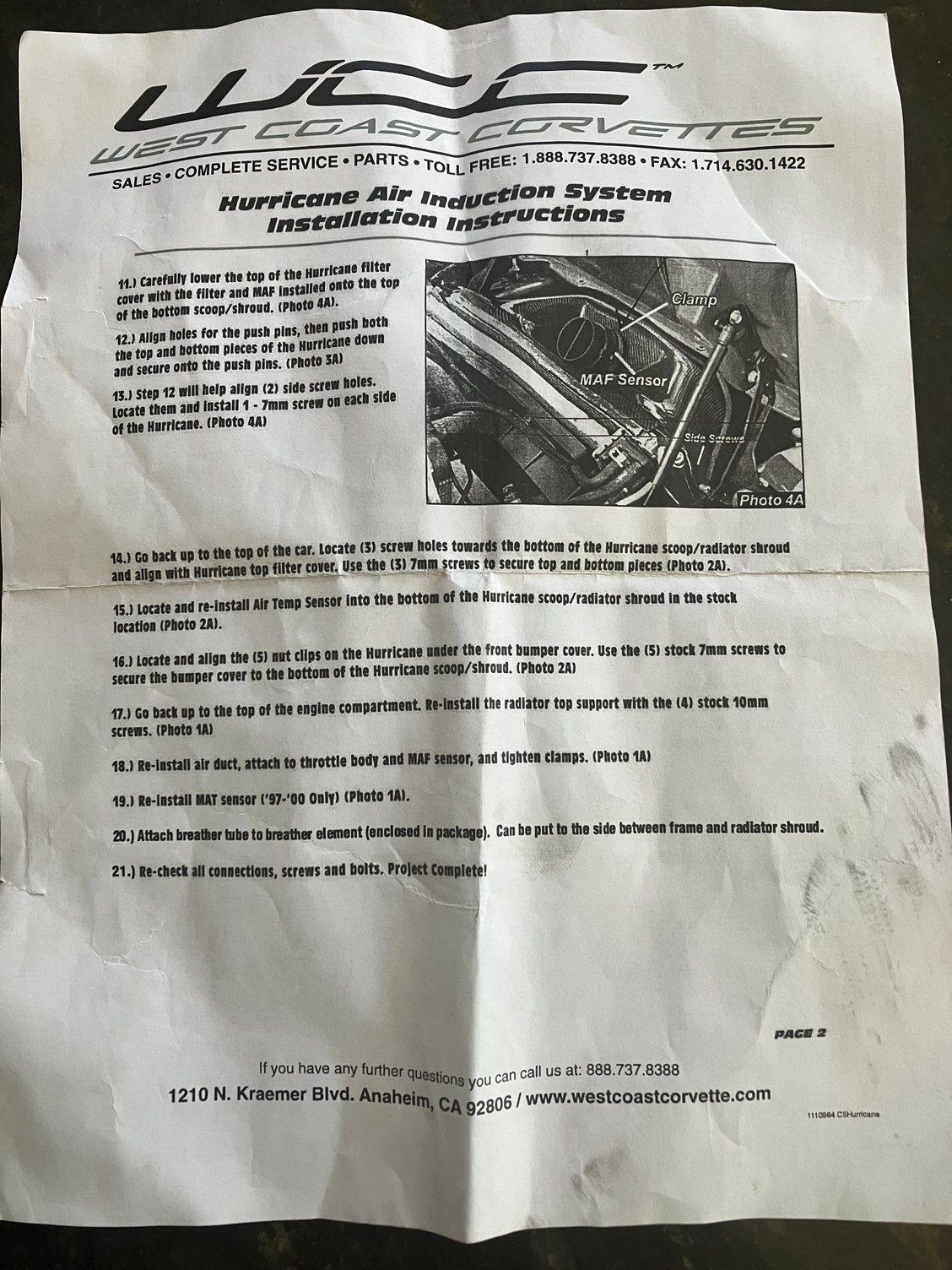

Here are the instructions from WCC: http://www.westcoastcorvette.com/fil...5Hurricane.pdf - may take a while to download the PDF.

It installs from the top, but you will also have to get underneath the front to remove/install screws, etc. Takes more cuss words than tools!
