Shock simulator questions

Reply Subscribe

Thread Tools

Search this Thread

Aug 25, 2009 | 08:00 PM

neaz

Thread Starter

Intermediate

Joined: Jun 2008

Posts: 34

Likes: 0

Shock simulator questions

Purchased the RTD simulators from Casper Electronics for my '01 and upon reviewing the instructions I have some questions. It is noted in the instructions: "You must cut the Lt. Blue Wire in Cavity 11 on the RTD Module connector in the vehicle (steering position sensor input) to prevent a potential code from being set". I've sent email and left messages for some tech support but haven't received an answer back from the manufacturer.

My questions: 1) Where is "Cavity 11" on the RTD connector? I suppose if I had a service manual it might point this out, but I don't have the manuals. 2) Is this at each wheel? 3) Is this a normal thing? I thought the sims were a plug and play thing, I don't want to cut anything unless its absolutely necessary

Thanks in advance for the input

Aug 25, 2009 | 09:36 PM

byronhunter

Melting Slicks

Joined: Oct 2007

Posts: 2,383

Likes: 13

From: Kinston North Carolina

Maybe I'm wrong, but it dosn't look like cavity #11 to me.

Aug 25, 2009 | 09:40 PM

byronhunter

Melting Slicks

Joined: Oct 2007

Posts: 2,383

Likes: 13

From: Kinston North Carolina

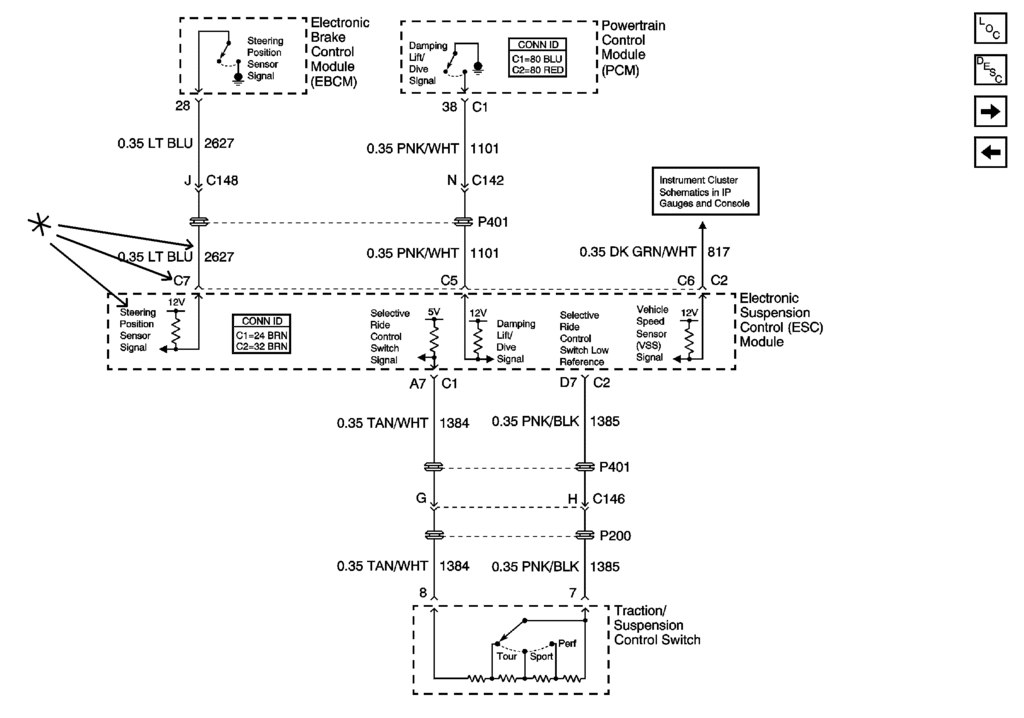

From '01 Service Manual
------------------------------------------------------------------
Electronic Suspension Control (ESC) Module
Rear compartment, inside the LH storage compartment

Aug 25, 2009 | 10:14 PM

lucky131969

Tech Contributor

Joined: Jan 2007

Posts: 19,344

Likes: 1,123

From: Dyer, IN

According to the service manual, the steering position sensor input did not occupy cavity 11 until 2003. 2002 and below used cavity 7.

Aug 26, 2009 | 03:12 PM

neaz

Thread Starter

Intermediate

Joined: Jun 2008

Posts: 34

Likes: 0

Quote:

Originally Posted by lucky131969

According to the service manual, the steering position sensor input did not occupy cavity 11 until 2003. 2002 and below used cavity 7.

I don't suppose someone out there has this page for the '01, I'm not seeing the lt blue wire in Cavity 7 either (at least what I think is Cavity 7)

Aug 26, 2009 | 04:26 PM

lucky131969

Tech Contributor

Joined: Jan 2007

Posts: 19,344

Likes: 1,123

From: Dyer, IN

According to the service manual, the diagram that byronhunter posted is correct for a 2001. Here is the connector end view:

Oct 11, 2009 | 02:05 PM

neaz

Thread Starter

Intermediate

Joined: Jun 2008

Posts: 34

Likes: 0

Finally did it

Thanks for all the input and help on this everyone, I finally got around to installing the Z06 shocks, removed the Lt Blue wire from cavity 7 and installed the sims. I now have "Service Ride Control" and code C0710 Steering Position Signal Malfunction. Any thoughts or suggestions? The code will not clear, stays current; I tried disconnecting the battery for about 30 minutes and no change from that either.

BTW.......what a difference! I may be in love with my car again.

Oct 15, 2009 | 12:33 AM

neaz

Thread Starter

Intermediate

Joined: Jun 2008

Posts: 34

Likes: 0

update

So I actually had someone from Casper's email me back about my issues/questions, turns out the cutting the blue wire only pertained to 2003 model year and it also now appears they don't even recommend the sims for 2003 models. The answer was "guess you must've got an old set of instructions", of course I double checked on their website and it's the same instructions which were in my box. I would've been really hard to add the line "For model year 2003 you must cut the blue wire". Oh well, I'm done being sour

I restored the blue wire to the connector and all is good, codes are clear. Thanks to everyone for all the input and help on this
