Car stopped working
Thread Starter
Instructor
Joined: Apr 2014
Posts: 126
Likes: 2
From: Alameda California
Car stopped working
Was driving got reduce power, low fuel, tcs, car then shuts off, Tried to restart the car a bunch of times and nothing. It turns over. I add gas to the car, check all fuses, theres fuel pressure. Still nothing, get home after the car gets towed and find the following codes.
C1276H
U1016H
U1000HC
10 PCM No Comm
Basically theres no communication with the PCM. So now what do I do?
Thanks
Robert
2003 z06
C1276H
U1016H
U1000HC
10 PCM No Comm
Basically theres no communication with the PCM. So now what do I do?
Thanks
Robert
2003 z06
.
Joined: Apr 2013
Posts: 5,026
Likes: 1,154
From: Oregon
St. Jude Donor '14-'15-'16-'17-'18-'19-'20-'21-'22-'23
Drifting
Joined: Oct 2002
Posts: 1,773
Likes: 66
From: SoCal
U1016 means no comm with the PCM on the class 2 circuit.
U1000 is the basic no comm code that goes with the U1016 code for the PCM.
As was mentioned need to check connectors, fuses and grounds. Check fuses underhood. PCM fuse 16 and PCM B fuse 23. As for the ground it is G106. From what you said above you did not check that ground. From the ground pic I am looking at it seems to be at the engine passenger side. Also check the Class 2 serial buss connections and STAR connectors if the other things mentioned here do not work. Those are 2 thin connectors by the BCM. Check and see if there is any loose wiring or short there. The one with more wires on it is the one you need to check. Looks like 10 wires coming out of it. Only 4 come out of the other one. The wire you would look for would be Dark Green.
Greg
Last edited by RedRiderZR1; Aug 20, 2014 at 08:44 PM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
Drifting
Joined: Oct 2002
Posts: 1,773
Likes: 66
From: SoCal
One more thing. Are you sure you have a good battery in the car. These cars do strange things with a weak battery. So be sure it has a good charge. and not a bad battery.
Last edited by RedRiderZR1; Aug 20, 2014 at 09:52 PM.
Tech Contributor
Joined: Dec 1999
Posts: 32,910
Likes: 2,402
From: Anthony TX
CI 6,7,8,9,11 Vet
St. Jude Donor '08
You either have a CLASS 2 SERIAL DATA BUSS failure or short
OR
You’re missing a power or ground input to the BCM or PCM.
The BCM and PCM are MULTIPLE FUSE supplied. Find ALL the fuses for each module. PHYSICALY remove the fuse and check it with an OHM METER. On top of the fuse are two slots. They are TEST SLOTS.
Use your DC Volt Meter and measure each slot to a known good bare metal chassis ground. The HOT AT ALL TIMES supplied fuses should read full battery voltage all the time
The HOT IN RUN AND START supplied fuses has to have the ignition switch ON to read voltage on those fuses.
You should see FULL Battery voltage on those fuses also.
BC
OR
You’re missing a power or ground input to the BCM or PCM.
The BCM and PCM are MULTIPLE FUSE supplied. Find ALL the fuses for each module. PHYSICALY remove the fuse and check it with an OHM METER. On top of the fuse are two slots. They are TEST SLOTS.
Use your DC Volt Meter and measure each slot to a known good bare metal chassis ground. The HOT AT ALL TIMES supplied fuses should read full battery voltage all the time
The HOT IN RUN AND START supplied fuses has to have the ignition switch ON to read voltage on those fuses.
You should see FULL Battery voltage on those fuses also.
BC
Thread Starter
Instructor
Joined: Apr 2014
Posts: 126
Likes: 2
From: Alameda California

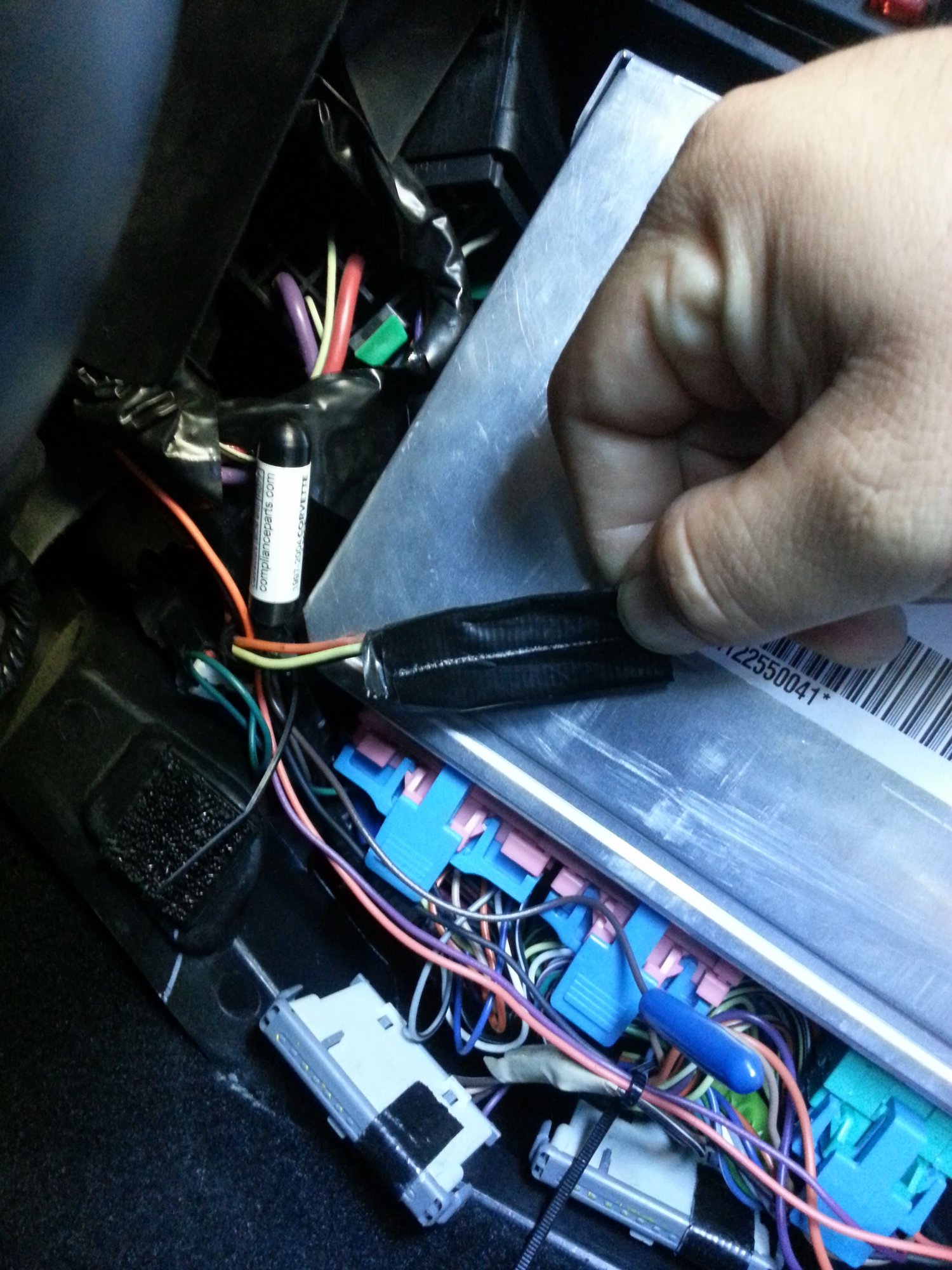

Found this, looks like someone hacked something could this be the issue?
