Speed-o-meter
About a month ago my speedometer quit working and when the car was shut off and restarted it worked fine.
Last week it quit working again and now restarting does nothing.
Although the speedometer is not working the cruise control works and displays your speed when you set it.
Any ideas what to start with in diagnosing the problem?
I did a search but didn't find anything related.
Last week it quit working again and now restarting does nothing.
Although the speedometer is not working the cruise control works and displays your speed when you set it.
Any ideas what to start with in diagnosing the problem?
I did a search but didn't find anything related.
5th Gear
Joined: Jan 2017
Posts: 5
Likes: 0
From: New Orleans LA
I have the exact same issue in my 99, restarting the car fixed it the first couple of times, then last week it went out and hasnt started back again...no new codes and I dont have a HUD..anyone have any ideas where to start looking for the issue? Possibly related, my fuel gauge went out around the same time the speedo started acting up. I know this is the sending unit on one of the tanks I just havent got to it working on it yet.
Tech Contributor
Joined: Dec 1999
Posts: 32,910
Likes: 2,402
From: Anthony TX
CI 6,7,8,9,11 Vet
St. Jude Donor '08
Any thing wrong with the fuel level system is PCM monitored and will usually set a DTC. Clear all the DTCs and see what comes back. Get a meter out and see if all the supply voltages & Grounds are there.
Bill
Here is your shematic:
Bill
Here is your shematic:
Safety Car
Joined: Dec 2010
Posts: 3,938
Likes: 498
From: Fords, NJ

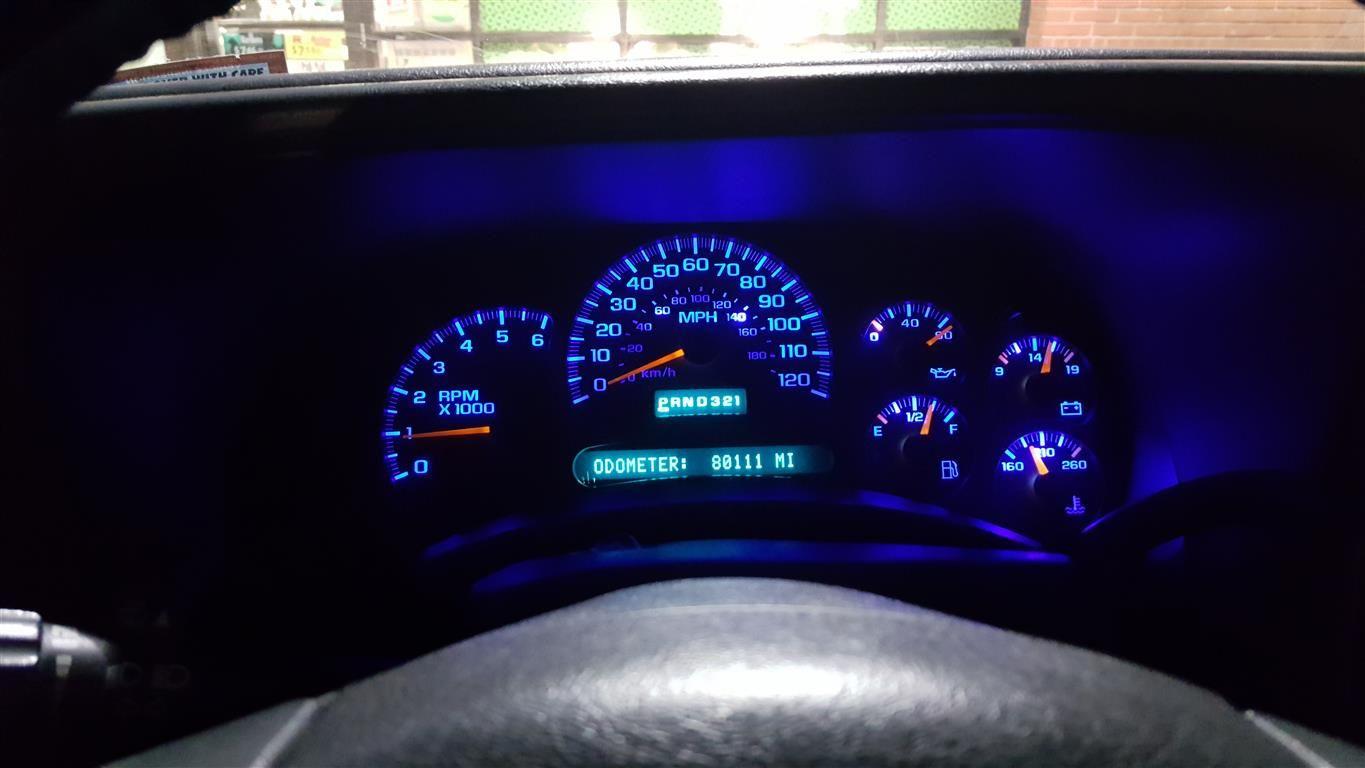

I had to replace all 6 stepper motors in my 03 Silverado. While i was at it I did a LED swap for the dash lights as well.
And you'll noticed the Oil Pressure is pegged....C5's aren't the only ones with oil sending unit problems....
It's been replaced since this picture was taken !
