Headlight Ninja needed!
I'm starting a new thread regarding my headlight problem - hope this is permitted. I've now spent entirely too much time on this and pretty much out of ideas.
========
Recap projector enclosure with ballast installed along with rebuilt headlamp motors
Problem all headlights are operational but will only flip into the closed position
Last night I broke out the FSM, test light, and voltmeter. Summary of what I found:
The headlight motors have 12v applied at all times. They receive a pulse from the controller which signals them to open or close.

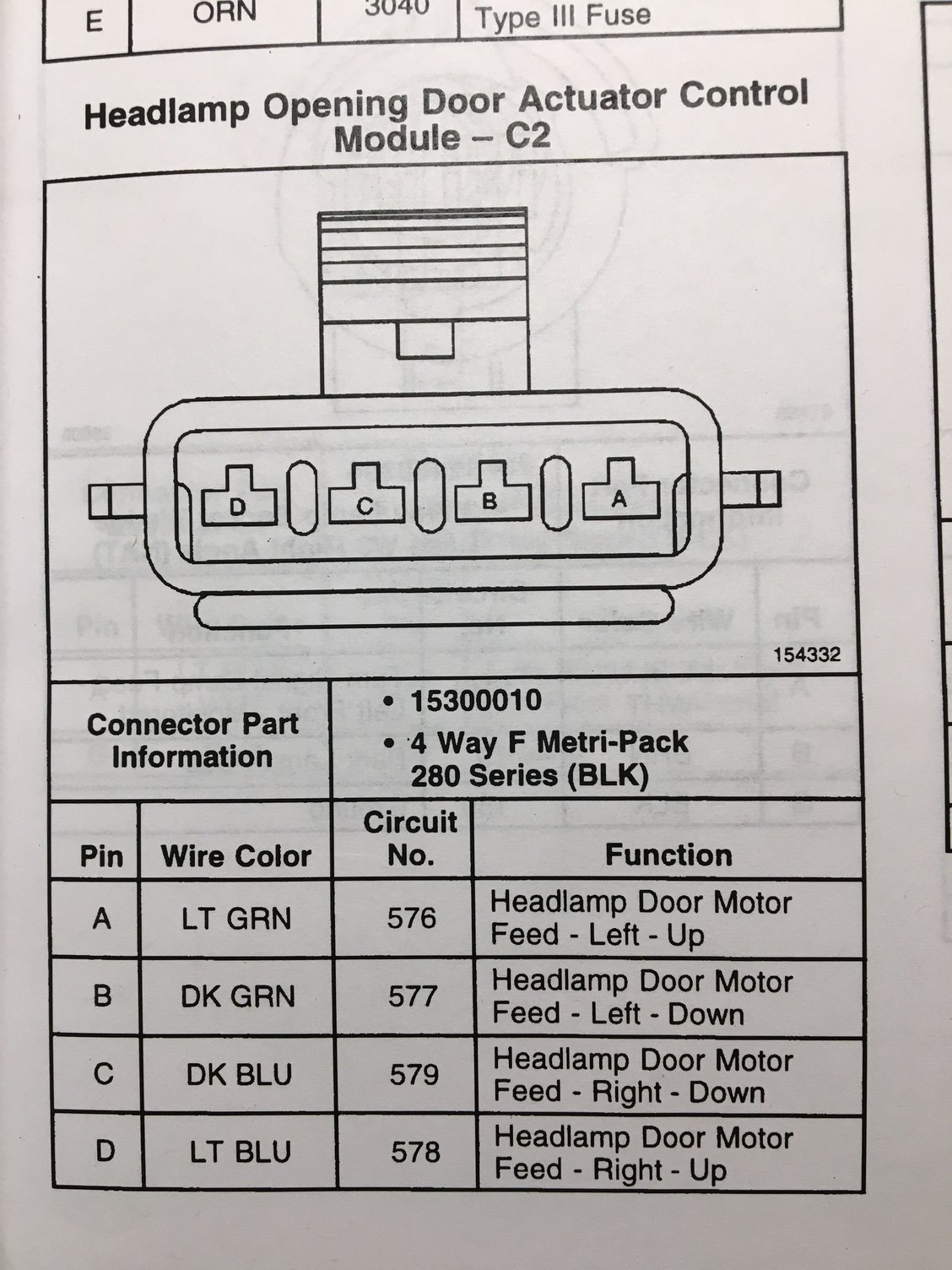

Starting with the output side of the headlamp control module (connector C2)
Per the narrative the doors open when 576 and 578 are hot and 577 and 579 are cold. I verified that when turning the headlamp switch on that a pulse is sent and +12v is applied across 576/577 and 578/579.
What this does is to spin the motors clockwise (from the top) and spin the shafts counter-clockwise (viewed from the side). The way I have the intermediate link connected (perhaps not correctly) is that this rotation of the motors caused the doors to close rather than open.
So one possibility is that I have the linkage improperly connected but honestly I dont see any other way it can go.
The doors are supposed to close when the polarity is reversed and +12 is applied to 577 and 579 and then 576 and 578 are grounded. When I turn my headlamp switch off no pulse is detected.
Going to the input side of the headlamp control module (connector C1). When the headlamp switch is turned on +12 is supposed to be applied to 103 and this was verified. When the headlamp switch is turned off +12 is supposed to be applied to 306 and this was not verified. However while the switch was in the off position I connected a test lamp to 103 (the white wire) and although it did not light the motors reversed direction and the headlamps moved to the Open position (the motor is spinning CCW when viewed from the above and CW when viewed from the side).
========
Recap projector enclosure with ballast installed along with rebuilt headlamp motors
Problem all headlights are operational but will only flip into the closed position
Last night I broke out the FSM, test light, and voltmeter. Summary of what I found:
The headlight motors have 12v applied at all times. They receive a pulse from the controller which signals them to open or close.
Starting with the output side of the headlamp control module (connector C2)
Per the narrative the doors open when 576 and 578 are hot and 577 and 579 are cold. I verified that when turning the headlamp switch on that a pulse is sent and +12v is applied across 576/577 and 578/579.
What this does is to spin the motors clockwise (from the top) and spin the shafts counter-clockwise (viewed from the side). The way I have the intermediate link connected (perhaps not correctly) is that this rotation of the motors caused the doors to close rather than open.
So one possibility is that I have the linkage improperly connected but honestly I dont see any other way it can go.
The doors are supposed to close when the polarity is reversed and +12 is applied to 577 and 579 and then 576 and 578 are grounded. When I turn my headlamp switch off no pulse is detected.
Going to the input side of the headlamp control module (connector C1). When the headlamp switch is turned on +12 is supposed to be applied to 103 and this was verified. When the headlamp switch is turned off +12 is supposed to be applied to 306 and this was not verified. However while the switch was in the off position I connected a test lamp to 103 (the white wire) and although it did not light the motors reversed direction and the headlamps moved to the Open position (the motor is spinning CCW when viewed from the above and CW when viewed from the side).
- Switch on doors close and lights turn on
- Switch off doors stay down and lights turn off
- Ground the white wite both doors open
- Switch on - doors close and lights turn on
#4
Melting Slicks
The headlight motors do not have power applied at all times. It is the HDCM the one that is always hot and cuts power to the motors when they reach the end of their travel and a high-current threshold is met. The control signal to open or close is sent by the MFS to the HDCM and is not a pulse: it applies constant +12v to the "Open" signal wire and ground to the "Close" signal wire to command the doors to open, and the other way around to close.
Installing new headlamp housings shouldn't have caused electrical problems, unless you modified the wirings. Most probably this is a mechanical problem. If you are going to try to reverse the linkage, I suggest you try it by hand first using the motors ***** to see if it can freely open and close. You don't want to apply the full force of the motors and cause damage if the linkage is wrong.
NOTE: below is a summary of how things work in case you need to further troubleshoot this.

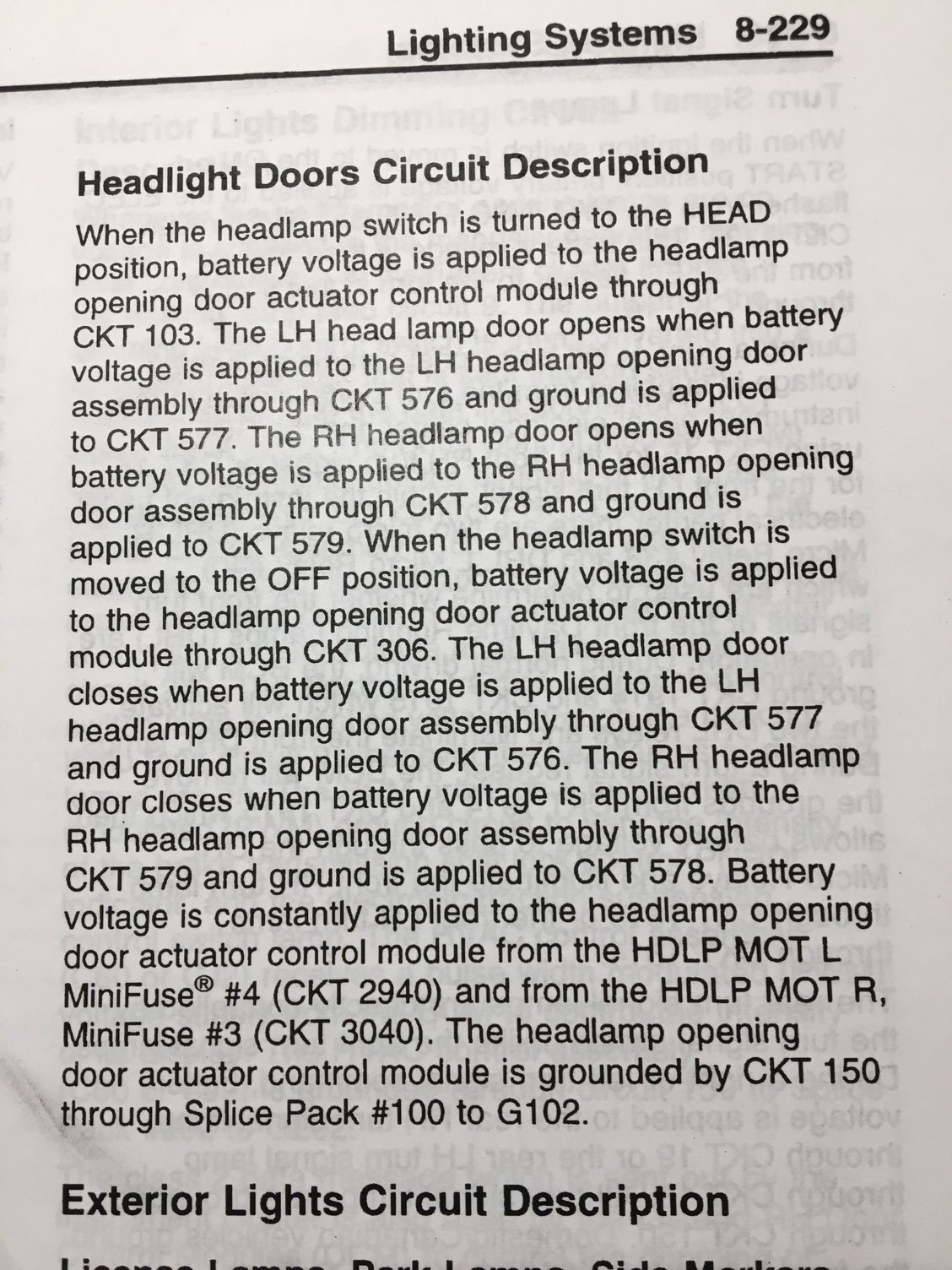

Power Sequence
BAT voltage is constant to Headlamp Opening Door Actuator Control Module (DACM) from the HDLP MOT L MiniFuse #4 (CKT 2940) and from the HDLP MOT R MiniFuse #3 (CKT 3040).
Headlamp Switch to HEAD position:
- BAT voltage is applied to Headlamp ON Input on DACM via CKT 103.
- LH door opens with BAT VOLT to LH opening door assy via CKT 576 & GND is applied to CKT 577.
- RH door opens with BAT VOLT to RH opening door assy via CKT 578 & GND is applied to CKT 579.
When HL switch is OFF:
- BAT voltage is applied to Headlamp OFF Input on DACM via CKT 306.
- LH door closes with BAT VOLT to LH opening door assy via CKT 577 & GND is applied to CKT 576.
- RH door closes with BAT VOLT to RH opening door assy via CKT 579 & GND is applied to CKT 578.
The Headlamp Opening DACM (front RH side below RH HL Assy) is grounded by CKT 150 via Splice Pack#100 (forwardlamp harness, attached to G102 - Point #8 in diagram below).
