C5 Starting issues
Thread Starter
Advanced
Joined: May 2011
Posts: 75
Likes: 3
From: Edmonton Alberta
C5 Starting issues
Having issues with my car not starting. Sometimes starts first go, other times have to try several times before she starts. No patterns, very random.
I have installed new AGM battery, replaced my ignition and keys, new alternator & new coil packs and now looking at replacing my starter or at least trying to get at the ground.
Is there anything I am missing that would be the go to for this issue, or is the starter likely the best target??
Any help with this would be greatly appreciated......Thanks much in advance!
I have installed new AGM battery, replaced my ignition and keys, new alternator & new coil packs and now looking at replacing my starter or at least trying to get at the ground.
Is there anything I am missing that would be the go to for this issue, or is the starter likely the best target??
Any help with this would be greatly appreciated......Thanks much in advance!
Melting Slicks
Joined: Sep 2008
Posts: 3,117
Likes: 793
From: Espanola New Mexico
By your post I take it that it's not cranking on the first try, here are a couple of things you can try to determine what is wrong. The TDR relay sits on top of the BCM in the passenger footwell area. The socket thar the TDR plugs into has a heavy gage red and violet wire, as well as smaller gage yellow, and yellow with a black strip wires. The TDR is the relay that sends power to energize the starter, make sure the car is in Park or neutral and insert a wire jumper between the red and violet wires, if it cranks its the TDR, if it doesn't most likely your starter solenoid is at fault, hope this helps, make sure the car is in park or neutral because doing this bypasses does requirements. Hope this helps
Thread Starter
Advanced
Joined: May 2011
Posts: 75
Likes: 3
From: Edmonton Alberta
By your post I take it that it's not cranking on the first try, here are a couple of things you can try to determine what is wrong. The TDR relay sits on top of the BCM in the passenger footwell area. The socket thar the TDR plugs into has a heavy gage red and violet wire, as well as smaller gage yellow, and yellow with a black strip wires. The TDR is the relay that sends power to energize the starter, make sure the car is in Park or neutral and insert a wire jumper between the red and violet wires, if it cranks its the TDR, if it doesn't most likely your starter solenoid is at fault, hope this helps, make sure the car is in park or neutral because doing this bypasses does requirements. Hope this helps
Thread Starter
Advanced
Joined: May 2011
Posts: 75
Likes: 3
From: Edmonton Alberta
By your post I take it that it's not cranking on the first try, here are a couple of things you can try to determine what is wrong. The TDR relay sits on top of the BCM in the passenger footwell area. The socket thar the TDR plugs into has a heavy gage red and violet wire, as well as smaller gage yellow, and yellow with a black strip wires. The TDR is the relay that sends power to energize the starter, make sure the car is in Park or neutral and insert a wire jumper between the red and violet wires, if it cranks its the TDR, if it doesn't most likely your starter solenoid is at fault, hope this helps, make sure the car is in park or neutral because doing this bypasses does requirements. Hope this helps
8th Gear
Joined: Jul 2007
Posts: 8
Likes: 0
C5 Auto Won't Start - No Ground at TDR
Help! ...I am trying to get my C5 to start. New Battery. At TDR, test Jump Red to Purple rolls Starter. Ignition to Yellow on TDR is 12V when Key Turned. Yellow Black remains Open with Key turned. Is there another Relay within the BCM ie. Starter Enable Relay Control to enable Ground to energize the relay? I am missing something.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
2027 Corvette vs The World: Every Model vs Closest Competitor
Joe Kucinski
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
5 MOST and 5 LEAST Popular Corvette Model Years in History!
Joe Kucinski
2027 Corvette Buyer's Guide: Everything You Need to Know!
Joe Kucinski
10 Things C8 Corvette Owners Hate (But Won't Tell You)
Joe Kucinski
10 Best Corvettes Coming to Barrett-Jackson Palm Beach 2026!
Brett Foote
Every Corvette Grand Sport Explained! (C2, C4, C6, C7, & C8)
Joe Kucinski
Grand Sport & Grand Sport X Launch Alongside All-New 535hp LS6 V8!
Michael S. Palmer
5 Reasons Bad Drivers Crash & 5 Ways to Avoid a Costly Mistake!
Joe Kucinski
Melting Slicks
Joined: Apr 2019
Posts: 2,466
Likes: 699
From: Clark, NJ
Help! ...I am trying to get my C5 to start. New Battery. At TDR, test Jump Red to Purple rolls Starter. Ignition to Yellow on TDR is 12V when Key Turned. Yellow Black remains Open with Key turned. Is there another Relay within the BCM ie. Starter Enable Relay Control to enable Ground to energize the relay? I am missing something.
https://www.corvetteforum.com/forums...lectricals.gif
Moderator, Tech Contributor
Joined: Sep 2013
Posts: 15,309
Likes: 3,925
From: Cape Coral, Florida

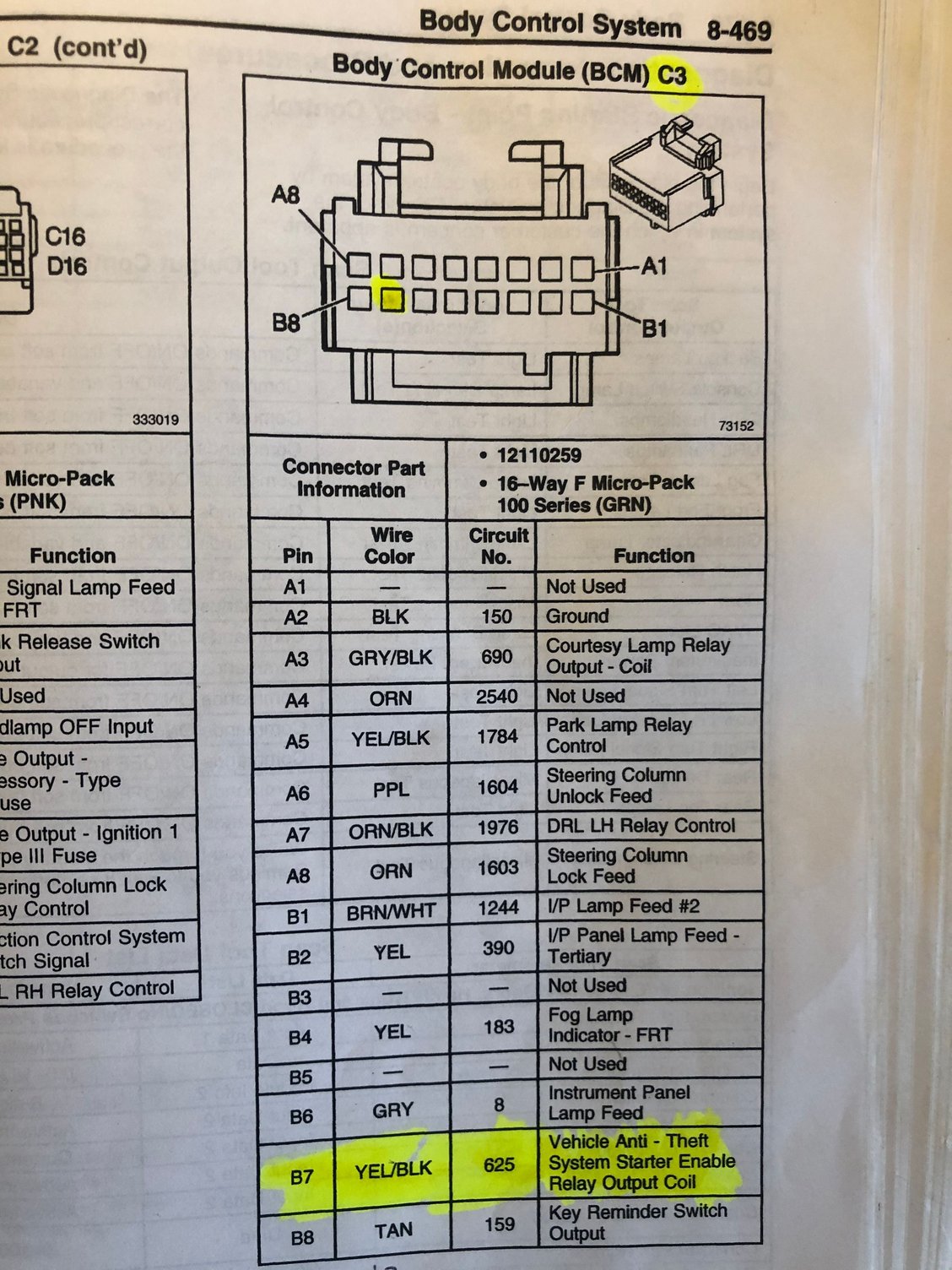

To see if the Starter Enable Relay is being grounded by the BCM take a test light connected to battery POSITIVE and back probe ( do you know what back probing is ??) the yellow/black wire on the C3 connector (the small bottom one) pin B7 (second wire in from the end) while trying to start the car...the test light will light if the enable relay is being grounded !!
