[QUOTE=C8-Vette;1601337535]
I was going to make the tool and I still might but that is not the bigger issue. If you were to remove the bolt and say misplace it, you will be buying a new Brembo Caliper from GM. It is a special bolt and it is a non service item. I am sure you could find a aftermarket Brembo to work, but how long is the car going to be down for that? At some point I will make a socket to remove it and then a replacement bridge bolt that will go in a kit. This is way that will not be an issue.
Justin

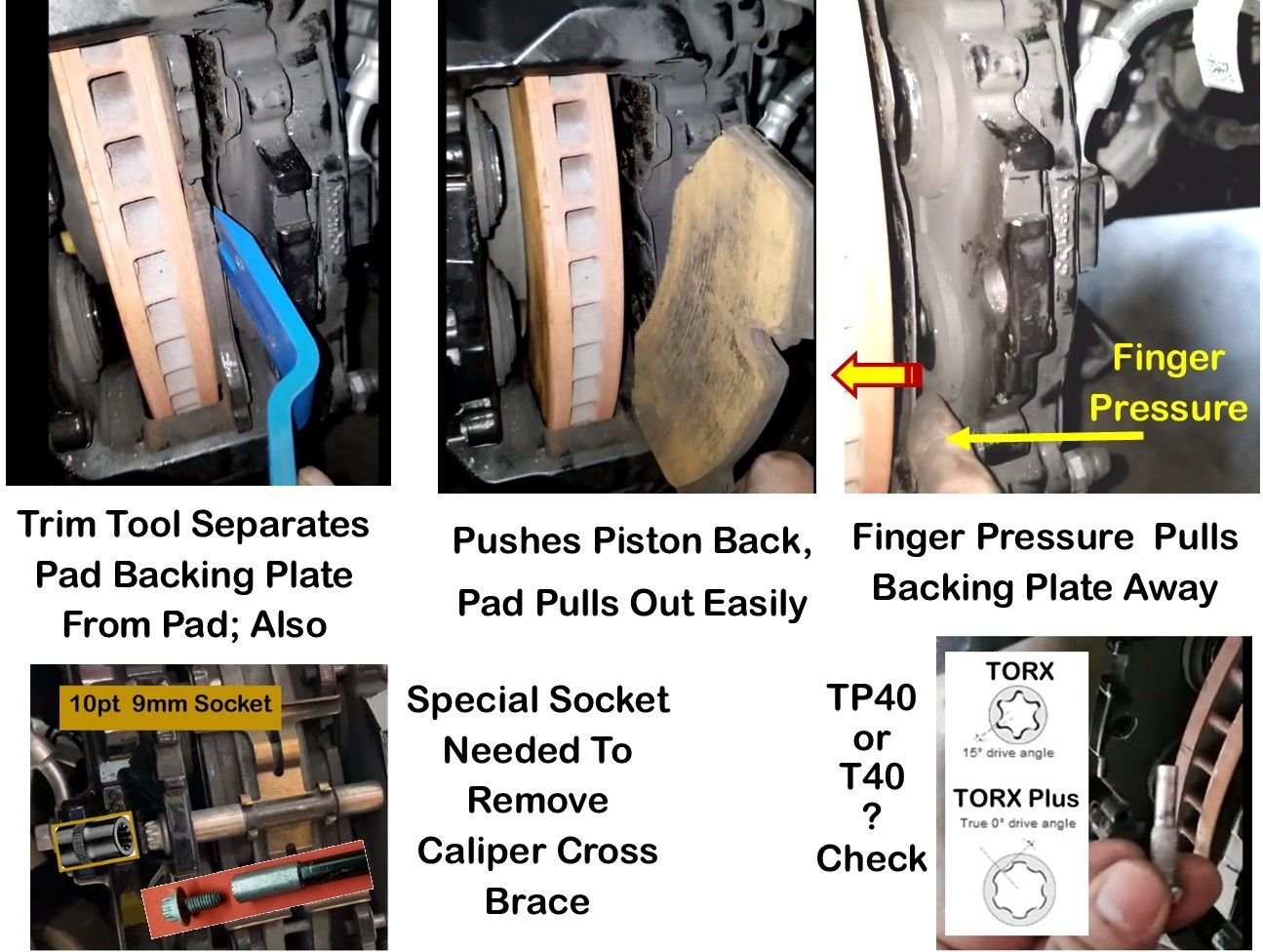

The bridge bolt on the new caliper is non servicable. It is also a new fastner design, it looks like a spline but it isn't and it is not the Volvo 11 point. So far Kent-Moore or Snap-On have anything that will fit it. When I looked it up through GM you can't even purchase the bridge bolt, it is part of the caliper. I may make it, not sure yet but for now you will have to remove the front caliper to replace the pads. The rear caliper can stay on since it does not have a bridge bolt and just has retaining pins.[/I
Thanks for the reply. I sure some tool company will have a tool soon. Taking off the caliper is not a big deal, just more work. Keep up posted
Thanks for the reply. I sure some tool company will have a tool soon. Taking off the caliper is not a big deal, just more work. Keep up posted
Justin
Thread Starter
Safety Car
Joined: Jul 2004
Posts: 3,867
Likes: 307
From: Wantagh,L.I. New York
[QUOTE=J.Abbott;1601340454]
Are you just concerned about misplacing the bolt or is it a torque issue where the bolt cannot be reused.
I was going to make the tool and I still might but that is not the bigger issue. If you were to remove the bolt and say misplace it, you will be buying a new Brembo Caliper from GM. It is a special bolt and it is a non service item. I am sure you could find a aftermarket Brembo to work, but how long is the car going to be down for that? At some point I will make a socket to remove it and then a replacement bridge bolt that will go in a kit. This is way that will not be an issue.
Justin
Justin
Last edited by C8-Vette; Apr 17, 2020 at 11:42 AM.
Platinum Supporting Vendor
Joined: Sep 2001
Posts: 3,665
Likes: 340
E-Ray, 3LZ, ZER, LIFT
Joined: Sep 2007
Posts: 34,856
Likes: 12,288
From: NE South Carolina
[QUOTE=J.Abbott;1601340454]
Thanks for getting all this info posted re C8 ceramic brakes!
It's strange for a car designed to be tracked to need a special tool to remove the cross bolt! When my 2017 Grand Sport cross bolt on a bigger Brembo caliper used standard wrenches!

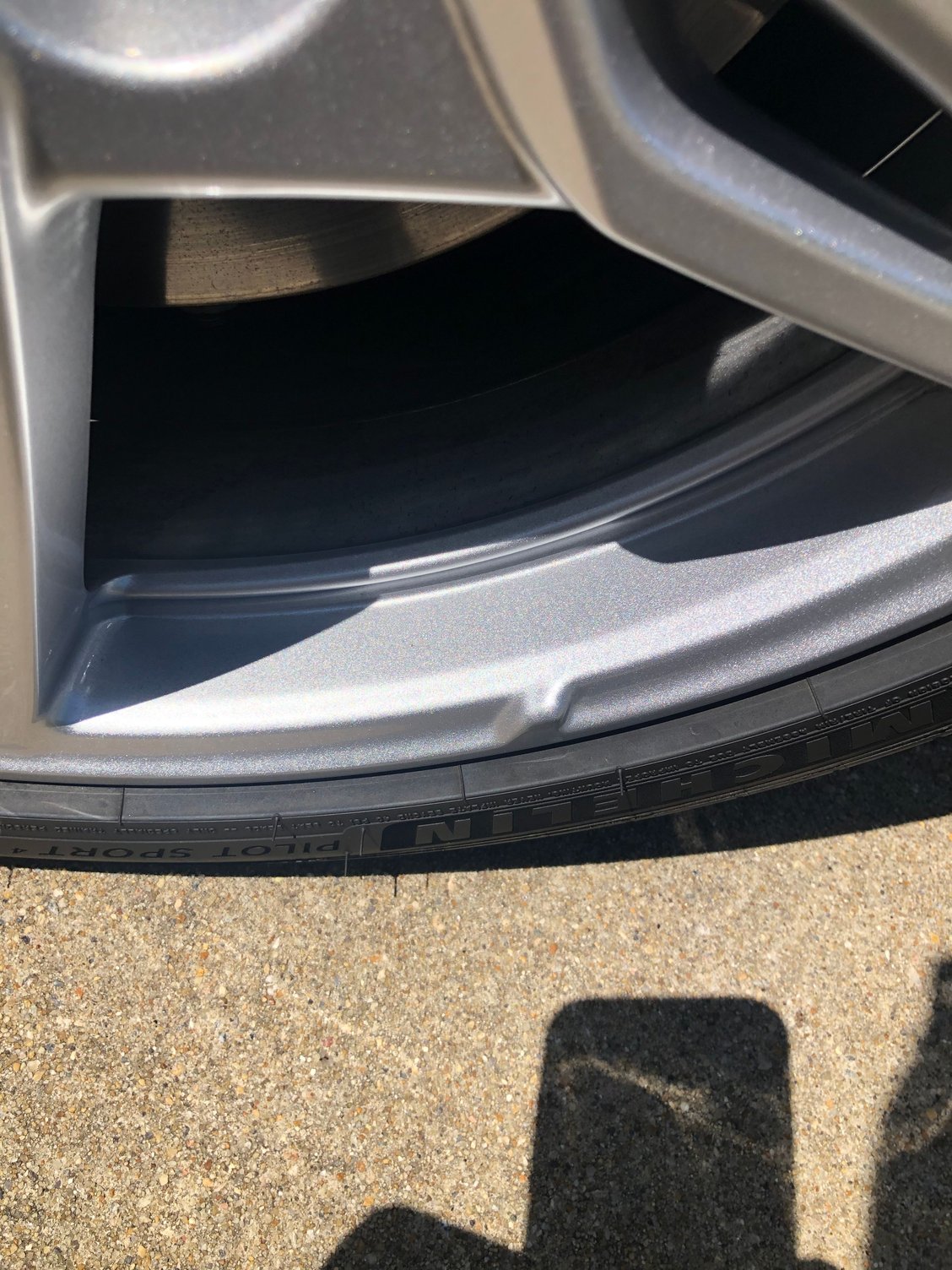

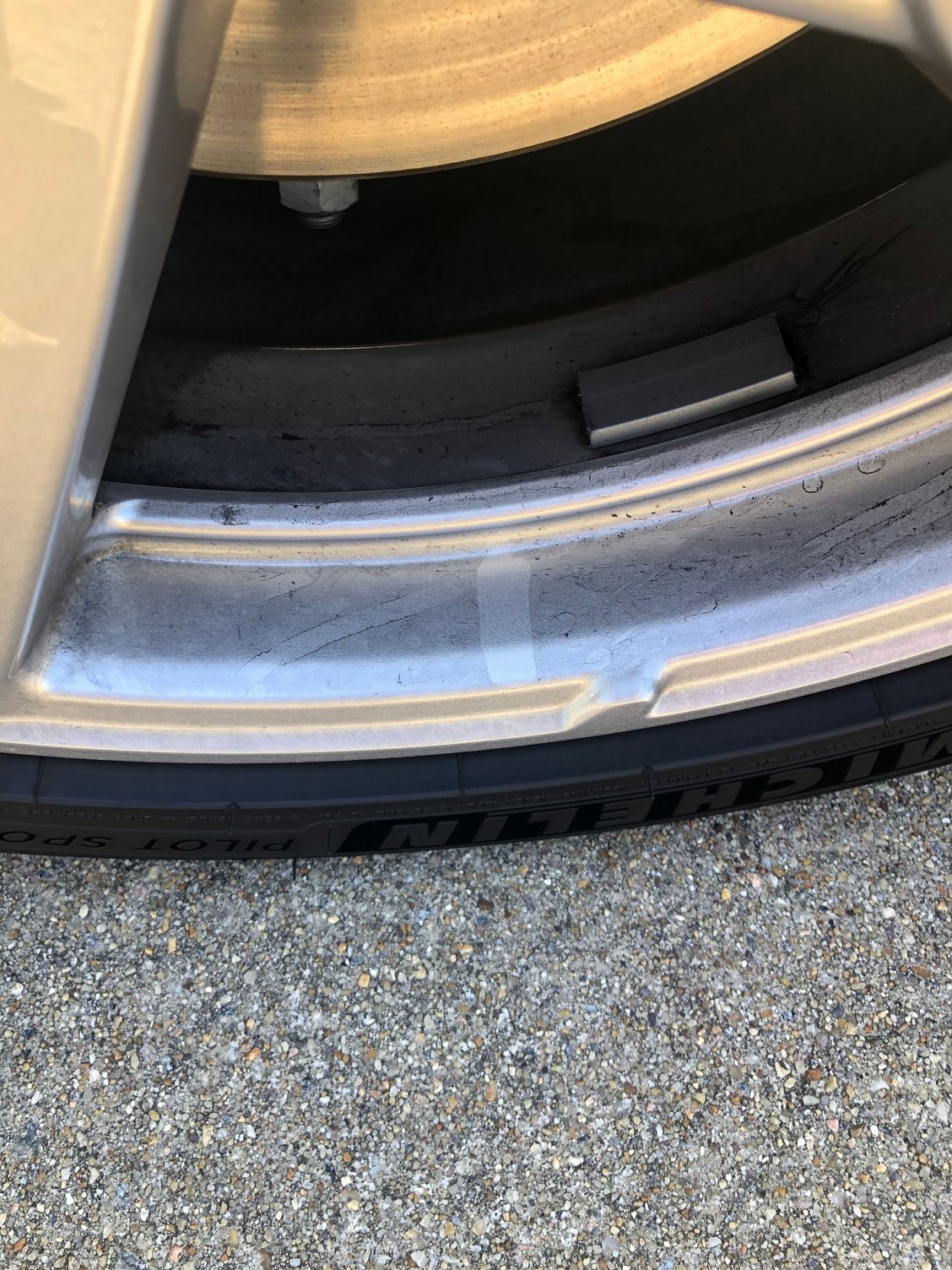

Will be interested in what is found. My plan, as I did when my Grand Sport arrived, is to replace the C8 Z51 pads with ceramic on Day 1 so I didn't have to clean the rotors as I did on my 6 month old September 2013 built Z51. That dust required cleaning ever ~200 miles as it not only looked bad it was pitting my black wheels!
I was going to make the tool and I still might but that is not the bigger issue. If you were to remove the bolt and say misplace it, you will be buying a new Brembo Caliper from GM. It is a special bolt and it is a non service item. I am sure you could find a aftermarket Brembo to work, but how long is the car going to be down for that? At some point I will make a socket to remove it and then a replacement bridge bolt that will go in a kit. This is way that will not be an issue.
Justin
Justin
It's strange for a car designed to be tracked to need a special tool to remove the cross bolt! When my 2017 Grand Sport cross bolt on a bigger Brembo caliper used standard wrenches!
Will be interested in what is found. My plan, as I did when my Grand Sport arrived, is to replace the C8 Z51 pads with ceramic on Day 1 so I didn't have to clean the rotors as I did on my 6 month old September 2013 built Z51. That dust required cleaning ever ~200 miles as it not only looked bad it was pitting my black wheels!
Last edited by JerryU; Apr 17, 2020 at 01:44 PM.
Platinum Supporting Vendor
Joined: Sep 2001
Posts: 3,665
Likes: 340
[QUOTE=JerryU;1601342387]
I agree, I found it a little odd.When I first looked at it I thought it was just a spline and really didn't think about it again, until we went to remove it. I have talked to a Brembo race rep in NC and they have nothing on it. When you look the item up on GM's server it is a non service part and in order to get it you have to purchase the caliper. We will figure out a solution, I like the idea of it being removed to change pads, but for now it is not.
Thanks for getting all this info posted re C8 ceramic brakes!
It's strange for a car designed to be tracked to need a special tool to remove the cross bolt! When my 2017 Grand Sport cross bolt on a bigger Brembo caliper used standard wrenches!
Will be interested in what is found. My plan, as I did when my Grand Sport arrived, is to replace the C8 Z51 pads with ceramic on Day 1 so I didn't have to clean the rotors as I did on my 6 month old September 2013 built Z51. That dust required cleaning ever ~200 miles as it not only looked bad it was pitting my black wheels!
It's strange for a car designed to be tracked to need a special tool to remove the cross bolt! When my 2017 Grand Sport cross bolt on a bigger Brembo caliper used standard wrenches!
Will be interested in what is found. My plan, as I did when my Grand Sport arrived, is to replace the C8 Z51 pads with ceramic on Day 1 so I didn't have to clean the rotors as I did on my 6 month old September 2013 built Z51. That dust required cleaning ever ~200 miles as it not only looked bad it was pitting my black wheels!
E-Ray, 3LZ, ZER, LIFT
Joined: Sep 2007
Posts: 34,856
Likes: 12,288
From: NE South Carolina
^^^
Intriguing! Sounds like for whatever reason It's not meant to be removable. Strange as if racing a Vette with stock calipers, the quick change of pads would not be possible or would take more time. For folks Tracking that install Race pads and want to put Street pads back on after also more of a hassle. Will be interested to see what Brembo says.
Intriguing! Sounds like for whatever reason It's not meant to be removable. Strange as if racing a Vette with stock calipers, the quick change of pads would not be possible or would take more time. For folks Tracking that install Race pads and want to put Street pads back on after also more of a hassle. Will be interested to see what Brembo says.
Last edited by JerryU; Apr 20, 2020 at 09:55 AM.
Platinum Supporting Vendor
Joined: Sep 2001
Posts: 3,665
Likes: 340
^^^
Intriguing! Sounds like for whatever reason It's not meant to be removable. Strange as if racing a Vette with stock calipers, the quick change of pads would not be possible or would take more time. For folks Tracking that install Race pads and want to put Street pads back on after also more of a hassle. Will be interested to see what Brembo says.
Intriguing! Sounds like for whatever reason It's not meant to be removable. Strange as if racing a Vette with stock calipers, the quick change of pads would not be possible or would take more time. For folks Tracking that install Race pads and want to put Street pads back on after also more of a hassle. Will be interested to see what Brembo says.
I remember when LRPG was running Rolex and I couldn't believe the spares that were on hand and how quick they had stuff down. I mean they know how much oil it is going to burn during time between pits and are able to add it through a quick fill port by the a pillar, they don't even have to lift the hood.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
5 MOST and 5 LEAST Popular Corvette Model Years in History!
Joe Kucinski
5th Gear
Joined: Apr 2020
Posts: 5
Likes: 0
From: Orange county, Calif
Sorry 1st time on this forum. Are you with ampd?
ARE you with Ampd?....do you have the J55 ceramic brake pads available?
Platinum Supporting Vendor
Joined: Sep 2001
Posts: 3,665
Likes: 340
NO, I am with Zip Products, Inc. We do sell Carbotech, but Carbotech does not have these for a C8 yet. We have them in stock for the JL9 front and rear and the Z51 front. We are waiting on the Z51 rear which should be next week.
E-Ray, 3LZ, ZER, LIFT
Joined: Sep 2007
Posts: 34,856
Likes: 12,288
From: NE South Carolina
On race cars now a days they don't change just the pads. When the car needs pads they have the entire setup ready, it gets a caliper, pads and rotor all at the same time. It is faster then just changing the pads and the parts are new and ready to go. Calipers are already pre bled and all they do is hook it up. If you go look in their pit you will also see complete suspension corners as well in case there is an issue.
I remember when LRPG was running Rolex and I couldn't believe the spares that were on hand and how quick they had stuff down. I mean they know how much oil it is going to burn during time between pits and are able to add it through a quick fill port by the a pillar, they don't even have to lift the hood.
I remember when LRPG was running Rolex and I couldn't believe the spares that were on hand and how quick they had stuff down. I mean they know how much oil it is going to burn during time between pits and are able to add it through a quick fill port by the a pillar, they don't even have to lift the hood.
