1LT Live-view camera install with engine lights

The only option I wanted in my 1LT C8 was the live view camera because I didn’t realize how much the high wing blocked the view and the overall poor rear visibility in C8’s. I decided I’d add the live view camera.

mirror - ebay
Harness with video cable and engine bay lights
84740000

Cargo Lamps
84238355
84238354

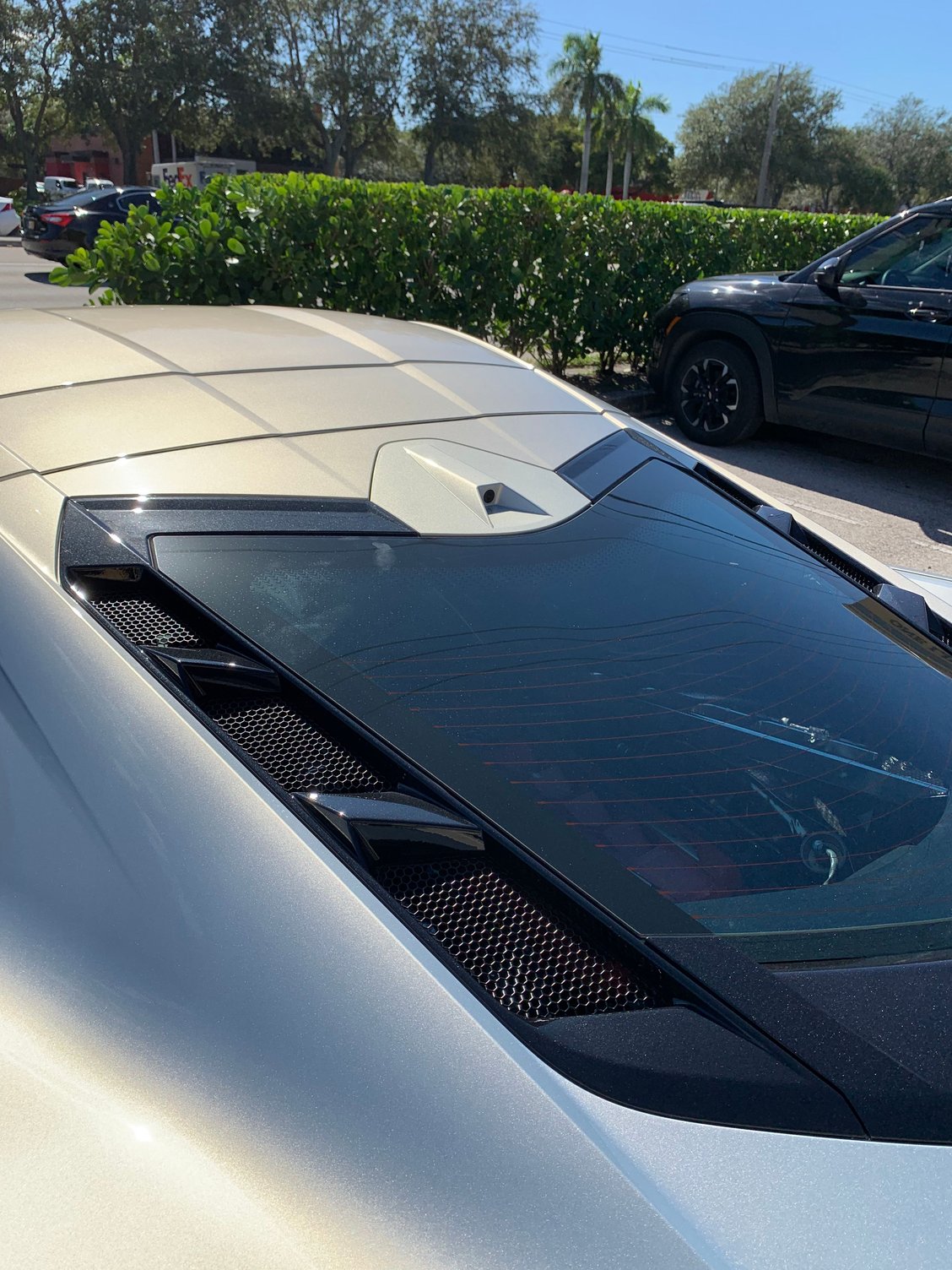

Appliqué with camera in primer
84609010

Mirror harness and video cable - Gen5diy
900305-15 ft camera cable
live view mirror 10 pin connector/power and ground only + 6'

Note: this is a moderate difficulty level and I didn’t include all the basic steps as this is an overview of what I did an not a detailed step by step

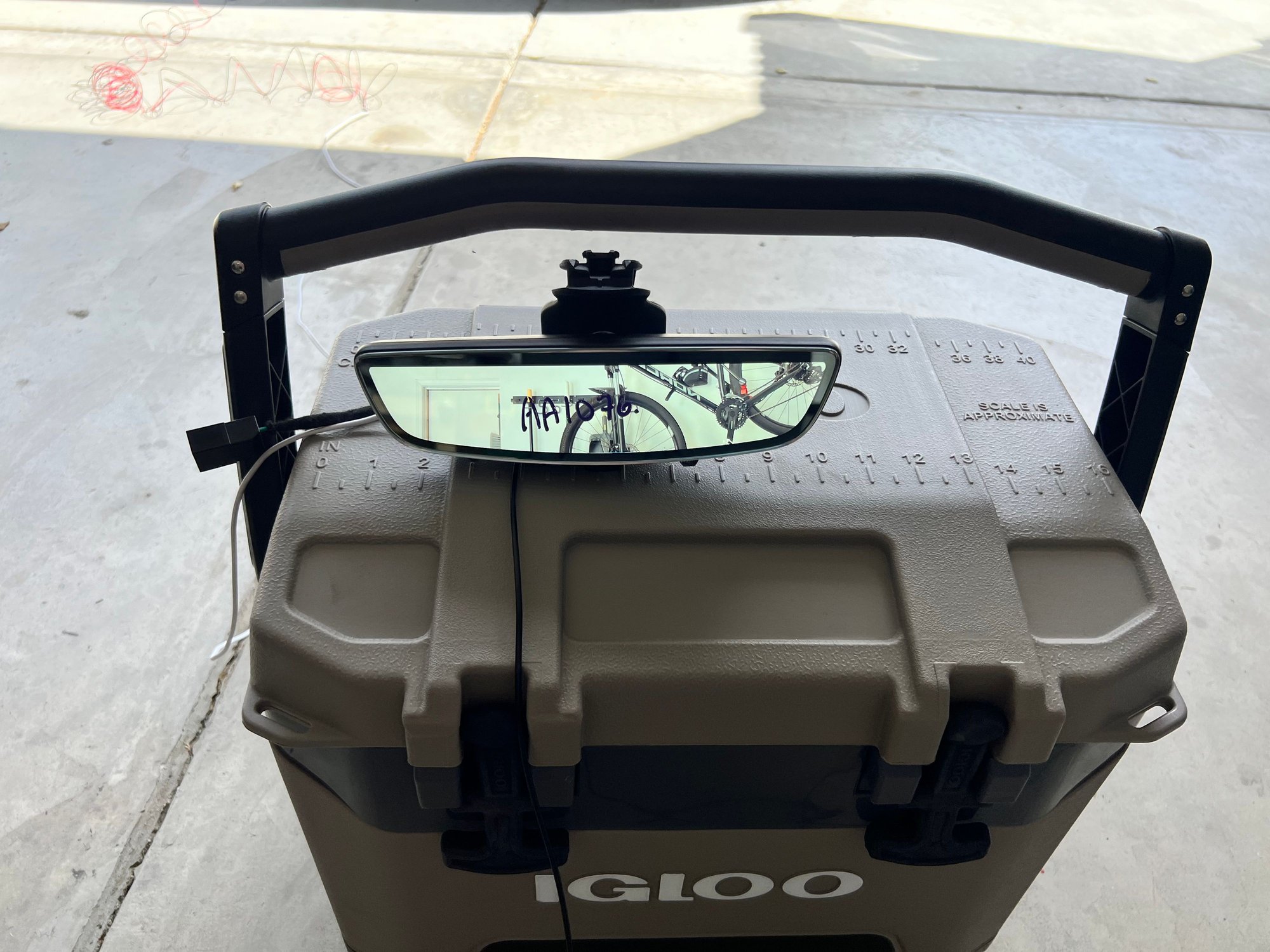

Bench test with everything working

Remove the trim

Remove the a pillar trim

Remove cover, visor clip, and visor

Stock mirror twists out. Remove panel. Route power wire and video cable

Ran cable down a pillar and connected to rear fuse block on circuit 12

Hidden screws in the weatherstripping

Remove header panel

Disconnect b pillar harness

Testing the lights work

Remove old harness

Remove all the screws under the weather stripping and two hidden ones on each end

Arch removed easily to run harness

Roughy harness to B pillar connector

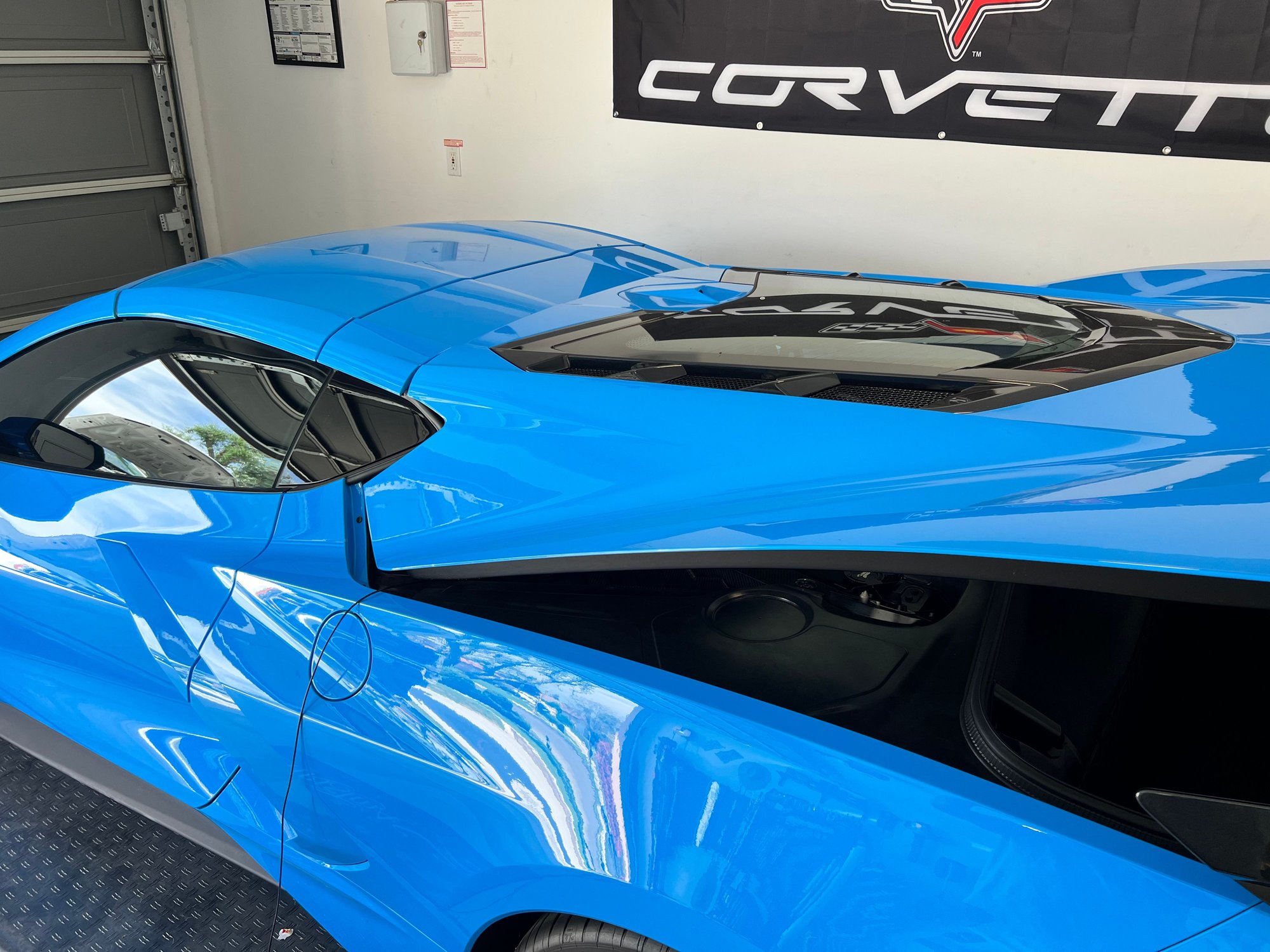

New harness routed on the hatch

Routing the harness and making sure to seat the grommet

Screws to hold up lights

Lights installed

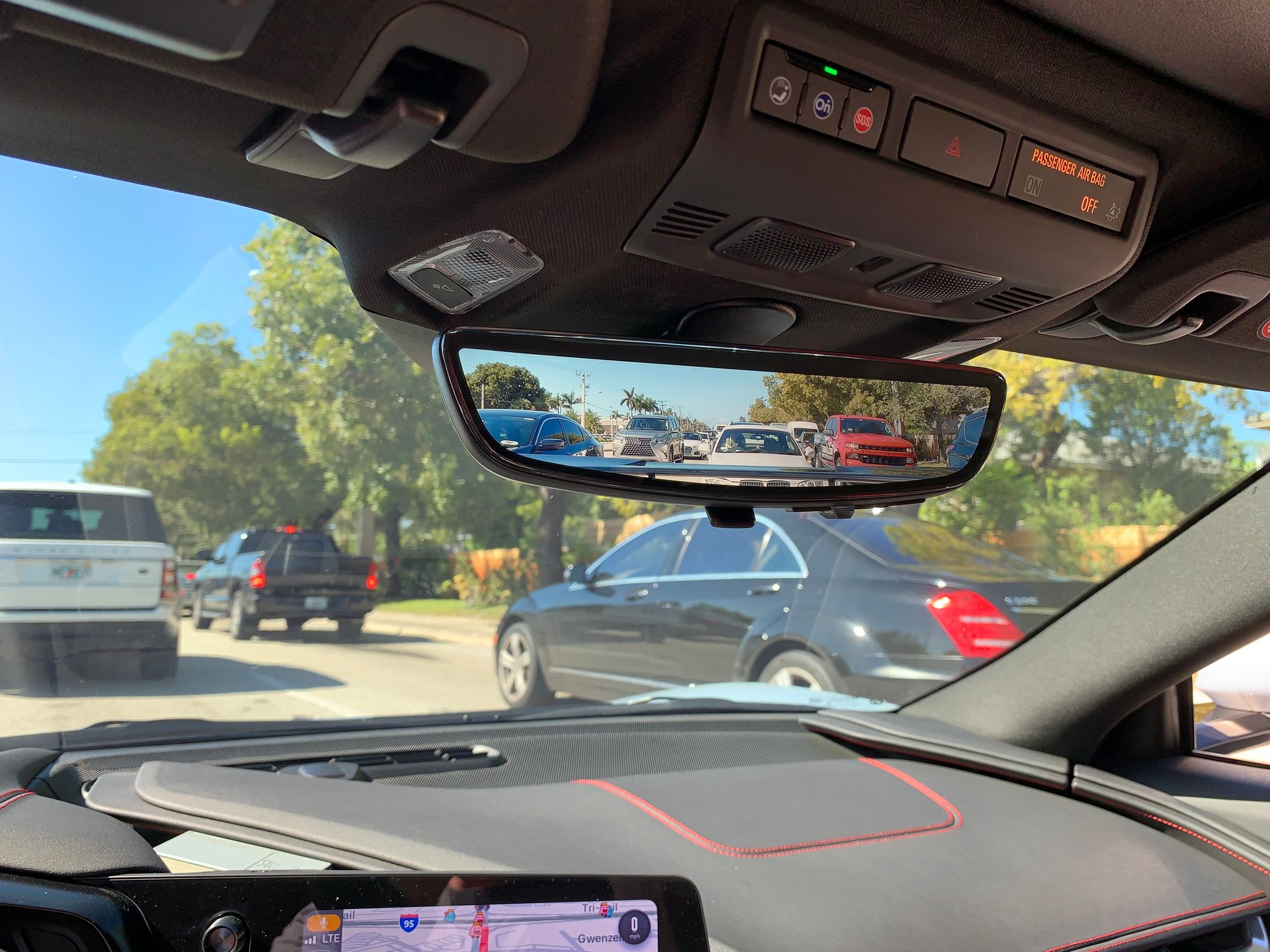

Camera installed and mirror working

Popular Reply

Nov 8, 2021, 09:41 PM

Victory06vert

Thread Starter

Intermediate

Joined: Feb 2006

Posts: 25

Likes: 37

From: Delray Beach Florida

Right about $1k.

mirror $300
wiring harnesses for camera and video cable $100
trim and camera $200
arch wiring harness and lights $100
paint $300

13 Jump to Original Reply

Nov 8, 2021 | 07:15 AM

Tim0shel

Pro

Joined: Jun 2021

Posts: 564

Likes: 239

From: Greenville SC

Wow doesnt look to be the funniest job. Good work and thanks for sharing!

Nov 8, 2021 | 09:18 PM

jacksoj2wf

Intermediate

Joined: Nov 2020

Posts: 49

Likes: 12

From: Hot Springs Village

Cost and time

What was the total cost of parts and how long did it take you? I've added my own spoiler and installed my AWE exhaust myself already

Nov 8, 2021 | 09:41 PM

Victory06vert

Thread Starter

Intermediate

Joined: Feb 2006

Posts: 25

Likes: 37

From: Delray Beach Florida

Right about $1k.

mirror $300
wiring harnesses for camera and video cable $100
trim and camera $200
arch wiring harness and lights $100
paint $300

Nov 14, 2021 | 10:19 AM

kern44

Advanced

Joined: Nov 2002

Posts: 92

Likes: 71

From: Holden Beach, NC

Nice job and write up.
Now....can you do mine?

Nov 15, 2021 | 01:56 AM

GTUnit

Burning Brakes

Joined: Sep 2019

Posts: 1,089

Likes: 668

From: Orange County, CA

Nice work

Nov 15, 2021 | 06:48 PM

92_383LT4

Pro

Joined: Jan 2008

Posts: 706

Likes: 344

From: CA

Nice job 😎🤓

Dec 22, 2021 | 09:43 AM

SteveDoten

Le Mans Master

Joined: Sep 2003

Posts: 6,276

Likes: 227

From: Farmington CT

Cruise-In VII Veteran

Looks like $130 to add lights.

now I need to find a C8 2/3LT MIRROR

Corvette Stories

The Best of Corvette for Corvette Enthusiasts

10 Ugly Corvettes That We Still Kinda Love

Joe Kucinski

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

Brett Foote

10 Things Every Corvette Owner Needs (2026 Edition)

Michael S. Palmer

8 Most "Only Corvette Owners Understand" Quirks and Problems

Pouria Savadkouei

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

Joe Kucinski

How Much Horsepower Every Corvette Engine "LOST" in 1972

Joe Kucinski

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

Michael S. Palmer

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

Joe Kucinski

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

Joe Kucinski

8 Coolest Corvette Pace Cars (and Replicas) of All Time

Verdad Gallardo

Jan 7, 2022 | 04:18 PM

oooseun

Instructor

Joined: Jan 2022

Posts: 171

Likes: 55

From: San Jos, CA

How did you go about paint matching? @Victory06vert

Jan 26, 2022 | 07:59 PM

#10

Victory06vert

Thread Starter

Intermediate

Joined: Feb 2006

Posts: 25

Likes: 37

From: Delray Beach Florida

I went to a local paint and body shop that sprayed it for me.

Feb 22, 2022 | 02:55 PM

#11

Jbltulsa

2nd Gear

Joined: Nov 2021

Posts: 2

Likes: 1

From: Dallas Texas

Where did you purchase the "live view mirror 10 pin connector/power and ground only + 6'" cable? I have all the parts except this one and can't find any parts that match this.

Feb 23, 2022 | 07:47 PM

#12

Edwardz

Burning Brakes

Joined: Nov 2015

Posts: 1,164

Likes: 288

Quote:

Originally Posted by Jbltulsa

Where did you purchase the "live view mirror 10 pin connector/power and ground only + 6'" cable? I have all the parts except this one and can't find any parts that match this.

I am having intermittent problems with my camera. Acts like a loose connector somewhere. Any tips on finding it would be appreciated.

Mar 4, 2022 | 03:44 PM

#13

Jbltulsa

2nd Gear

Joined: Nov 2021

Posts: 2

Likes: 1

From: Dallas Texas

Just following up. Where did you purchase the "live view mirror 10 pin connector/power and ground only + 6'" cable?

I am looking for the part and cannot find it.

Thanks,

Mar 26, 2022 | 04:46 PM

#14

Robertsonal

2nd Gear

Joined: Mar 2022

Posts: 2

Likes: 2

Thanks for the awesome write-up. Testing mine now before the install.

Mar 26, 2022 | 04:51 PM

#15

Robertsonal

2nd Gear

Joined: Mar 2022

Posts: 2

Likes: 2

Quote:

Originally Posted by Jbltulsa

Just following up. Where did you purchase the "live view mirror 10 pin connector/power and ground only + 6'" cable?

I am looking for the part and cannot find it.

Thanks,

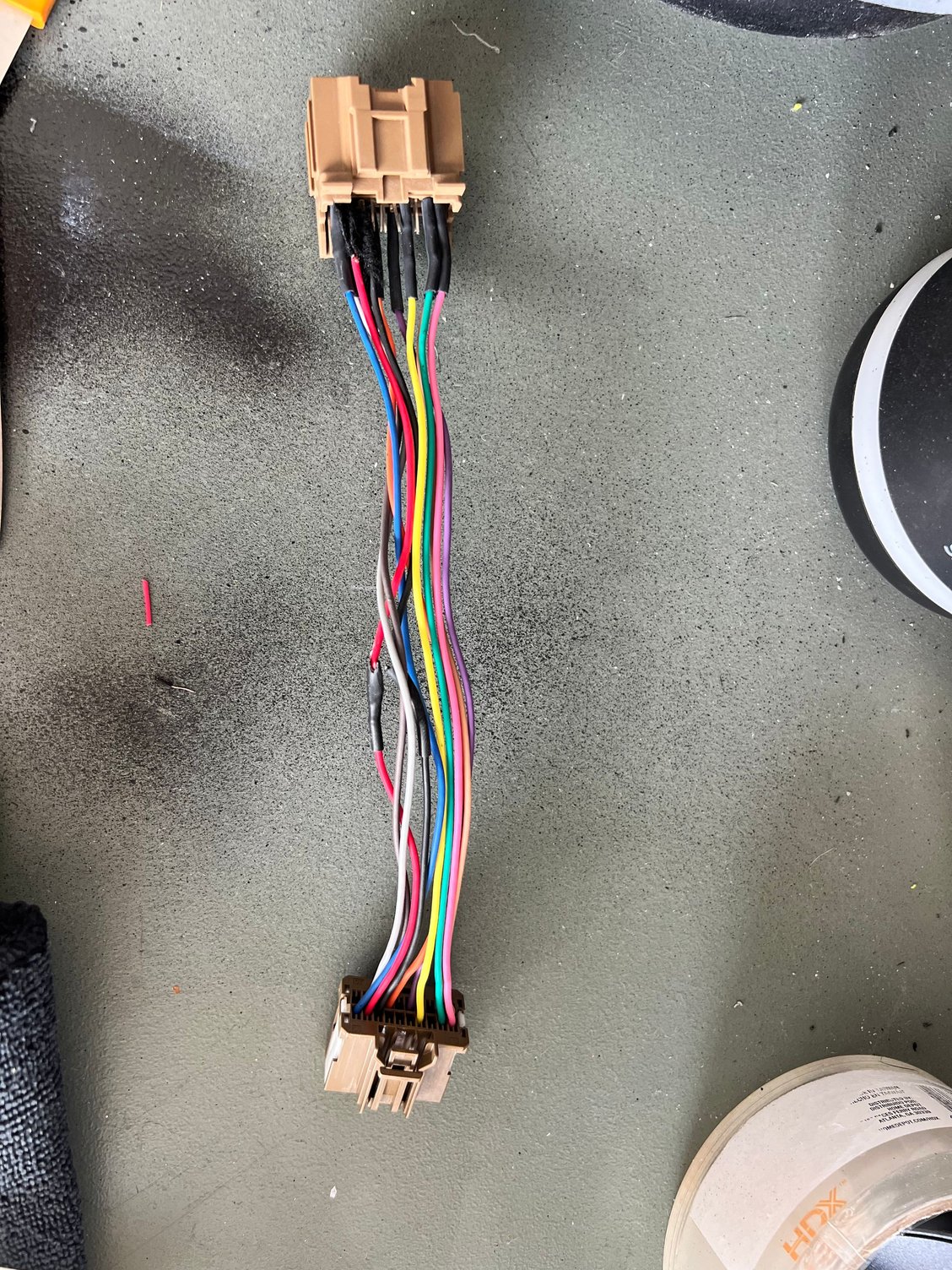

I couldn’t fine it either, I went with pn 220600 from gen5diy. I removed the part I didn’t need from the harness. See pic for section that was removed

Mar 26, 2022 | 09:57 PM

#16

Victory06vert

Thread Starter

Intermediate

Joined: Feb 2006

Posts: 25

Likes: 37

From: Delray Beach Florida

@Jbltulsa All the missing parts…video extension cable and harness to the mirror I got from Gen5diy.com. They were super helpful.

Last edited by Victory06vert; Mar 26, 2022 at 09:58 PM. Reason: Needed to tag requestor

Mar 26, 2022 | 10:05 PM

#17

Victory06vert

Thread Starter

Intermediate

Joined: Feb 2006

Posts: 25

Likes: 37

From: Delray Beach Florida

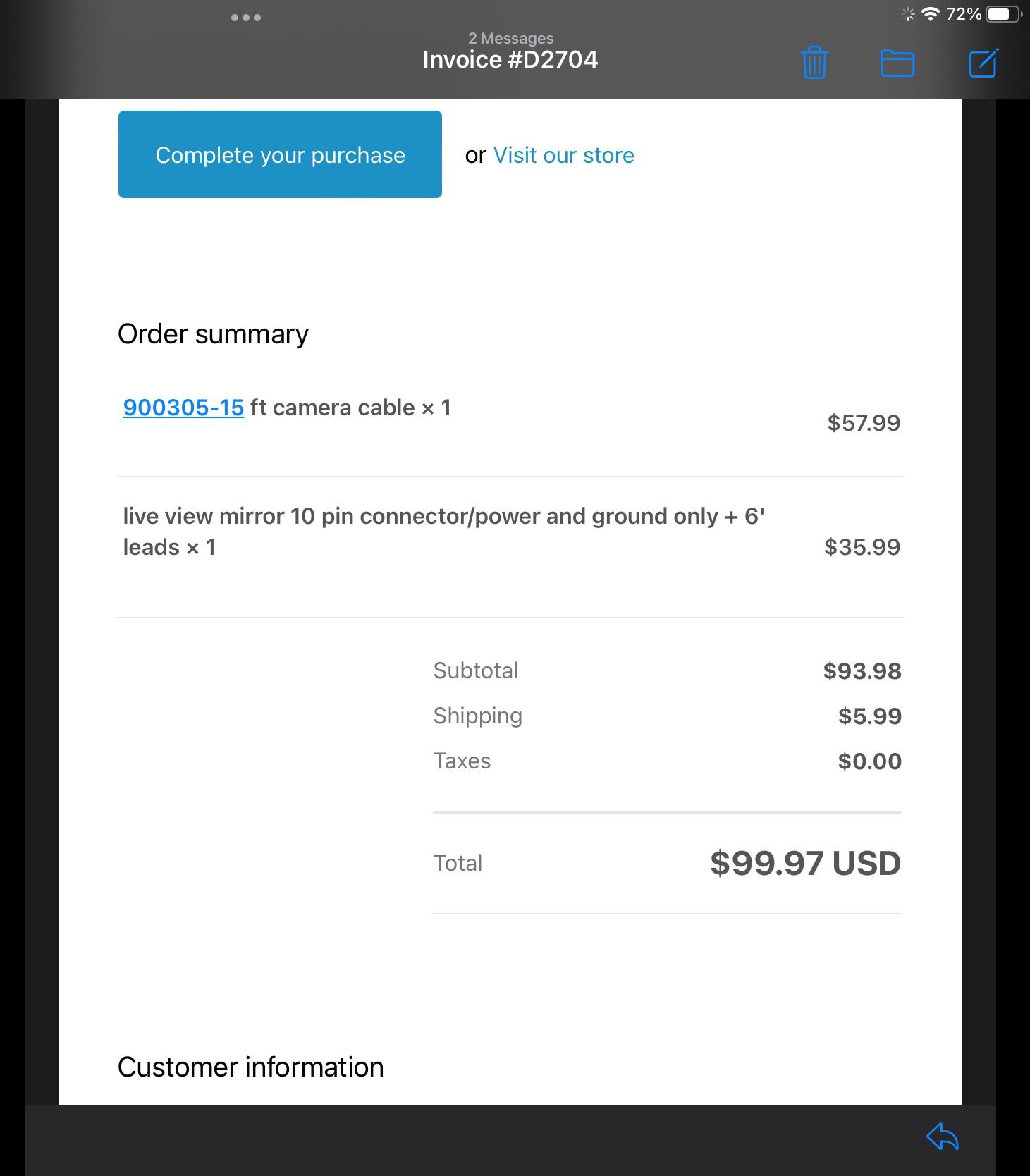

this is the invoice from Gen5diy
