Help identifying under dash switch
Thread Starter
Burning Brakes
Joined: Sep 2007
Posts: 803
Likes: 69
From: Tulsa Ok
Help identifying under dash switch

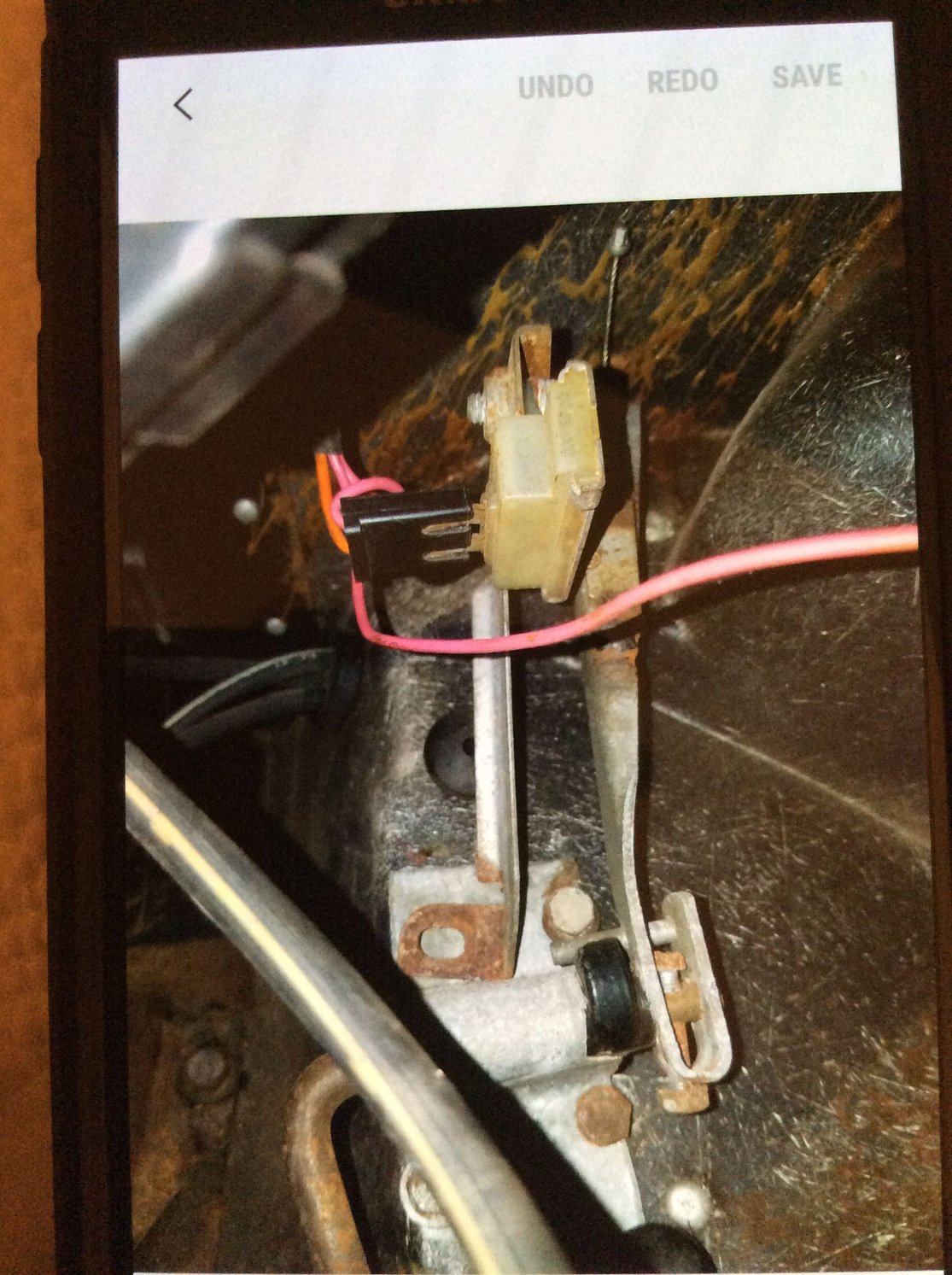

Could anyone identify this switch?
68 convertible automatic.
It looks attached to the top of the accelerator bracket
My first thought was a tranny kick down switch, but see no mention of that in wiring diagram or AIM
Thank you!
68 convertible automatic.
It looks attached to the top of the accelerator bracket
My first thought was a tranny kick down switch, but see no mention of that in wiring diagram or AIM
Thank you!
