1968 Door alignment wedges


Old 02-09-2012, 01:13 PM
  #1
tpoulson
CF Member
Support Corvetteforum!
Thread Starter

tpoulson's Avatar

Member Since: Oct 2007
Location: Lakewood Colorado
Posts: 81
Thanks: 0
Thanked 1 Time in 1 Post
Default 1968 Door alignment wedges

I'm stuck. The last owner has confused me with placement of the door alignment wedges. Does the plastic piece go on the door jam or door?
tpoulson is offline
Old 02-09-2012, 01:18 PM
  #2
Rally68
CF Senior Member

Rally68's Avatar

Member Since: Sep 2008
Location: Naperville Illinois
Posts: 805
Thanks: 0
Thanked 4 Times in 3 Posts
Default

On my car the plastic was on the jamb...FWIW
Rally68 is offline
Old 02-09-2012, 01:22 PM
  #3
tpoulson
CF Member
Support Corvetteforum!
Thread Starter

tpoulson's Avatar

Member Since: Oct 2007
Location: Lakewood Colorado
Posts: 81
Thanks: 0
Thanked 1 Time in 1 Post
Default

Thank you. No one seems to know and the assembly manual is not clear. I think yours is correct. When I got my car, one side had it one way and the other was reversed. Had the wrong plastic wedges too.
tpoulson is offline
Old 02-09-2012, 09:05 PM
  #4
marshal135
CF Senior Member

marshal135's Avatar

Member Since: Sep 2011
Location: Madeira Beach, FL
Posts: 2,202
Thanked 148 Times in 130 Posts
Default

I have a 68 and they were undisturbed when i purchased it.
Plastic on the body side wedge gets thicker going towards the interior.
The brass on the door frame thicker side facing the outer door skin.
Mine have no shims but they were avail 2 per side.
Marshal
marshal135 is offline
Old 02-10-2012, 11:47 AM
  #5
tpoulson
CF Member
Support Corvetteforum!
Thread Starter

tpoulson's Avatar

Member Since: Oct 2007
Location: Lakewood Colorado
Posts: 81
Thanks: 0
Thanked 1 Time in 1 Post
Default

Marshall, that's what I suspected. Now the question is what does the plastice wedge look like. The one I have is different then the ones the parts dealer sent. As soon as I get a chance I'll take pictures and attach to this forum as soon as I can figure the attachment system here. Thanks for you input.

Marshall, additionally, what side is the brass wedge on? Door jamb or door?

Here is a picture of what I think is my original plastic wedge on the left and a new one I purchased from TrimParts on the right. My wedge seems to be the "correct" one because it will fit the shims and TrimParts wedges' hole pattern is to small to fit.
Attached Images

Last edited by tpoulson; 02-12-2012 at 12:05 AM. Reason: Adding photos
tpoulson is offline
Old 02-10-2012, 07:18 PM
  #6
loup68
CF Senior Member
Support Corvetteforum!

Member Since: Jan 2012
Location: myrtle beach sc
Posts: 2,201
Thanked 113 Times in 105 Posts
Default 68 Alignment wedges.

The left , square sided, plastic wedge is correct on my coupe. Trim parts claims the rounded one is for a convertible. I don't know about that, having a coupe. Can someone let us know about the convertible wedges. The rounded one my be for the convertible top?

Last edited by loup68; 06-21-2015 at 10:55 AM.
loup68 is offline
Old 02-10-2012, 07:21 PM
  #7
loup68
CF Senior Member
Support Corvetteforum!

Member Since: Jan 2012
Location: myrtle beach sc
Posts: 2,201
Thanked 113 Times in 105 Posts
Default

The brass wedge goes on the door. Plastic on the lock pillar.
loup68 is offline
Old 02-10-2012, 09:16 PM
  #8
marshal135
CF Senior Member

marshal135's Avatar

Member Since: Sep 2011
Location: Madeira Beach, FL
Posts: 2,202
Thanked 148 Times in 130 Posts
Default

So far all right answers.
I think the new wedges are a one size fits all coupes if you had them
and most certainly a convert because they had no pillar support above the door frame.
If you put the new plastic pieces on the frame side and have the brass side on thee door frame and the bevels face each other, I think your good to go.
Just close the door slowly and try for fit before closing normally.
This way the door doesn't get stuck
I do not know why they put them on coupes but my June '68 has them.
Just reuse existing holes in door and frame.
I guess the thought in th day was to prevent door sag like we saw with the 70's Monte Carlo's.
Put em on and snap a pic and we will confirm
Marshal
marshal135 is offline
Old 02-11-2012, 11:54 AM
  #9
tpoulson
CF Member
Support Corvetteforum!
Thread Starter

tpoulson's Avatar

Member Since: Oct 2007
Location: Lakewood Colorado
Posts: 81
Thanks: 0
Thanked 1 Time in 1 Post
Default

The problem is that the new wedges have a different hole pattern and don't fit the shim or the current drilled holes.
tpoulson is offline
Old 02-11-2012, 12:00 PM
  #10
Easy Mike
CF Senior Member
Support Corvetteforum!

Easy Mike's Avatar

Member Since: Jun 2000
Location: Southbound
Posts: 36,520
Thanks: 0
Thanked 865 Times in 799 Posts
Cruise-In II Veteran
Default

Originally Posted by loup68 View Post
...The left , square sided, plastic wedge is corect on my coupe. Trim parts claims the rounded one is for a convertible...

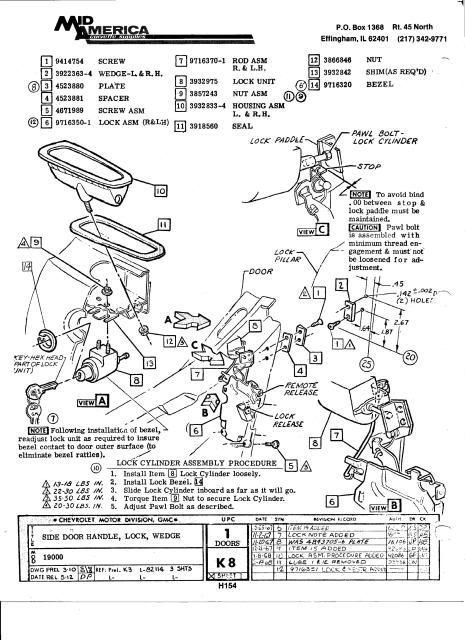

Trim Parts may be incorrect. AIM shows the same set up for coupes and convertibles.



Callout #2 on the jambs; a left and right because of the slope. Callouts #3 and #4 on each door, no left or right.

Easy Mike is offline
Old 02-12-2012, 12:01 AM
  #11
tpoulson
CF Member
Support Corvetteforum!
Thread Starter

tpoulson's Avatar

Member Since: Oct 2007
Location: Lakewood Colorado
Posts: 81
Thanks: 0
Thanked 1 Time in 1 Post
Default

I'm fairly certain that somewhere over the last 20 years the correct wedge was dropped from TrimParts production lineup. Chris at Trim Parts indicated he has been with TP for at least that long and doesn't remember what I'm talking about and that what they are selling is the correct wedge. I now know with some certainty that the one I had left on my car was correct largely because of the difference in hole patterns. The TP plastic wedge works fine for the deck lid cover alignment and screw holes line up fine but not for the door jamb.
Sorry to get so picky on this stuff, but frankly after all this work and finding a car that is nearly all correct with low miles I'm trying to finish it correctly. Plus I don't want to have to drill more holes if not needed.
Anyway, my search will go on I suppose. Thanks for all the comments and if anyone has this style wedge that wants to sell it let me know.

Last edited by tpoulson; 02-12-2012 at 12:08 AM.
tpoulson is offline
Old 02-12-2012, 01:03 PM
  #12
69Vett
CF Senior Member

69Vett's Avatar

Member Since: Oct 2007
Location: Austin Texas
Posts: 3,669
Thanked 224 Times in 211 Posts
Corvette of the Year Winner 2017
2016 C3 of Year Finalist
Default

my 69 had only 1 door with the plastic on the left,
I made a duplicate, from a scrape piece of black plastic, for the other door.
you cannot tell which is which.
69Vett is offline
Old 02-12-2012, 04:38 PM
  #13
loup68
CF Senior Member
Support Corvetteforum!

Member Since: Jan 2012
Location: myrtle beach sc
Posts: 2,201
Thanked 113 Times in 105 Posts
Default

My 68 coup's plastic wedges are almost a metallic looking grey.
loup68 is offline
Old 02-13-2012, 07:50 PM
  #14
69FASTFUN
CF Senior Member

69FASTFUN's Avatar

Member Since: Aug 2006
Location: Scottsdale Arizona
Posts: 1,392
Thanked 77 Times in 72 Posts
Default

Was 69 the same as the 68's



69FASTFUN is offline
Old 02-14-2012, 09:57 AM
  #15
marshal135
CF Senior Member

marshal135's Avatar

Member Since: Sep 2011
Location: Madeira Beach, FL
Posts: 2,202
Thanked 148 Times in 130 Posts
Default

No!!!
69 had the style as pictured in above photo.
The 68's were a carry over from 67.
Paragon has the correct parts for about $44.00.
Search Amozon.com sometimes they are listed through vendors for as low as $39.00
Marshal
marshal135 is offline
Old 04-30-2015, 11:03 PM
  #16
Bruno1-5068
Junior Member

Member Since: Apr 2015
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
Default Didn't go slow so door stuck now

[QUOTE[/QUOTE]
Originally Posted by marshal135 View Post
So far all right answers.
I think the new wedges are a one size fits all coupes if you had them
and most certainly a convert because they had no pillar support above the door frame.
If you put the new plastic pieces on the frame side and have the brass side on thee door frame and the bevels face each other, I think your good to go.
Just close the door slowly and try for fit before closing normally.
This way the door doesn't get stuck
I do not know why they put them on coupes but my June '68 has thiz
Just reuse existing holes in door and frame.O
I guess the thought in th day was to prevent door sag like we saw with the 70's Monte Carlo's.
Put em on and snap a pic and we will confirm
Marshal
Installed new wedges all looked good until I closed the door, now it's stuck closed and can't get it open! Any suggestions-help
Bruno1-5068 is offline
Old 05-01-2015, 01:36 AM
  #17
20mercury
CF Senior Member

20mercury's Avatar

Member Since: May 2008
Location: Lafayette Louisiana
Posts: 2,411
Thanked 191 Times in 173 Posts
Default Well, if it makes you feel any better, I did the same thing.

Originally Posted by Bruno1-5068 View Post
[QUOTE
Installed new wedges all looked good until I closed the door, now it's stuck closed and can't get it open! Any suggestions-help[/QUOTE]

If it makes you feel any better I did the same thing on my 68 convertible. I thought I carefully got the wedges in the right place and then shut the door and could not open it, *@#$!!! and the neighbors kids learn more new words I hope they never tell Mommy or my wife. Finally pulled on it and bumped my shoulder against the inside of the door and it popped open. Adjust the stops and all is well now. I know the feeling. Not sure this was the best way to get it open, but it worked for me. These wedges are expensive too, paid almost $50 and only needed one. Hope this might help.
20mercury is offline
Old 05-02-2015, 11:20 PM
  #18
ignatz
CF Senior Member

ignatz's Avatar

Member Since: May 2004
Location: los altos hills california
Posts: 1,864
Thanked 194 Times in 162 Posts
Default

You could try jacking up the car and see if the frame bending helps.
