Crankshaft pulley missing bolt
Racer
Joined: Oct 2015
Posts: 414
Likes: 407
From: Meadville Pennsylvania
The GM part numbers in my AIM are. 9428643 for the 7/16-20 x 2"-2.5" crank bolt torque is 60-80 ft lbs. and 9423959 for the 3/8-24 x 3/4 pulley bolts torque is 25-35# It would be a good idea to chase the threads on the crank and balance to make sure the threads are straight and true. You should be able to rent the thread chasers from Autozone or Oreilies.
Jerry
Jerry
Thread Starter
Pro
Joined: Dec 2011
Posts: 626
Likes: 15
From: Austin, TX
The GM part numbers in my AIM are. 9428643 for the 7/16-20 x 2"-2.5" crank bolt torque is 60-80 ft lbs. and 9423959 for the 3/8-24 x 3/4 pulley bolts torque is 25-35# It would be a good idea to chase the threads on the crank and balance to make sure the threads are straight and true. You should be able to rent the thread chasers from Autozone or Oreilies.
Jerry
Jerry
Once I finish the paint and everything is back I will post a photo.
Race Director
Joined: Mar 2016
Posts: 14,399
Likes: 8,204
From: Napa Valley California
Thanks for the info, I rented a thread restored set at Autozone, I put some WD-40 just before and they went very soft with no issues, once finished I introduced a magnet to clean up the small metal debris and the new bolts went till the end very well. Everything OK.
Once I finish the paint and everything is back I will post a photo.
Once I finish the paint and everything is back I will post a photo.
I would only use cutting oil that is made specifically for tapping threads. If you use a tap to chase the threads or to tap a new thread in a hole that bottoms out, use a bottoming tap only. Just my .02 cents.
Thread Starter
Pro
Joined: Dec 2011
Posts: 626
Likes: 15
From: Austin, TX
Use extreme caution taping or cleaning up threads with WD-40. it's not designed for that use.
I would only use cutting oil that is made specifically for tapping threads. If you use a tap to chase the threads or to tap a new thread in a hole that bottoms out, use a bottoming tap only. Just my .02 cents.
I would only use cutting oil that is made specifically for tapping threads. If you use a tap to chase the threads or to tap a new thread in a hole that bottoms out, use a bottoming tap only. Just my .02 cents.
I first tried to bolt the new bolt in order to double check how well it was the thread, but it bolted very well. So the problem was the old bolt per se, fortunately.
The metal debris source seemed to be the old bolt thread. I was lucky
Racer
Joined: Nov 2017
Posts: 289
Likes: 32
Use extreme caution taping or cleaning up threads with WD-40. it's not designed for that use.
I would only use cutting oil that is made specifically for tapping threads. If you use a tap to chase the threads or to tap a new thread in a hole that bottoms out, use a bottoming tap only. Just my .02 cents.
I would only use cutting oil that is made specifically for tapping threads. If you use a tap to chase the threads or to tap a new thread in a hole that bottoms out, use a bottoming tap only. Just my .02 cents.
I used ordinary 90 weight gear lube for many years because that's all I had. Then one day I had a LOT of pipe threading to do (using a Harbor Freight hand threader). Every thread I cut ended up damaged so I bought a pint of RIDGID thread cutting oil from the local True Value. WOW, with the RIDGID thread cutting oil it only took 1/4th the effort and every thread came out perfect. Thread cutting oil has a lot of sulfur in it and that's why it was so easy to thread the pipes as sulfur is a terrific lubricant. Now I keep a gallon of RIDGID on hand because I do a lot of threading and tapping as well as lathe and milling machine work.
Racer
Joined: Oct 2015
Posts: 414
Likes: 407
From: Meadville Pennsylvania
Thanks for the info, I rented a thread restored set at Autozone, I put some WD-40 just before and they went very soft with no issues, once finished I introduced a magnet to clean up the small metal debris and the new bolts went till the end very well. Everything OK.
Once I finish the paint and everything is back I will post a photo.
Once I finish the paint and everything is back I will post a photo.
Jerry
Race Director
Joined: May 2003
Posts: 10,956
Likes: 409
From: California
I doubt that is your vibration problem,, but if it is its the harmonic balancer gone bad, if not then its something else.. that pulley with the key will work fine with 1 bolt and the center is so close that off balance vibration just won't be felt.
its:
1. your hormonic balancer
2. you have a center-force clutch
3. your drive shaft is not set up in a "Z" configuration.
4. lots of loose bolts on the transmission, rear-end, u-joints
5. fan and/or fan clutch bent/off balance.
6. bad u-joint
That is 95% stuff
its:
1. your hormonic balancer
2. you have a center-force clutch
3. your drive shaft is not set up in a "Z" configuration.
4. lots of loose bolts on the transmission, rear-end, u-joints
5. fan and/or fan clutch bent/off balance.
6. bad u-joint
That is 95% stuff
Safety Car
Joined: Apr 2006
Posts: 4,057
Likes: 421
From: BC
I doubt that is your vibration problem,, but if it is its the harmonic balancer gone bad, if not then its something else.. that pulley with the key will work fine with 1 bolt and the center is so close that off balance vibration just won't be felt.
its:
1. your hormonic balancer
2. you have a center-force clutch
3. your drive shaft is not set up in a "Z" configuration.
4. lots of loose bolts on the transmission, rear-end, u-joints
5. fan and/or fan clutch bent/off balance.
6. bad u-joint
That is 95% stuff
its:
1. your hormonic balancer
2. you have a center-force clutch
3. your drive shaft is not set up in a "Z" configuration.
4. lots of loose bolts on the transmission, rear-end, u-joints
5. fan and/or fan clutch bent/off balance.
6. bad u-joint
That is 95% stuff
Last edited by CanadaGrant; Dec 2, 2017 at 12:38 AM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Thread Starter
Pro
Joined: Dec 2011
Posts: 626
Likes: 15
From: Austin, TX
I doubt that is your vibration problem,, but if it is its the harmonic balancer gone bad, if not then its something else.. that pulley with the key will work fine with 1 bolt and the center is so close that off balance vibration just won't be felt.
its:
1. your hormonic balancer
2. you have a center-force clutch
3. your drive shaft is not set up in a "Z" configuration.
4. lots of loose bolts on the transmission, rear-end, u-joints
5. fan and/or fan clutch bent/off balance.
6. bad u-joint
That is 95% stuff
its:
1. your hormonic balancer
2. you have a center-force clutch
3. your drive shaft is not set up in a "Z" configuration.
4. lots of loose bolts on the transmission, rear-end, u-joints
5. fan and/or fan clutch bent/off balance.
6. bad u-joint
That is 95% stuff
2. No idea about the center force clutch
3. This was my first suspect...still to be confirmed.
4. Everything look fine
5. I run electrical fans
6. U-joints with no play. But after intalling 8" bolts on the rear the camber changed, don't know if may affect as well.
Let's see whether I have time tomorrow to install everything back or not, so that I can confirm problem has been fixed.
Last edited by corvetero; Dec 9, 2017 at 05:56 AM.
Thread Starter
Pro
Joined: Dec 2011
Posts: 626
Likes: 15
From: Austin, TX

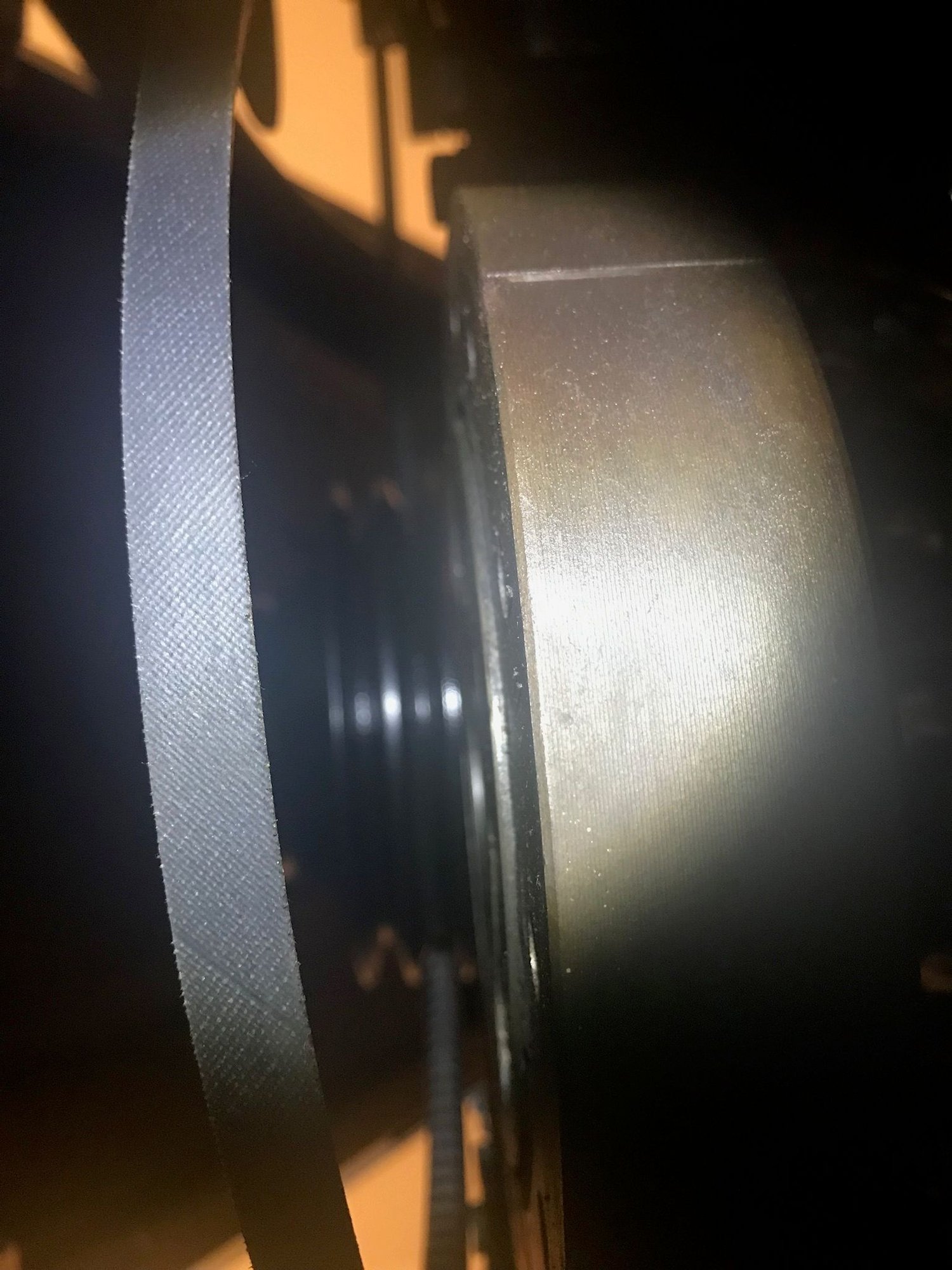

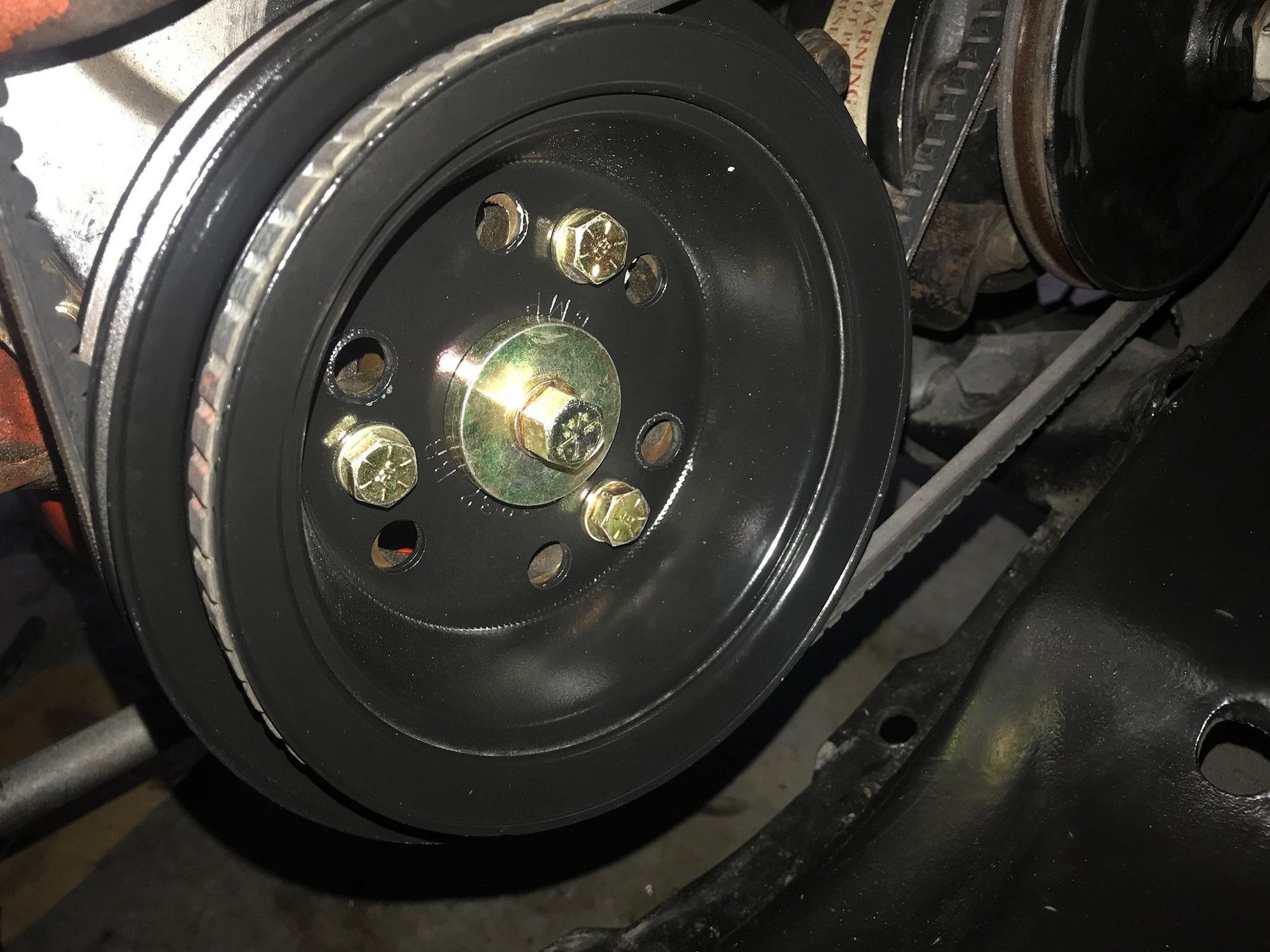

If you look at the pulley in the original pic it is off center on the balancer. That would create a wobble with the belts and balance along with the missing bolt. You probably would never notice the missing bolt by itself but with the off center pulley, that would be it.
