Default Dragvette Before and After Pics

Rough beginnings.
This is eyeballed. Iíll let the suspension settle and do a full alignment in the coming weeks.
DIY-79 is offline   Reply With Quote
Old 01-19-2018, 12:31 PM   #2
Neil B
CF Senior Member

Member Since: Jun 2008
Posts: 1,530
Thanked 97 Times in 77 Posts
Default

Quote:
Originally Posted by DIY-79 View Post
Rough beginnings.
This is eyeballed. Iíll let the suspension settle and do a full alignment in the coming weeks.

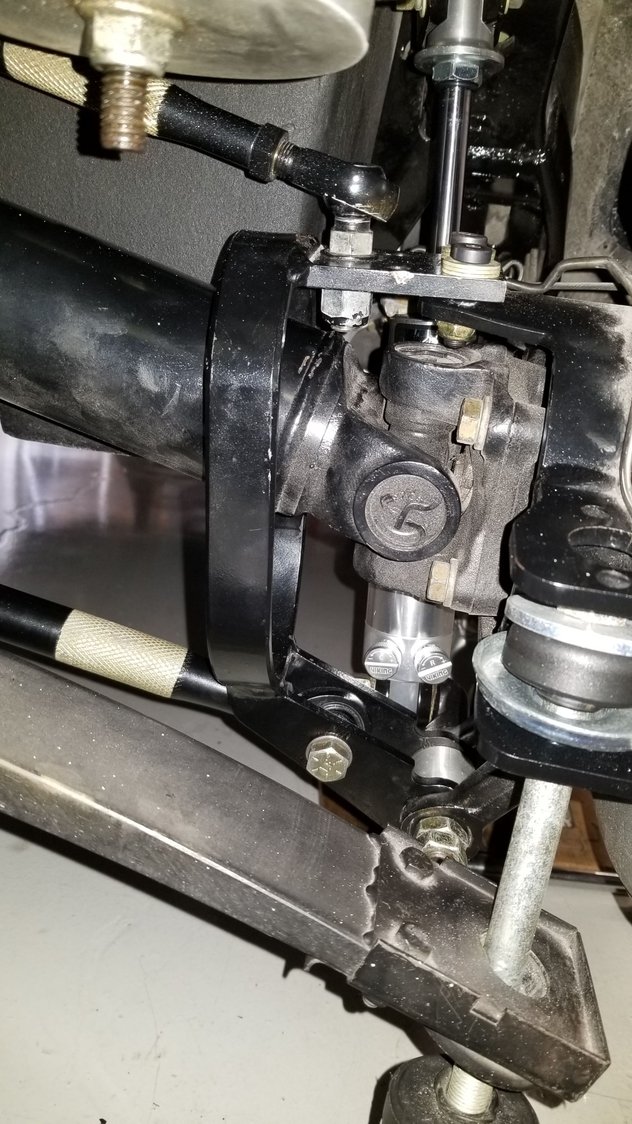

Nice! When you get and chance, can you take a close up pic of the upper link attachment to the Van Steel control arm? Do you have any clearance issues between the upper strut and the bump stop frame mount or floor of the car?
Neil B is offline   Reply With Quote
Old 01-19-2018, 02:09 PM   #3
DIY-79
CF Member
Support Corvetteforum!
Thread Starter

DIY-79's Avatar

Member Since: Aug 2017
Location: New Braunfels Texas
Posts: 70
Thanks: 0
Thanked 2 Times in 2 Posts
Default

First part of next week I plan to have the tires off and will get some shots. I did use Van Steele offsets as well as QA1 single adjustable shocks. I havenít seen any clearance problems but I havenít done a thorough check. I will say, itís very easy to change camber. Also, I pulled the c-clips and that helps a lot.
DIY-79 is offline   Reply With Quote
Old 01-19-2018, 03:20 PM   #4
Neil B
CF Senior Member

Member Since: Jun 2008
Posts: 1,530
Thanked 97 Times in 77 Posts
Default

Quote:
Originally Posted by DIY-79 View Post
First part of next week I plan to have the tires off and will get some shots. I did use Van Steele offsets as well as QA1 single adjustable shocks. I havenít seen any clearance problems but I havenít done a thorough check. I will say, itís very easy to change camber. Also, I pulled the c-clips and that helps a lot.
Pull the spring bolt out and jack the trailing arm up to full compression and see if it hits just behind the bump stop.
Neil B is offline   Reply With Quote
Old 01-19-2018, 04:33 PM   #5
DIY-79
CF Member
Support Corvetteforum!
Thread Starter

DIY-79's Avatar

Member Since: Aug 2017
Location: New Braunfels Texas
Posts: 70
Thanks: 0
Thanked 2 Times in 2 Posts
Default

Gotcha. Iíll do that. Do you have experience with the system or curious based on others comments?
DIY-79 is offline   Reply With Quote
Old 01-19-2018, 05:27 PM   #6
Neil B
CF Senior Member

Member Since: Jun 2008
Posts: 1,530
Thanked 97 Times in 77 Posts
Default

Quote:
Originally Posted by DIY-79 View Post
Gotcha. Iíll do that. Do you have experience with the system or curious based on others comments?
Here's my setup. I'll have it on the road next week with the new Viking DA's and Rival S tires.
Attached Images

Neil B is offline   Reply With Quote
Old 01-19-2018, 05:51 PM   #7
DIY-79
CF Member
Support Corvetteforum!
Thread Starter

DIY-79's Avatar

Member Since: Aug 2017
Location: New Braunfels Texas
Posts: 70
Thanks: 0
Thanked 2 Times in 2 Posts
Default

Very nice. Iím going to go with the Rival S also. What backaspaing you running. When I pulled the c clips I slipped the side yokes out until I had about an 1/8Ē still past the spider gears. That allowed about 1/3Ē of side yoke outside the diff. Should translate to a bit more room. I took a piece of flat steel and drilled a hole in it and I I mount it on the rotor. Then I can spin it around and measure to the frame to get my max BS. Iíve been crunching numbers using specs from Tire Trac to find total backspacing (backspacing of the wheel + overhang of the tire).
DIY-79 is offline   Reply With Quote
Old 01-19-2018, 06:15 PM   #8
Gordonm
CF Senior Member

Gordonm's Avatar

Member Since: Dec 1999
Location: Voorhees NJ
Posts: 18,424
Thanked 106 Times in 87 Posts
Default

I'm curious on if they fixed the upper link to frame clearance issue. I had this on mine one summer and every small dip in the road or bump it sounded like somebody smacked the frame with a hammer. The upper link mount on the arm was hitting the frame. Mine was a little lower than stock but not much. I worked with them for a while but it was just not working. I did use stock arms at the time so you guys with VS off sets should have a different experience than I did. It was a good setup just allowed very little wheel travel. I now run VS coil over setup on all 4 corners.
Gordonm is offline   Reply With Quote
Old 01-19-2018, 06:45 PM   #9
DIY-79
CF Member
Support Corvetteforum!
Thread Starter

DIY-79's Avatar

Member Since: Aug 2017
Location: New Braunfels Texas
Posts: 70
Thanks: 0
Thanked 2 Times in 2 Posts
Default

I know it says in the literature that can be a problem. I was originally going to keep my stock trailing arms but one was cracked length wise so I just forked up the money for new ones. Youíve sparked my interest in this. Iím building a non specific car that Iíd like to be respectable in the 1/4 mile as well as turn respectable lap times. Jack of all trades so to speak. I have a 420 lb spring so hopefully it wonít travel that far.
DIY-79 is offline   Reply With Quote
The Following User Says Thank You to DIY-79 For This Useful Post:
Gordonm (01-19-2018)
Old 01-19-2018, 06:48 PM   #10
PainfullySlow
CF Senior Member

PainfullySlow's Avatar

Member Since: Sep 2017
Location: Tolland CT
Posts: 592
Thanked 95 Times in 72 Posts
Default

Looks beautiful. Nice work!
PainfullySlow is offline   Reply With Quote
Old 01-19-2018, 07:42 PM   #11
ajrothm
CF Senior Member

ajrothm's Avatar

Member Since: May 2006
Location: League City Tx
Posts: 8,566
Thanked 441 Times in 332 Posts
Default

Quote:
Originally Posted by Gordonm View Post
I'm curious on if they fixed the upper link to frame clearance issue. I had this on mine one summer and every small dip in the road or bump it sounded like somebody smacked the frame with a hammer. The upper link mount on the arm was hitting the frame. Mine was a little lower than stock but not much. I worked with them for a while but it was just not working. I did use stock arms at the time so you guys with VS off sets should have a different experience than I did. It was a good setup just allowed very little wheel travel. I now run VS coil over setup on all 4 corners.
That’s exactly why I never bought it. I didn’t want to deal with the limited suspension travel and **** banging around every time I go over a bump.

It is a bad *** setup for drag racing though, and it will keep the wheel in place if you break a u joint...

Last edited by ajrothm; 01-19-2018 at 07:47 PM.
ajrothm is offline   Reply With Quote
Old 01-19-2018, 08:04 PM   #12
DIY-79
CF Member
Support Corvetteforum!
Thread Starter

DIY-79's Avatar

Member Since: Aug 2017
Location: New Braunfels Texas
Posts: 70
Thanks: 0
Thanked 2 Times in 2 Posts
Default

Yeah. Iím more focused on straight line. Had a low 11 sexy mustang in my teens. Iím older now and have a conscious and canít make a Corvette purely a straight line car. So to be a jack of all trades you have to compromise in areas to be average at everything. I felt like the Dragvette would accomplish that for me.
DIY-79 is offline   Reply With Quote
Old 01-20-2018, 02:29 PM   #13
Neil B
CF Senior Member

Member Since: Jun 2008
Posts: 1,530
Thanked 97 Times in 77 Posts
Default

This is the newer top mount. The outer hiem contacts the frame bump stop mount about 3/8" before full shock travel. I think there are ways to get full shock travel without too much work but Im still deciding on approach.
Neil B is offline   Reply With Quote
Old 01-20-2018, 02:37 PM   #14
bence13_33
CF Senior Member

bence13_33's Avatar

Member Since: Aug 2000
Location: Clymer PA
Posts: 3,852
Thanked 12 Times in 12 Posts
Default

Do those spring bolts look correct? They look to tight to me. Is that for better handling (to limit suspension travel)? To me that spring looks to be wound to tight.

Last edited by bence13_33; 01-20-2018 at 02:42 PM.
bence13_33 is offline   Reply With Quote
Old 01-20-2018, 03:12 PM   #15
DIY-79
CF Member
Support Corvetteforum!
Thread Starter

DIY-79's Avatar

Member Since: Aug 2017
Location: New Braunfels Texas
Posts: 70
Thanks: 0
Thanked 2 Times in 2 Posts
Default

Quote:
Originally Posted by Neil B View Post
This is the newer top mount. The outer hiem contacts the frame bump stop mount about 3/8" before full shock travel. I think there are ways to get full shock travel without too much work but Im still deciding on approach.
Iíll check on this Monday morning. Iím a fire fighter and started a 48 hour shift today. I still need to bleed the brakes and set the shims for toe.
DIY-79 is offline   Reply With Quote
Old 01-20-2018, 03:15 PM   #16
DIY-79
CF Member
Support Corvetteforum!
Thread Starter

DIY-79's Avatar

Member Since: Aug 2017
Location: New Braunfels Texas
Posts: 70
Thanks: 0
Thanked 2 Times in 2 Posts
Default

Quote:
Originally Posted by bence13_33 View Post
Do those spring bolts look correct? They look to tight to me. Is that for better handling (to limit suspension travel)? To me that spring looks to be wound to tight.
If your talking about my spring bolts, thatís how tight I had to tighten them to get the half shafts to the ďGreenwoodĒ recommended angle. They are 8Ē bolts and will be cut down to almost flush when the ride height is set.
DIY-79 is offline   Reply With Quote
Old 01-20-2018, 03:25 PM   #17
DIY-79
CF Member
Support Corvetteforum!
Thread Starter

DIY-79's Avatar

Member Since: Aug 2017
Location: New Braunfels Texas
Posts: 70
Thanks: 0
Thanked 2 Times in 2 Posts
Default

On a different note, this marks the end of replacing all the bushings in the entire car. I started in the front and replaced upper control arm and lower control arm bushings. All four ball joints, all four tie rod ends, and the idler arm. Front sway bar bushings. Transmission mount, all eight body mounts, and the complete Dragvette rear suspension. The front saw QA1 coilovers and the rear QA1 shocks as well. All single adjust. Even the differential support bushing was changed. The crossmember bushings were the only bushings I left. I have a thread titled ďMy Sumbrero FixĒ were you can see my solution for a stripped nut in a sumbrero. One of mine was stripped via a previous owner. Iíve been undoing a lot of Bubba. I also changed the rear wheel bearings during this project. The goal was a mechanically sound car. Steering column and brake system is next.
DIY-79 is offline   Reply With Quote
Old 01-20-2018, 03:28 PM   #18
DIY-79
CF Member
Support Corvetteforum!
Thread Starter

DIY-79's Avatar

Member Since: Aug 2017
Location: New Braunfels Texas
Posts: 70
Thanks: 0
Thanked 2 Times in 2 Posts
Default

The reason I say all that is a lot of the anomalies in how the body sat on the frame were solved by doing this. The suspension in relation to the frame is better off too. Before I had to tighten the rear spring bolts noticeably different lengths to get the half shafts the same angles. I was pleasantly surprised at how close they are now.👍🏻👍🏻

Last edited by DIY-79; 01-20-2018 at 03:30 PM. Reason: Miss spelled word
DIY-79 is offline   Reply With Quote
Old 01-20-2018, 03:33 PM   #19
bence13_33
CF Senior Member

bence13_33's Avatar

Member Since: Aug 2000
Location: Clymer PA
Posts: 3,852
Thanked 12 Times in 12 Posts
Default

Quote:
Originally Posted by DIY-79 View Post
If your talking about my spring bolts, that’s how tight I had to tighten them to get the half shafts to the “Greenwood” recommended angle. They are 8” bolts and will be cut down to almost flush when the ride height is set.
Yes that is what I was referring to. It just looked like it was bowed almost to the point of going the opposite direction which is the only reason I raised the question (maybe it's the angle of the photo). Interesting.

Last edited by bence13_33; 01-20-2018 at 03:34 PM.
bence13_33 is offline   Reply With Quote
Old 01-20-2018, 03:48 PM   #20
DIY-79
CF Member
Support Corvetteforum!
Thread Starter

DIY-79's Avatar

Member Since: Aug 2017
Location: New Braunfels Texas
Posts: 70
Thanks: 0
Thanked 2 Times in 2 Posts
Default

Quote:
Originally Posted by bence13_33 View Post
Yes that is what I was referring to. It just looked like it was bowed almost to the point of going the opposite direction which is the only reason I raised the question (maybe it's the angle of the photo). Interesting.
Itís very close. Itís something I too am concerned about. The tighter the bolts are screwed the flatter the spring became. Iím hoping Iím past the 1/2Ē recomended offset between the upper u-joint and lower u-joint and can loosen the nuts some. Monday a lot of questions will be answered.
DIY-79 is offline   Reply With Quote
