rear alignment problem on 68 convert
Thread Starter
Drifting
Joined: Jul 2015
Posts: 1,765
Likes: 254
From: Catlett VA
rear alignment problem on 68 convert
left rear trailing arm
left rear trailing arm

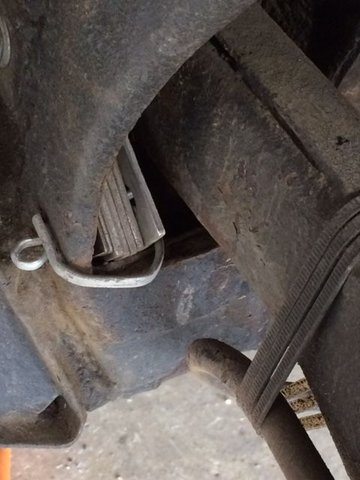

The rear wheel alignment on my 68 convert is toed out 1/2 inch on the driver's side. It was worse when I got it, but even putting all of the shims on the outside (see photo) I have not been able to get the wheel toed in. The passenger side was off a little, but not like this. The car does not track straight and requires steering input to correct its tendency to use the back end to turn like a hook and ladder fire truck. Since it is off so much, I suspect the PO hit a big pothole and bent the trailing arm. However....before I start ripping parts off and replacing them, is there anything else that would cause the toe in/out to be off so much? Bushings are in decent shape.
Burning Brakes
Joined: Dec 2005
Posts: 1,164
Likes: 224
From: Pawleys Island, SC
My guess is you've got a problem with the TA bushing. I'd plan on pulling the TAs to have a good look at them. What's with that bent over shim pin?
Last edited by revitup; Apr 4, 2018 at 04:12 PM.
Team Owner
Joined: Sep 2006
Posts: 31,214
Likes: 4,302
From: Westminster Maryland
Hi r,
Can't quite see in the photo... is the inner side of the t-arm tight against the side of the pocket in the frame?
What's the rest of the suspension look like on that side... half-shaft, shock absorber, and strut rod?
Regards,
Alan
Can't quite see in the photo... is the inner side of the t-arm tight against the side of the pocket in the frame?
What's the rest of the suspension look like on that side... half-shaft, shock absorber, and strut rod?
Regards,
Alan
Tech Contributor
Joined: Aug 1999
Posts: 15,156
Likes: 3,965
From: Connecticut, USA
Most likely a bent arm. I have had new arms like that and once I checked the arm found them bent. One time I installed news to replace ones that were bent more then 250" only to find out they were bent like that because the frame was off-from being hit hard and not correctly repaired. Some like to rebend arms but they rot from the inside out and never liked that idea. IF there is -0- rot on the inside and seams you might get away like that but if it was my car and found badly bent arm I would replace it with the USA made arms- NOT the cheap imported ones.
Thread Starter
Drifting
Joined: Jul 2015
Posts: 1,765
Likes: 254
From: Catlett VA
The trailing arm is extremely tight against the inside of the frame pocket. When I changed out the old shims to stainless steel I jammed as many as possible to see if I could get some amount of toe in. Rest of the suspension is good- new shocks, the PO replaced the strut rod, u-joints are like new. I can't find anything on the current wheels (from PO) that show they may have hit a big pothole, but the damage may have been done while other wheels were on the car. To bend that flat area on the trailing arm would take a big hit, which probably would have also put a dent in the wheel.
Thread Starter
Drifting
Joined: Jul 2015
Posts: 1,765
Likes: 254
From: Catlett VA
When I changed the old shims to stainless steel and also changed to a ss bolt thru the front bushing, I checked the condition of the bushing. It was in good condition. The new style slotted shims require the cotter pin to keep them from falling out. I drilled a hole for the pin only thru the outside of the frame pocket. The cotter pin thru that hole and bent over keeps the shims in place just as well as if I drilled the second hole.
Thread Starter
Drifting
Joined: Jul 2015
Posts: 1,765
Likes: 254
From: Catlett VA
Most likely a bent arm. I have had new arms like that and once I checked the arm found them bent. One time I installed news to replace ones that were bent more then 250" only to find out they were bent like that because the frame was off-from being hit hard and not correctly repaired. Some like to rebend arms but they rot from the inside out and never liked that idea. IF there is -0- rot on the inside and seams you might get away like that but if it was my car and found badly bent arm I would replace it with the USA made arms- NOT the cheap imported ones.
Drifting
Joined: Jul 1999
Posts: 1,542
Likes: 43
From: Plano TX
Could if be the stub axle has worn so much it's further in the diff and also the strut was pulled in to the max to get camber close. If so then the spindle would be in further requiring more shims at the front of the T-arm? May not be the case but trying to thing of things that would required that kind of offset for the T-arm.
Dave
Dave
