need help 72 big block
Thread Starter
Advanced
Joined: Aug 2000
Posts: 67
Likes: 1
From: lilburn ga 30047
need help 72 big block
I need a belt configuration diagram or picture for a 72 454 with ac,ps,and air(smog pump). Assy manual doesn't .show. Also is an idler pulley necessary on this set up please help
1967 Pedal Car Champion
Joined: Mar 2020
Posts: 9,135
Likes: 4,245
From: US-PNW

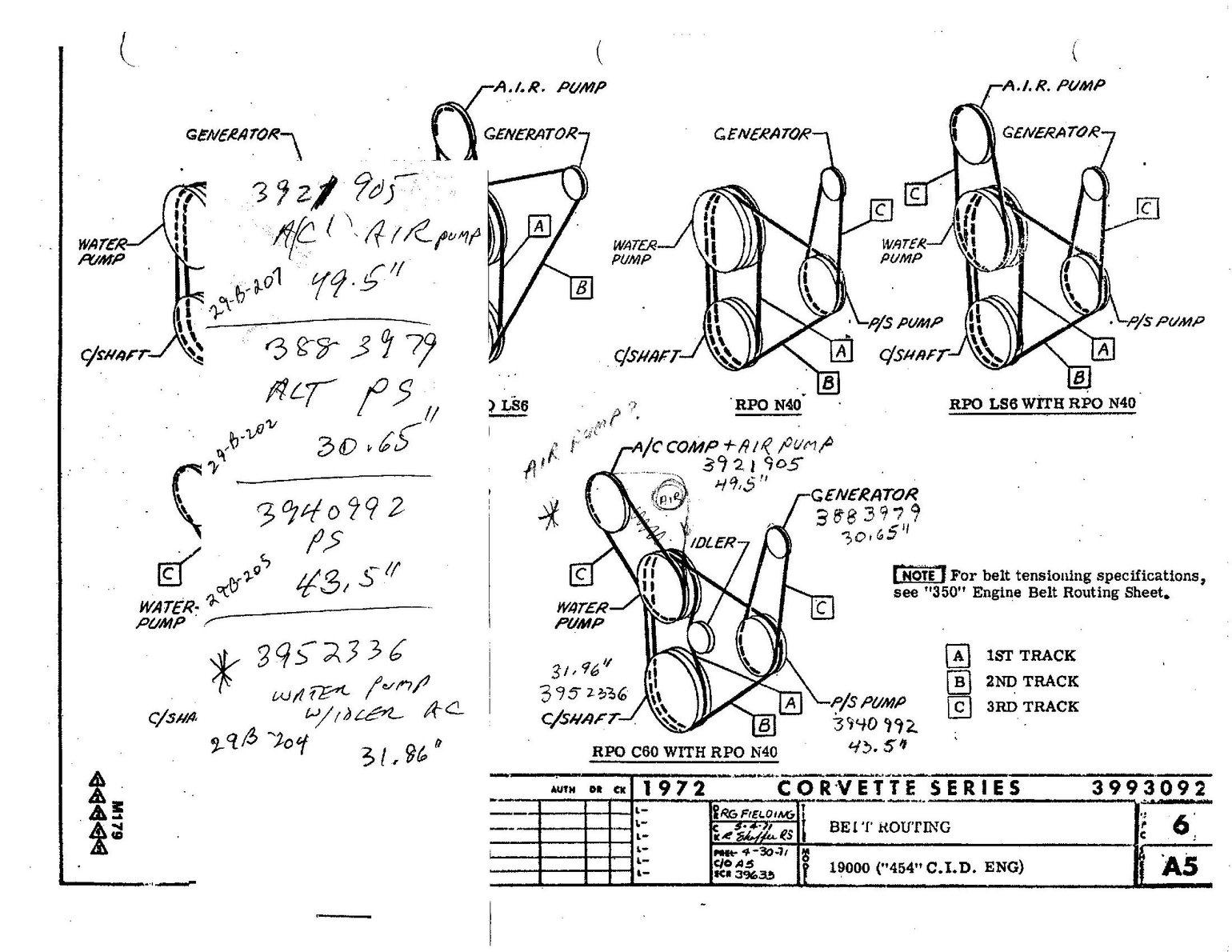

Strange that that AIM illustration shows the main crank to water pump belt going around the idler pulley. All illustrations I've seen showing the A/C idler have it pressing against the belt from the outside rather than inside the belt loop.
Last edited by barkingrats; Oct 29, 2020 at 11:55 PM.
Le Mans Master
Joined: Jun 2006
Posts: 6,400
Likes: 1,226
From: Tampa Florida
Yes, the idler pulley (454's with AC) is necessary so you can tighten the belt if or when is stretches.
Without that belt, everything is relying on the power steering belt.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Old Pro Solo Guy
Joined: Dec 2017
Posts: 8,082
Likes: 4,431
From: Marlton NJ
Excellent info!
From what I could gather on the history of the 72s, the LS5 as planned originally for 72 had no air pump and the LS6 did. But then they didn't pass emission certifications, and California's were different anyway. My 72 AIM shows things at that step. Then at a very late date before production the LS6 was cancelled completely for 72, (presumably for failing emissions) and the LS5 grew an air pump. The LS6 deletion apparently just made the AIM but the LS5 air pump did not make the corrections. IIRC even the air pump equipped LS5 was banned in Cali that year. Not sure if that was because it didn't pass the second time or they just didn't go thru it again for only 1 state. Parts books are strange as well in this area.
GM was really struggling with this new-fangled emissions compliance back then!
From what I could gather on the history of the 72s, the LS5 as planned originally for 72 had no air pump and the LS6 did. But then they didn't pass emission certifications, and California's were different anyway. My 72 AIM shows things at that step. Then at a very late date before production the LS6 was cancelled completely for 72, (presumably for failing emissions) and the LS5 grew an air pump. The LS6 deletion apparently just made the AIM but the LS5 air pump did not make the corrections. IIRC even the air pump equipped LS5 was banned in Cali that year. Not sure if that was because it didn't pass the second time or they just didn't go thru it again for only 1 state. Parts books are strange as well in this area.
GM was really struggling with this new-fangled emissions compliance back then!
