Rear end issues.
Tech Contributor
Joined: Aug 1999
Posts: 15,173
Likes: 3,982
From: Connecticut, USA
some observations

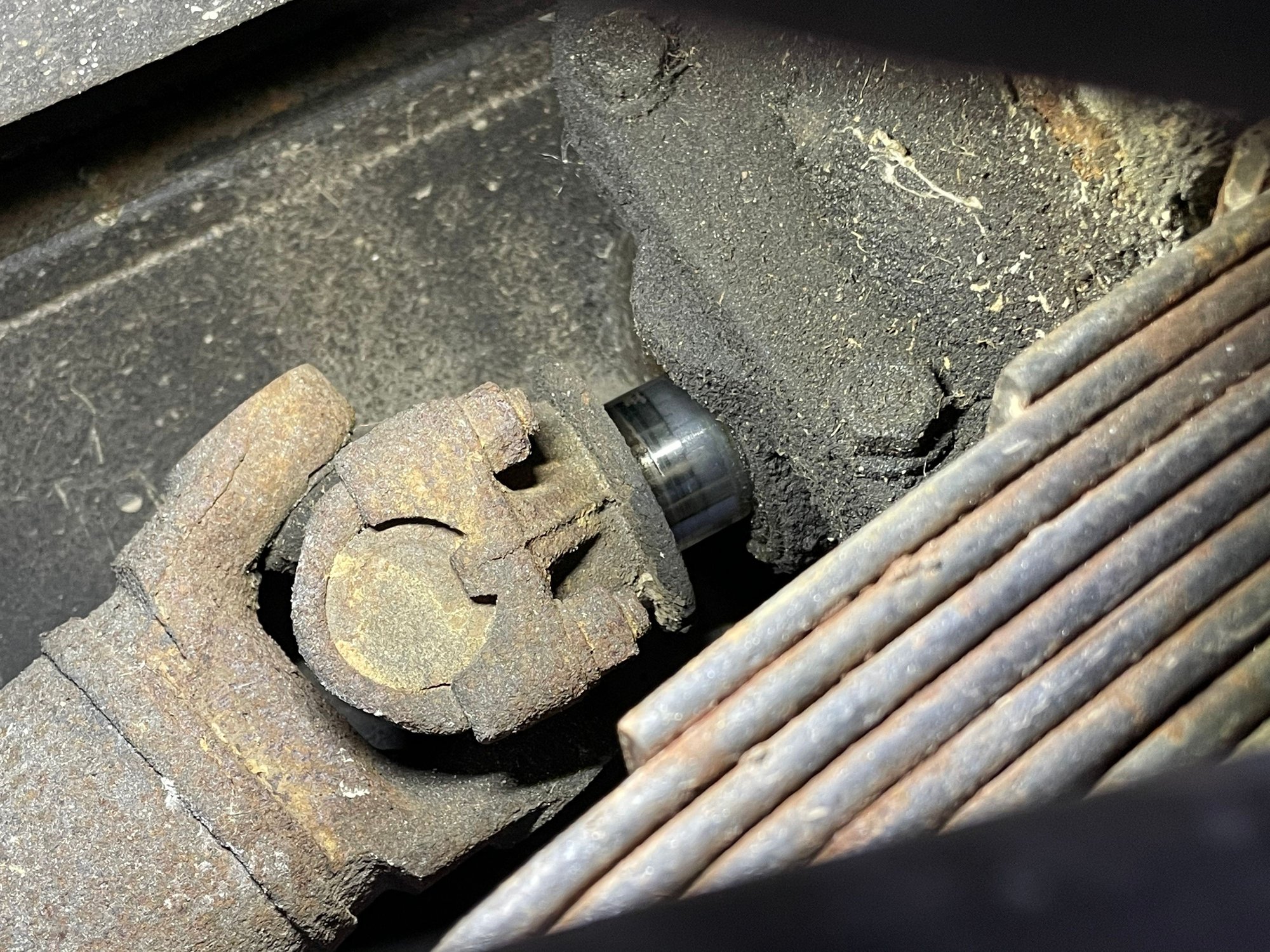

Axle is coming out because the snap ring is off or the end is worn down past the clip= not good. I can't see if the lip at the seal is still place or ground down. Mid 70's axles were bad and if you let it go until the axle hits the seal you may lose the diff.

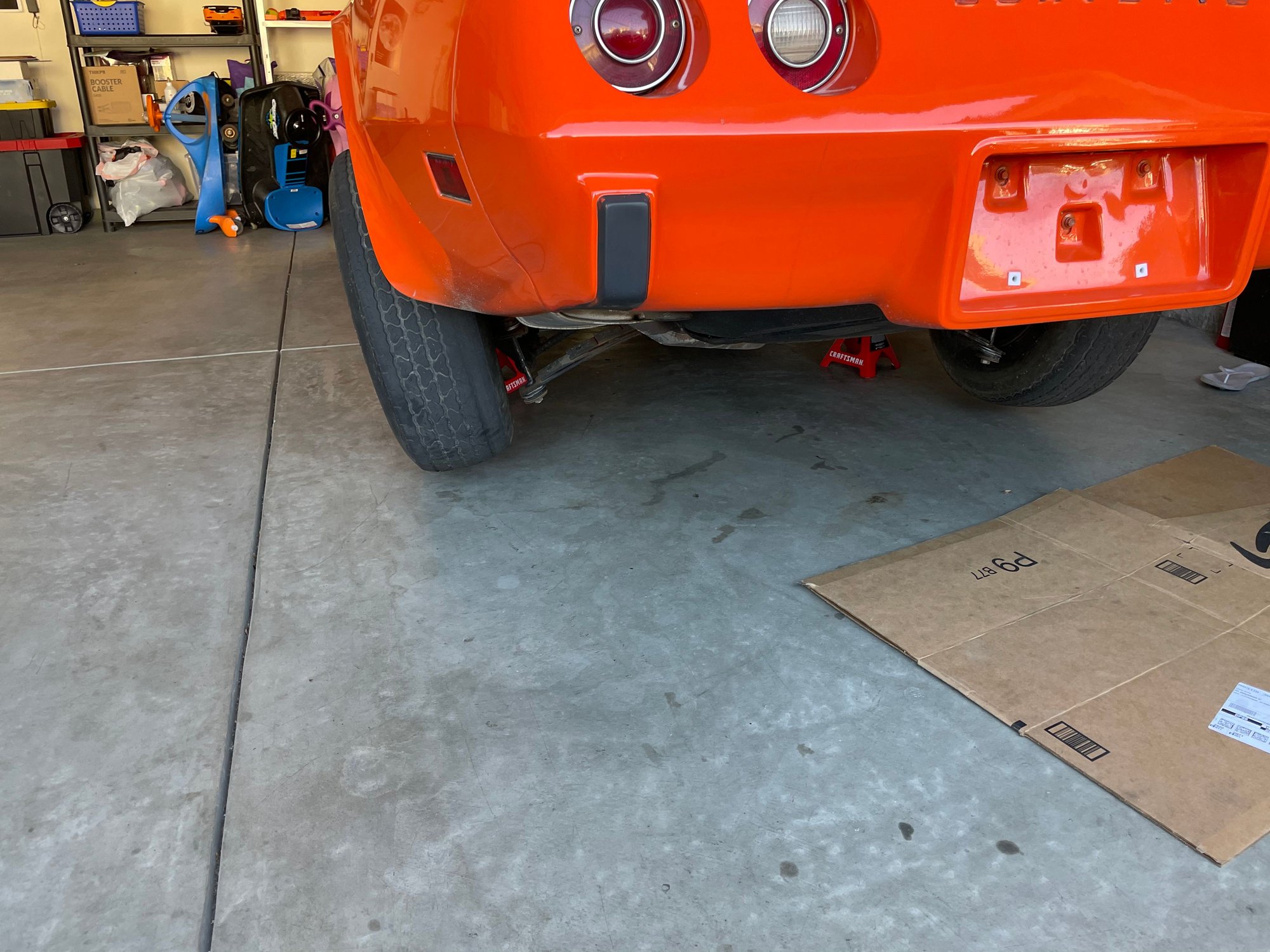

Strut rod is bent from someone attempting to align the car most likely with bad axles and excessive end play.

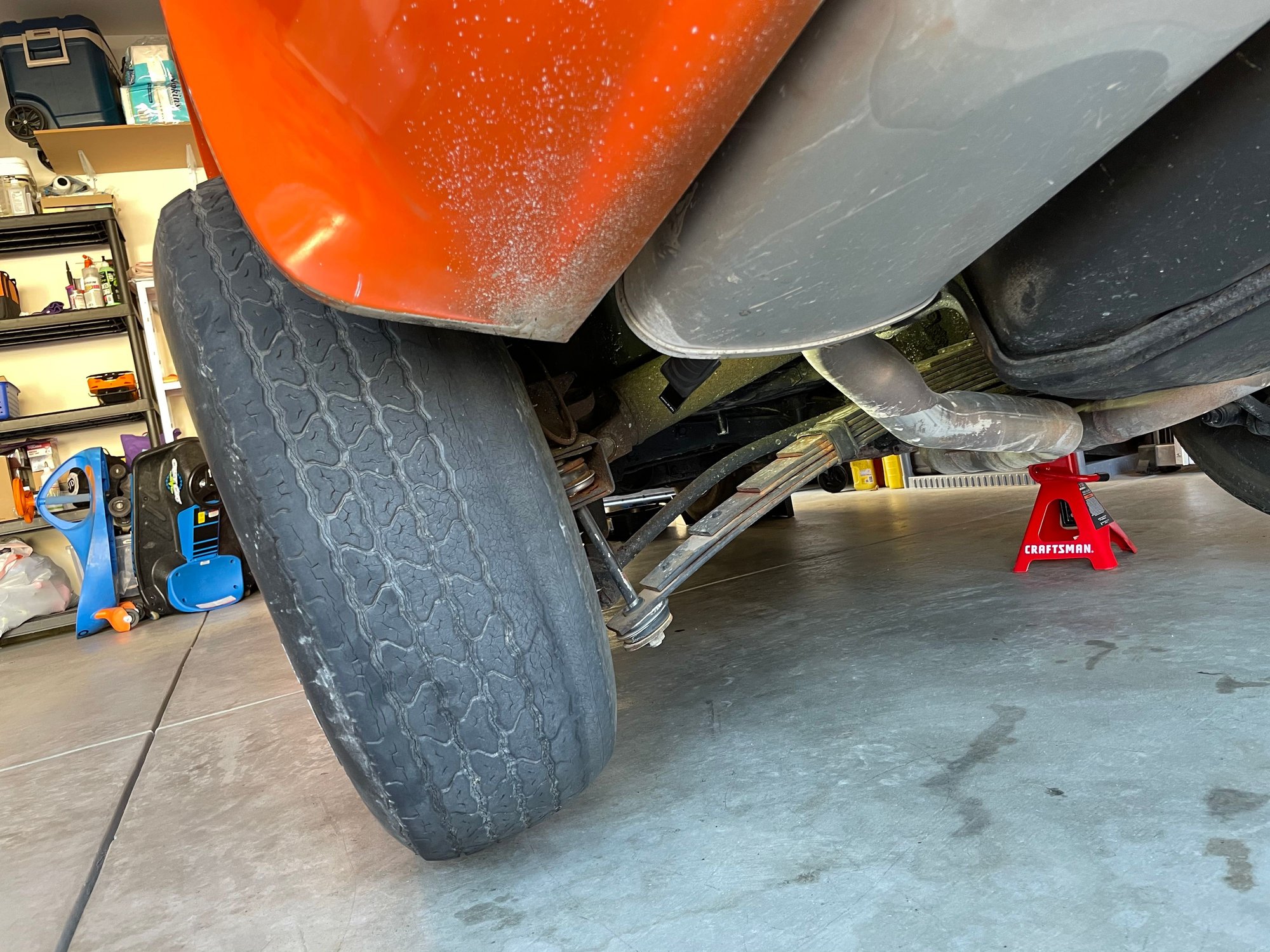

The tire is clearly worn from camber, again from bad axles and rod.

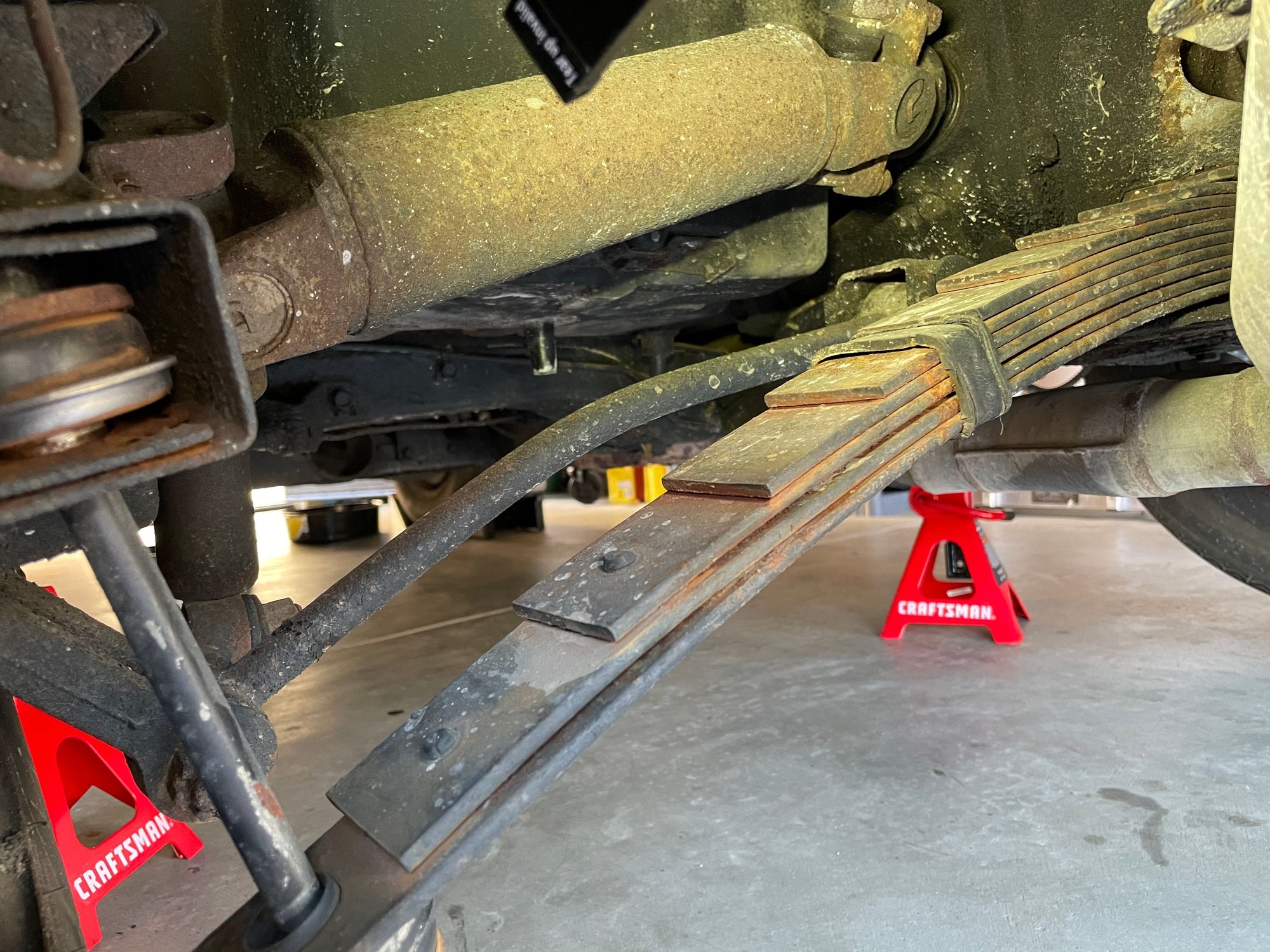

Rear spring has already been replaced- leaf ends are aftermarket and the shipping straps are still on them
To correct this, the right way, you need to remove the diff and check it.
Check the bushings, the one in the arm looks new but the cup isn't flared from the looks of it. The rods can be rebent if you want, I never liked heating and bending them when you can get good used ones for about $30 each and rebush them. You can buy new adjustable rods but you don't need them Based on what I see you should look very close at the whole IRS.
Axle is coming out because the snap ring is off or the end is worn down past the clip= not good. I can't see if the lip at the seal is still place or ground down. Mid 70's axles were bad and if you let it go until the axle hits the seal you may lose the diff.
Strut rod is bent from someone attempting to align the car most likely with bad axles and excessive end play.
The tire is clearly worn from camber, again from bad axles and rod.
Rear spring has already been replaced- leaf ends are aftermarket and the shipping straps are still on them
To correct this, the right way, you need to remove the diff and check it.
Check the bushings, the one in the arm looks new but the cup isn't flared from the looks of it. The rods can be rebent if you want, I never liked heating and bending them when you can get good used ones for about $30 each and rebush them. You can buy new adjustable rods but you don't need them Based on what I see you should look very close at the whole IRS.
Last edited by GTR1999; Apr 19, 2021 at 09:41 PM.
Race Director
Joined: Nov 2006
Posts: 13,227
Likes: 7,825
From: Sunshine Coast, Queensland, Australia
2025 C3 of the Year Finalist - Modified
2024 C3 of the Year Finalist- Modified
2022 C3 of the Year Finalist - Modified
Cruise-In VIII Veteran
WOW! That looks really bad. diff defiantly needs to come out. I agree, looks like a total rear end rebuild from trailing arm bushings back.
Drifting
Joined: Aug 2019
Posts: 1,510
Likes: 498
Don’t drive it !! You have a Snap Ring on the loose in your Diff , drive it and you run the risk of that snap ring getting chewed/caught up by your gears and ruining them by chipping the teeth
super bent strut rod in your picture too
super bent strut rod in your picture too
Last edited by Eric P; Apr 19, 2021 at 10:50 PM.
Thread Starter
Heel & Toe
Joined: Apr 2021
Posts: 22
Likes: 1
From: Fillmore CA
Sorry, I figured out now that just my pics were posted not the text (was doing with my phone while in the garage yesterday).
This is my new 75 project car and I'm tackling were to work. Indeed the strut rods are bent and there is a big up/down play on the driver's side wheel. In one specific wheel turn position the arm goes in and out of the diff for about 1 inch.
I'll be probably taking the diff out soon.
Thanks folks.
Antonio
This is my new 75 project car and I'm tackling were to work. Indeed the strut rods are bent and there is a big up/down play on the driver's side wheel. In one specific wheel turn position the arm goes in and out of the diff for about 1 inch.
I'll be probably taking the diff out soon.
Thanks folks.
Antonio
Race Director
Joined: Jul 2018
Posts: 10,589
Likes: 8,411
From: San Antonio, TX/Mahopac, NY
2026 Restomod of the Year Winner
2024 Corvette of the Year Finalist - Modified
2024 Corvette of the Year Finalist - Unmodified
2023 C7 of the Year Winner - Modified
Antonio, you got some work ahead of you and some Benjamin’s to spend. Look at it this way, it will be an opportunity to make the rear of the frame, suspension, and drivetrain sparkle like new. All the best!
