Torque question

Hi I was buttoning up things on suspension and chassis and noticed the shifter levers had some play to them . Can anyone tell me if that is correct, or they should be torqued or snugged . Thank

you

Nov 12, 2024 | 08:56 PM

MelWff

Race Director

Joined: May 2006

Posts: 18,734

Likes: 2,582

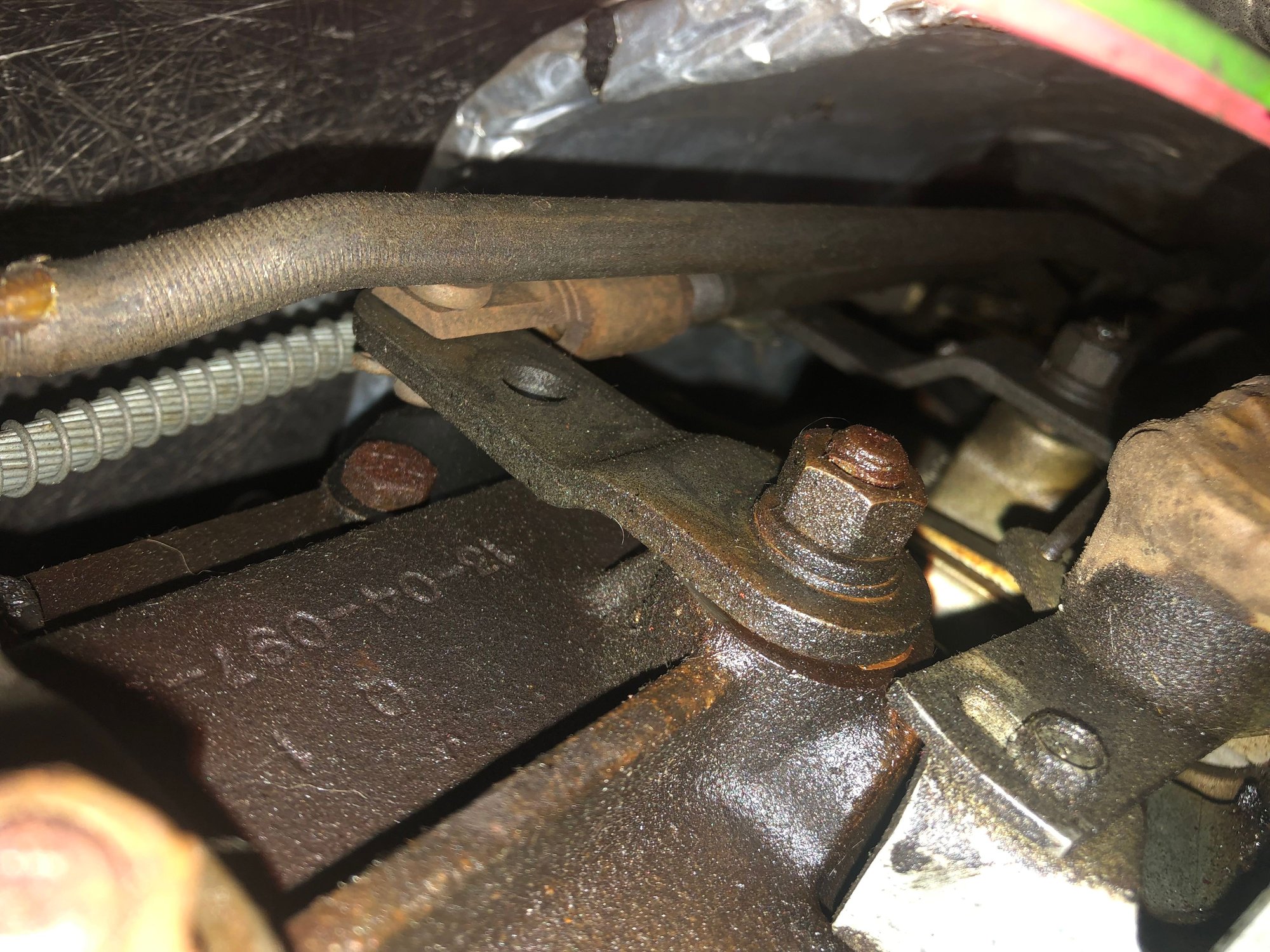

Impossible to tell how much play you have from a still picture. Put a wrench on the nut and see if it is loose.

Nov 12, 2024 | 10:17 PM

barkingrats

1967 Pedal Car Champion

Joined: Mar 2020

Posts: 9,135

Likes: 4,245

From: US-PNW

The levers shouldn't be loose on the side cover fork studs. They need to be securely attached to the threaded studs.
I looked through the service and overhaul manuals for '63 & '72 and don't see any torque specs for the levers' nuts on the side cover. The cover itself is secured at 15-20 lbft so that's probably a safe number to use on the levers.

Nov 12, 2024 | 10:26 PM

barkingrats

1967 Pedal Car Champion

Joined: Mar 2020

Posts: 9,135

Likes: 4,245

From: US-PNW

Found this AIM diagram inside another thread on the Muncie 4-speed. The torque spec for those bolts is 15-24 lbs ft.

Nov 13, 2024 | 01:26 PM

leigh1322

Old Pro Solo Guy

Joined: Dec 2017

Posts: 8,082

Likes: 4,431

From: Marlton NJ

There is always some wobble, but if the rather short stub shaft is loose in the case, that is a bushing problem.

And since your pic is oily, and the seals may be leaking, check that.

Nov 13, 2024 | 04:01 PM

Cam33

Thread Starter

Racer

Joined: Dec 2022

Posts: 300

Likes: 87

Quote:

Originally Posted by leigh1322

There is always some wobble, but if the rather short stub shaft is loose in the case, that is a bushing problem.

And since your pic is oily, and the seals may be leaking, check that.

thank u sir much appreciated 👍

Nov 13, 2024 | 04:03 PM

Cam33

Thread Starter

Racer

Joined: Dec 2022

Posts: 300

Likes: 87

Quote:

Originally Posted by leigh1322

There is always some wobble, but if the rather short stub shaft is loose in the case, that is a bushing problem.

And since your pic is oily, and the seals may be leaking, check that.

thank u I will

Nov 13, 2024 | 04:29 PM

60 SHARK

Melting Slicks

Joined: Aug 2016

Posts: 2,346

Likes: 1,174

From: CLEVELAND STUCK IN OHIO

2024 C3 of the Year Finalist- Modified

In your pic,,, the lock washer appears to be flat. (locked) . And 15-25lbs or less will 'lock' the washer. If the arm seems loose, im guessing its not the nuts and washers.
