71 LT no spark
Thread Starter
Racer
Joined: Sep 2011
Posts: 381
Likes: 90
From: Portland, the original!
71 LT no spark
The car has never failed to start during my ownership of ~5 years. Ran and started fine 2 weeks ago. Plenty of crank, no start.
A quick check showed no voltage at the coil (electronic) with either the key in "on"" or in the "start" position.
I guess I'm in for some quality time with my multimeter. I'd like to get the car to my neighbors open barn to facilitate any work. I was wondering if I could run the car with another source of 12V to the coil just to run it down my street to the barn.
A quick check showed no voltage at the coil (electronic) with either the key in "on"" or in the "start" position.
I guess I'm in for some quality time with my multimeter. I'd like to get the car to my neighbors open barn to facilitate any work. I was wondering if I could run the car with another source of 12V to the coil just to run it down my street to the barn.
Race Director
Joined: May 2006
Posts: 18,737
Likes: 2,582
The car has never failed to start during my ownership of ~5 years. Ran and started fine 2 weeks ago. Plenty of crank, no start.
A quick check showed no voltage at the coil (electronic) with either the key in "on"" or in the "start" position.
I guess I'm in for some quality time with my multimeter. I'd like to get the car to my neighbors open barn to facilitate any work. I was wondering if I could run the car with another source of 12V to the coil just to run it down my street to the barn.
A quick check showed no voltage at the coil (electronic) with either the key in "on"" or in the "start" position.
I guess I'm in for some quality time with my multimeter. I'd like to get the car to my neighbors open barn to facilitate any work. I was wondering if I could run the car with another source of 12V to the coil just to run it down my street to the barn.
Then you mention electronic coil do you mean you have the factory TI ignition system?

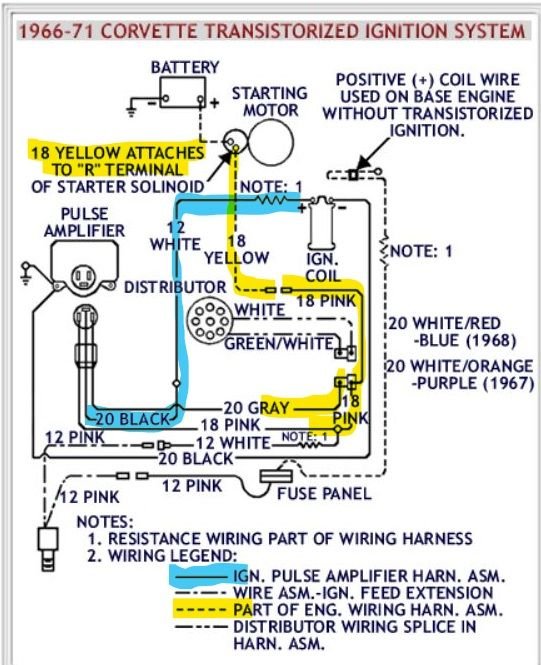

If you do have the TI it does not normally direct 12 volts to the coil based on the wiring diagram below.
Wiring diagram
Thread Starter
Racer
Joined: Sep 2011
Posts: 381
Likes: 90
From: Portland, the original!

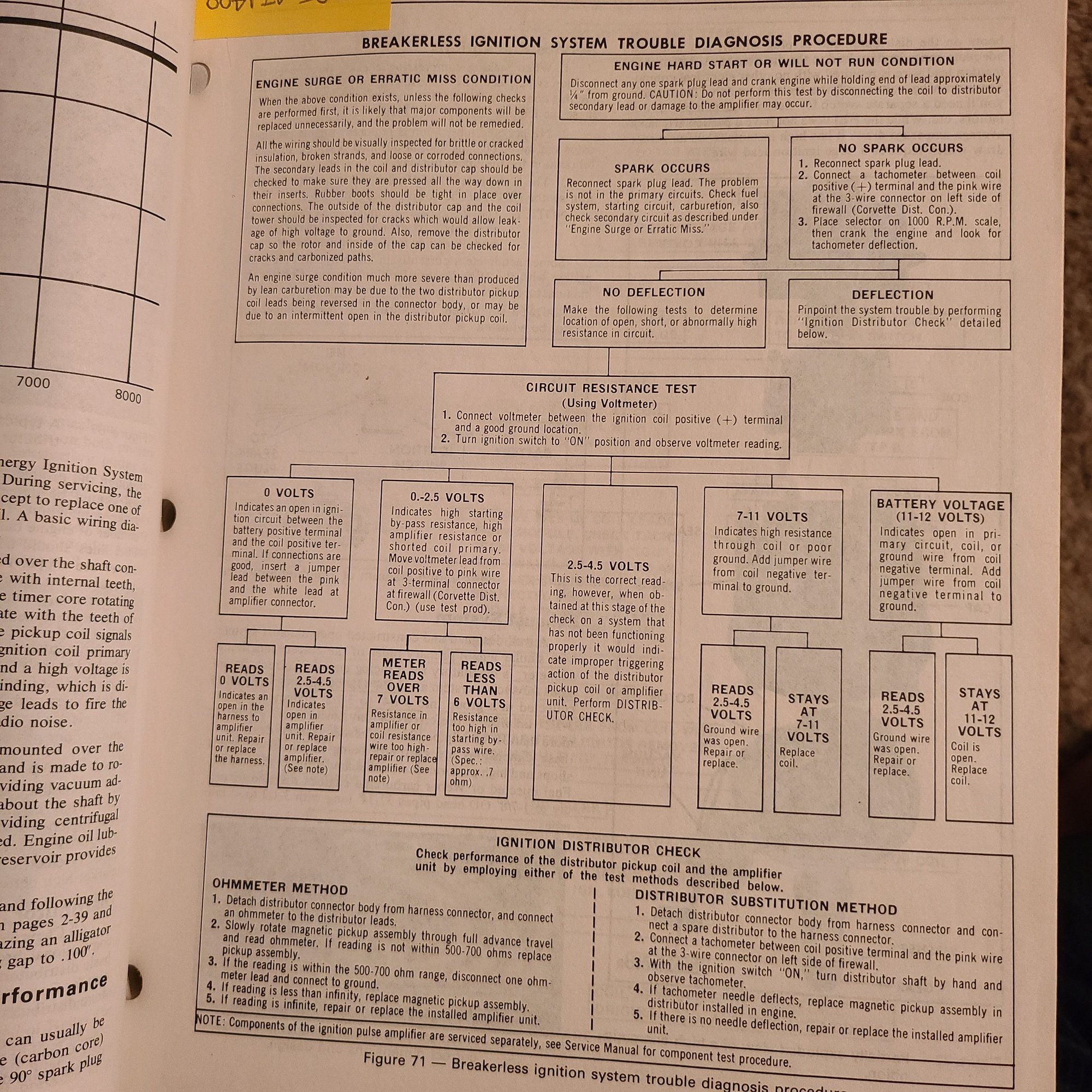

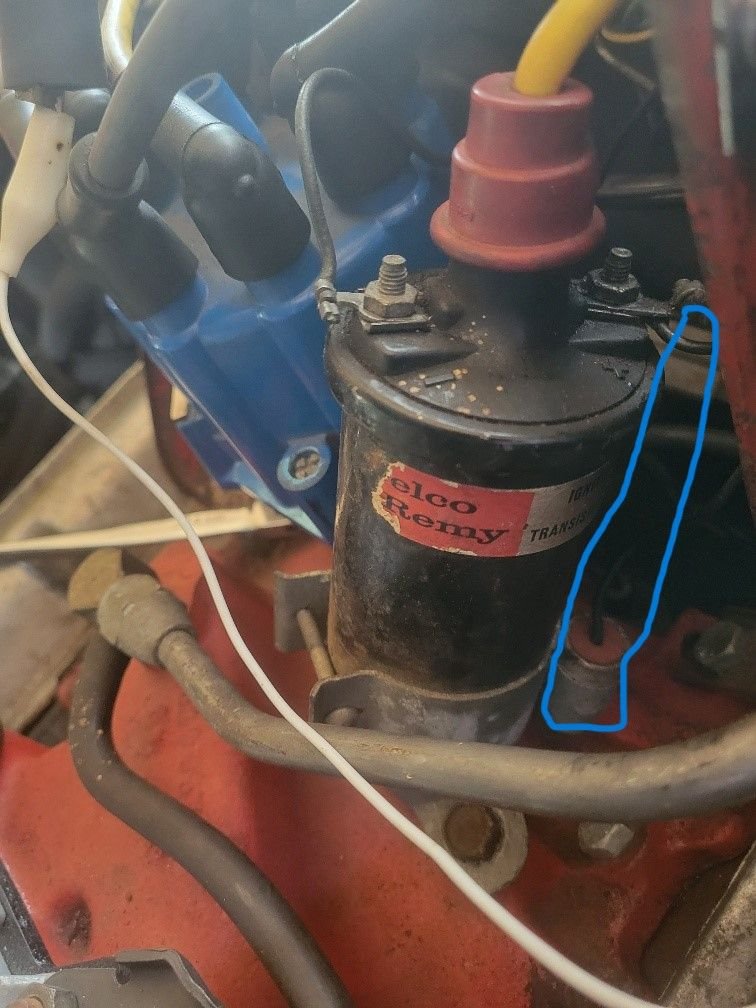

Yes, LT-1 with the TI ignition box. So that may make trouble shooting a bit tougher. That said, in the schematic, (great pic thanks) it sure looks like a black/white wire runs from the TI box to the coil + to me. That's where I'll be starting. Unfortunately not terribly accessable.
So the title mentions LT, is that LT1?
Then you mention electronic coil do you mean you have the factory TI ignition system?
If you do have the TI it does not normally direct 12 volts to the coil based on the wiring diagram below.
Wiring diagram
Then you mention electronic coil do you mean you have the factory TI ignition system?
If you do have the TI it does not normally direct 12 volts to the coil based on the wiring diagram below.
Wiring diagram
Race Director
Joined: May 2006
Posts: 18,737
Likes: 2,582
Yes, LT-1 with the TI ignition box. So that may make trouble shooting a bit tougher. That said, in the schematic, (great pic thanks) it sure looks like a black/white wire runs from the TI box to the coil + to me. That's where I'll be starting. Unfortunately not terribly accessable.
Team Owner
Joined: Jan 2006
Posts: 37,637
Likes: 3,118
From: Crossville TN
Not sure about the TI system, but does that system get its power from the starter solenoid (like a points system does)? If so, you may just have a defective starter solenoid. (Nothing to do with the starter, itself.)
Race Director
Joined: May 2006
Posts: 18,737
Likes: 2,582
It shows the R terminal on starter going to TI amplifier.
Team Owner
Joined: Jan 2006
Posts: 37,637
Likes: 3,118
From: Crossville TN
If the R terminal has no power when the ignition is turned to RUN (not START), that's your problem. (starter solenoid or the wire between solenoid and TI unit. Measure the voltage AT the solenoid terminal to determine which is at fault.)
