Coolant Temperature Gauge
Hello:
1986 Coupe
I have been battling issues with my digital dash for sometime now. I have repaired the dash once already--re-soldered it in a few locations--Batee.com has a ton of good info on this dash issue--it worked for awhile (wonky) and now i'm back to not having anything display for the coolant temperature and volt location. Both are on the same switch.
I was wondering if i could temporarily hook up an electric aftermarket water temp gauge (any brand suggestions) until i get the dash replaced or repaired again.
Can i use the existing sensor that is in the passenger head and how do i wire up the new temporary gauge??
Thanks
1986 Coupe
I have been battling issues with my digital dash for sometime now. I have repaired the dash once already--re-soldered it in a few locations--Batee.com has a ton of good info on this dash issue--it worked for awhile (wonky) and now i'm back to not having anything display for the coolant temperature and volt location. Both are on the same switch.
I was wondering if i could temporarily hook up an electric aftermarket water temp gauge (any brand suggestions) until i get the dash replaced or repaired again.
Can i use the existing sensor that is in the passenger head and how do i wire up the new temporary gauge??
Thanks
Last edited by raiderz; Apr 5, 2011 at 07:06 AM.
Thread Starter
Pro
Joined: Aug 2010
Posts: 617
Likes: 17
From: Hamilton Ontario
Racer
Joined: Nov 2010
Posts: 460
Likes: 1
From: Oliphant Ontario
You can certainly use an aftermarket gauge, as for the sensor being right, not likely. Almost every brand of gauge has its own ohm reading scale, odds of finding one to match the OEM is nearly impossible. However you can just screw in the one supplied with the gauge..
Thread Starter
Pro
Joined: Aug 2010
Posts: 617
Likes: 17
From: Hamilton Ontario
You can certainly use an aftermarket gauge, as for the sensor being right, not likely. Almost every brand of gauge has its own ohm reading scale, odds of finding one to match the OEM is nearly impossible. However you can just screw in the one supplied with the gauge..
I wonder if there is any other way of installing the new sensor someplace else other than in the passenger head??
Team Owner
Joined: Jan 2003
Posts: 20,316
Likes: 246
From: Summerland B.C. Canada
Thread Starter
Pro
Joined: Aug 2010
Posts: 617
Likes: 17
From: Hamilton Ontario
I will probably just hold up on this gauge and remove the dash again and try to resolder it once more when i get some time, instead of pissing around swapping out sensors and getting coolant all over the place.
Le Mans Master
Joined: Jul 2007
Posts: 5,043
Likes: 8
From: Tampa Florida
Hello:
1986 Coupe
I have been battling issues with my digital dash for sometime now. I have repaired the dash once already--re-soldered it in a few locations--Batee.com has a ton of good info on this dash issue--it worked for awhile (wonky) and now i'm back to not having anything display for the coolant temperature and volt location. Both are on the same switch.
I was wondering if i could temporarily hook up an electric aftermarket water temp gauge (any brand suggestions) until i get the dash replaced or repaired again.
Can i use the existing sensor that is in the passenger head and how do i wire up the new temporary gauge??
Thanks
1986 Coupe
I have been battling issues with my digital dash for sometime now. I have repaired the dash once already--re-soldered it in a few locations--Batee.com has a ton of good info on this dash issue--it worked for awhile (wonky) and now i'm back to not having anything display for the coolant temperature and volt location. Both are on the same switch.
I was wondering if i could temporarily hook up an electric aftermarket water temp gauge (any brand suggestions) until i get the dash replaced or repaired again.
Can i use the existing sensor that is in the passenger head and how do i wire up the new temporary gauge??
Thanks
you pretty much correctly diagnosed your problem. The issue is most likely just a poor contact on the DIC switch panel (the thing above the radio with the 5 switches). DIC switch panel for the most part just "loops" the selected of info back to the cluster. I doubt you have an issue within the cluster itself.I recommend "working" the volt/coolant switch pretty agressively several times to see if you can't get something to pop up in the display on the cluster. If you still have issues check, clean or reseat the connector on the back of the DIC or the small connector at the cluster. If still having problems replace the DIC switch panel.
Thread Starter
Pro
Joined: Aug 2010
Posts: 617
Likes: 17
From: Hamilton Ontario
Problem solved...put a used replacement digital dash in and everything works properly now. got the dash from Westenracing....
All areas light up and function fine now when you toggle the switches on the info panel.
I pulled my old dash apart and found that the 12 pin female connector --the one that powers the 2 circuit boards together was burned black and melted in a couple of the slots.
I guess that is why the dash would not light up in those areas involved.
I will look for a replacement connector and solder it on the board and sell it or maybe keep it for a spare
Thanks guys
All areas light up and function fine now when you toggle the switches on the info panel.
I pulled my old dash apart and found that the 12 pin female connector --the one that powers the 2 circuit boards together was burned black and melted in a couple of the slots.
I guess that is why the dash would not light up in those areas involved.
I will look for a replacement connector and solder it on the board and sell it or maybe keep it for a spare
Thanks guys
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Heel & Toe
Joined: Aug 2020
Posts: 17
Likes: 2
From: Reno, NV

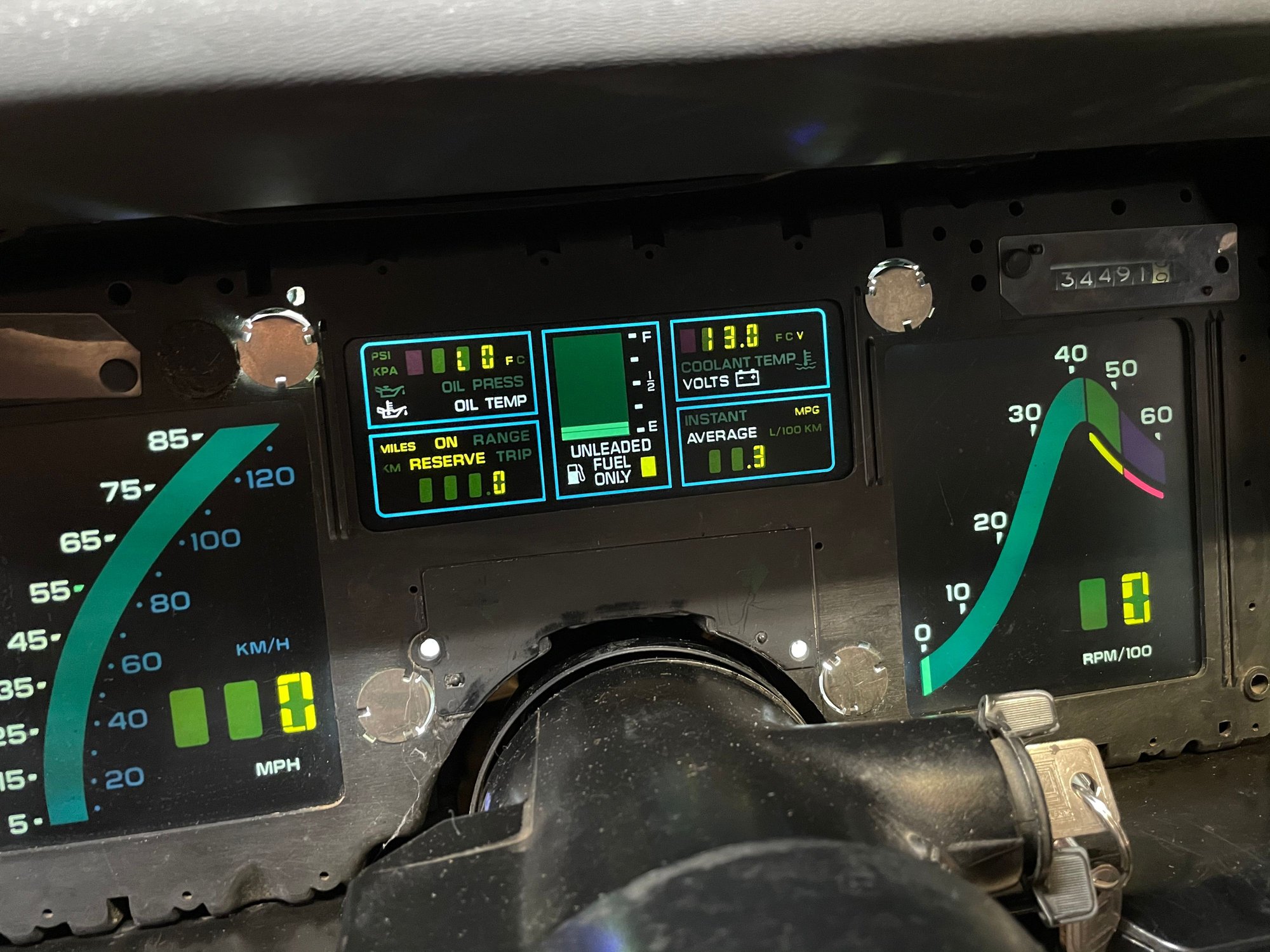

New dash lcd temp/volt from batee.com
