That's gonna be a car with real speed! Here are a few thoughts I have on what you're planning:
- Make sure your brake package will fit inside those wheels.
- Research the short-shift kits for the ZF6 before you buy one. There are threads on here about that, and I seem to remember that the ZF Doc version is preferred, but I don't know if it's still available..
My SPEC clutch came with the best throwout bearing I could find for the c4. got the 2+ which is metallic and kevlar. works smoothly for me on stock lt4
Last edited by CaptainMerricka; 08-24-2018 at 02:29 AM.
#42
Been a while since I last posted. My builder stalled out on me but he got started in earnest about a month or so ago. To recap my journey with the car. I bought it from a local Chevy dealer for ~2500 bucks. They had it listed for about 6 but they pressure washed the engine which soaked the opti, so I got a deal. The car is a base 93 6spd Coupe Torch Red w/black leather interior.
I had a pretty comprehensive build. The major stuff is summarized below:

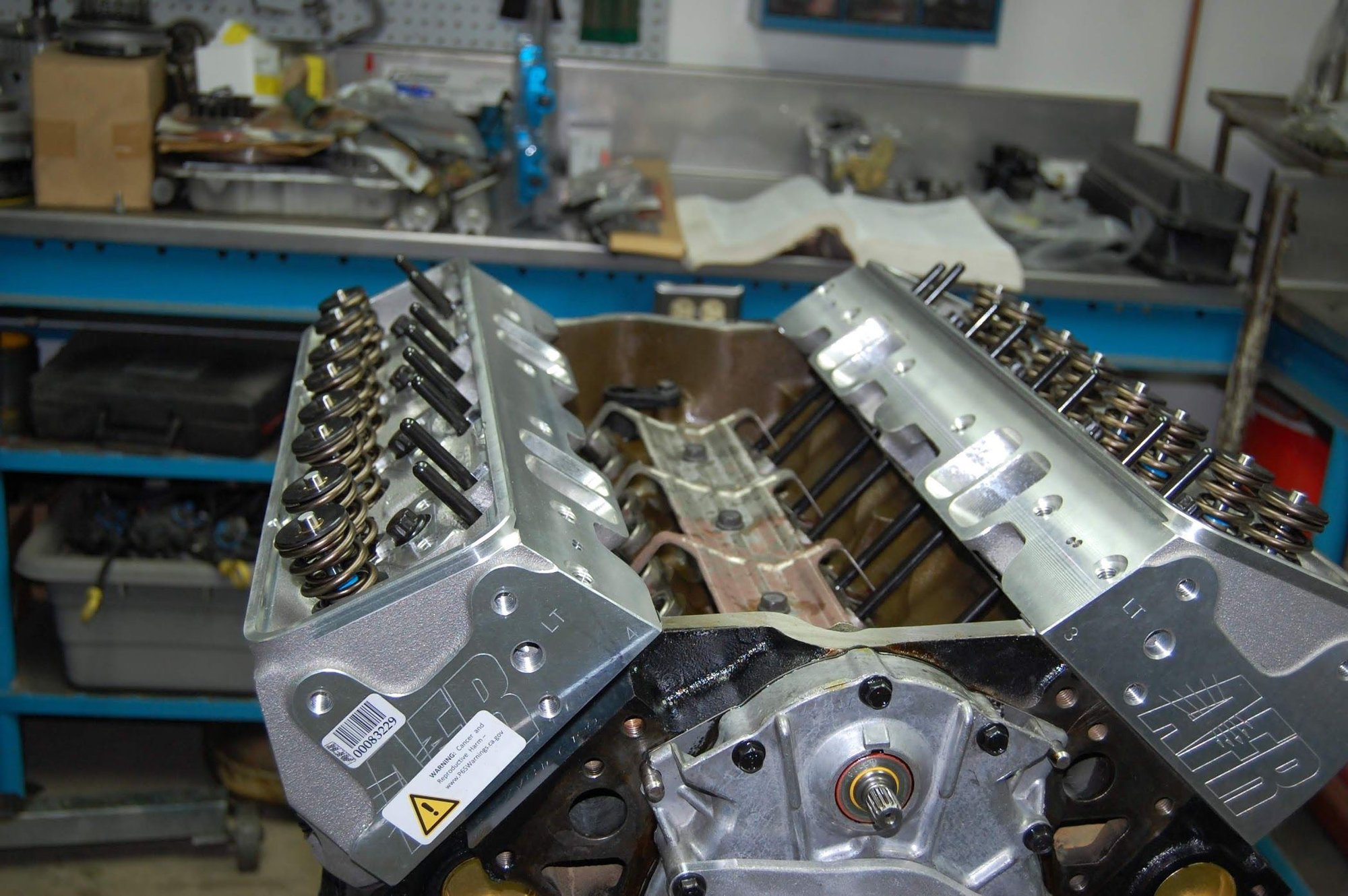

Rebuild the LT-1 (stroker 383, Weisco Forged Pistons, Eagle Cast Crank, Eagle 4340 H beam rods, AFR 180cc LT-1 Heads 58cc, Comp Cams 224/230 .503/.510, EFI Crank/Cam Sensor, Holley EFI HP ECU, Pro Form 1.6 rollers, LS7 Coils, Moroso Road Race Pan,BBK 58mm TB, all new engine sensors, etc)
Suspension was completely removed, cleaned with new wheel bearings, hubs (Timken rears, DSE front hubs), ball joints, tie rod ends, bushings, QA1 front coil overs, QA1 rear shocks, retaining the stock spring w/ a lowering kit, Banski control arms, Camber arm, an x brace, etc.)
Rebuild the Dana 44 (w/4.10 gears, new U joints, beam plates, etc.)
Refresh the ZF 6-spd, (short throw shifter kit, shim kit, counter shaft, RAM 500hp LT-1 clutch & single mass flywheel,etc.)
Wilwood 14" 6-pot Superlite Front Brake Kit, 12.88" 4 pot Superlite Rear Brake Kit (both slotted not drilled) w/stainless steel lines,)
Exhaust (Long tube Melrose headers, Magna Flow dual out let mufflers, QTP Cutouts)
Refresh AC system...
Rebuild the Steering Rack...
Forge Star CF-5's w/315 35 18's...square setup.
And a bunch of hoses, fluids, various bushings, and miscellaneous stuff to complete what is basically a brand new car.
I had a pretty comprehensive build. The major stuff is summarized below:
Rebuild the LT-1 (stroker 383, Weisco Forged Pistons, Eagle Cast Crank, Eagle 4340 H beam rods, AFR 180cc LT-1 Heads 58cc, Comp Cams 224/230 .503/.510, EFI Crank/Cam Sensor, Holley EFI HP ECU, Pro Form 1.6 rollers, LS7 Coils, Moroso Road Race Pan,BBK 58mm TB, all new engine sensors, etc)
Suspension was completely removed, cleaned with new wheel bearings, hubs (Timken rears, DSE front hubs), ball joints, tie rod ends, bushings, QA1 front coil overs, QA1 rear shocks, retaining the stock spring w/ a lowering kit, Banski control arms, Camber arm, an x brace, etc.)
Rebuild the Dana 44 (w/4.10 gears, new U joints, beam plates, etc.)
Refresh the ZF 6-spd, (short throw shifter kit, shim kit, counter shaft, RAM 500hp LT-1 clutch & single mass flywheel,etc.)
Wilwood 14" 6-pot Superlite Front Brake Kit, 12.88" 4 pot Superlite Rear Brake Kit (both slotted not drilled) w/stainless steel lines,)
Exhaust (Long tube Melrose headers, Magna Flow dual out let mufflers, QTP Cutouts)
Refresh AC system...
Rebuild the Steering Rack...
Forge Star CF-5's w/315 35 18's...square setup.
And a bunch of hoses, fluids, various bushings, and miscellaneous stuff to complete what is basically a brand new car.
Last edited by Jaye Bass; 06-25-2019 at 11:18 AM.
The following users liked this post:
James93LT1 (08-11-2019)
#44
Tomorrow I'll post the gear box, diff, and suspension work that has happened to date. Also the drive train is in the car, I'll post pictures of that.
Oh btw, I picked up this a week ago.
Oh btw, I picked up this a week ago.
The following 2 users liked this post by Jaye Bass:
convas (09-04-2019),
James93LT1 (08-11-2019)
#45
Le Mans Master
Keep the updates coming! I like what I'm seeing. I fear, however, that you've bought into a never-ending repair project with that F-car... Don't let it distract you from the C4!
The following users liked this post:
Mity2 (07-22-2019)
#46
I'm going to rebuild the suspension on the 308 in a few weeks. Ball joints and bushings. Except for the motor, a really simple car. Mine has a rebuilt motor, trans, ignition (pertronix), and a few other doodads. The 4 webers need a tune/synch. These cars are reliable when they are sorted.
#47
Some more build pics
Old shifter
Rebuilt shifter w/short shifter kit

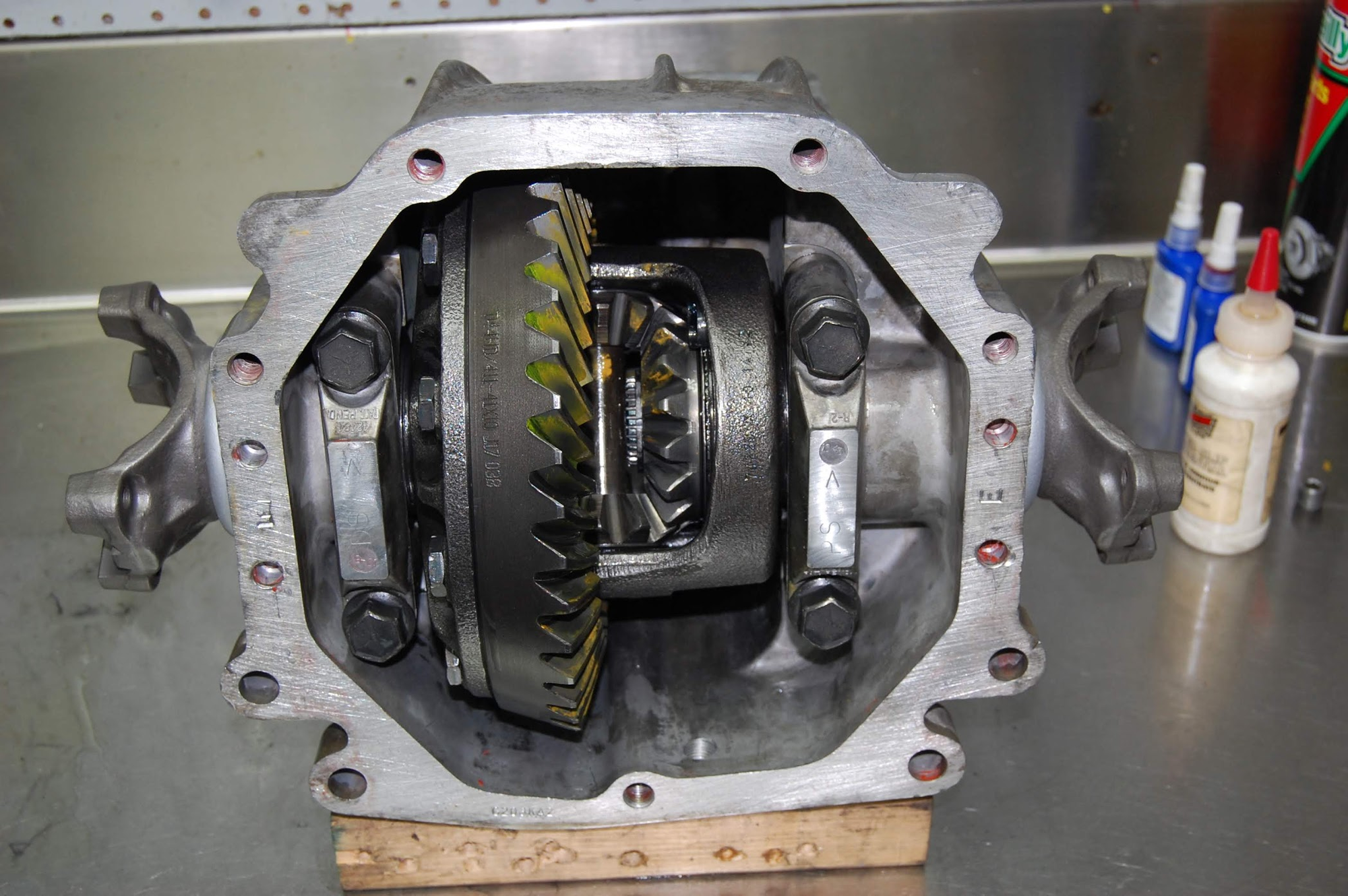

Rebuilt diff 4:10 gears
Completed rear end assembly
Some completed sub assemblies. Note the rebuilt steering rack

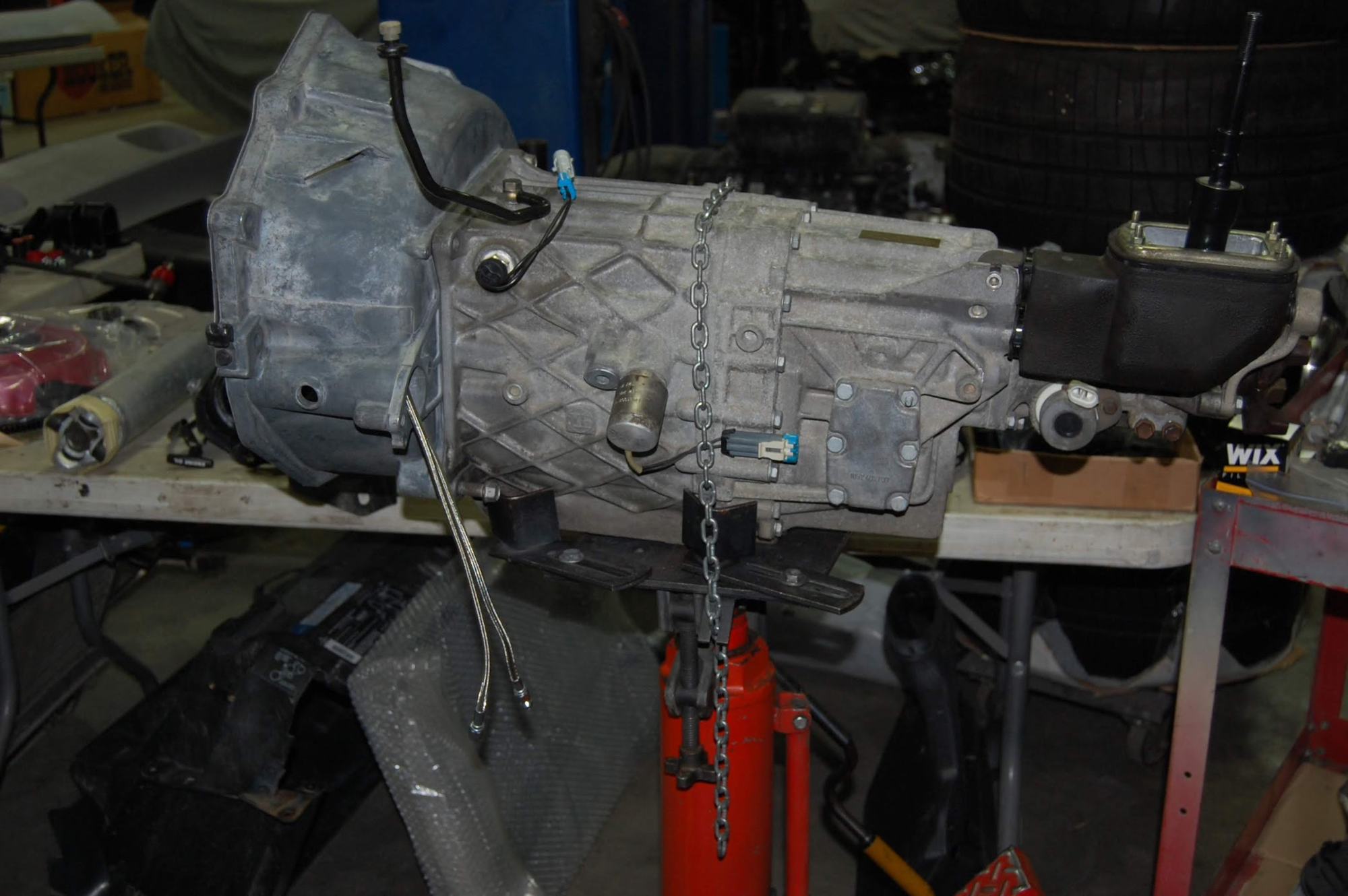

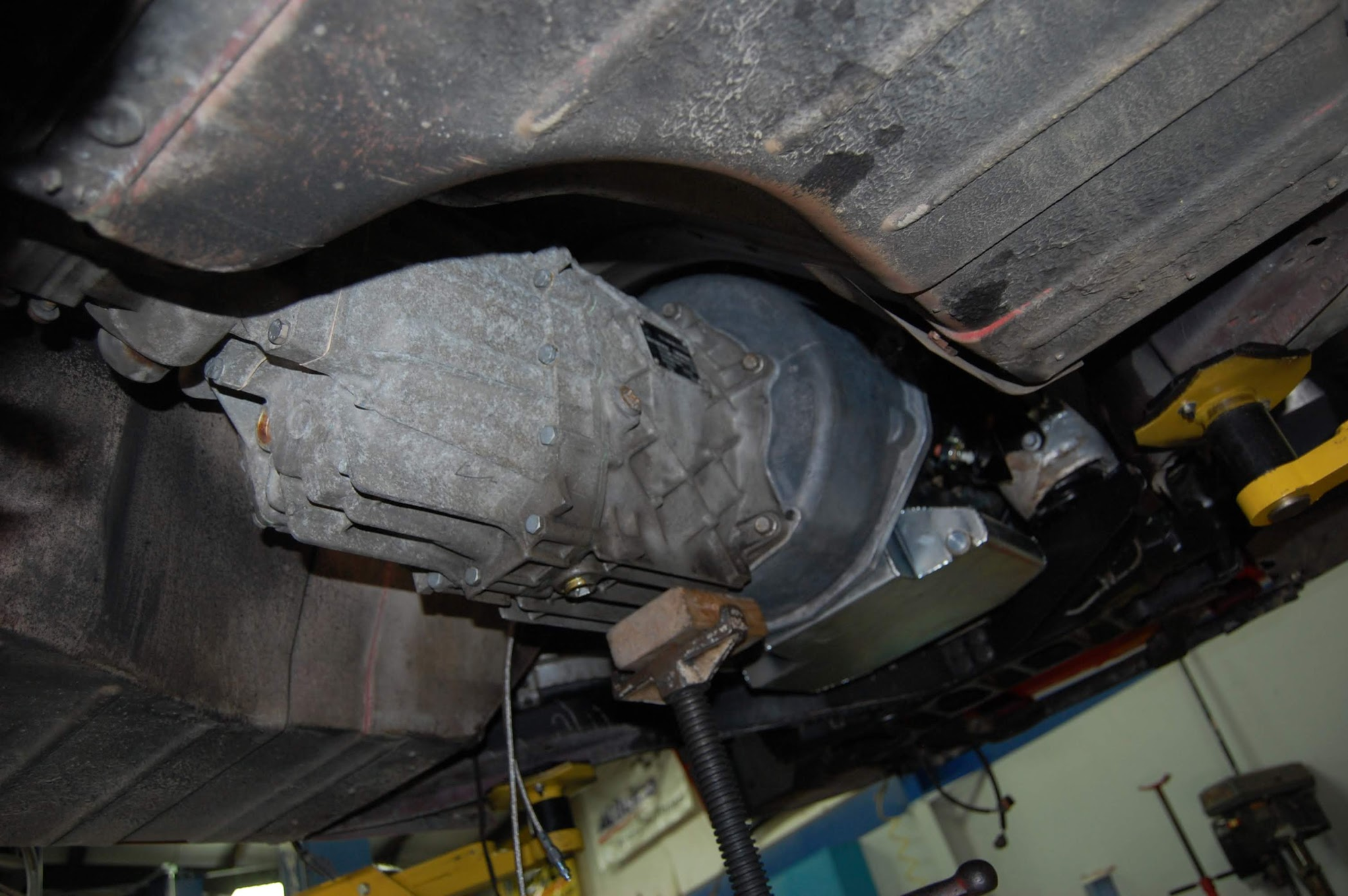

Transmission is back together
Suspension parts ready to install
Engine ready to go in
Getting closer
Old shifter
Rebuilt shifter w/short shifter kit
Rebuilt diff 4:10 gears
Completed rear end assembly
Some completed sub assemblies. Note the rebuilt steering rack
Transmission is back together
Suspension parts ready to install
Engine ready to go in
Getting closer
The following users liked this post:
James93LT1 (08-11-2019)
The following users liked this post:
James93LT1 (08-11-2019)
The following users liked this post:
James93LT1 (08-11-2019)
#51
Ironically, I'll do more wrenching on the Ferrari than this Vette. I'm about ready to rebuild the suspension in a couple of weeks.
#52
Le Mans Master
If you want to.learn and work on sports cars buy a European one. Just the way it is, they're like women the sexier the higher the maintenance required.
Cool project. You listed lots of changes is there a particular goal? Track, Auto X, OUSC...etc?
Cool project. You listed lots of changes is there a particular goal? Track, Auto X, OUSC...etc?
#53
#54
A few new things. that happened last week. One note on the front suspension, I had the builder install the Detroit Speed X-TRACKER HUB ADAPTER KIT for the front end. Might be over kill but the 315's will have more grip than the stock front end was designed for. The next few pics are the rear suspension getting buttoned up, the brakes should be complete by now with final assembly this week into next week. Ought to be on the dyno next week.
Melrose long tube headers ceramic coated after test fit...needed some persuading in a few spots

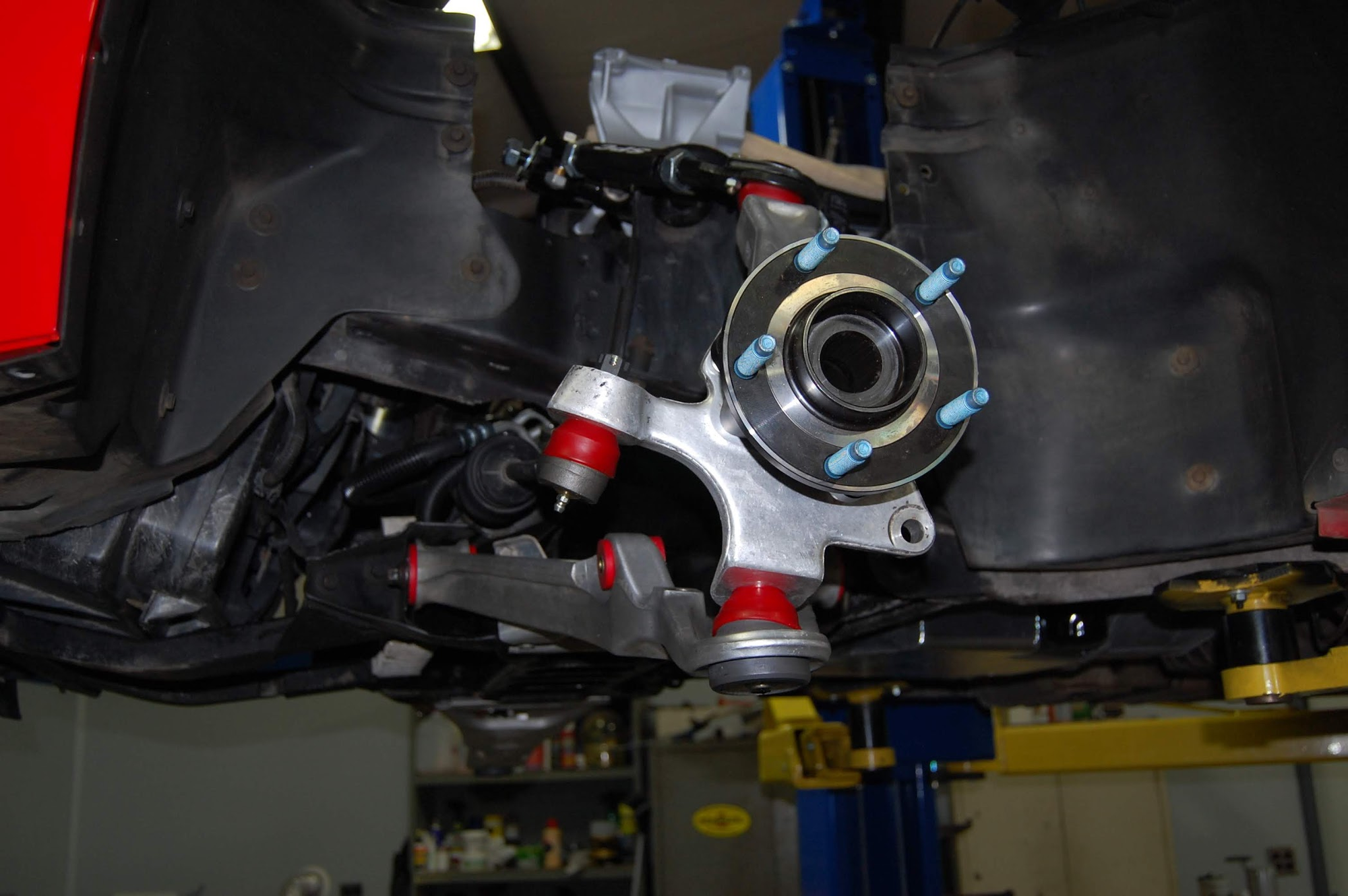

Front suspension...note the DSE Xtrac Hub Adapter. Stock mounting for brakes and wheels perserved.
Rear suspension with partial wilwood install (Super Lite R 4 pot 12 inch) and note the QA-1 double adjustable shocks. The brakes should be complete by now.
Panoramic view of the rear end.
Melrose long tube headers ceramic coated after test fit...needed some persuading in a few spots
Front suspension...note the DSE Xtrac Hub Adapter. Stock mounting for brakes and wheels perserved.
Rear suspension with partial wilwood install (Super Lite R 4 pot 12 inch) and note the QA-1 double adjustable shocks. The brakes should be complete by now.
Panoramic view of the rear end.
The following users liked this post:
James93LT1 (08-11-2019)
#55
Le Mans Master
I think it's not overkill if the car is going to see any track time, and maybe even autocross time. It's not just tire size that increases grip, but modern tire compounds. Any kind of competition rubber is going to send cornering loads soaring past what the designers conceived in the late 70s when this car was being designed. And good replacement front bearings for the OE design are no longer made, so the front bearings are a real weak spot for C4s in these applications.
#56
I think it's not overkill if the car is going to see any track time, and maybe even autocross time. It's not just tire size that increases grip, but modern tire compounds. Any kind of competition rubber is going to send cornering loads soaring past what the designers conceived in the late 70s when this car was being designed. And good replacement front bearings for the OE design are no longer made, so the front bearings are a real weak spot for C4s in these applications.
The following 2 users liked this post by Jaye Bass:
1993C4LT1 (07-26-2019),
MatthewMiller (07-17-2019)
#57
Brakes are installed, QA1's front and rear, the coil packs, and the cold air intake. Should be running next week, dyno and alignment the next, then a coat of Torch Red.
Throttle body
new alternator
Front brakes...QA-1's and Eibach springs
Rear is done just have to connect the spring bolt
Cold air intake
Good shot of the coil packs
New AC compressor
close up of the camber and sway bars
Front coil over
Throttle body
new alternator
Front brakes...QA-1's and Eibach springs
Rear is done just have to connect the spring bolt
Cold air intake
Good shot of the coil packs
New AC compressor
close up of the camber and sway bars
Front coil over
The following users liked this post:
James93LT1 (08-11-2019)
#60
He has done this conversion a couple of times. I think he has it down pat even has a big board for fabbing the wiring harness. Based on what I've seen from folks like Golen and some other LT1 builders this motor should get ~520hp at the crank, although about 100lbs heavier than an LS is hp competitive with those mills. The 4:10 rear diff should provide "lively" acceleration.
I'll post the dyno numbers when they come in.
