i did some research and found some uv leds... so in theory it could be done... may look into this...
#1202
Instructor
Honestly, I don't like it that much.
I ordered the super white lights which is a different color than the warm incandescent bulbs they replaced. This color of light reacts differently with the filters for each of the indicators and projects a different color than before.
The red lights are almost fushcia now. The yellow lights are now a fluorescent, almost neon yellow. The greens have gone a little more toward teal. The blues, however, for high beam and MPH/KMH indicators are beautiful.
The increased light intensity has caused some spillover into the 1-4 shift and MIL indicators. They're not lit, they're just receiving a slight glow from the nearby MPH indicator.
My suggestion: Either stick with incandescent or get warm white LED's to avoid the weird discoloration of your indicators. I may or may not be considering swapping for warm white, but I'm also lazy and don't feel like pulling the cluster back out just for some bulbs.
As for the speaker, that's your ignition/door chime.
I ordered the super white lights which is a different color than the warm incandescent bulbs they replaced. This color of light reacts differently with the filters for each of the indicators and projects a different color than before.
The red lights are almost fushcia now. The yellow lights are now a fluorescent, almost neon yellow. The greens have gone a little more toward teal. The blues, however, for high beam and MPH/KMH indicators are beautiful.
The increased light intensity has caused some spillover into the 1-4 shift and MIL indicators. They're not lit, they're just receiving a slight glow from the nearby MPH indicator.
My suggestion: Either stick with incandescent or get warm white LED's to avoid the weird discoloration of your indicators. I may or may not be considering swapping for warm white, but I'm also lazy and don't feel like pulling the cluster back out just for some bulbs.
As for the speaker, that's your ignition/door chime.

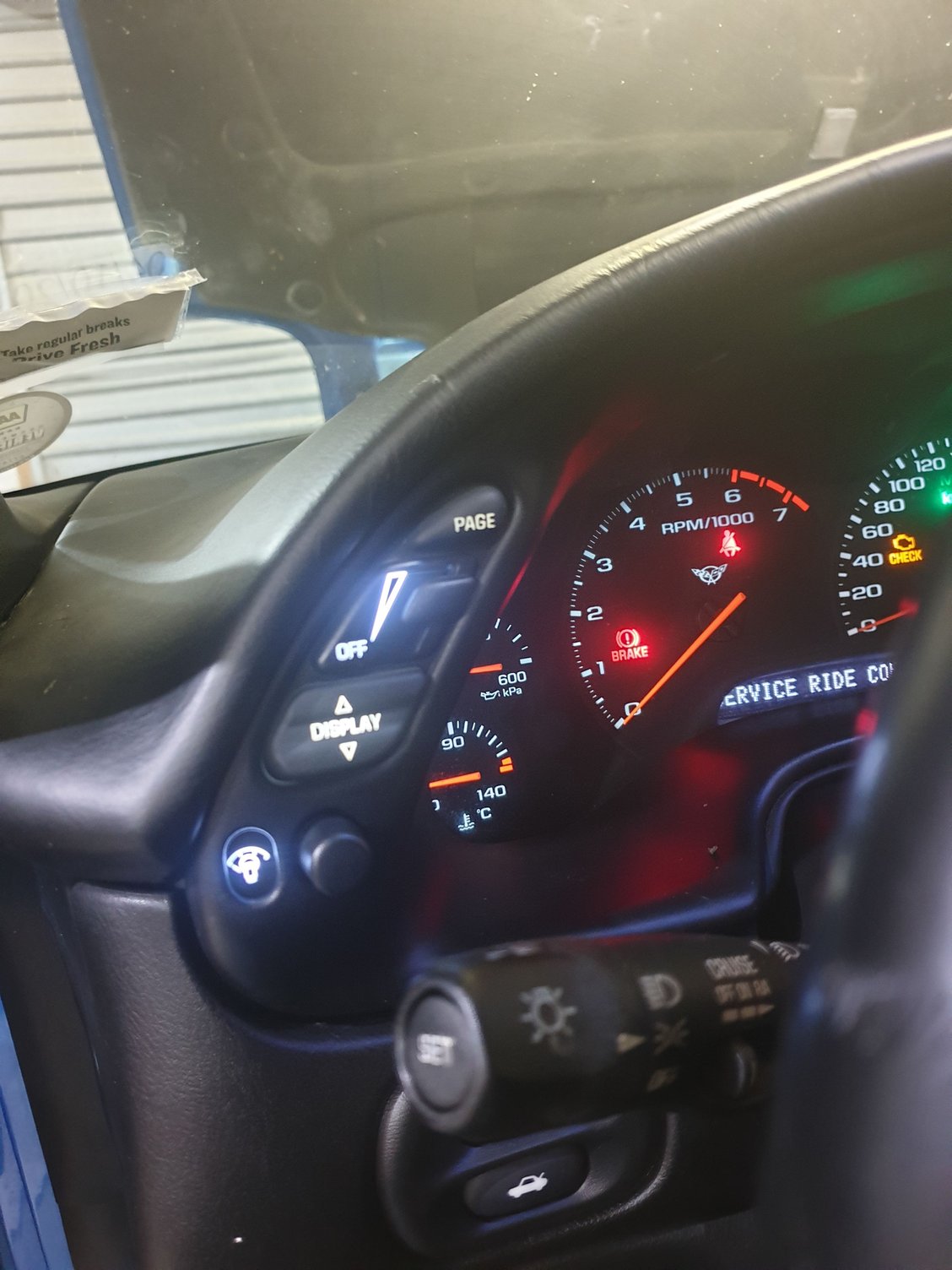

For the rest of the interior, i used a warm white LEDs. Really like the look with the exception of the dimmer and hud dimmer switches. The colour shows up quite different and looks a bit off. Also the LED on the active handling button doesnt show through very well and is noticably duller than the rest.
Also remember you loose the dimming feature with LEDs. Not the end of the world, but something to keep in mind.
Another point to keep in mind is the stock bulbs in the DIC buttons and door buttons have a blue plastic film around them, giving the almost blue look. These seem to be discontinued and cant be found anywhere. So when they finally blow (and they will) you'l have to either do LED mod, or buy the normal bulbs which will make the DIC buttons look much more yellow then they did from the factory. I tried all the types of bulbs and LEDS I could find, and decided to settle on a warm white LED colour.
Last edited by grasshopper645; 10-17-2019 at 01:18 AM.
#1204
Running Guns & Moonshine
Is there anyone who still does the hvac module conversion? I may try it myself, but am curious to farm it out.
#1206
Team Owner
Member Since: Jul 2016
Location: The Steel City, Colorful Colorado
Posts: 25,306
Received 1,679 Likes
on
1,182 Posts
Winner 2020 C7 of the Year - Modified
The following users liked this post:
unlvrebel (11-01-2019)
#1211
Melting Slicks
I believe you have to use warm white LEDs in the HVAC unit if you want white lights. Cool white LEDs come out looking blueish.
#1212
Instructor
I think I might switch them out to ice blue or blue leds to get a more consistant colour match.
Something to keep in mind for anyone looking at doing this yourself.
#1214
The Interior LED Mod Thread is OUT OF CONTROL so we decided to start some new ones, a stock location swap and a customized one. This Thread will help those owners who want to change the color of all the stock locations with a direct one for one bulb swap, except the IPC! There are some options out there for the IPC but nothing that really looks stock with a different color, at least until enough pre-orders are made for the customizable Speedhut gauges http://www.speedhut.com/15orders_el_...ber=104&bhcp=1
OK here is a rundown of various parts and options you’ll need to change your color. These parts are tried and true BUT not written in stone of course. The Type 194 and 212 Festoons listed are what I ended up using, there are many more options out there. The NEO Wedge Type A and B are a direct replacement with a resistor built into the base of the LED. Oznium has begun selling them as well, http://www.oznium.com/corvette-c5-led for $2.49
If you’re doing Red you can replace the stock blue bulb covers with Red ones. Go to http://www.mcmaster.com/
In the Find Products window (upper left) type in 16925K11 you want the G Type T1 Dia. 1/8”, Height 10/64”, OD 5/32” $3.79 for 10. Click the part number and then you can choose your color and quantity.
Switches (Doors, Fog/Trunk, DIC and Traction/Selective Ride Control)
13* ea. – NEO WEDGE Type B bulbs, 10mm (3/8”) diameter $2.99 ea.
http://autolumination.com/74.htm
*Note: If you are optioned with Selective ride control add one NEO Wedge
Dimmer/HUD
4* ea. - NEO WEDGE Type A, 8mm (5/16") diameter $2.99 ea.
http://autolumination.com/74.htm
*Note: If you do not have HUD subtract THREE. These are the closest fit but the mounting hole will still need filed out just a tad. Some HUD switch packs supposedly have a total of THREE bulbs.
Footwells and Cargo Area
4 ea. – 194 Matrix Super Star bulbs,. 10mm diameter x 26mm overall $7.99 ea.
http://autolumination.com/194.htm
Map Lights
Non Electrochromatic
2 ea. – 212 Festoon 2 LED bulbs, 10mm wide x 44mm overall length. $9.99 ea.
http://autolumination.com/festoon.htm
Electrochromatic
12 ea. 5mm LEDs
http://www.oznium.com/led
*Note: For 2000s check your Map lights to see if you have the LED array or Festoon bulbs, I believe there may have been a cross over early in 2000.
Automatic Gear Indicator (PRNDL)
1 ea. – 194 Matrix Super Star bulbs,. 10mm diameter x 26mm overall $7.99 ea.
http://autolumination.com/194.htm
HVAC (Dual Climate) Controller (Leaving stock Orange LEDs in)
14 ea. - 5mm LED's with XXX* Ohm resistors,
http://www.oznium.com/led
OR
14 ea – NEO WEDGE Type B bulbs, (removed from bases) 10mm (3/8”) diameter $2.99 ea.
http://autolumination.com/74.htm
Radio/CD Player (Leaving stock Red LED in)
10 ea. - 5mm LED's with XXX* Ohm resistors,
http://www.oznium.com/led
OR
10 ea - NEO WEDGE Type B bulbs, (removed from bases) 10mm (3/8”) diameter $2.99 ea.
http://autolumination.com/74.htm
Under Hood
1 ea. – Super Star Festoon Dome Bulb: White. 10mm wide x 44mm overall $9.99 ea.
http://autolumination.com/festoon.htm
UPDATE: The 1997s take a 212-2 Festoon and the 1998 - 2004s use a Type 561 rigid loop bulb. We think the 44mm should work fine in both. See Post #24 by ljthe2nd
**Note – 470 Ohm = Blue, White, Green, Aqua & Pink
560 Ohm – Red, Orange & Yellow
OK here is a rundown of various parts and options you’ll need to change your color. These parts are tried and true BUT not written in stone of course. The Type 194 and 212 Festoons listed are what I ended up using, there are many more options out there. The NEO Wedge Type A and B are a direct replacement with a resistor built into the base of the LED. Oznium has begun selling them as well, http://www.oznium.com/corvette-c5-led for $2.49
If you’re doing Red you can replace the stock blue bulb covers with Red ones. Go to http://www.mcmaster.com/
In the Find Products window (upper left) type in 16925K11 you want the G Type T1 Dia. 1/8”, Height 10/64”, OD 5/32” $3.79 for 10. Click the part number and then you can choose your color and quantity.
Switches (Doors, Fog/Trunk, DIC and Traction/Selective Ride Control)
13* ea. – NEO WEDGE Type B bulbs, 10mm (3/8”) diameter $2.99 ea.
http://autolumination.com/74.htm
*Note: If you are optioned with Selective ride control add one NEO Wedge
Dimmer/HUD
4* ea. - NEO WEDGE Type A, 8mm (5/16") diameter $2.99 ea.
http://autolumination.com/74.htm
*Note: If you do not have HUD subtract THREE. These are the closest fit but the mounting hole will still need filed out just a tad. Some HUD switch packs supposedly have a total of THREE bulbs.
Footwells and Cargo Area
4 ea. – 194 Matrix Super Star bulbs,. 10mm diameter x 26mm overall $7.99 ea.
http://autolumination.com/194.htm
Map Lights
Non Electrochromatic
2 ea. – 212 Festoon 2 LED bulbs, 10mm wide x 44mm overall length. $9.99 ea.
http://autolumination.com/festoon.htm
Electrochromatic
12 ea. 5mm LEDs
http://www.oznium.com/led
*Note: For 2000s check your Map lights to see if you have the LED array or Festoon bulbs, I believe there may have been a cross over early in 2000.
Automatic Gear Indicator (PRNDL)
1 ea. – 194 Matrix Super Star bulbs,. 10mm diameter x 26mm overall $7.99 ea.
http://autolumination.com/194.htm
HVAC (Dual Climate) Controller (Leaving stock Orange LEDs in)
14 ea. - 5mm LED's with XXX* Ohm resistors,
http://www.oznium.com/led
OR
14 ea – NEO WEDGE Type B bulbs, (removed from bases) 10mm (3/8”) diameter $2.99 ea.
http://autolumination.com/74.htm
Radio/CD Player (Leaving stock Red LED in)
10 ea. - 5mm LED's with XXX* Ohm resistors,
http://www.oznium.com/led
OR
10 ea - NEO WEDGE Type B bulbs, (removed from bases) 10mm (3/8”) diameter $2.99 ea.
http://autolumination.com/74.htm
Under Hood
1 ea. – Super Star Festoon Dome Bulb: White. 10mm wide x 44mm overall $9.99 ea.
http://autolumination.com/festoon.htm
UPDATE: The 1997s take a 212-2 Festoon and the 1998 - 2004s use a Type 561 rigid loop bulb. We think the 44mm should work fine in both. See Post #24 by ljthe2nd
**Note – 470 Ohm = Blue, White, Green, Aqua & Pink
560 Ohm – Red, Orange & Yellow
#1216
Burning Brakes
Member Since: Mar 2007
Location: centennial colorado
Posts: 1,202
Likes: 0
Received 21 Likes
on
19 Posts
We just change them out with 3mm discreet leds. We use 3mm blue for the a/c, green for the cold air and red for the defrost. No need for resistors since they are already leds.
#1217
Burning Brakes
Hello RJ1AZ,
Is this a mod that replaces the NEO wedge bulbs shown in this post (click here)?
Is this a mod that replaces the NEO wedge bulbs shown in this post (click here)?
Before I get into tearing the radio apart, I wanted to see if I could do anything to get the fog light/trunk switch a little brighter. It was just too dim compared to everything else.
First, I bought a spare switch because taking one apart involves cutting it open along the glued seam. Having a spare always makes me feel better about ripping things apart.
After getting it apart, it's obvious why the lighting is so dim. The light has to go into the buttons from an angle and also has to make it through the half inch thick silicone rubber they're made out of.
I decided my best bet was to handle it just like the traction control button and embed the LED's into the rubber of the button. I used two Oznium wedge LED's that I removed from their bases.
Attachment 48178759
Attachment 48178760
A little extra wire soldered onto the leads, some heat shrink tubing to protect against shorting, and then solder the wires to the appropriate pad on the back of the circuit board (top is + if I remember right).
Attachment 48178761
It's starting to come together...
Attachment 48178762
First, I bought a spare switch because taking one apart involves cutting it open along the glued seam. Having a spare always makes me feel better about ripping things apart.
After getting it apart, it's obvious why the lighting is so dim. The light has to go into the buttons from an angle and also has to make it through the half inch thick silicone rubber they're made out of.
I decided my best bet was to handle it just like the traction control button and embed the LED's into the rubber of the button. I used two Oznium wedge LED's that I removed from their bases.
Attachment 48178759
Attachment 48178760
A little extra wire soldered onto the leads, some heat shrink tubing to protect against shorting, and then solder the wires to the appropriate pad on the back of the circuit board (top is + if I remember right).
Attachment 48178761
It's starting to come together...
Attachment 48178762
#1218
Are their any how tos of replacing the 12 LEDs in the dimming rear view mirror? I found some links but they we're old and broken.
Is it as simple as removing the mirror from the vehicle, carefully popping the mirror open to gain access to the circuit boards and then removing old LEDs and soldering in the new ones?
Is it as simple as removing the mirror from the vehicle, carefully popping the mirror open to gain access to the circuit boards and then removing old LEDs and soldering in the new ones?
#1219
C5 radio LEDs
Doing a full interior LED upgrade. I’ve got everything done but my radio. I installed about half the LEDs then plugged in the radio to test them, they worked, went back in, installed the rest of the LEDs and now none of them work. Radio works, screen works. No LED light. Has anyone encountered and solved this? I really don’t want to re install all of the stock bulbs. Thanks I’m advance!
