dead c5

Thread Tools

Search this Thread

Old Apr 11, 2015 | 09:26 AM
Share
  #41
bcp79's Avatar
bcp79
Thread Starter
Intermediate

Joined: Mar 2015
Posts: 37
Likes: 0
Default
Thanks.
And purple wire is perfect continuity to ground which I'm sure it shouldn't be.
Eating breakfast and about to get back on it soon. Keep you posted
Reply
0
Old Apr 11, 2015 | 09:40 AM
Share
  #42
dadaroo's Avatar
dadaroo
Le Mans Master

Joined: Mar 2011
Posts: 6,835
Likes: 302
From: Columbia SC
Default
You are correct. I would disconnect the wire at the starter and see if the ground goes away.
Reply
0
Old Apr 11, 2015 | 09:56 AM
Share
  #43
bcp79's Avatar
bcp79
Thread Starter
Intermediate

Joined: Mar 2015
Posts: 37
Likes: 0
Default
10-4 heading back under now. Report back shortly on what happens. Now that wire doesn't run to anything else correct? So if we have to I can cut it out and bypass it with a new one
Reply
0
Old Apr 11, 2015 | 10:19 AM
Share
  #44
bcp79's Avatar
bcp79
Thread Starter
Intermediate

Joined: Mar 2015
Posts: 37
Likes: 0
Default
Do you happen to have the schematics for the underhood fuse block. Don't seem to see that wire in the one you posted.
Thanks in advance again
Reply
0
Old Apr 11, 2015 | 11:17 AM
Share
  #45
dadaroo's Avatar
dadaroo
Le Mans Master

Joined: Mar 2011
Posts: 6,835
Likes: 302
From: Columbia SC
Default
It does not go anywhere else from what I looked at. I verified that from the C1 connector pin outs and the schematic I provided. I can provide that if you want to look at it. Not at home now. I can double check again later.

Make sure it has not grounded to the exhaust near the starter. Didn't you say there was an internal issue you found in the fuse box?
Reply
0
Old Apr 11, 2015 | 11:19 AM
Share
  #46
bcp79's Avatar
bcp79
Thread Starter
Intermediate

Joined: Mar 2015
Posts: 37
Likes: 0
Default
Yup it is. And have to pull the header now. . 2 inch header makes room a little difficult to say the least.
Reply
0
Old Apr 11, 2015 | 11:23 AM
Share
  #47
dadaroo's Avatar
dadaroo
Le Mans Master

Joined: Mar 2011
Posts: 6,835
Likes: 302
From: Columbia SC
Default
Melted to the header? If you need the wire gauge I can provide that when I get home.
Reply
0
Old Apr 11, 2015 | 11:27 AM
Share
  #48
bcp79's Avatar
bcp79
Thread Starter
Intermediate

Joined: Mar 2015
Posts: 37
Likes: 0
Default
It isn't but that lead has continuity to ground from the starter post. Have gotten Header out yet almost there though so I can pull that wire off the terminal
Reply
0
Corvette Stories

The Best of Corvette for Corvette Enthusiasts

story-0

10 Ugly Corvettes That We Still Kinda Love

 Joe Kucinski
story-1

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

 Brett Foote
story-2

10 Things Every Corvette Owner Needs (2026 Edition)

 Michael S. Palmer
story-3

8 Most "Only Corvette Owners Understand" Quirks and Problems

 Pouria Savadkouei
story-4

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

 Joe Kucinski
story-5

How Much Horsepower Every Corvette Engine "LOST" in 1972

 Joe Kucinski
story-6

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

 Michael S. Palmer
story-7

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

 Joe Kucinski
story-8

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

 Joe Kucinski
story-9

8 Coolest Corvette Pace Cars (and Replicas) of All Time

 Verdad Gallardo
Old Apr 11, 2015 | 11:34 AM
Share
  #49
dadaroo's Avatar
dadaroo
Le Mans Master

Joined: Mar 2011
Posts: 6,835
Likes: 302
From: Columbia SC
Default
I PM'd you with my contact numbers if we need to talk.
Reply
0
Old Apr 11, 2015 | 11:45 AM
Share
  #50
dadaroo's Avatar
dadaroo
Le Mans Master

Joined: Mar 2011
Posts: 6,835
Likes: 302
From: Columbia SC
Default
If you look at the schematic the Purple wire at the starter only has the coil resistance to ground so it may seem to be grounded. When power via the Purple wire is applied the solenoid will be activated.
Reply
0
Old Apr 11, 2015 | 11:50 AM
Share
  #51
bcp79's Avatar
bcp79
Thread Starter
Intermediate

Joined: Mar 2015
Posts: 37
Likes: 0
Default
Showing 0 ohm resistance to ground on it. Sorry still fighting with the header lol.
Wires aren't melted to the header at least... well unfortunately cause thay would be the easy fix. And can't get to anything with the header in place of course. Getting there though
Reply
0
Old Apr 11, 2015 | 11:58 AM
Share
  #52
bcp79's Avatar
bcp79
Thread Starter
Intermediate

Joined: Mar 2015
Posts: 37
Likes: 0
Default

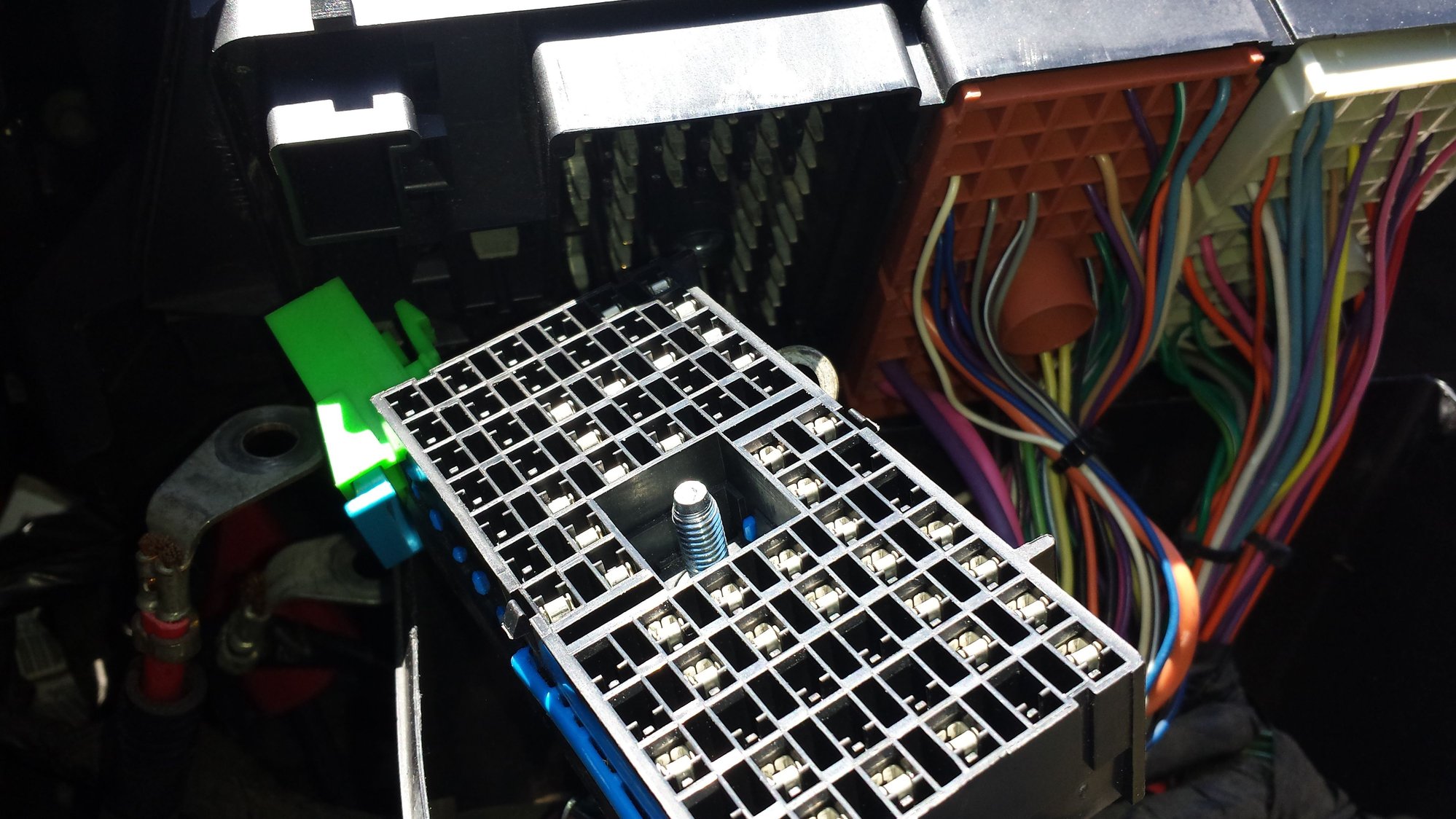

Ok wires off the starter. Starter post is grounded out. Throwing the fuse box in now to see if it still shows a ground at the ignition
Reply
0
Old Apr 11, 2015 | 12:00 PM
Share
  #53
bcp79's Avatar
bcp79
Thread Starter
Intermediate

Joined: Mar 2015
Posts: 37
Likes: 0
Default
And still a ground to the orange ignition wire. Wtf
Reply
0
Old Apr 11, 2015 | 12:04 PM
Share
  #54
dadaroo's Avatar
dadaroo
Le Mans Master

Joined: Mar 2011
Posts: 6,835
Likes: 302
From: Columbia SC
Default
Not sure I understand the ignition statement but keep me informed and we can talk if needed.

Over and out for now.
Reply
0
Old Apr 11, 2015 | 12:04 PM
Share
  #55
bcp79's Avatar
bcp79
Thread Starter
Intermediate

Joined: Mar 2015
Posts: 37
Likes: 0
Default

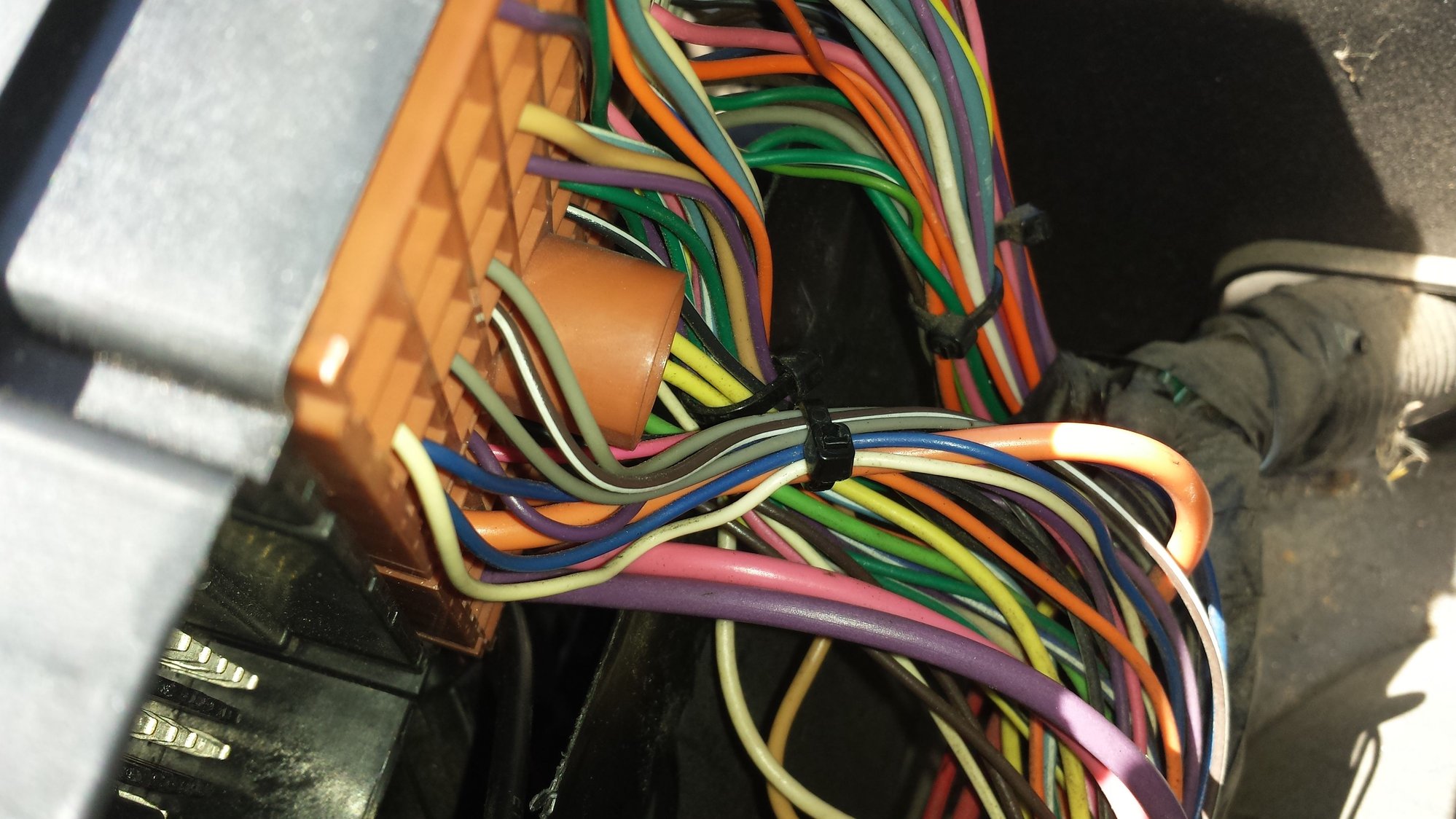

With this connector out ground goes away. purple wire not connected to starter. Tested from pin on block no more ground with wire off
Reply
0
Old Apr 11, 2015 | 12:07 PM
Share
  #56
bcp79's Avatar
bcp79
Thread Starter
Intermediate

Joined: Mar 2015
Posts: 37
Likes: 0
Default



Thick orange wire i pulled a little out is the one coming in from the ignition
Reply
0
Old Apr 11, 2015 | 12:13 PM
Share
  #57
dadaroo's Avatar
dadaroo
Le Mans Master

Joined: Mar 2011
Posts: 6,835
Likes: 302
From: Columbia SC
Default
OK, my head is spinning. It may be the beer and cigars but we need to talk.
Reply
0

Get notified of new replies

To dead c5

Old Apr 11, 2015 | 12:15 PM
Share
  #58
bcp79's Avatar
bcp79
Thread Starter
Intermediate

Joined: Mar 2015
Posts: 37
Likes: 0
Default
Ok call ya in a few. I'm on to the beers now myself. Been out here for another 5 hours already today and no progress.
Reply
0
Old Apr 11, 2015 | 01:11 PM
Share
  #59
dadaroo's Avatar
dadaroo
Le Mans Master

Joined: Mar 2011
Posts: 6,835
Likes: 302
From: Columbia SC
Default
Sorry, my phone went dead. PM me with your number and I will call when I get home.
Reply
0
Old Apr 11, 2015 | 01:14 PM
Share
  #60
bcp79's Avatar
bcp79
Thread Starter
Intermediate

Joined: Mar 2015
Posts: 37
Likes: 0
Default
Looks like it's on the 15 amp fuse for the o2. Rings out to ground on the side that appears to be on c1
Reply
0
