Default Time Capsule Spare

Dropped the Spare out of my 72 for the first time... Why couldn't the rest of my car be preserved this well

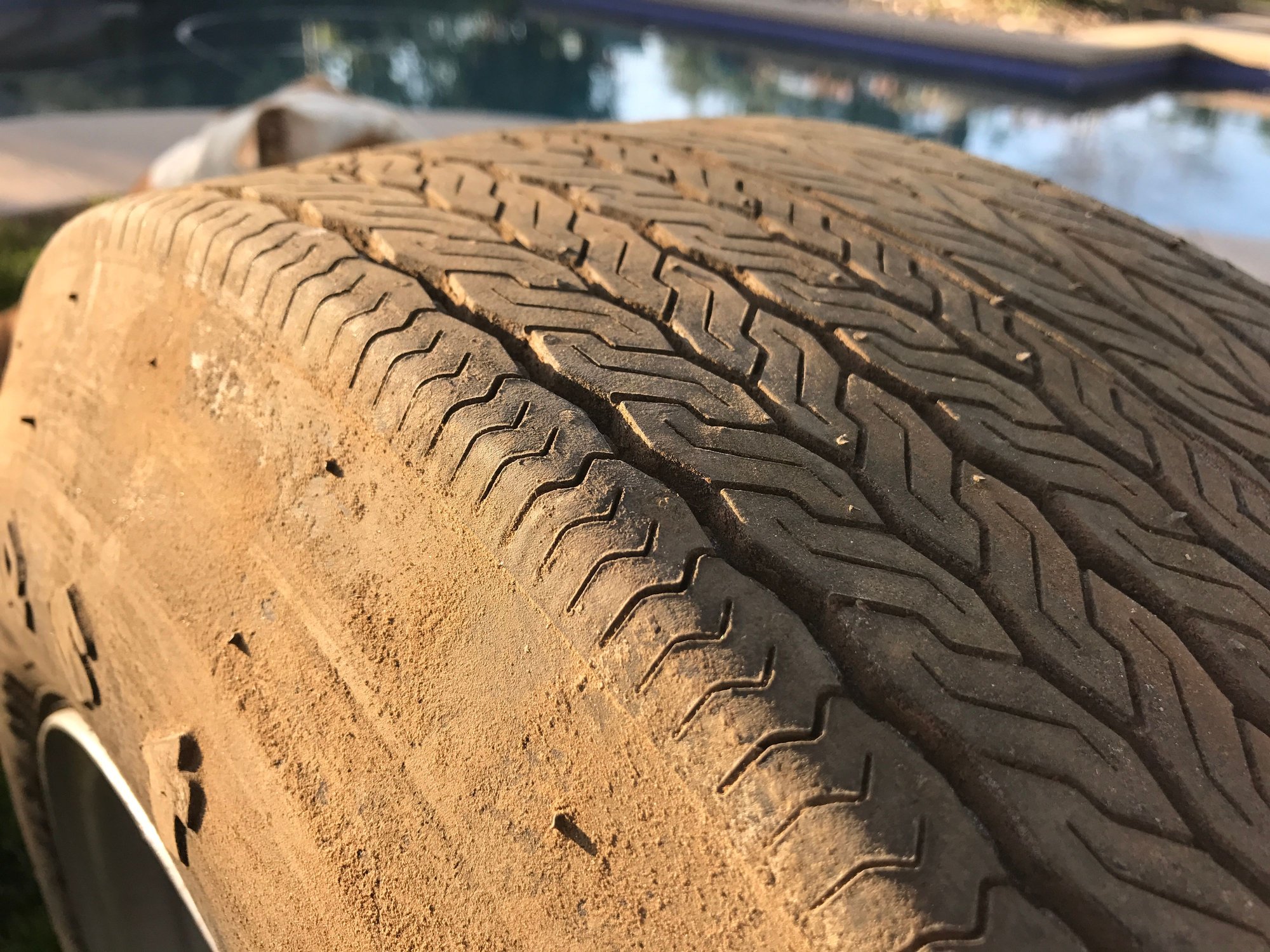

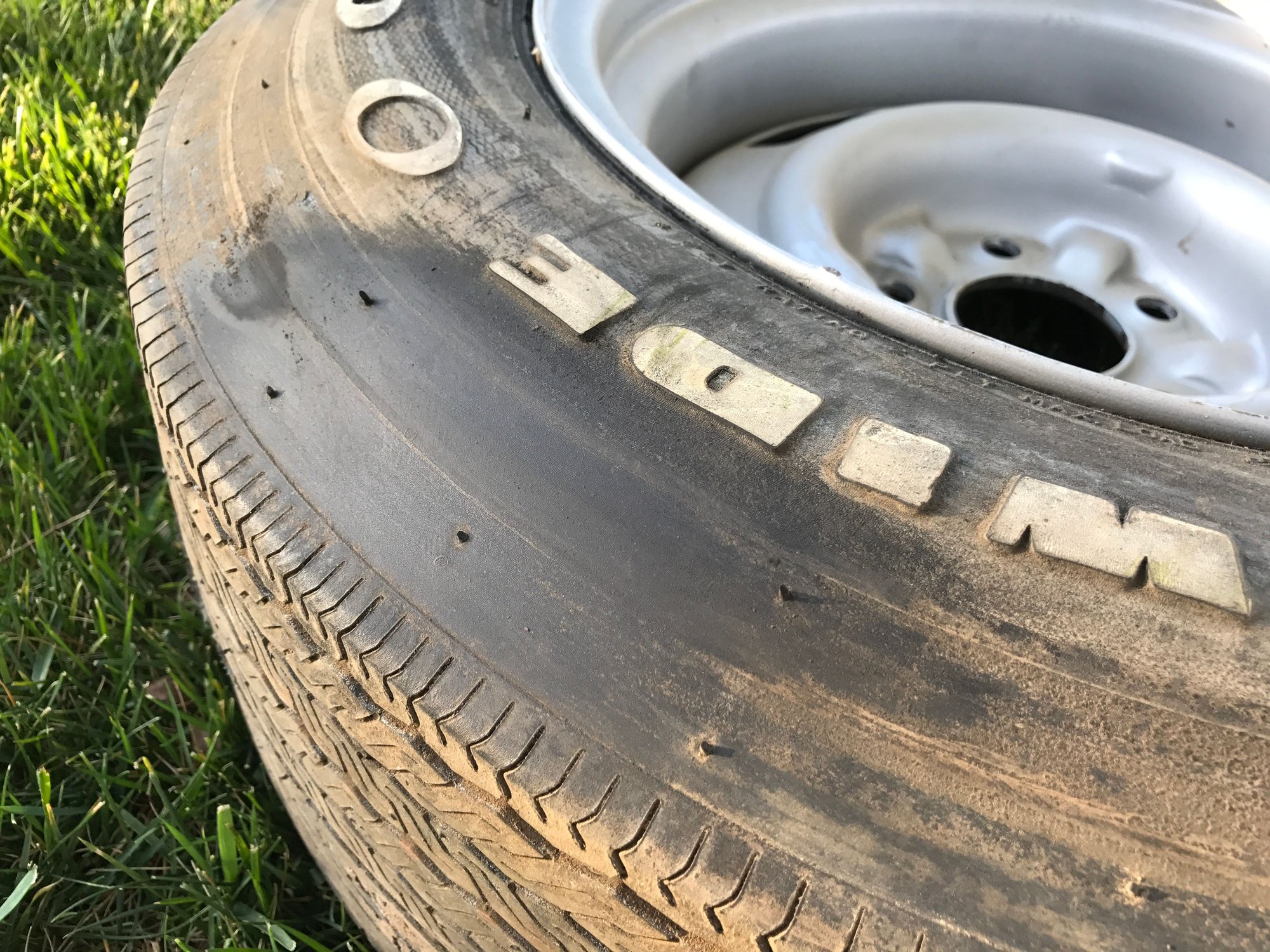

The tire is dirty but the wheel was sealed and is like new! It has been used as a spare, the nubs are there but worn and there is evidence where the lug nuts were tightened.

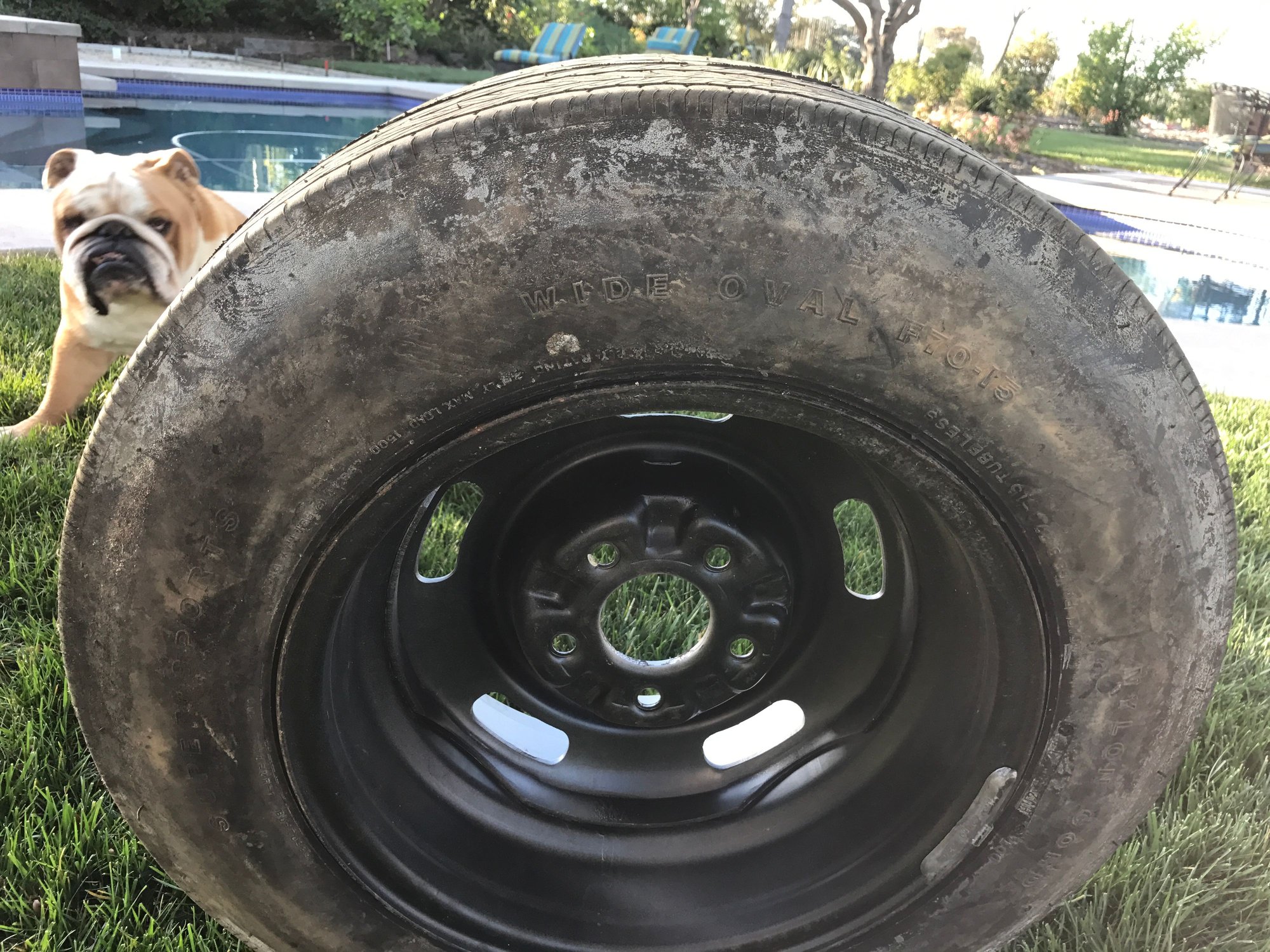

Don't mind the pup, he was waiting for me to turn my back so he could do his duty to it.

Now, what to do with a good old spare....






Reply
Old Mar 29, 2017 | 10:13 PM
  #2
dprinter1's Avatar
dprinter1
Melting Slicks
15 Year Member
Veteran: Navy

Joined: Jul 2005
Posts: 3,389
Likes: 83
From: Norfolk Virginia
Default

That's pretty cool.
Reply
Old Mar 30, 2017 | 01:08 AM
  #3
7T1vette's Avatar
7T1vette
Team Owner
15 Year Member
Community Builder
Community Influencer
Top Answer: 5

Joined: Jan 2006
Posts: 37,637
Likes: 3,114
From: Crossville TN
Default

Clean it up and put it back in the tub. What better place for an 'original' spare than in the tub of the car it was shipped in?

Of course, you want to drop the tire pressure down to about 5-10 psi--just to keep it's shape. But, you do have a call phone and collector car insurance with Road Service assistance. Tow it to a tire store or home on the flatbed.

P.S. Mine had the original spare in the tub, too....unused! And that's what I did with mine.

Last edited by 7T1vette; Mar 30, 2017 at 01:09 AM.
Reply
Old Mar 30, 2017 | 09:08 AM
  #4
Alan 71's Avatar
Alan 71
Team Owner
15 Year Member
Active Streak: 120 Days
Community Influencer
Top Answer: 5

Joined: Sep 2006
Posts: 31,160
Likes: 4,236
From: Westminster Maryland
Default

Hi G3,
That's a very nice find!!!!…. both the tire AND the wheel!
Thanks for the pictures.
Regards,
Alan
Reply
Old Mar 30, 2017 | 09:13 AM
  #5
pmr2000's Avatar
pmr2000
Pro

Joined: Oct 2015
Posts: 651
Likes: 45
From: Raleigh area, NC
Default

Cool, I recently dropped mine for the first time, I think this may be original? I cleaned it up, put air in it, have the original jack also.
Reply
Old Mar 30, 2017 | 09:23 AM
  #6
raydog9379's Avatar
raydog9379
Racer
10 Year Member

Joined: Jan 2005
Posts: 434
Likes: 47
From: Lake in the Hills IL
Default

Pretty sure I'm in the same shape based on what I see in there. I need to drop mine and see what I got (maybe my car used to be a cartel car and is stuffed with cash in there?? /dream over). Prob. should change my spare tire bulb as well while I'm down there.
Reply
Old Mar 30, 2017 | 09:33 AM
  #7
pmr2000's Avatar
pmr2000
Pro

Joined: Oct 2015
Posts: 651
Likes: 45
From: Raleigh area, NC
Default

Originally Posted by raydog9379
Pretty sure I'm in the same shape based on what I see in there. I need to drop mine and see what I got (maybe my car used to be a cartel car and is stuffed with cash in there?? /dream over). Prob. should change my spare tire bulb as well while I'm down there.
+++Thanks why I opened mine, figured may be full of drugs or cash!
Reply
Old Mar 30, 2017 | 10:10 AM
  #8
MISTERZ06's Avatar
MISTERZ06
Racer
Photogenic
Liked
Loved
Community Favorite

Joined: Oct 2016
Posts: 336
Likes: 69
From: Staten Island New York
Default

Group3 Love the Dog

i ordered my 1972 "489-Miler" with Option

VPU910 F70 X 15 WHITE LETTERED TIRES $43.00

here they are with the original air

............................... tom

Attached Images

Last edited by MISTERZ06; Mar 30, 2017 at 10:15 AM.
Reply
Corvette Stories

The Best of Corvette for Corvette Enthusiasts

story-0

Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)

 Joe Kucinski
story-1

Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!

 Verdad Gallardo
story-2

Top 10 Corvettes Coming to Mecum Indy 2026!

 Brett Foote
story-3

Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!

 Michael S. Palmer
story-4

10 Revolutionary 'Corvette Firsts' Most People Don't Know

 Joe Kucinski
story-5

5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2

 Michael S. Palmer
story-6

2027 Corvette vs The World: Every C8 vs Its Closest Competitor

 Joe Kucinski
story-7

10 Most Common Corvette Problems of the Last 20 Years!

 Joe Kucinski
story-8

5 MOST and 5 LEAST Popular Corvette Model Years in History!

 Joe Kucinski
story-9

2027 Corvette Buyer's Guide: Everything You Need to Know!

 Joe Kucinski
Old Mar 30, 2017 | 10:25 AM
  #9
Grover 3's Avatar
Grover 3
Thread Starter
Instructor

Joined: Apr 2016
Posts: 103
Likes: 15
Default What was standard equipment

So what was standard equipment on the 71-72?

I've seen:

Firestone "WIDE O OVAL"

and Goodyear WIDE TREAD

Both Bias ply tires with raised letters.
Reply
Old Mar 30, 2017 | 10:30 AM
  #10
MISTERZ06's Avatar
MISTERZ06
Racer
Photogenic
Liked
Loved
Community Favorite

Joined: Oct 2016
Posts: 336
Likes: 69
From: Staten Island New York
Default

Originally Posted by Grover 3
So what was standard equipment on the 71-72?

I've seen:

Firestone "WIDE O OVAL"

and Goodyear WIDE TREAD

Both Bias ply tires with raised letters.
it seems that they came with either Tires - whatever they had that day in inventory
........................................ ...... tom
Reply
Old Mar 30, 2017 | 10:36 AM
  #11
Alan 71's Avatar
Alan 71
Team Owner
15 Year Member
Active Streak: 120 Days
Community Influencer
Top Answer: 5

Joined: Sep 2006
Posts: 31,160
Likes: 4,236
From: Westminster Maryland
Default

Hi G,
The tires available for 70-72 cars were Goodyear, and Firestone brand.
They were size F70-15 (215-70-15).
They were nylon cord, bias-ply tires.
The black wall was standard, with white stripe and rwl side walls as options.
The tires were mounted on the wheels in the St.Louis plant.
There was no choice as to which brand tire would be on the car when it left St.Louis.
Regards,
Alan

Last edited by Alan 71; Mar 30, 2017 at 10:37 AM.
Reply
Old Mar 30, 2017 | 10:48 AM
  #12
MISTERZ06's Avatar
MISTERZ06
Racer
Photogenic
Liked
Loved
Community Favorite

Joined: Oct 2016
Posts: 336
Likes: 69
From: Staten Island New York
Default

1972 Corvette Tire Options
standard were Black-Wall Tires
PT7 - White Line tires F70x15 - $30.35 - production=6,666
PU9 - White Lettered tires F70x15 - $43.65 - production=16,623

1972 was the last year GM installed Bias-Ply tires on the Corvette
1973 was the first year for Radial tires

http://www.vettefacts.com/C3/1972.aspx

........................................ ..................... tom

Last edited by MISTERZ06; Mar 30, 2017 at 10:59 AM.
Reply
Old Mar 30, 2017 | 11:48 AM
  #13
brit vet's Avatar
brit vet
Melting Slicks
20 Year Member
Liked
Loved
Community Favorite

Joined: Mar 2003
Posts: 2,620
Likes: 552
From: Manchester
2024 C3 of the Year Finalist- Unmodified
2024 C2 of the Year Finalist - Unmodified
2023 C2 of the Year Finalist - Unmodified
2021 C2 of the Year Finalist - Unmodified
2020 C3 of the Year Finalist - Unmodified
2019 C3 of Year Finalist (stock)
2017 C3 of Year Finalist
St. Jude Donor '13
Default

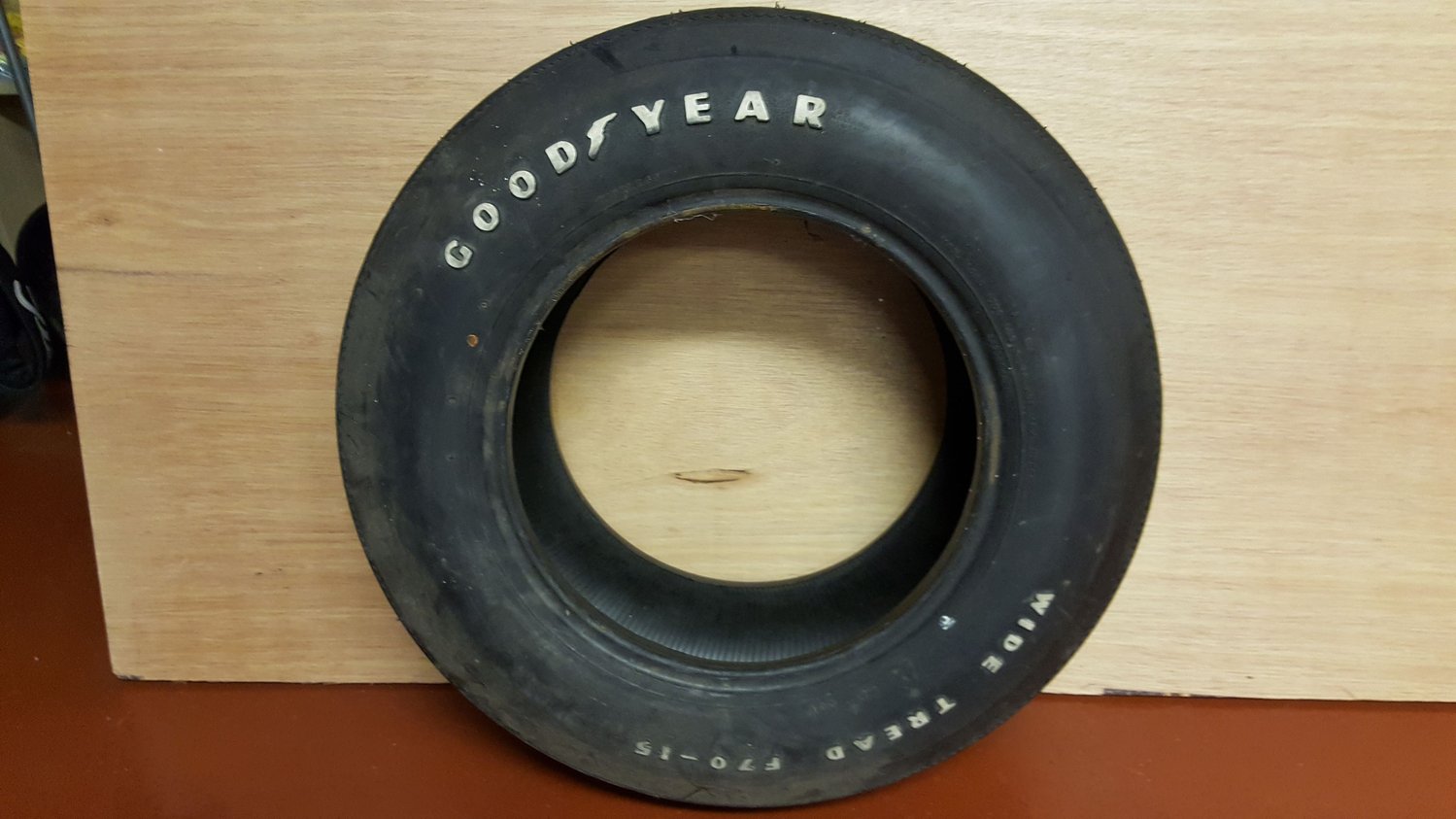

Another 72. The wheel was in good shape but now mounted with the new BF's. Nubs intact so never been on the road but does have some overspray from when the car was repainted back in the day. Can't bring myself to get shut of it so I just keep finding new spots in the garage for it. I have been looking for a wheel and dress up items so I can mount the tire and mount it on the wall. Thinking also of a clock face maybe. I don't know..
Reply
Old Mar 30, 2017 | 01:49 PM
  #14
Alan 71's Avatar
Alan 71
Team Owner
15 Year Member
Active Streak: 120 Days
Community Influencer
Top Answer: 5

Joined: Sep 2006
Posts: 31,160
Likes: 4,236
From: Westminster Maryland
Default

Hi bv,
An original tire as you show in your photo does have some value.
I don't know if someone would want it badly enough to pay what it would take to bring it back to the U.S., but I'd certainly hang on to it.
Regards,
Alan

Even though many Flight Judged cars have 4 replacement or reproduction tires on them, many owners like to have an original tire as a spare in the tub.
Reply
Old Mar 30, 2017 | 02:47 PM
  #15
Don Rickles's Avatar
Don Rickles
Race Director

Joined: Jun 2005
Posts: 10,189
Likes: 206
2018 Corvette of Year Finalist
2017 C3 of Year
Default

OP, can you take a few close up picture of the wheel weights on the spare? They appear to be the correct Micro wing tipped weights installed at the factory! Curious, it looks like there are two 2oz. weights on it?
TIA
Reply
Old Mar 30, 2017 | 04:40 PM
  #16
7T1vette's Avatar
7T1vette
Team Owner
15 Year Member
Community Builder
Community Influencer
Top Answer: 5

Joined: Jan 2006
Posts: 37,637
Likes: 3,114
From: Crossville TN
Default

Really?? Do you get extra points for the spare having the 'correct' balance weights on it?? [and I thought that I was '****']
Reply
Old Mar 30, 2017 | 04:51 PM
  #17
raydog9379's Avatar
raydog9379
Racer
10 Year Member

Joined: Jan 2005
Posts: 434
Likes: 47
From: Lake in the Hills IL
Default

Any trick to getting the spare out (I have a 78)? The key fits into the lock but won't turn, I sprayed WD40 up in there to see if that'll help since it's been in there almost 40 years. I looked at the owners manual and it doesn't help me much, just says remove the lock by using the small oval key.
Reply

Get notified of new replies

To Time Capsule Spare

Old Mar 30, 2017 | 05:04 PM
  #18
Alan 71's Avatar
Alan 71
Team Owner
15 Year Member
Active Streak: 120 Days
Community Influencer
Top Answer: 5

Joined: Sep 2006
Posts: 31,160
Likes: 4,236
From: Westminster Maryland
Default

Hi r,
On earlier cars you can reach the 2 bolts that hold the long bolt's bracket in place.
This allows the tub to drop and you can get the tire out.
In that position you might also have better luck getting the key to successfully open the lock.
Might that work on your 78?
Regards,
Alan
Reply
Old Mar 30, 2017 | 08:14 PM
  #19
Don Rickles's Avatar
Don Rickles
Race Director

Joined: Jun 2005
Posts: 10,189
Likes: 206
2018 Corvette of Year Finalist
2017 C3 of Year
Default

Originally Posted by 7T1vette
Really?? Do you get extra points for the spare having the 'correct' balance weights on it?? [and I thought that I was '****']
Yes, really! Actually, no deduction would be a better description.
Knock off wheel weights, had a configuration all their own, how's that!

My question about the photos has to do with the total amount of weight on this wheel.

Are you saying there's something odd about spending a life, concentrating, on such things?
Reply
Old Mar 31, 2017 | 12:01 AM
  #20
MISTERZ06's Avatar
MISTERZ06
Racer
Photogenic
Liked
Loved
Community Favorite

Joined: Oct 2016
Posts: 336
Likes: 69
From: Staten Island New York
Default

Originally Posted by 7T1vette
Really?? Do you get extra points for the spare having the 'correct' balance weights on it?? [and I thought that I was '****']
NCRS Approved Wheel Weights

Do the Knock-Off Wheels use the same wheel weights as the Rally-Wheels
i did some research and found 2 weights



https://www.paragoncorvette.com/c-23...lve-stems.aspx
.................................. tom
Attached Images

Last edited by MISTERZ06; Mar 31, 2017 at 12:02 AM.
Reply



All times are GMT -4. The time now is 09:25 PM.

story-0
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)

Slideshow: Ranking the top 10 Corvette engines by torque output.

By Joe Kucinski | 2026-05-05 11:58:09


VIEW MORE
story-1
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!

Slideshow: A Corvette pace car nearly matching IndyCar speeds sounds exaggerated, until you look at the numbers.

By Verdad Gallardo | 2026-05-04 20:03:36


VIEW MORE
story-2
Top 10 Corvettes Coming to Mecum Indy 2026!

Among a rather large group of them.

By Brett Foote | 2026-05-04 13:56:44


VIEW MORE
story-3
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!

Slideshow: the top 10 things Corvette owners want in the C9 Corvette

By Michael S. Palmer | 2026-04-30 12:41:15


VIEW MORE
story-4
10 Revolutionary 'Corvette Firsts' Most People Don't Know

Slideshow: 10 Important Corvette 'firsts' that every fan should know.

By Joe Kucinski | 2026-04-29 17:02:16


VIEW MORE
story-5
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2

Slideshow: Should you buy a 2020-2026 Corvette or wait for 2027?

By Michael S. Palmer | 2026-04-22 10:08:58


VIEW MORE
story-6
2027 Corvette vs The World: Every C8 vs Its Closest Competitor

Slideshow: 2027 Corvette lineup vs the world.

By Joe Kucinski | 2026-04-24 16:12:42


VIEW MORE
story-7
10 Most Common Corvette Problems of the Last 20 Years!

Slideshow: 10 major Corvette problems from the last 20 years.

By Joe Kucinski | 2026-04-14 16:37:05


VIEW MORE
story-8
5 MOST and 5 LEAST Popular Corvette Model Years in History!

Slideshow: 5 most and least popular Corvette model years.

By Joe Kucinski | 2026-04-08 13:25:01


VIEW MORE
story-9
2027 Corvette Buyer's Guide: Everything You Need to Know!

Slideshow: 2027 Corvette buyer's guide

By Joe Kucinski | 2026-04-17 16:41:08


VIEW MORE
