A-arm/Frame Dimension Question
Thread Starter
Pro
Joined: Oct 2000
Posts: 558
Likes: 22
From: Vancouver, B.C., Canada
A-arm/Frame Dimension Question
I want to check the a-arm/shock tower frame cross dimension (a-arm to a-arm on a big block car) on my 72. I've searched the AIM, service manual, and the web for a length/number but no luck so far. Can anyone help out here? Also, where exactly do you measure too to check this?
Race Director
Joined: Apr 2011
Posts: 11,183
Likes: 3,335
From: North of Toronto - Ontario
The measurement between the shock towers is 26-3/8"
You check where the shims touch the frame right where the studs come through the frame that hold the upper control arm shafts
HIH
M
You check where the shims touch the frame right where the studs come through the frame that hold the upper control arm shafts
HIH
M
Race Director
Joined: Apr 2011
Posts: 11,183
Likes: 3,335
From: North of Toronto - Ontario

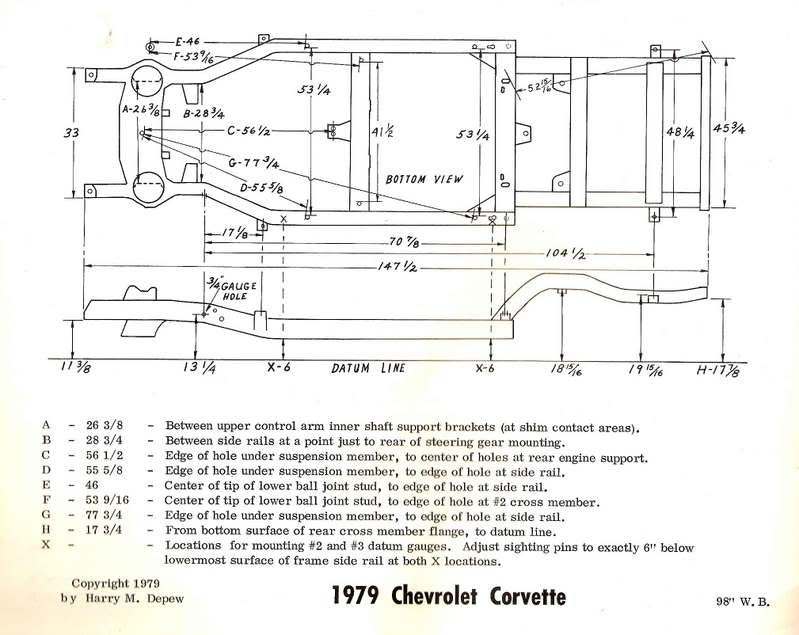

One of the diagrams you'll find is from a 79 frame manual (same as the others)
There are a few threads here on the forum where it pops up (at least one I thanked someone for posting since I knew I'd need it, can't find that anywhere to give credit to
https://www.corvetteforum.com/forums...install-3.html Post #50 V2Racing
https://www.corvetteforum.com/forums...dimension.html
https://www.corvetteforum.com/forums...ft-offset.html
Etc. Etc.
And the one that I referenced back to is from Van-Steel
http://www.chevydiy.com/c3-corvette-...al-reassembly/

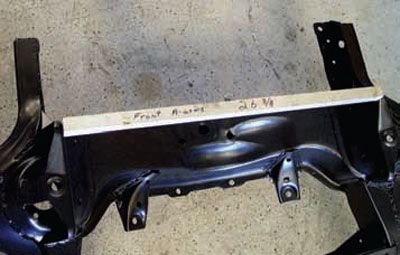

Where they have a jig to check
HIH
M
