Update - The windage tray is on and the balancer needs attention.



GM never used flat washers under the prevailing torque windage tray nuts but I have added some. If you do not use washers, the nuts will tear metal shards from the sheet metal windage tray when you tighten them up. Just can't live with that.

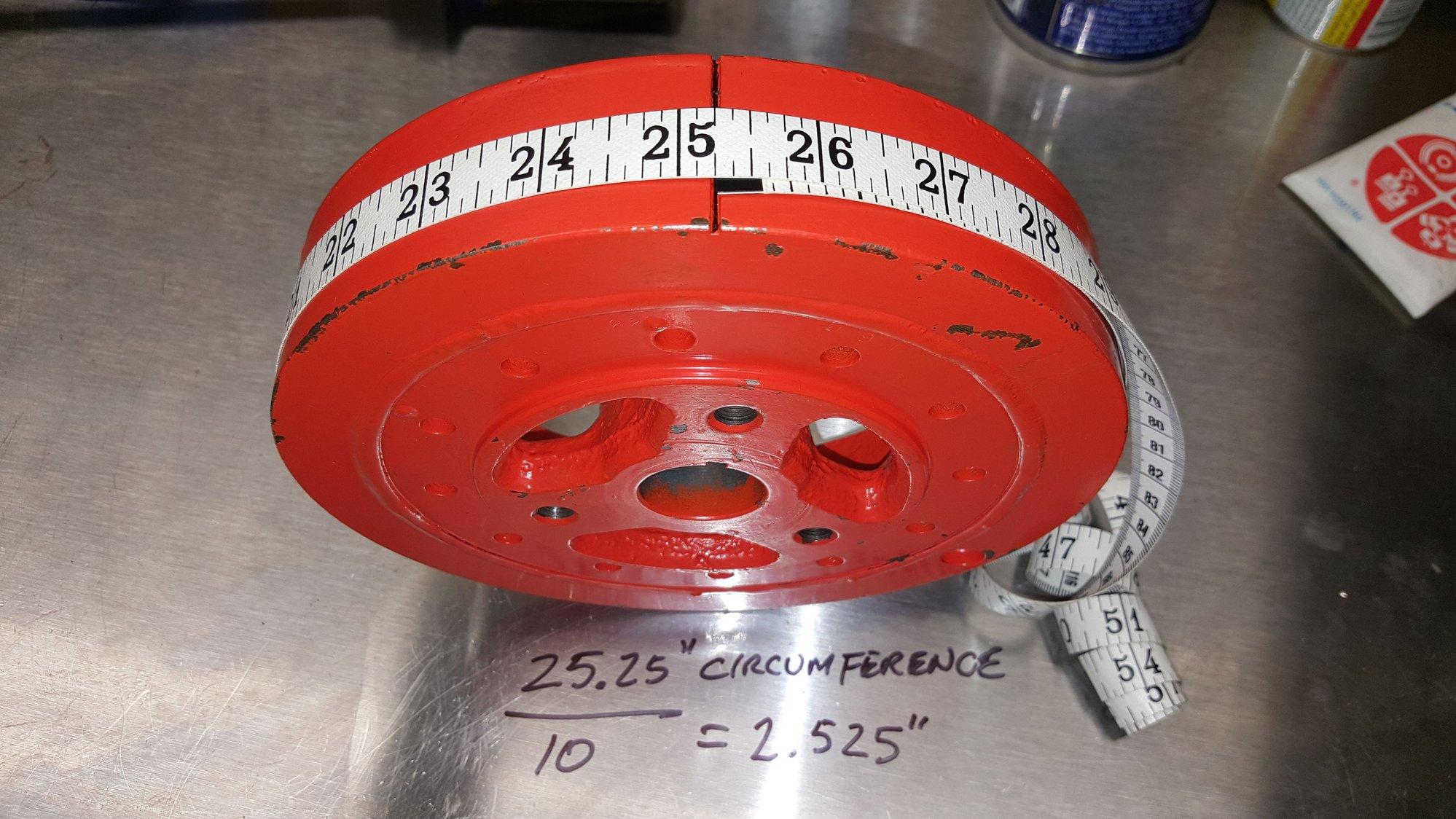

The nice 8" damper (balancer) has a very typical wear groove on the nose from riding on the lip of the front cover seal. Not a big deal but it does need to have a sleeve pressed on to repair it good as new.



My wife has left for work so I sneaked into her sewing basket and pilfered her cloth measuring tape. The damper measured out to be 25.25" in circumference. If you divide that measurement by 10 you will get 2.525" which is actually 36 degrees on the damper.
(360 degrees/10 = 36 degrees)



Measure to the right of the "0" mark on the damper 2.525" and place a mark there.



You can use this new mark to set your timing at 36 degrees at the top of the advance curve. Poor mans degreed damper. If you have the smaller damper, the method is the same but the dimensions are different.

Its starting to look like an engine!

Last edited by stingr69; 02-22-2019 at 10:07 AM.
The following users liked this post:
OldCarBum (02-22-2019)
Old 02-23-2019, 08:28 PM
  #62
stingr69
Le Mans Master
Thread Starter

stingr69's Avatar

Member Since: Mar 2004
Location: Little Rock AR
Posts: 6,604
Received 1,039 Likes on 805 Posts

Default

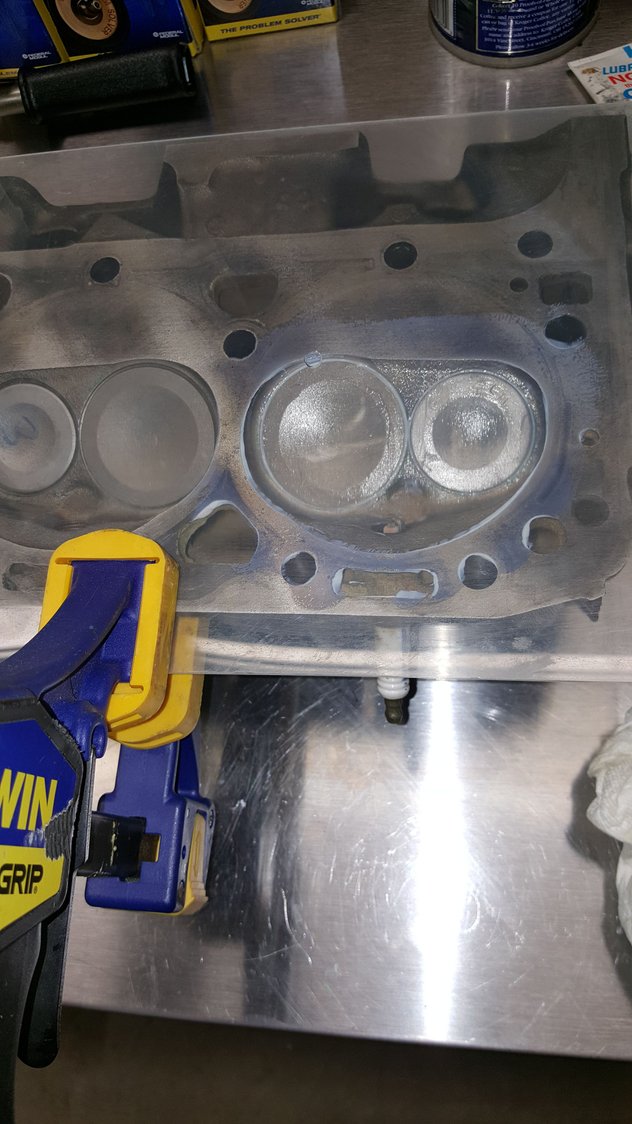

To check the chamber sizes, a glass burette and a piece of plexiglass comes in handy. The valves get a light coat of assembly grease to seal them up and the flat surface of the head needs it too. Need to install a spark plug. I used a clamp but it isn't always required. The plexiglass has a hole in it that needs to be positioned so all the air will be forced out as the water fills the chamber. Fill the chamber with water and read the burette to see how much water fit in the chamber. These factory big valve heads are usually quoted as (assumed to be) 64cc's but these here are actually measuring out larger at 67cc's or so. That makes a difference in your compression calculations.
