Coolant Leak Origin?
#1
Melting Slicks
Thread Starter
Coolant Leak Origin?
This thread is really looking for ideas, but maybe an answer.
This leak is getting worse.
Every thing is dry on the upper engine. Intake manifold, heater hoses, and the water pump are leak free.

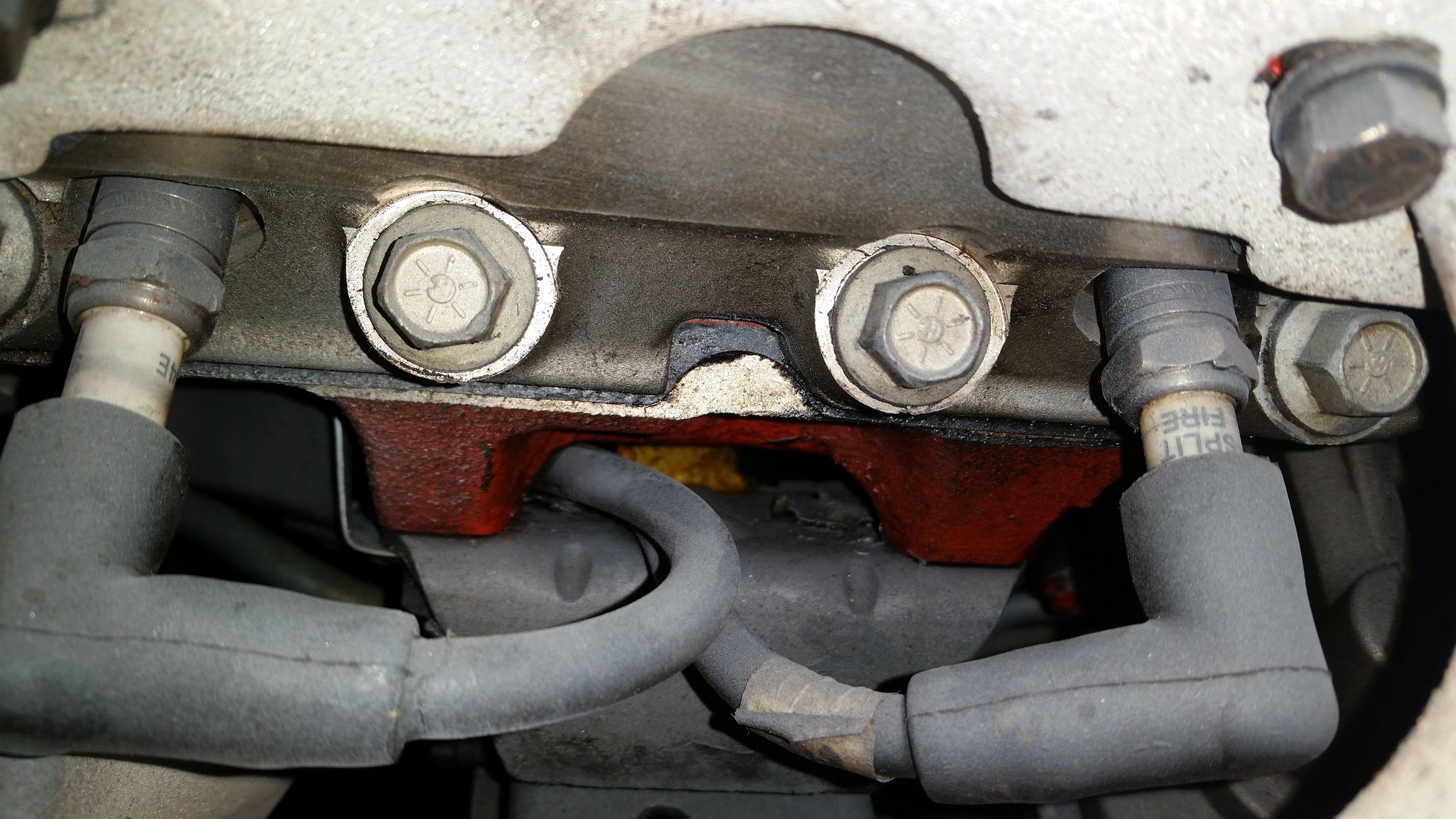

These pictures are taken; looking up from the floor on the engine's right side.

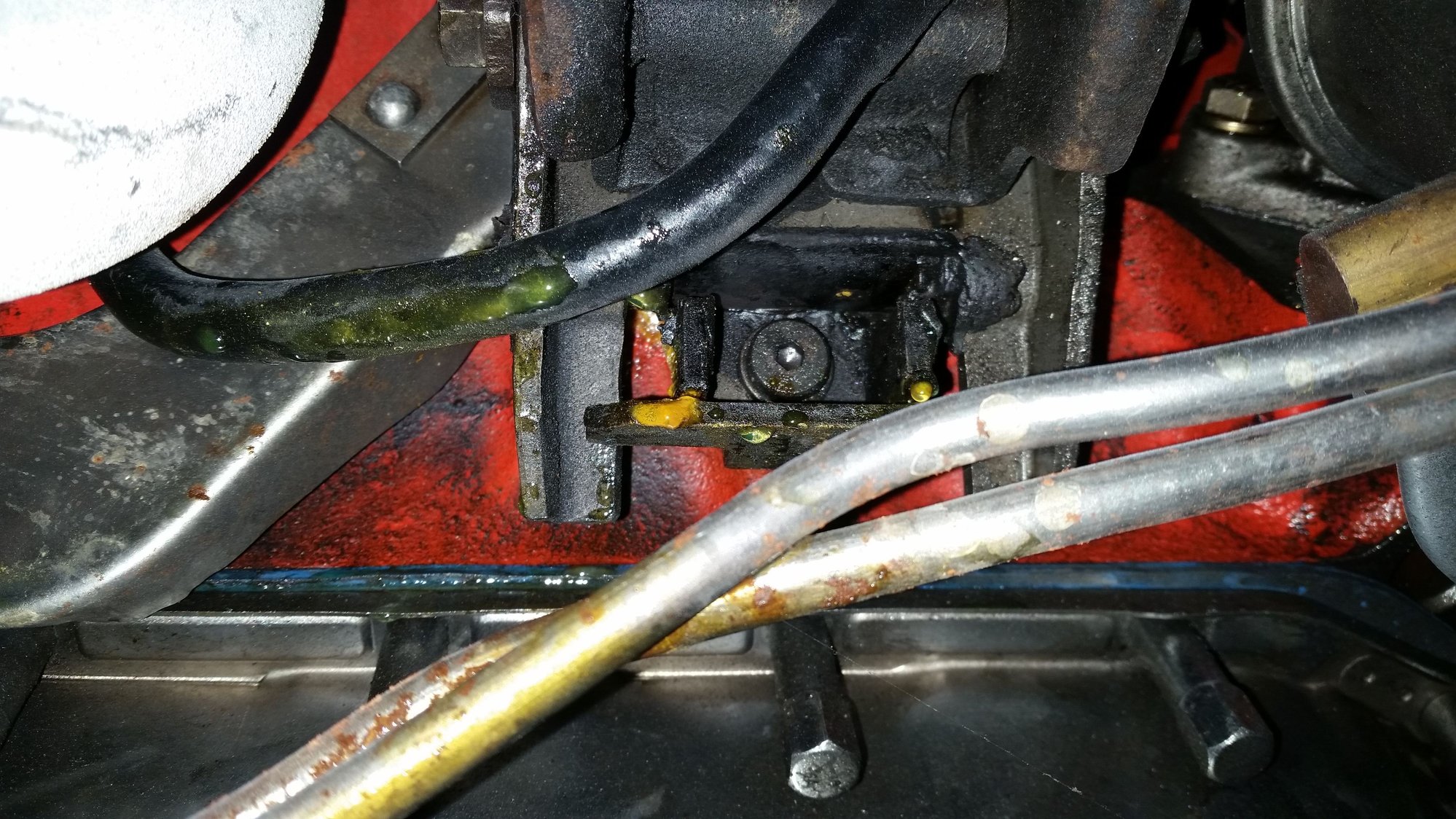

Third picture shows the engine mount more clearly for prospective.
I'm fearing it's a head gasket leak, as it's an 11:1 compression ratio engine. I'm going to pull #'s 2 & 4 spark plugs and check their condition first.
Perhaps it's a freeze plug. Wherever it's coming from, it is not visible from the top, with the header attached.
Anyone seen a leak like this before? If so, what was it?
Thanks.
Steve
These pictures are taken; looking up from the floor on the engine's right side.
This leak is getting worse.
Every thing is dry on the upper engine. Intake manifold, heater hoses, and the water pump are leak free.
These pictures are taken; looking up from the floor on the engine's right side.
Third picture shows the engine mount more clearly for prospective.
I'm fearing it's a head gasket leak, as it's an 11:1 compression ratio engine. I'm going to pull #'s 2 & 4 spark plugs and check their condition first.
Perhaps it's a freeze plug. Wherever it's coming from, it is not visible from the top, with the header attached.
Anyone seen a leak like this before? If so, what was it?
Thanks.
Steve
These pictures are taken; looking up from the floor on the engine's right side.
#2
clean the engine off, rent or buy a cooling system pressure tester to find the source of the leak and not have to guess.
Last edited by MelWff; 03-26-2019 at 11:27 AM.
The following users liked this post:
Cavu2u (03-26-2019)
The following users liked this post:
Cavu2u (03-26-2019)
The following users liked this post:
Cavu2u (03-26-2019)
#6
Melting Slicks
Thread Starter
But without a smile.
It sure looks to me like a Cylinder Head Gasket Failure right in that area DAD. Aluminum cylinder head. I pray that that's all it is, and no cracks anywhere.
Not what I need right now.
Steve
It sure looks to me like a Cylinder Head Gasket Failure right in that area DAD. Aluminum cylinder head. I pray that that's all it is, and no cracks anywhere.
Not what I need right now.
Steve
#7
Le Mans Master
Member Since: Aug 2017
Location: Cool Northern Michigan
Posts: 6,902
Received 2,127 Likes
on
1,634 Posts
If you are blaming a head gasket failure, you likely would have some steam out of the exhaust and that unmistakable odor that goes along with it.
Where is your coolant temperature probe on yours? Between #4 & #6 ?
Where is your coolant temperature probe on yours? Between #4 & #6 ?
The following users liked this post:
Cavu2u (03-27-2019)
The following users liked this post:
Cavu2u (03-27-2019)
#9
Tips:
Coolant always moves DOWN due to gravity and REARWARDS due to the air/wind under the car. So always look up and forward of where you find coolant puddled or dripping. The leak may be a foot or more away from where you find coolant.
Pressure wash then add a little UV dye.
Or --- FULLY warm the car up with the radiator/pressure tank cap off, shut the engine down, put a pressure tester on it and pump it up to 15-20 psi. Your leak should become obvious.
Coolant always moves DOWN due to gravity and REARWARDS due to the air/wind under the car. So always look up and forward of where you find coolant puddled or dripping. The leak may be a foot or more away from where you find coolant.
Pressure wash then add a little UV dye.
Or --- FULLY warm the car up with the radiator/pressure tank cap off, shut the engine down, put a pressure tester on it and pump it up to 15-20 psi. Your leak should become obvious.
The following users liked this post:
Cavu2u (03-27-2019)
#10
Melting Slicks
Thread Starter
I'm not noticing a steamy exhaust. Performance is excellent.
I installed an EFI Temperature Probe between #s 6 & 8, SB. The Temp Probe for the gauges sits between #s 1 & 3.
Thanks for joggin this feeble memory.
Steve
Steve
#12
Melting Slicks
Thread Starter
Tips:
Coolant always moves DOWN due to gravity and REARWARDS due to the air/wind under the car. So always look up and forward of where you find coolant puddled or dripping. The leak may be a foot or more away from where you find coolant.
Pressure wash then add a little UV dye.
Or --- FULLY warm the car up with the radiator/pressure tank cap off, shut the engine down, put a pressure tester on it and pump it up to 15-20 psi. Your leak should become obvious.
Coolant always moves DOWN due to gravity and REARWARDS due to the air/wind under the car. So always look up and forward of where you find coolant puddled or dripping. The leak may be a foot or more away from where you find coolant.
Pressure wash then add a little UV dye.
Or --- FULLY warm the car up with the radiator/pressure tank cap off, shut the engine down, put a pressure tester on it and pump it up to 15-20 psi. Your leak should become obvious.
I'll go with the pressure test .
Steve
#13
Drifting
just because its not leaking into the cylinders doesnt mean the gasket couldnt be damaged from the water jacket to outside edge of the block.
The following users liked this post:
Cavu2u (03-27-2019)
#14
Le Mans Master
Member Since: Aug 2017
Location: Cool Northern Michigan
Posts: 6,902
Received 2,127 Likes
on
1,634 Posts
That is true, but that's a real narrow margin there. Generally, if a headgasket is shot, the cylinder is involved too.
The coolant part of the gasket near the edge only has 15-16 lbs of pressure. The cylinder side of the gasket has 140-170 lbs of pressure.
The coolant part of the gasket near the edge only has 15-16 lbs of pressure. The cylinder side of the gasket has 140-170 lbs of pressure.
Last edited by HeadsU.P.; 03-27-2019 at 08:50 AM.
The following users liked this post:
Cavu2u (03-27-2019)
#15
Drifting
what concerns me about this is that it looks like the gasket wasnt installed correctly and may not be sealing. Here is why I say that.
See how the gasket follows the casting of the block and in your picture the gasket is recessed leaving the matting surface exposed. When was the last time the heads were off?
See how the gasket follows the casting of the block and in your picture the gasket is recessed leaving the matting surface exposed. When was the last time the heads were off?
The following users liked this post:
Cavu2u (03-27-2019)
#16
Le Mans Master
Member Since: Aug 2017
Location: Cool Northern Michigan
Posts: 6,902
Received 2,127 Likes
on
1,634 Posts
Good eye. And that is exactly why the head gasket manufacturer prints on the gasket: THIS IS UP.*
*except for Australia, then it would be this side down.
*except for Australia, then it would be this side down.
The following users liked this post:
Cavu2u (03-27-2019)
#17
Le Mans Master
Member Since: Aug 2017
Location: Cool Northern Michigan
Posts: 6,902
Received 2,127 Likes
on
1,634 Posts
And then you have to wonder if the headbolts received a thread sealant compatible with glycol.
Could be something as simple as a loose headbolt. But I doubt it.
Could be something as simple as a loose headbolt. But I doubt it.
The following users liked this post:
Cavu2u (03-27-2019)
#18
Are you presenting this as an example of a gasket installed upside down? This to me looks like the WRONG GASKET. In my mind's eye I don't see all the passages lining up even flipped, especially the 3 large, circular coolant passages.
Last edited by wadenelson; 03-27-2019 at 09:04 AM.
The following users liked this post:
Cavu2u (03-27-2019)
#19
Drifting
I was using that picture to show how the gasket contours to the block casting and doesnt expose the mating surface. this is a picture from fel pros website not one of the OP building the engine.
The following users liked this post:
Cavu2u (03-27-2019)
#20
Melting Slicks
Thread Starter
Appreciate the good eye Kacyc3. I'll fire it up and watch it for a while.
Strange that a breach like that would show up over 5 years and 12K miles since installed, but that's not the point right now.
Steve
Strange that a breach like that would show up over 5 years and 12K miles since installed, but that's not the point right now.
Steve
