DIY Front Coilover Setup
#21
Instructor
Thread Starter
I did all the measurements and weights (including sprung and unsprung suspension)of my car, being an early c4, and took them to someone who does suspensions. His calculations (taking into account street tires/no aero, size of wheels/tires) was that the ideal coil spring rate was 550 lbs. He suggested an extra 50 lbs to compensate for a rough track.
I did a bit of research beforehand and found that most people were running 450 lb coil springs on road cars, mainly because that what was what the kit suppliers were supplying. For track cars most people were around 550 - 600 lbs (sticky street tires/no aero)
I had bought some 450 lb springs to use on the street before doing the measurements etc to decide on a track rate. I didnt tell the suspension guy what other people were using as I was interested as to what he would come up. Obviously most people are using the same mathematical formula.
The interesting thing was I then took my 450 lb springs off and replaced them with the 600 lb springs when they were made, and guess what, on the street I couldnt even tell the difference. I did have my double adjustable shocks set on soft settings, so that probably helps. It doesnt "bounce" around.
But tracking my car with 600 lb coil up front and 326 lb leaf at rear it handles well.
and yes a straight up coil is more efficient than a transverse leaf.
Are you saying that you dont want to go greater than 450 F and 300 R split because it will be too "bumpy" ? If so I think that a lot of people over a lot of years have done front / rear splits similar to mine without any issues on both street and track.
I did a bit of research beforehand and found that most people were running 450 lb coil springs on road cars, mainly because that what was what the kit suppliers were supplying. For track cars most people were around 550 - 600 lbs (sticky street tires/no aero)
I had bought some 450 lb springs to use on the street before doing the measurements etc to decide on a track rate. I didnt tell the suspension guy what other people were using as I was interested as to what he would come up. Obviously most people are using the same mathematical formula.
The interesting thing was I then took my 450 lb springs off and replaced them with the 600 lb springs when they were made, and guess what, on the street I couldnt even tell the difference. I did have my double adjustable shocks set on soft settings, so that probably helps. It doesnt "bounce" around.
But tracking my car with 600 lb coil up front and 326 lb leaf at rear it handles well.
and yes a straight up coil is more efficient than a transverse leaf.
Are you saying that you dont want to go greater than 450 F and 300 R split because it will be too "bumpy" ? If so I think that a lot of people over a lot of years have done front / rear splits similar to mine without any issues on both street and track.
Thanks!
Colton
#22
From your photos im trying to visualize what you mean.
like take the whole coil and strut assembly and flip it 180deg?
that would fit in the early c4 shock towers ?
#23
Melting Slicks
I am considering doing this to my 92 as I have coilovers in the rear (solid axle). My current front spring is VBP adjustable which I installed for track events (road course).
Do you have any issues with it bottoming out? How does the car sit in the front. Any photos?
Nice job!
Steve
Do you have any issues with it bottoming out? How does the car sit in the front. Any photos?
Nice job!
Steve
The following users liked this post:
tomvc6 (11-02-2021)
#24
Le Mans Master
I realize this is an almost 2-year-old post, but I somehow missed it the first time around. So...
I have some questions about the wheel rates the OP calculated for the leaf spring up front. I ahven't found an accurate published figure for the motion ration of a C4 monoleaf and LCA. Just eyeballing a C4 lower control arm, it looks like the MR is closer to 0.66, because the spring pad contact area is about 2/3 of the way from the inner control arm pivot to the ball joint. It depends on where you measure the pad contact point.
The Hib Halverson chart where you got that 30.8 number is wrong, I think. For that Challenge spring rate, he's figuring a MR of 0.51. OTOH, for some other springs on that same chart, he has a MR of 0.59, others are 0.57, and so on. They're all over the place, and I'm not convinced any of them are accurate. The Challenge front spring had a rate of 659lb (115.5N), but if the MR is 0.66 then it gives a wheel rate of 287lb. Even with Halverson's range of MRs, it's wheel rate is anywhere from 171lb to 229. So I think your 450lb coilover spring is actually in a similar range to the Challenge front leaf spring. Also, I don't understand how he figured the rear wheel rates. It should be 1.0, since the leaf spring ends connect directly to the upright.
I do agree with your wheel rate calculation for your 450lb coilover spring, and I agree that the MR for the rear is 1.0. It is also 1.0 in the rear for the leaf spring, so the rates are directly comparable with coilover spring rates.
Aside from the different thoughts on wheel rates of stock leaf springs, I think it's important to understand that front spring rates have very little to do with perceived ride quality from the driver's seat, especially in a C4. Springs in general don't generate as much force as most dampers in high-speed bump situations - at high shaft speeds the shock has a higher rate than the spring, by a lot. So in general, shock rates have more to do with ride comfort than spring rates. Furthermore, in a C4, the occupants sit very close to the rear axle line, and far from the front axle line. Whatever bumps the front end encounters will barely be felt compared to bumps the rear wheels encounter. So it makes perfect sense to me that 600lb springs wouldn't make a noticeable difference in ride quality compared to 450lb springs. Also, you mention you have (had?) the dampers on their softest settings. That has a lot more to do with your improved ride quality with the coilovers than the form of the spring. The wheel rate is the wheel rate, regardless of whether it comes from a monoleaf or a coil or a torsion bar. Coil springs don't inherently ride smoother than monoleafs. Lots of people think they do, but there's no explanation for why that would be true.
Careful here. Again I think that Halverson chart has incorrect wheel rates. But also, don't forget that in cornering, swaybars add to the wheel rates also, and they also have motion ratios as well as lever arm ratios. C4 front swaybars have much shorter arms than their rear bars, but a roughly similar MR as the front monoleafs (maybe 0.6ish?), whereas the rear bars have long arms but a 1:1 MR. I haven't done the math to figure their wheel rates (I note that Halverson didn't either), but just be aware that for figuring wheel rates related to cornering balance, the swaybars need to be accounted for.
I don't understand this statement at all. How does efficiency relate to springs?
The wheel rates are what really matter. I could have a 1000 lb spring but the spring is at such an angle and motion ratio that it only relates to a wheel rate of say 100 lbs.
The Hib Halverson chart where you got that 30.8 number is wrong, I think. For that Challenge spring rate, he's figuring a MR of 0.51. OTOH, for some other springs on that same chart, he has a MR of 0.59, others are 0.57, and so on. They're all over the place, and I'm not convinced any of them are accurate. The Challenge front spring had a rate of 659lb (115.5N), but if the MR is 0.66 then it gives a wheel rate of 287lb. Even with Halverson's range of MRs, it's wheel rate is anywhere from 171lb to 229. So I think your 450lb coilover spring is actually in a similar range to the Challenge front leaf spring. Also, I don't understand how he figured the rear wheel rates. It should be 1.0, since the leaf spring ends connect directly to the upright.
I do agree with your wheel rate calculation for your 450lb coilover spring, and I agree that the MR for the rear is 1.0. It is also 1.0 in the rear for the leaf spring, so the rates are directly comparable with coilover spring rates.
I feared a 450lb front spring was going to be too stiff since it was more than GM used. I'm glad to hear that the 600 lb still rides nice! If I really get into Autocross or something I will look into investing in new springs. I currently have my single adjustables on their lowest setting, I figured once I get used to how it handles again I will play with the settings and find the best spot!
I went up to a [front] wheel rate of 250 lb/in...I'm going to run 300lb wheel rate on the rear. This is a pretty close ratio front to rear as the challenge cars had.
Originally Posted by blackozvet
and yes a straight up coil is more efficient than a transverse leaf.
Last edited by MatthewMiller; 11-22-2018 at 10:49 AM.
#25
Melting Slicks
I will support the comment with my experience, as i have been racing with the transverse leaf and coilovers (and going between using both this year)
Running at my home hillclimb track (which is quite bumpy entering, during and exiting turn 2) and using the z51 front spring rated at 582 lbs the car was bottoming out quite badly.
I fitted 600 lb coilovers - keeping in mind that the mounting point is above the leaf mounting point so motion ratios and wheel rates should be a moot point - and the bottoming out was gone. Chassis heights the same. Car was quicker.
I talk to people (who know more about the subject than me) and this comparison is given to me, imagine the coil spring upright - it operates at 100% of its potential efficiency, lay it over 10 degrees and it loses spring rate, lay it over 20 degrees and it loses even more spring rate. Now imagine a lateral leaf spring laying on its side - how much spring rate is needed to operate in a performance environment, double, 1000 to 1200 kg spring rate, double what you would need if you were running a coil spring. you could argue all day long about coil v leaf but I guess that tells a story.
Having said that Im not all pro coilover and anti leaf, my car is slightly quicker with a leaf in the rear than the coilovers !
#26
Drifting
Be very careful with the coil overs on a C4. Coil overs are a great idea and since Vette Brakes and Products no longer exist along with the custom spring rates, coil overs now are the best option. However, the front upper shock mounts were not designed to carry the load. Also, the lower rear shock mounts were not designed to carry that load. I have seen pictures where as the rear lower shock mounts have separated from the spindle. The front shock mount will need to be reengineered and fabricated to carry the new loading. The lower control arm shouldn't be a problem because it is already carrying that load pretty much in the same spot.
A friend of mine that autocrosses a C4 is using 1,000 pound coil overs. I thought that may a tad too high of a spring rate but, he seems to be happy with that rate. I'm still happy with my Vette Brakes & Products adjustable 1470 pound monospring. If that breaks then I will have to go coil overs.
A friend of mine that autocrosses a C4 is using 1,000 pound coil overs. I thought that may a tad too high of a spring rate but, he seems to be happy with that rate. I'm still happy with my Vette Brakes & Products adjustable 1470 pound monospring. If that breaks then I will have to go coil overs.
The following users liked this post:
project C4 (06-23-2019)
#27
Le Mans Master
Running at my home hillclimb track (which is quite bumpy entering, during and exiting turn 2) and using the z51 front spring rated at 582 lbs the car was bottoming out quite badly.
I fitted 600 lb coilovers - keeping in mind that the mounting point is above the leaf mounting point so motion ratios and wheel rates should be a moot point - and the bottoming out was gone. Chassis heights the same. Car was quicker.
I fitted 600 lb coilovers - keeping in mind that the mounting point is above the leaf mounting point so motion ratios and wheel rates should be a moot point - and the bottoming out was gone. Chassis heights the same. Car was quicker.
I talk to people (who know more about the subject than me) and this comparison is given to me, imagine the coil spring upright - it operates at 100% of its potential efficiency, lay it over 10 degrees and it loses spring rate, lay it over 20 degrees and it loses even more spring rate. Now imagine a lateral leaf spring laying on its side - how much spring rate is needed to operate in a performance environment, double, 1000 to 1200 kg spring rate, double what you would need if you were running a coil spring. you could argue all day long about coil v leaf but I guess that tells a story.
Control arms and their spring attachment points travel in arcs, not straight lines. A coil spring is only directly perpendicular to the direction of control arm travel at one instantaneous point in the arc of the control arm. But if you look at any coilover setup, the shock and spring are always canted inward quite a bit in order to clear wheels and to reach the frame mounting points. They never have enough bump travel to reach that perpendicular (i.e. 1:1 motion) point. OTOH, a leaf spring is installed pretty close to parallel with the control arms, and actually follows a similar (if not identical) arc as the control arm moves. Therefore, their load paths do a better job of staying close to perpendicular to the control arm's arc than a coil spring ever does. This isn't really a discussion of "efficiency," as much as it is about geometry. But in your context, the leaf spring is actually more "efficient." Add in the fact that the front monoleaf on a C4 actually does some anti-roll duty (allowing the use of a smaller/light front sway bar), and it actually is more efficient.
Originally Posted by Nokones
Be very careful with the coil overs on a C4. Coil overs are a great idea and since Vette Brakes and Products no longer exist along with the custom spring rates, coil overs now are the best option. However, the front upper shock mounts were not designed to carry the load. Also, the lower rear shock mounts were not designed to carry that load. I have seen pictures where as the rear lower shock mounts have separated from the spindle. The front shock mount will need to be reengineered and fabricated to carry the new loading. The lower control arm shouldn't be a problem because it is already carrying that load pretty much in the same spot.
A friend of mine that autocrosses a C4 is using 1,000 pound coil overs. I thought that may a tad too high of a spring rate but, he seems to be happy with that rate. I'm still happy with my Vette Brakes & Products adjustable 1470 pound monospring. If that breaks then I will have to go coil overs.
PS - I'm in the same boat as you regarding the demise of VBP, if my springs ever fail. Supposedly another company is working to fill their void, but who knows? Otherwise, we need someone to market braces for the rear shock mounts, at the very least. And folks with the narrow (early) front shock towers might have to do serious hacking to use high spring rates on their cars.
Last edited by MatthewMiller; 11-22-2018 at 11:19 AM.
#28
Instructor
Thread Starter
I realize this is an almost 2-year-old post, but I somehow missed it the first time around. So...
I have some questions about the wheel rates the OP calculated for the leaf spring up front. I ahven't found an accurate published figure for the motion ration of a C4 monoleaf and LCA. Just eyeballing a C4 lower control arm, it looks like the MR is closer to 0.66, because the spring pad contact area is about 2/3 of the way from the inner control arm pivot to the ball joint. It depends on where you measure the pad contact point.
The Hib Halverson chart where you got that 30.8 number is wrong, I think. For that Challenge spring rate, he's figuring a MR of 0.51. OTOH, for some other springs on that same chart, he has a MR of 0.59, others are 0.57, and so on. They're all over the place, and I'm not convinced any of them are accurate. The Challenge front spring had a rate of 659lb (115.5N), but if the MR is 0.66 then it gives a wheel rate of 287lb. Even with Halverson's range of MRs, it's wheel rate is anywhere from 171lb to 229. So I think your 450lb coilover spring is actually in a similar range to the Challenge front leaf spring. Also, I don't understand how he figured the rear wheel rates. It should be 1.0, since the leaf spring ends connect directly to the upright.
I do agree with your wheel rate calculation for your 450lb coilover spring, and I agree that the MR for the rear is 1.0. It is also 1.0 in the rear for the leaf spring, so the rates are directly comparable with coilover spring rates.
Aside from the different thoughts on wheel rates of stock leaf springs, I think it's important to understand that front spring rates have very little to do with perceived ride quality from the driver's seat, especially in a C4. Springs in general don't generate as much force as most dampers in high-speed bump situations - at high shaft speeds the shock has a higher rate than the spring, by a lot. So in general, shock rates have more to do with ride comfort than spring rates. Furthermore, in a C4, the occupants sit very close to the rear axle line, and far from the front axle line. Whatever bumps the front end encounters will barely be felt compared to bumps the rear wheels encounter. So it makes perfect sense to me that 600lb springs wouldn't make a noticeable difference in ride quality compared to 450lb springs. Also, you mention you have (had?) the dampers on their softest settings. That has a lot more to do with your improved ride quality with the coilovers than the form of the spring. The wheel rate is the wheel rate, regardless of whether it comes from a monoleaf or a coil or a torsion bar. Coil springs don't inherently ride smoother than monoleafs. Lots of people think they do, but there's no explanation for why that would be true.
Careful here. Again I think that Halverson chart has incorrect wheel rates. But also, don't forget that in cornering, swaybars add to the wheel rates also, and they also have motion ratios as well as lever arm ratios. C4 front swaybars have much shorter arms than their rear bars, but a roughly similar MR as the front monoleafs (maybe 0.6ish?), whereas the rear bars have long arms but a 1:1 MR. I haven't done the math to figure their wheel rates (I note that Halverson didn't either), but just be aware that for figuring wheel rates related to cornering balance, the swaybars need to be accounted for.
I don't understand this statement at all. How does efficiency relate to springs?
I have some questions about the wheel rates the OP calculated for the leaf spring up front. I ahven't found an accurate published figure for the motion ration of a C4 monoleaf and LCA. Just eyeballing a C4 lower control arm, it looks like the MR is closer to 0.66, because the spring pad contact area is about 2/3 of the way from the inner control arm pivot to the ball joint. It depends on where you measure the pad contact point.
The Hib Halverson chart where you got that 30.8 number is wrong, I think. For that Challenge spring rate, he's figuring a MR of 0.51. OTOH, for some other springs on that same chart, he has a MR of 0.59, others are 0.57, and so on. They're all over the place, and I'm not convinced any of them are accurate. The Challenge front spring had a rate of 659lb (115.5N), but if the MR is 0.66 then it gives a wheel rate of 287lb. Even with Halverson's range of MRs, it's wheel rate is anywhere from 171lb to 229. So I think your 450lb coilover spring is actually in a similar range to the Challenge front leaf spring. Also, I don't understand how he figured the rear wheel rates. It should be 1.0, since the leaf spring ends connect directly to the upright.
I do agree with your wheel rate calculation for your 450lb coilover spring, and I agree that the MR for the rear is 1.0. It is also 1.0 in the rear for the leaf spring, so the rates are directly comparable with coilover spring rates.
Aside from the different thoughts on wheel rates of stock leaf springs, I think it's important to understand that front spring rates have very little to do with perceived ride quality from the driver's seat, especially in a C4. Springs in general don't generate as much force as most dampers in high-speed bump situations - at high shaft speeds the shock has a higher rate than the spring, by a lot. So in general, shock rates have more to do with ride comfort than spring rates. Furthermore, in a C4, the occupants sit very close to the rear axle line, and far from the front axle line. Whatever bumps the front end encounters will barely be felt compared to bumps the rear wheels encounter. So it makes perfect sense to me that 600lb springs wouldn't make a noticeable difference in ride quality compared to 450lb springs. Also, you mention you have (had?) the dampers on their softest settings. That has a lot more to do with your improved ride quality with the coilovers than the form of the spring. The wheel rate is the wheel rate, regardless of whether it comes from a monoleaf or a coil or a torsion bar. Coil springs don't inherently ride smoother than monoleafs. Lots of people think they do, but there's no explanation for why that would be true.
Careful here. Again I think that Halverson chart has incorrect wheel rates. But also, don't forget that in cornering, swaybars add to the wheel rates also, and they also have motion ratios as well as lever arm ratios. C4 front swaybars have much shorter arms than their rear bars, but a roughly similar MR as the front monoleafs (maybe 0.6ish?), whereas the rear bars have long arms but a 1:1 MR. I haven't done the math to figure their wheel rates (I note that Halverson didn't either), but just be aware that for figuring wheel rates related to cornering balance, the swaybars need to be accounted for.
I don't understand this statement at all. How does efficiency relate to springs?
#29
Instructor
Thread Starter
I am considering doing this to my 92 as I have coilovers in the rear (solid axle). My current front spring is VBP adjustable which I installed for track events (road course).
Do you have any issues with it bottoming out? How does the car sit in the front. Any photos?
Nice job!
Steve
Do you have any issues with it bottoming out? How does the car sit in the front. Any photos?
Nice job!
Steve
Colton
#31
Melting Slicks
A friend of mine that autocrosses a C4 is using 1,000 pound coil overs. I thought that may a tad too high of a spring rate but, he seems to be happy with that rate. I'm still happy with my Vette Brakes & Products adjustable 1470 pound monospring. If that breaks then I will have to go coil overs.
#32
Melting Slicks
Motion ratios and wheel rates always matter. As noted above, wheel rates are really all that matter. You went from a wheel rate of 200-250lb with the Z51 spring (depending on the exact MR of the stock spring pad) to a wheel rate of 347lb: somewhere between a 38-73% increase in front wheel rate! I would imagine that makes a big difference in bottoming out and handling balance!
I don't understand this at all. A spring is a spring is a spring. They are all rated in the same way: how much force does it take to compress or extend the end a certain distance? A monoleaf rated at 582lbs/in requires 582lbs of force to move its end 1". A coil spring rated at 582lb/in also requires 582lbs to compress or extend its length 1". Same with a torsion spring (like a sway bar): it takes a rated amount of force to move it's arm a certain distance.
Control arms and their spring attachment points travel in arcs, not straight lines. A coil spring is only directly perpendicular to the direction of control arm travel at one instantaneous point in the arc of the control arm. But if you look at any coilover setup, the shock and spring are always canted inward quite a bit in order to clear wheels and to reach the frame mounting points. They never have enough bump travel to reach that perpendicular (i.e. 1:1 motion) point. OTOH, a leaf spring is installed pretty close to parallel with the control arms, and actually follows a similar (if not identical) arc as the control arm moves. Therefore, their load paths do a better job of staying close to perpendicular to the control arm's arc than a coil spring ever does. This isn't really a discussion of "efficiency," as much as it is about geometry. But in your context, the leaf spring is actually more "efficient." Add in the fact that the front monoleaf on a C4 actually does some anti-roll duty (allowing the use of a smaller/light front sway bar), and it actually is more efficient.
I don't understand this at all. A spring is a spring is a spring. They are all rated in the same way: how much force does it take to compress or extend the end a certain distance? A monoleaf rated at 582lbs/in requires 582lbs of force to move its end 1". A coil spring rated at 582lb/in also requires 582lbs to compress or extend its length 1". Same with a torsion spring (like a sway bar): it takes a rated amount of force to move it's arm a certain distance.
Control arms and their spring attachment points travel in arcs, not straight lines. A coil spring is only directly perpendicular to the direction of control arm travel at one instantaneous point in the arc of the control arm. But if you look at any coilover setup, the shock and spring are always canted inward quite a bit in order to clear wheels and to reach the frame mounting points. They never have enough bump travel to reach that perpendicular (i.e. 1:1 motion) point. OTOH, a leaf spring is installed pretty close to parallel with the control arms, and actually follows a similar (if not identical) arc as the control arm moves. Therefore, their load paths do a better job of staying close to perpendicular to the control arm's arc than a coil spring ever does. This isn't really a discussion of "efficiency," as much as it is about geometry. But in your context, the leaf spring is actually more "efficient." Add in the fact that the front monoleaf on a C4 actually does some anti-roll duty (allowing the use of a smaller/light front sway bar), and it actually is more efficient.
"a spring is a spring is a spring" yeah, until you start laying it over and it starts losing it spring rate, then its not quite the same spring anymore.
if you need 1200 lbs of leaf to do what 600 lbs of coil do, then there is something quite different going on. And you could be right in that the sway bar effect of the leaf could be a contributing factor, my recent experience has convinced me that you need much more sway bar with coilovers than you do with leaf' springs (front and rear).
I understand that your very theory driven, my comments on the subject are as a direct result of converting from leaf to coilover, and my pragmatic findings.
#33
Drifting
Some reading on how GM engineered the suspension.
Up front the leaf speing is also acting as a anti sway bar.
Not so at the rear because the center mounts are so close together.
Up front the leaf speing is also acting as a anti sway bar.
Not so at the rear because the center mounts are so close together.
#34
Melting Slicks
I suppose people can theorize the sh.t out of anything, but I know what works on my car, maybe its coz I'm in the southern hemisphere and the water spins in the opposite direction down the drain, who knows ?
.
#35
Le Mans Master
The mounting point of the spring pad is directly under the shock mounting point - so what Im saying is that the motion ratios of the leaf and the coilover will be very similiar - there will be very little difference in the motion ratio - I wasnt saying that motion ratios dont matter.
"a spring is a spring is a spring" yeah, until you start laying it over and it starts losing it spring rate, then its not quite the same spring anymore.
if you need 1200 lbs of leaf to do what 600 lbs of coil do, then there is something quite different going on.
#36
Team Owner
Pro Mechanic
MM is right. It seems like you're confusing yourself by thinking about the leaf spring, in the context of how you think of a coil spring mounting; you're right that as you lay the coil over, it looses it's mechanical advantage on the arm, and you need more and more spring rate to maintain wheel rate. But the Leaf doesn't work in a telescoping fashion. It works like a coil that is perpendicular to the arm at all times. "laying it over" is misguided thinking, and you don't need a 1200 lb leaf to do what a 600 lb leaf can do....in spite of the leaf contacting the arm further inboard than the coil/shock does.
#37
Melting Slicks

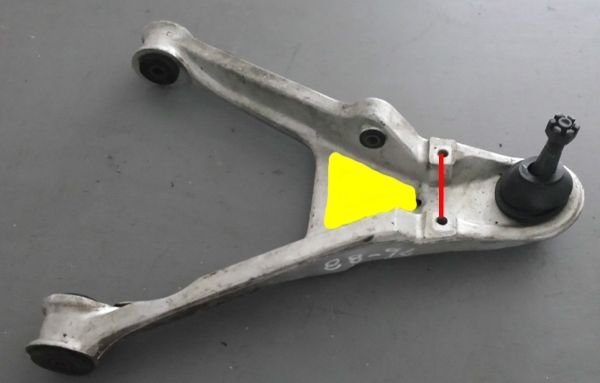

The red line is where the end of the leaf pad mounts on my 85 - directly under the coilover. Different to the later cars.
FACT - I fitted a 600 lb coil in place of a 600 lb leaf and it performed much better and stopped bottoming out.
FACT - If you want a 600 lb leaf to perform as well as a 600 lb coil you have to replace it with a 1200 lb leaf.
.
Being the pragmatic person I am I have no time for people splitting hairs over what I say and turning them into long winded technical jargon arguments.
FACT - I fitted a 600 lb coil in place of a 600 lb leaf and it performed much better and stopped bottoming out.
FACT - If you want a 600 lb leaf to perform as well as a 600 lb coil you have to replace it with a 1200 lb leaf.
.
Being the pragmatic person I am I have no time for people splitting hairs over what I say and turning them into long winded technical jargon arguments.
The following users liked this post:
Jeff Fro (07-20-2023)
#38
Le Mans Master
Originally Posted by Tom400CFI
It seems like you're confusing yourself by thinking about the leaf spring, in the context of how you think of a coil spring mounting; you're right that as you lay the coil over, it looses it's mechanical advantage on the arm, and you need more and more spring rate to maintain wheel rate. But the Leaf doesn't work in a telescoping fashion. It works like a coil that is perpendicular to the arm at all times. "laying it over" is misguided thinking...
FACT - I fitted a 600 lb coil in place of a 600 lb leaf and it performed much better and stopped bottoming out.
- You didn't just fit a 600lb coil in place of a 600lb leaf. Actually, you installed a 600lb coil plus completely different dampers (I assume the damper is different, at least). The dampers would presumably have a very different damping curve than what they replaced; and based on your pic they're also double-adjustable, so the overall rate could be a lot different.
- The new dampers may also have different bump stops that allow greater compression travel and/or have a more progressive "squish" to them so that you don't feel the bottoming out as with stock.
- Furthermore, there could obviously be a difference in front ride height with coilovers that have threaded collars for the spring seats, like yours. That could most definitely affect both handling and bottoming out.
- Your 600lb coil springs are actually starting out with a lower wheel rate than a 600lb leaf spring, because they are angled inward at 20*. If the control arm starts parallel to the ground, that angle means the coil is only applying 564lb of vertical force to the shock mount. As the arm moves upward into compression, it gets closer to perpendicular with the coilover, which means it's a mildly rising rate geometry from 564lb-600lb. The monoleaf is much more geometrically linear since it's load path to the control arms stays perpendicular to the arm throughout the suspension travel.
- Another possibility is that your leaf wasn't really a 600lb spring like you thought? Did you have an 84 Z51 spring in there? That would have been close at 582lb. No other OE spring for early C4s was even close to that stiff, and no C4 front spring of any year was rated at exactly 600lb. For that matter, how do you know for sure that your coils are actually 600lb? I've got friends in the industry who will tell you that when they actually test coil springs from aftermarket companies, they often turn out to have much different spring rates than their labeling says. Or owners cut them, which also increases their rates.
FACT - If you want a 600 lb leaf to perform as well as a 600 lb coil you have to replace it with a 1200 lb leaf.
The following users liked this post:
Poorvette59 (07-25-2021)
#40
I know this doesn't have anything to do with coilovers but I can attest that these C4 suspensions are very sensitive to simple changes. A simple change to urethane bushings made the rear end of my car act pretty violently under power and in a corner. I swapped the urethane to the full Banski suspension and it got even worse.
What finally fixed this problem was adjustable Ridetech shocks. It appeared that I changed the friction/stiction of the suspension so much that the stock Z51 Bilstein shocks could not keep up.
But I can only imagine the mess that would become present by going to coilovers.
The GM engineers made the C4 suspension work well in stock form but any change seems to upset the hell out of these cars.
My theory is that the stock rubber suspension bushings were picked by GM very carefully. They wanted the rubber bushings to bind or have stiction.
I am sure the same kind of engineering went into the monoleaf springs.
What finally fixed this problem was adjustable Ridetech shocks. It appeared that I changed the friction/stiction of the suspension so much that the stock Z51 Bilstein shocks could not keep up.
But I can only imagine the mess that would become present by going to coilovers.
The GM engineers made the C4 suspension work well in stock form but any change seems to upset the hell out of these cars.
My theory is that the stock rubber suspension bushings were picked by GM very carefully. They wanted the rubber bushings to bind or have stiction.
I am sure the same kind of engineering went into the monoleaf springs.
