Blinking third brake light
Melting Slicks
Joined: Nov 2007
Posts: 2,780
Likes: 933
From: Indianapolis IN
Burning Brakes
Joined: Sep 2009
Posts: 918
Likes: 266
From: Ft. Worth Tx.
I bought a bunch of these awhile back and have put them everything. But have been cutting the two wires going to the light. They work on bulbs or LEDs. Don’t know how to wire up to pin 11 to operate relay for brake light. Any help would be appreciated. Thanks
Drifting
Joined: Jun 2006
Posts: 1,388
Likes: 233
From: Palmer Township PA
Melting Slicks
Joined: Mar 2001
Posts: 2,667
Likes: 849
From: New Jersey

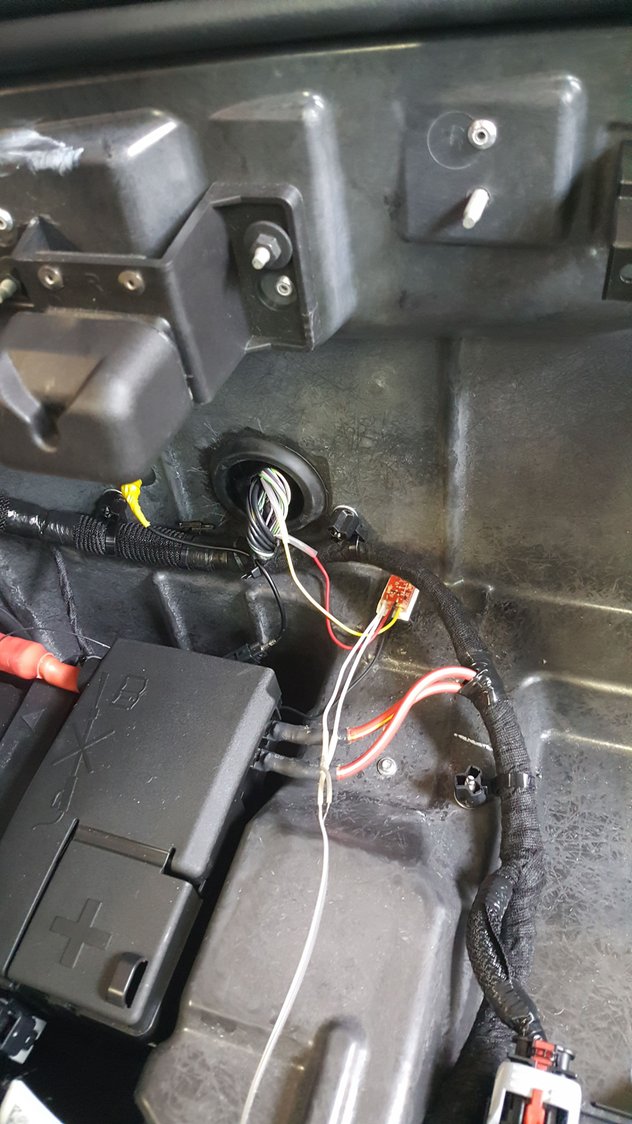

I just installed my flasher in the rear cargo compartment, splicing into the purple-with-white-stripe wire just before the harness exits the rear wall of the cargo area.
I decided to mount it in the back (versus at the BCM) because I have the rear taken apart to add sound deadening and the install of the 2LT/3LT Bose rear subwoofer in my 1LT.
Last edited by ersatz928; May 2, 2019 at 12:51 PM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
Burning Brakes
Joined: Oct 2010
Posts: 833
Likes: 240
I just installed my flasher in the rear cargo compartment, splicing into the purple-with-white-stripe wire just before the harness exits the rear wall of the cargo area.
I decided to mount it in the back (versus at the BCM) because I have the rear taken apart to add sound deadening and the install of the 2LT/3LT Bose rear subwoofer in my 1LT.
Melting Slicks
Joined: Mar 2001
Posts: 2,667
Likes: 849
From: New Jersey
Tell me more about the sub woofer. Part# and what it took to install please.
See this thread, the last post has all the info.
https://www.corvetteforum.com/forums...subwoofer.html
See this thread, the last post has all the info.
https://www.corvetteforum.com/forums...subwoofer.html
Team Owner
Joined: Aug 2007
Posts: 136,140
Likes: 2,432
From: I live my life by 2 rules. 1) Never share everything you know. 2)
St. Jude Donor '11-'12-'13, '16-'17-'18
I just installed my flasher in the rear cargo compartment, splicing into the purple-with-white-stripe wire just before the harness exits the rear wall of the cargo area.
I decided to mount it in the back (versus at the BCM) because I have the rear taken apart to add sound deadening and the install of the 2LT/3LT Bose rear subwoofer in my 1LT.
Last edited by KenHorse; May 11, 2019 at 01:21 PM.
Drifting
Joined: Nov 2013
Posts: 1,525
Likes: 495
From: Southern California
I just installed my flasher in the rear cargo compartment, splicing into the purple-with-white-stripe wire just before the harness exits the rear wall of the cargo area.
I decided to mount it in the back (versus at the BCM) because I have the rear taken apart to add sound deadening and the install of the 2LT/3LT Bose rear subwoofer in my 1LT.
Have I got it correct?
Thanks in advance
Melting Slicks
Joined: Mar 2001
Posts: 2,667
Likes: 849
From: New Jersey
My module has 3 wires that need to be connected. (The extra 2 white wires coming from the module are for optional feature programming (flash rate....)
Red (+12V in) goes to the cut end of the Purple/white wire that runs forward to the +12V source (the BCM).
Yellow (Flasher output) goes to the cut end of the Purple/white wire that runs out the large round black grommet, rearwards, which goes to the third brakelight.
Black (ground) connects to ground, at the battery negative post (I put the wire under the small nut/existing wire on the top of the post.)
Red (+12V in) goes to the cut end of the Purple/white wire that runs forward to the +12V source (the BCM).
Yellow (Flasher output) goes to the cut end of the Purple/white wire that runs out the large round black grommet, rearwards, which goes to the third brakelight.
Black (ground) connects to ground, at the battery negative post (I put the wire under the small nut/existing wire on the top of the post.)
Last edited by ersatz928; Jun 6, 2019 at 09:17 AM.
Drifting
Joined: Nov 2013
Posts: 1,525
Likes: 495
From: Southern California
My module has 3 wires that need to be connected. (The extra 2 white wires coming from the module are for optional feature programming (flash rate....)
Red (+12V in) goes to the cut end of the Purple/white wire that runs forward to the +12V source (the BCM).
Yellow (Flasher output) goes to the cut end of the Purple/white wire that runs out the large round black grommet, rearwards, which goes to the third brakelight.
Black (ground) connects to ground, at the battery negative post (I put the wire under the small nut/existing wire on the top of the post.)
Red (+12V in) goes to the cut end of the Purple/white wire that runs forward to the +12V source (the BCM).
Yellow (Flasher output) goes to the cut end of the Purple/white wire that runs out the large round black grommet, rearwards, which goes to the third brakelight.
Black (ground) connects to ground, at the battery negative post (I put the wire under the small nut/existing wire on the top of the post.)
Burning Brakes
Joined: Sep 2009
Posts: 918
Likes: 266
From: Ft. Worth Tx.
Safety Car
Joined: Jul 2001
Posts: 4,609
Likes: 490
From: Houston, Texas
St. Jude Donor '20-'21-'22-'23
Ebay has this model. I have installed at least 10 of them over the past 15 yrs or so. They are easy to install and I have never had one fail. You can find them all over the internet from $2.49 to $39.95 “same unit” eBay, Amazon both have them. I just bought 4 from eBay for $9 directly from China. Took about 6 weeks. You pay more if you want them faster.
Thanks for your good comments and posting this, looks like an excellent find!
So I understand splicing into the purple white with the red wire on the module.
But on the black wire of the module, do I need to splice into a ground wire, or can I simply attach either black wire coming out of the module to a ground?
And, how does this unit flash?
Does it flash 3 times then stay on? Or does it flash some other pattern?
Thanks
.
Melting Slicks
Joined: Nov 2007
Posts: 2,780
Likes: 933
From: Indianapolis IN
Connect both black wires to common ground,
Operation is 3 fast flashes followed by 3 slow flashes, then continuously on. Not sure if there is any sequence delay if you pump the brake the bake pedal, or if you are on and off the brake repeatedly in stop and go traffic jam traffic.
Operation is 3 fast flashes followed by 3 slow flashes, then continuously on. Not sure if there is any sequence delay if you pump the brake the bake pedal, or if you are on and off the brake repeatedly in stop and go traffic jam traffic.
