I think this works easy and is safest.

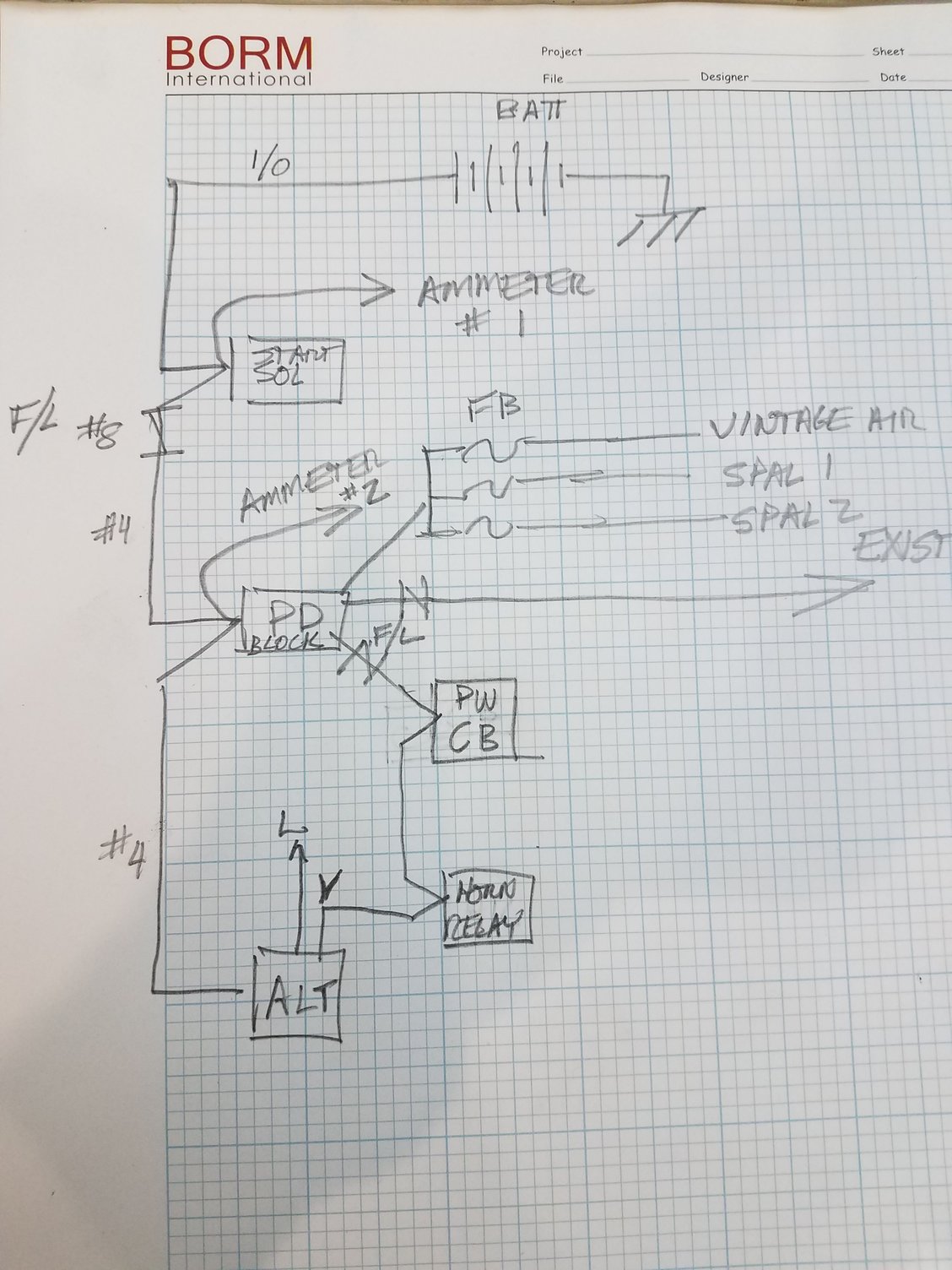

The ammeter will work, but calibration would be incorrect. I could do some research and find the correct shunt, but it might just be easier to switch the dash to a VM and be done.
I do have the original wire and a milliohm meter.
Last edited by Big2Bird; Jul 17, 2020 at 02:02 PM.
Thread Starter
Le Mans Master
Joined: Dec 2006
Posts: 8,837
Likes: 1,028
Plenty of room now for HEI distributor.

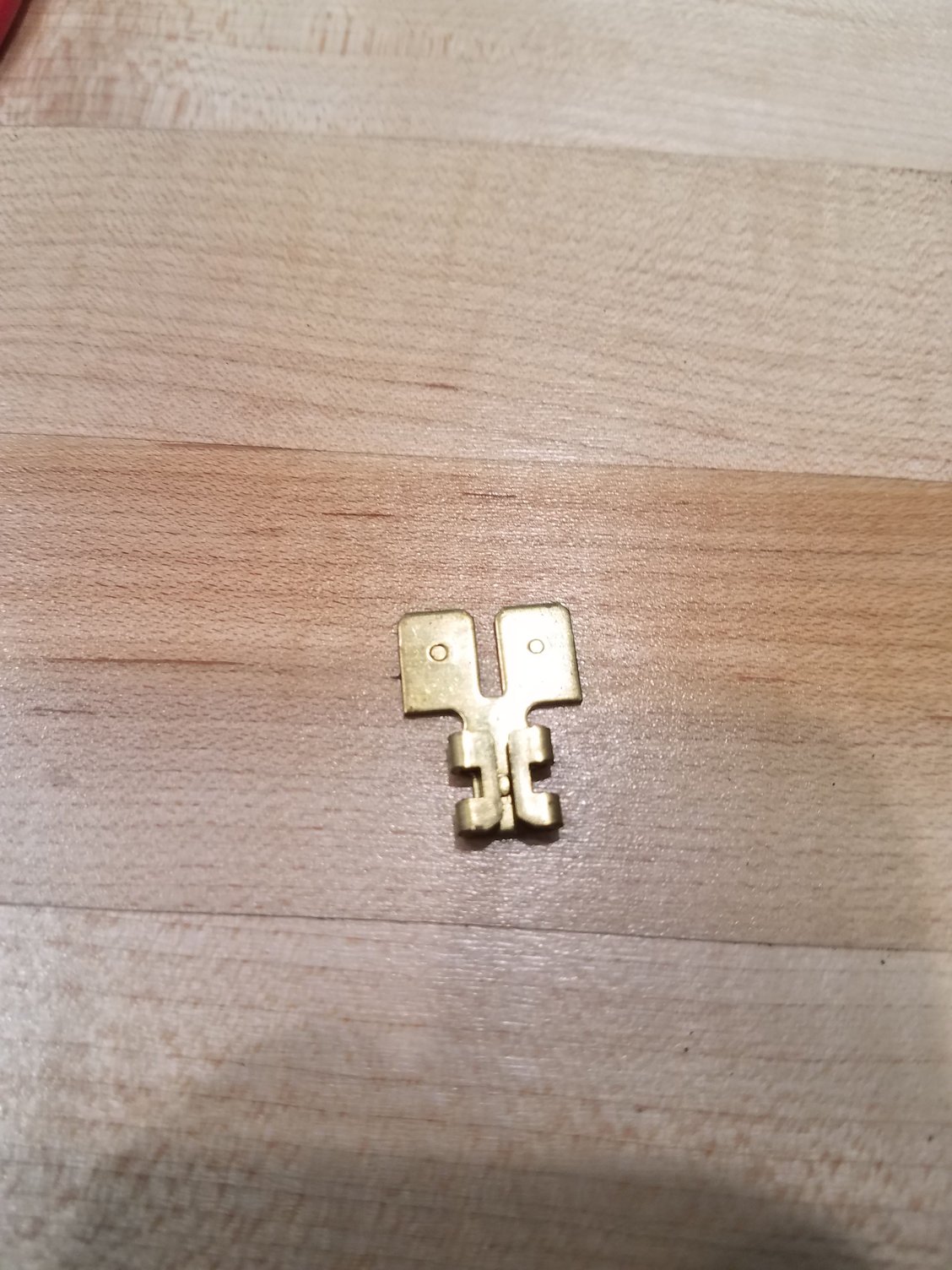

I found the connecter for the temp sensor on ebay,
in Anaheim of all places.
I also ordered the a arm flaps just to finish the engine compartment off.
Since the washer pump is gone, I will remove the reservoir also.
If he wants to add it later, I will get a later tank with the pump at the bottom.
Thread Starter
Le Mans Master
Joined: Dec 2006
Posts: 8,837
Likes: 1,028

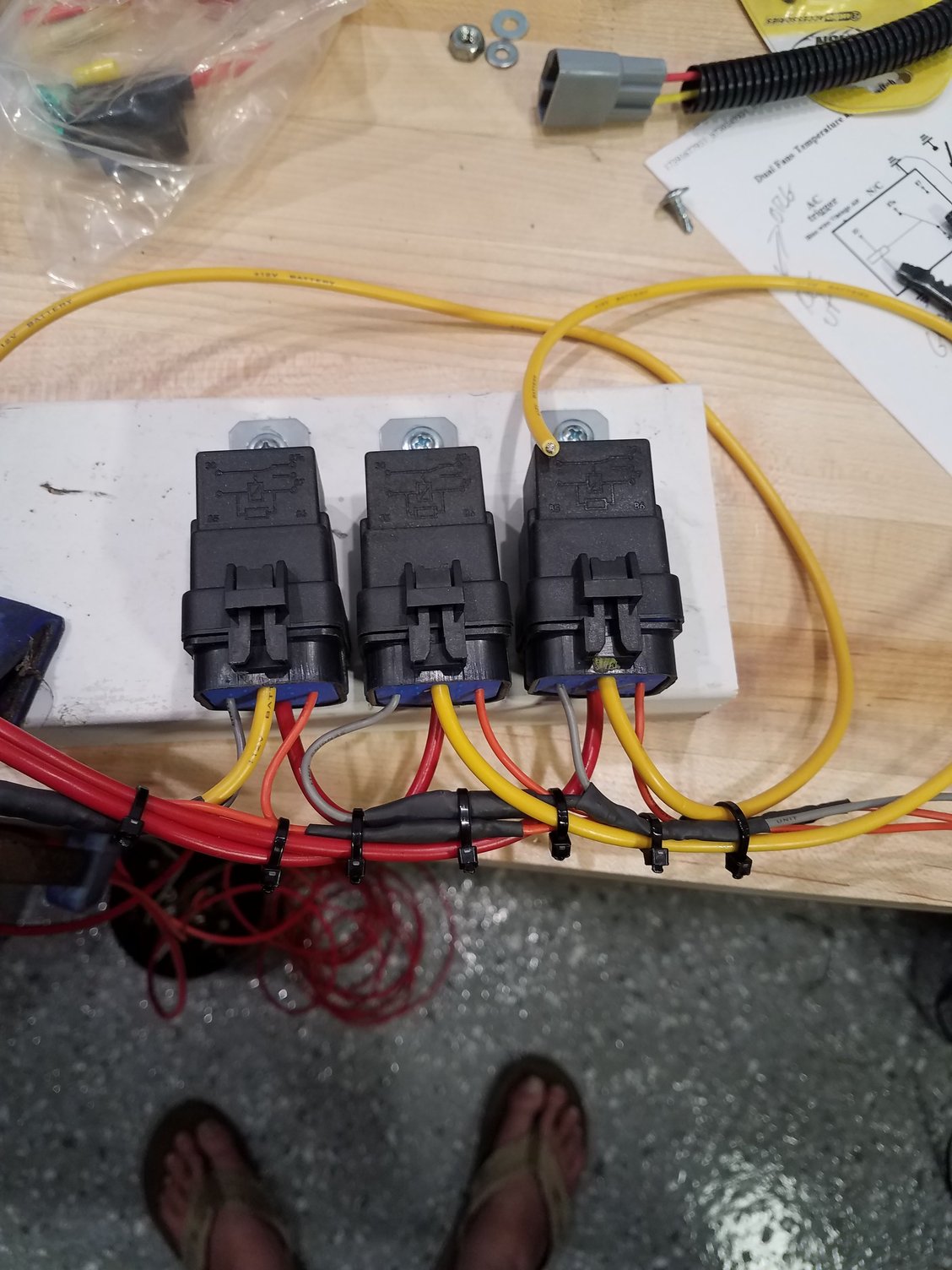

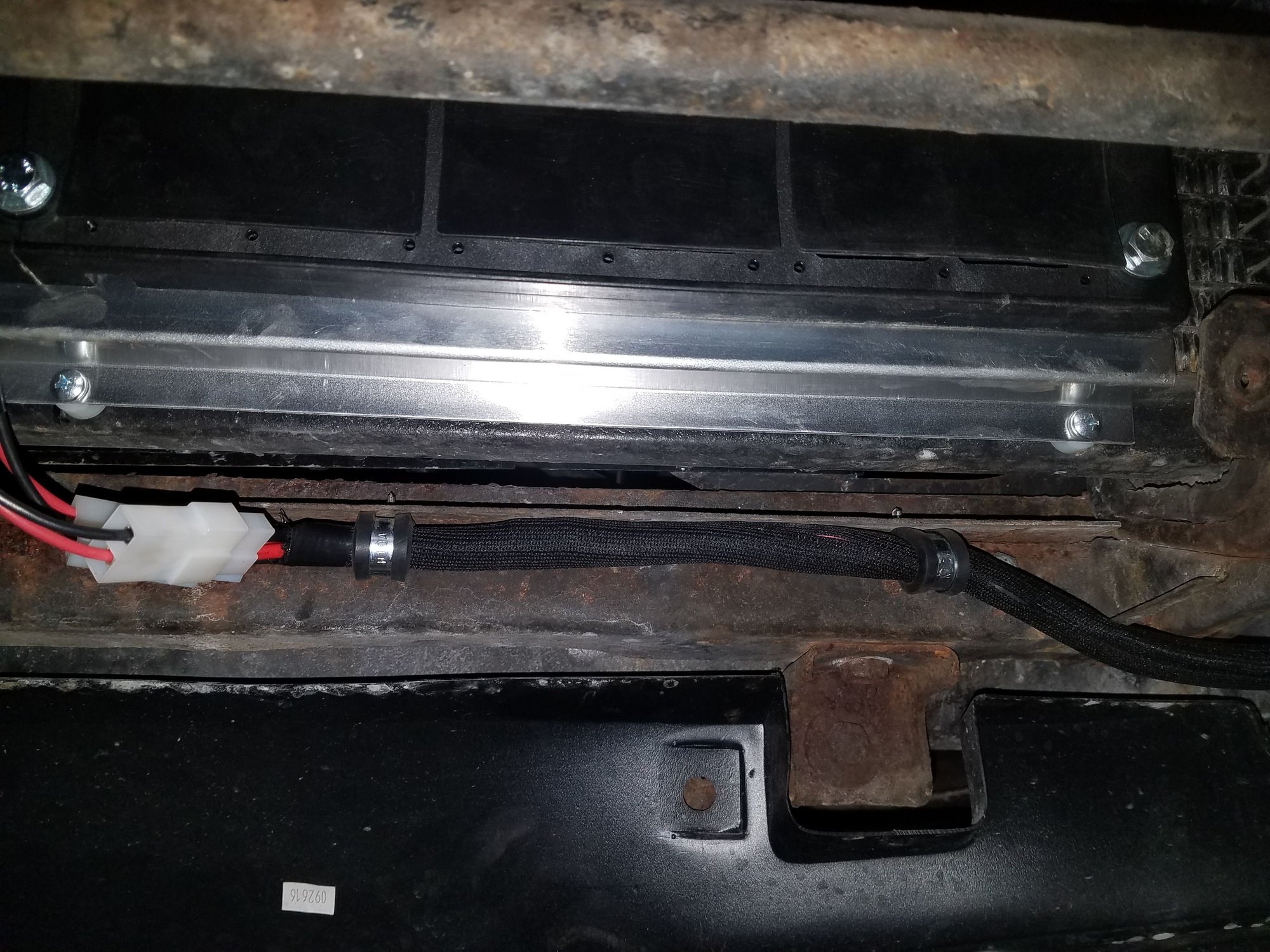

Well, I decided on this layout. I can add some kind of gaurd for the positive post when I am done.

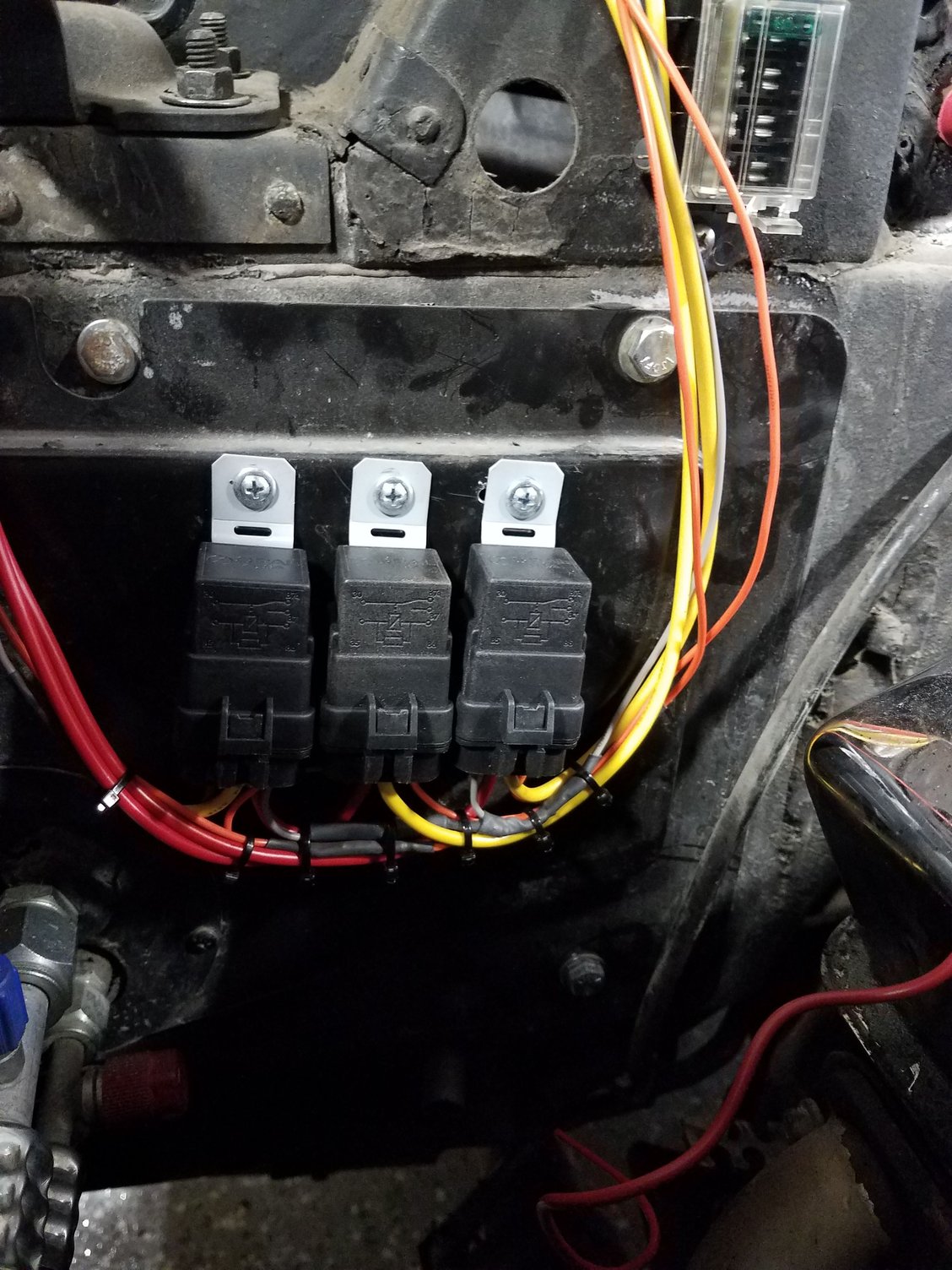

The second picture is the spot I reserved for headlight relays, should he decide to add that. It does make a huge difference, and negates the fire hazard under the dash.
A few more tidbits, and I will lace it up this weekend.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
Melting Slicks
Joined: Oct 2003
Posts: 2,162
Likes: 814
From: Chapel Hill NC
2025 c3 ('68-'73) of the Year Finalist - Unmodified
2025 C4 of the Year Finalist - Unmodified
2025 C8 Stingray of the Year Finalist - Unmodified
Nice thread. The owner is lucky to have you working on his car. This 73 reminds me of my 68. Goods bones but highly molested by Bubba especially with electrical.
Thread Starter
Le Mans Master
Joined: Dec 2006
Posts: 8,837
Likes: 1,028

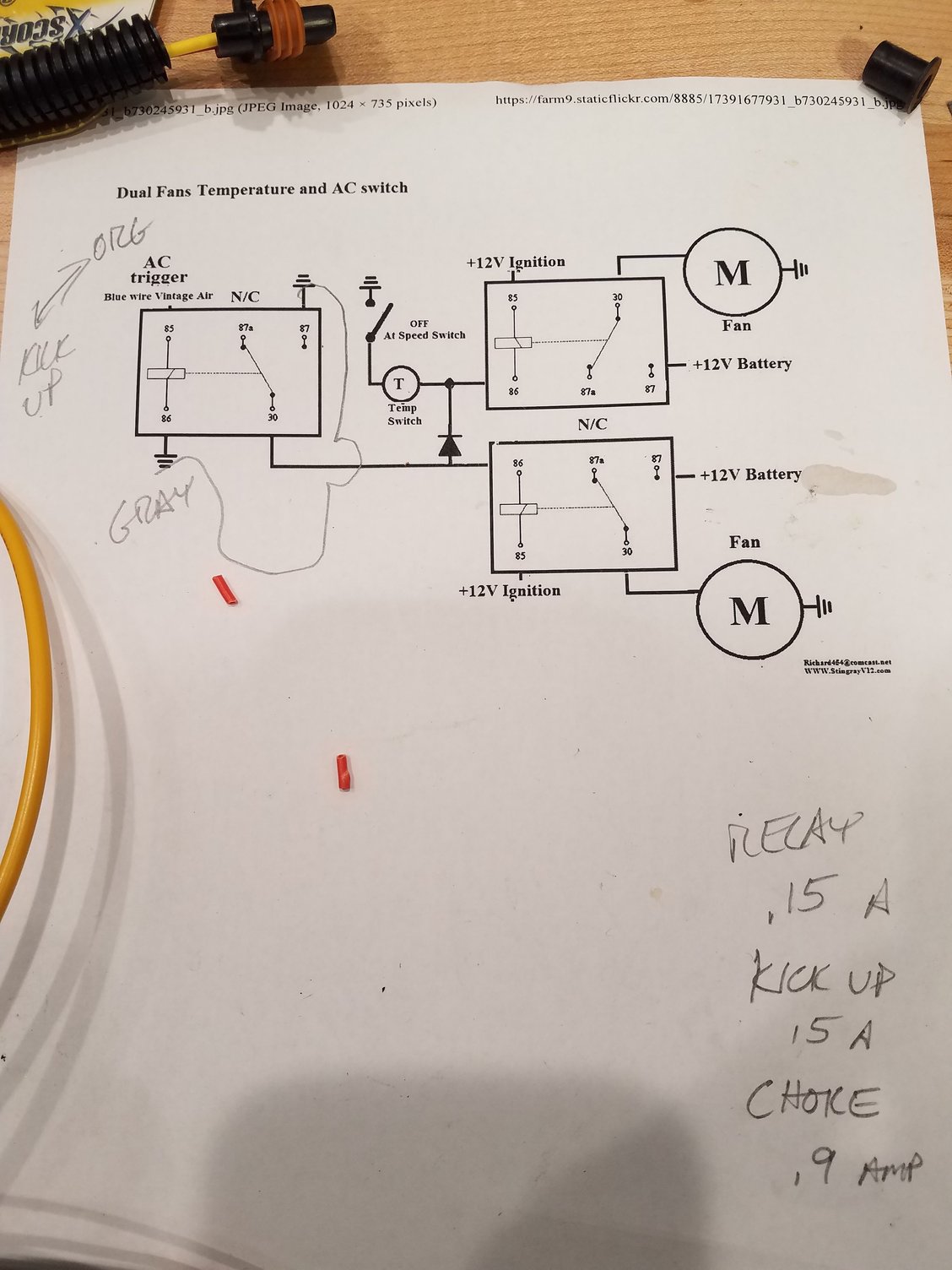

Found a fan relay schematic I liked. Some dude named Richard454.
I added a tap for the carb kick up solenoid.
The relay hold current is .15A
Kick up solenoid is .5A, and the choke coil is .9A.
Much easier to lace up on the bench.
A few more wire to lengthen, then onto the car.
I will just loom it last in place.
Last edited by Big2Bird; Jul 23, 2020 at 07:01 AM.
Thread Starter
Le Mans Master
Joined: Dec 2006
Posts: 8,837
Likes: 1,028

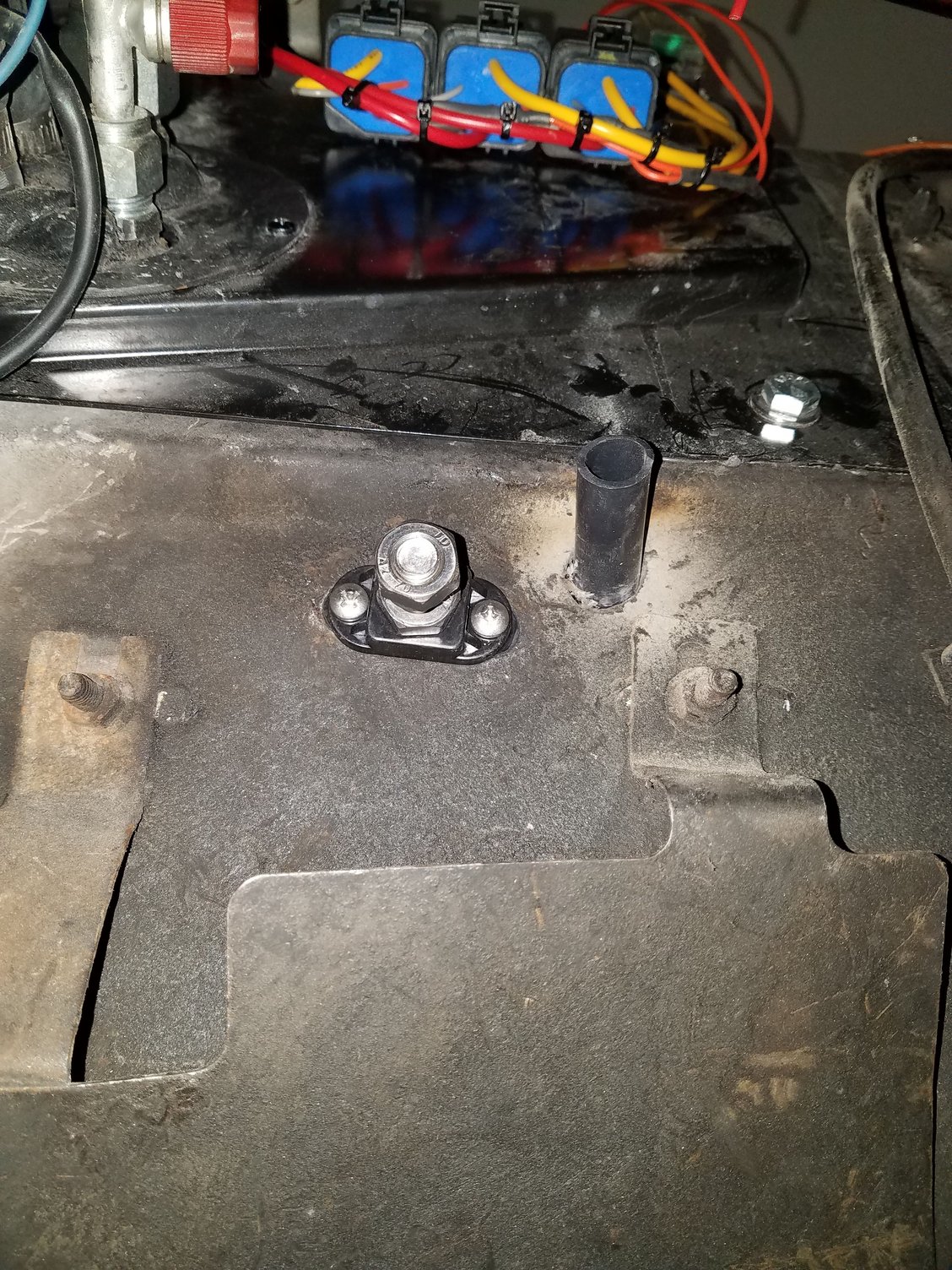

I mounted a ground post with well nuts just past the condensate drain.
I will install a #6 from the bell housing to here.
I do not like using a starter bolt.
I also started the fans back from the front.
Melting Slicks
Joined: Apr 2001
Posts: 2,030
Likes: 363
From: Lubbock Texas
Thread Starter
Le Mans Master
Joined: Dec 2006
Posts: 8,837
Likes: 1,028

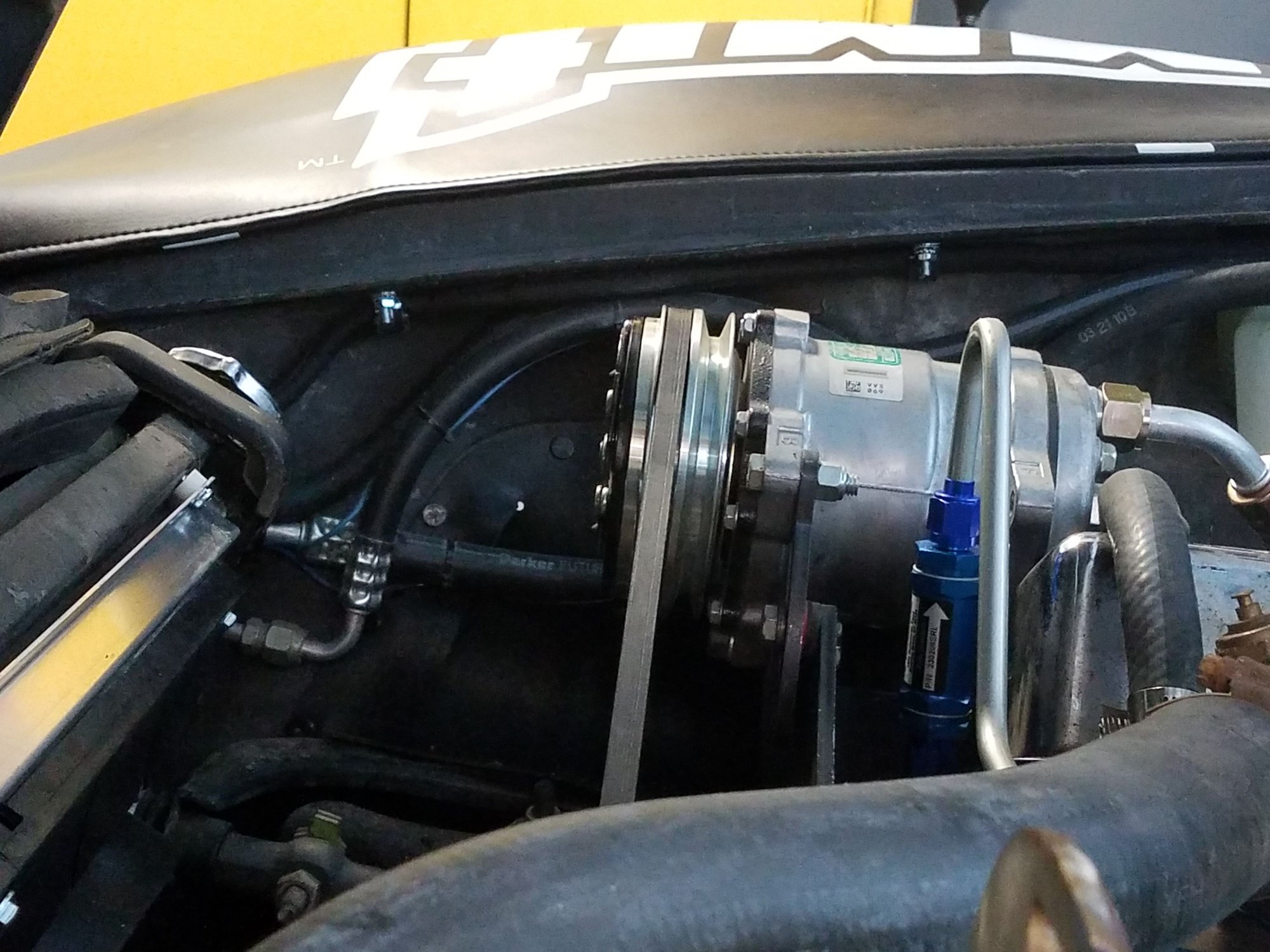

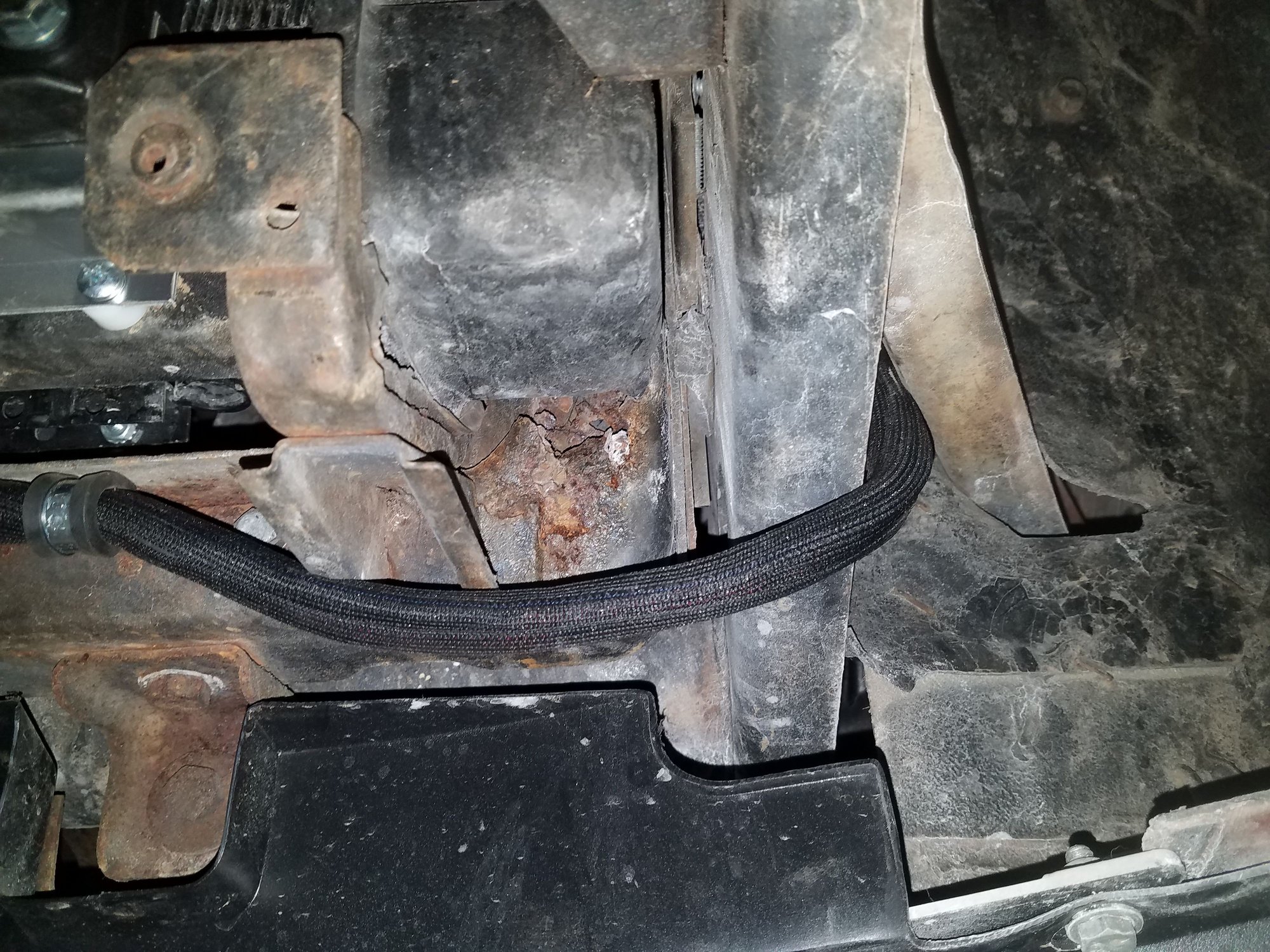

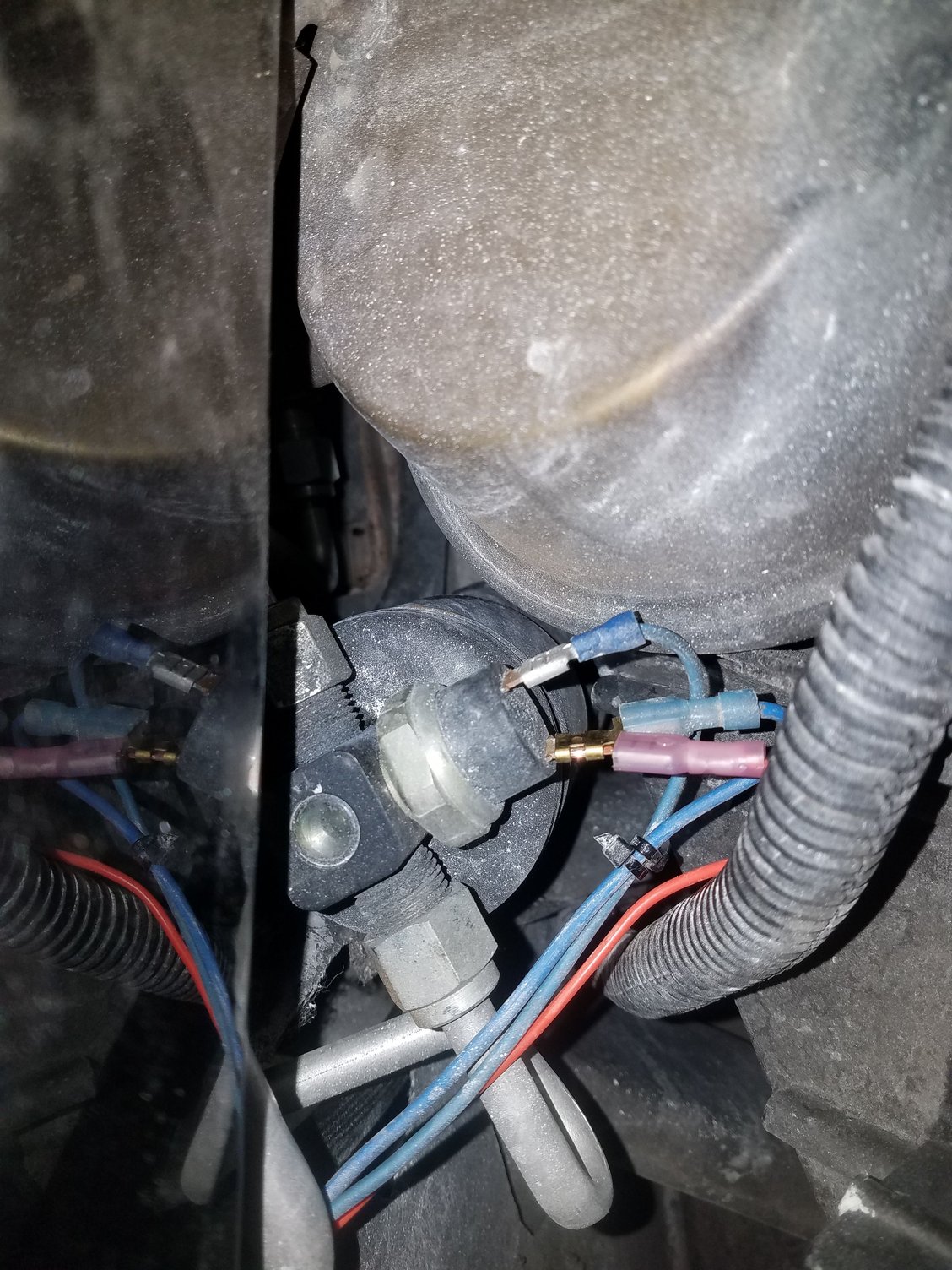

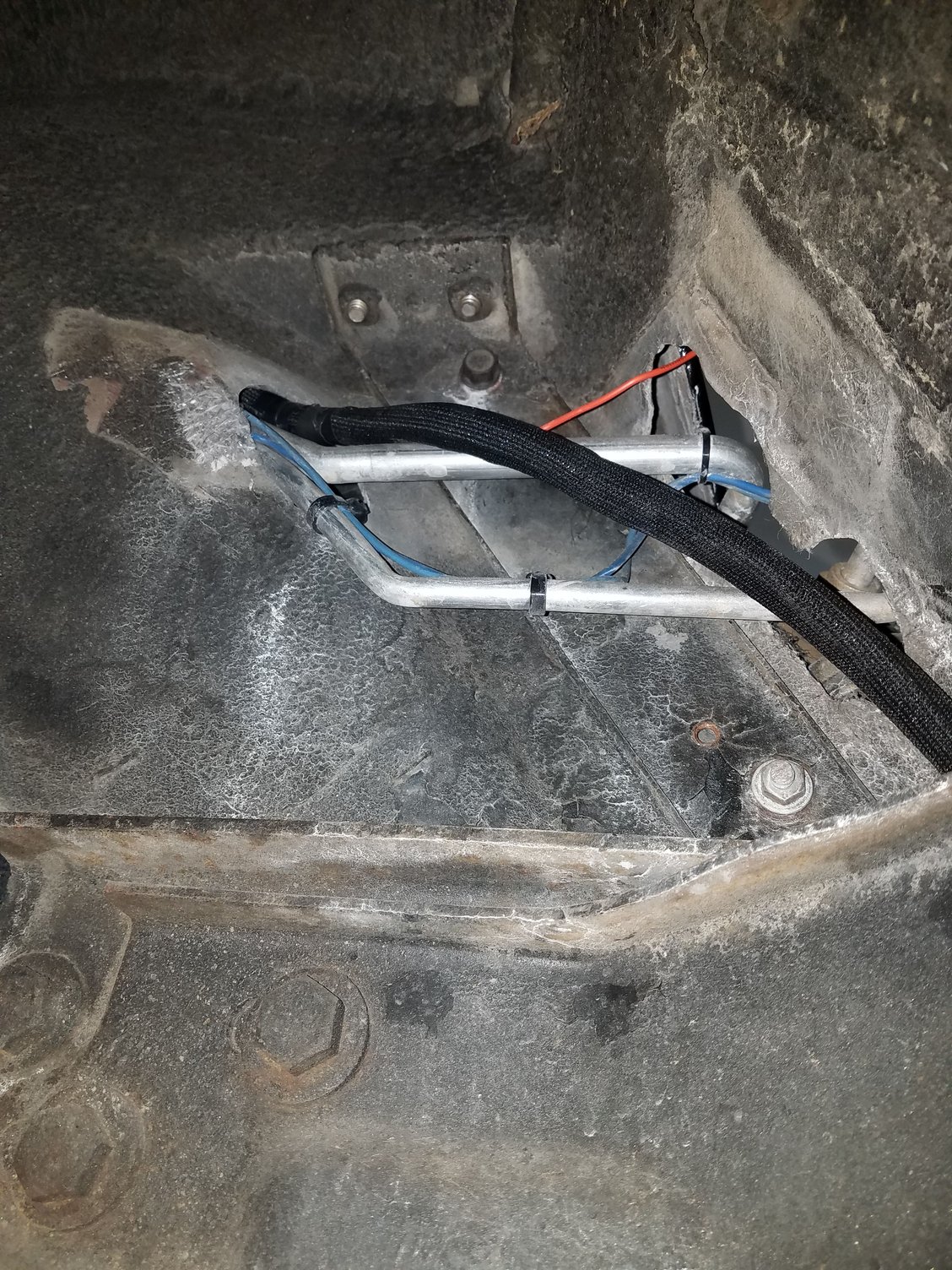

I ran the A/C interlock with the fan wires to the front. It operates one fan with A/C on, and the kick up solenoid.
