Built thread - 2001 z06
I hate to "leave" such wires and stuff - if they dont have any purpose.
Last edited by AndersT; Nov 13, 2016 at 03:29 PM.
It includes
- Vettenuts insulation kit
- New plastic moldings around the doors (mine are not cracked yet, but I would hate to install everything, and then see a crack next summer)
- New headlight bump stops and bronze gear kit from Rodney Dickman (I only needed one of the bump stops but again it seems to be a good opportunity to install new ones and upgrade to bronze gears)
- The Steinjäger extreme HD end links kit (priced well and seems to be worth trying - and if I´m not happy, they will be replaced later).
Besides that I´ve ordered lots of new rubber moldings, trim screws and all the stuff that takes it from "nice" to "perfect"
(and expensive)I hope to make some progress during Christmas and new year - as I have an extended holiday this year.

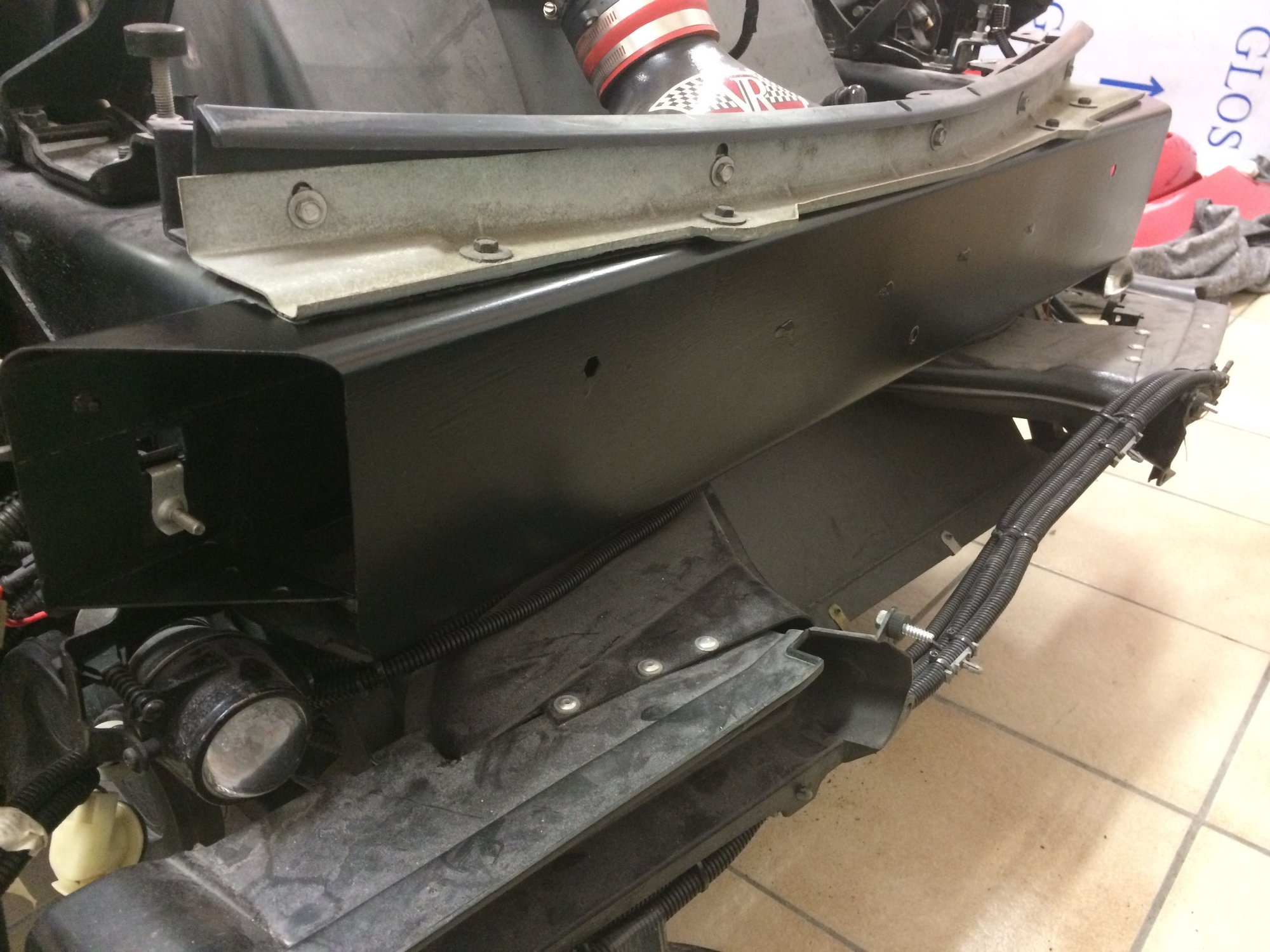

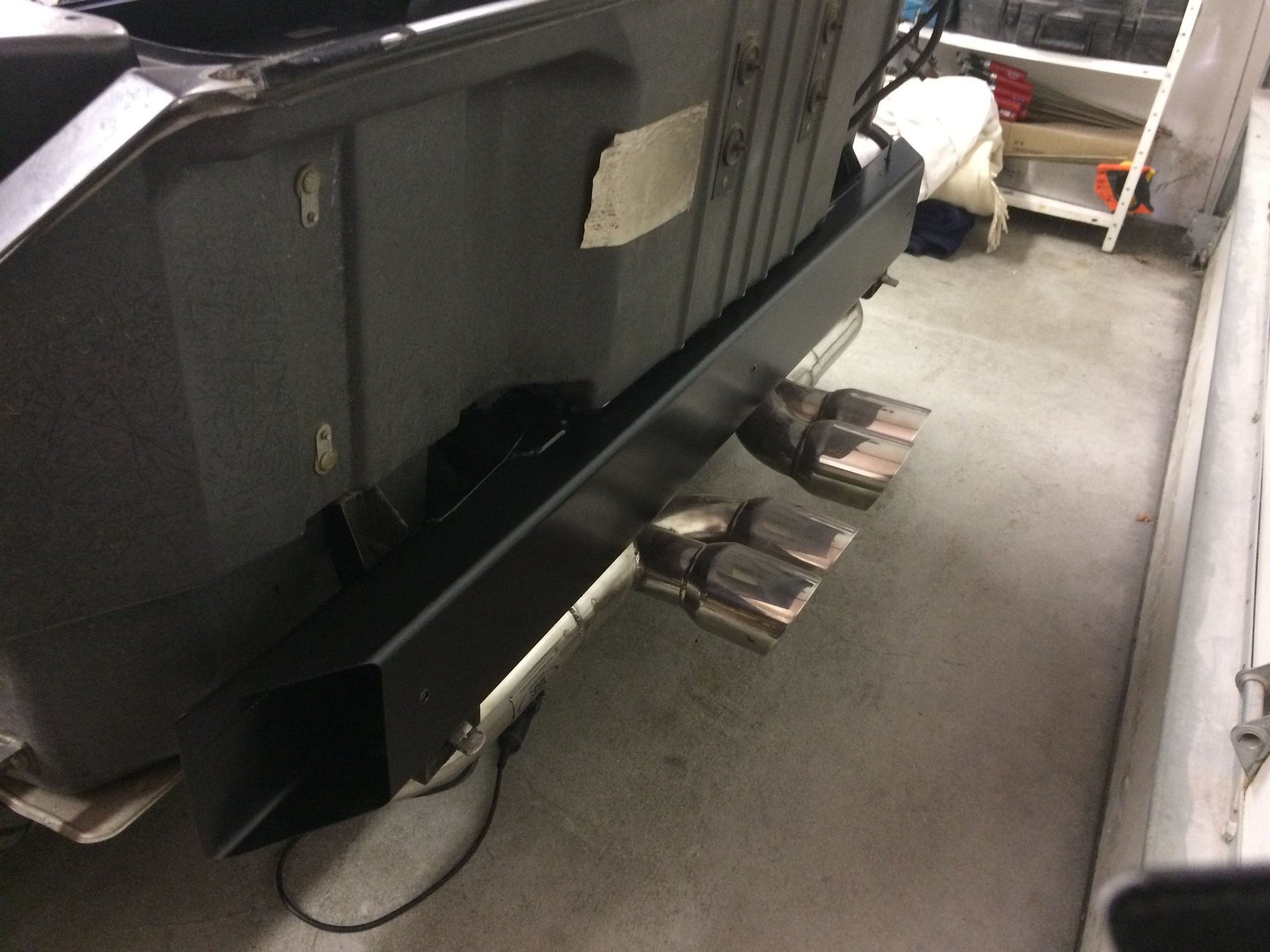

Early in the project I found some beginning rust on the rear frame bar - so I´ve spend the waiting time on sanding and repainting front and rear bar. So far I´m pretty happy with the result.

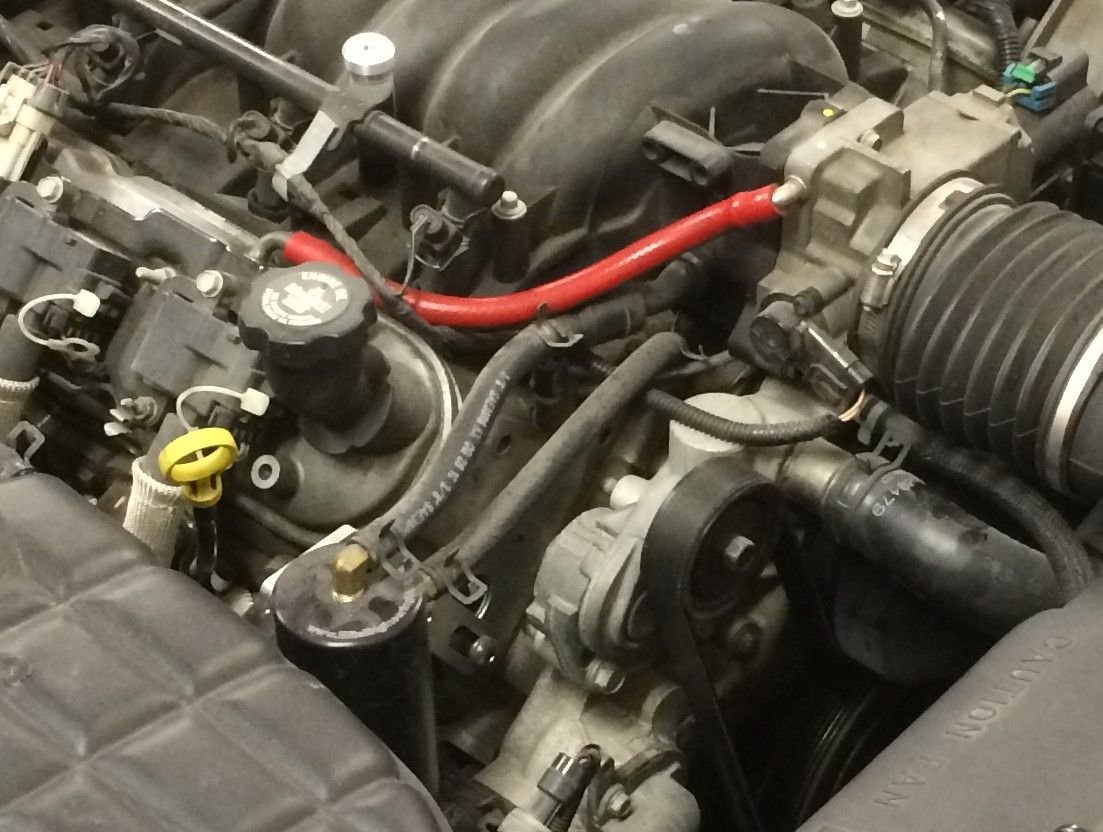

Doing the disassembly I realized that previous owner might have installed the Elite catch can wrong? The PCV valve on the manifold is connected to the inlet of the can - and the valley cover is connected to the outlet of the can. As I understand the instructions from Elite´s website the valley cover is inlet and the intake manifold is outlet on a 2001 LS6. Am I right that it is connected the wrong way? Here is the picture as installed by previous owner:
Could this has done any damage to the engine? Or anything to take care about now? I´m not that skilled into our engines - so any advice (even the most simple) will help

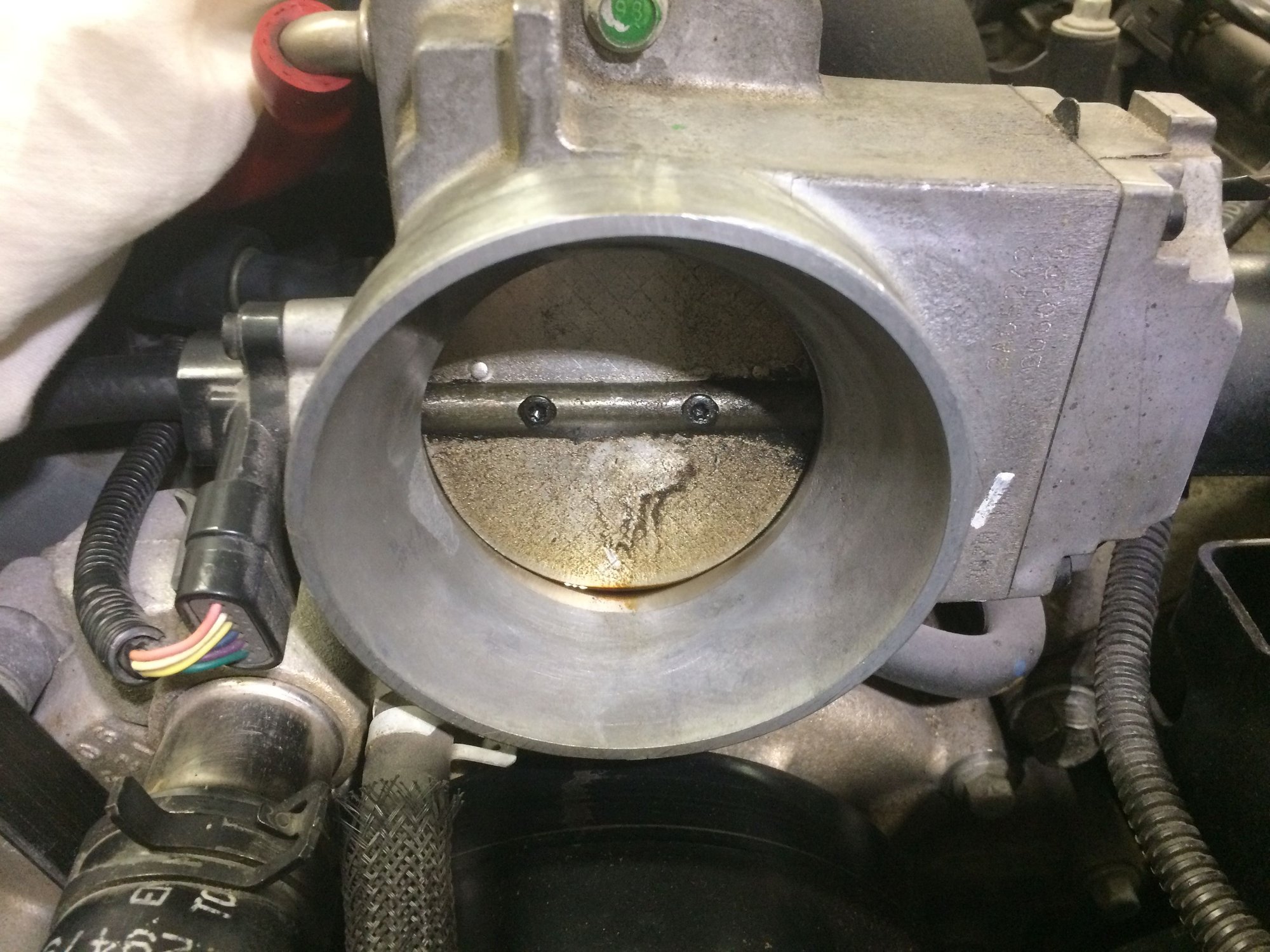

There seems to be a lot of oil in the TB - is it normal, or caused by the catch can connected wrong?
I´ve read that it can help putting the assembly in the freezer, as the aluminum will crimp and then heaten up the top with a hair dryer when trying to un-screw it.

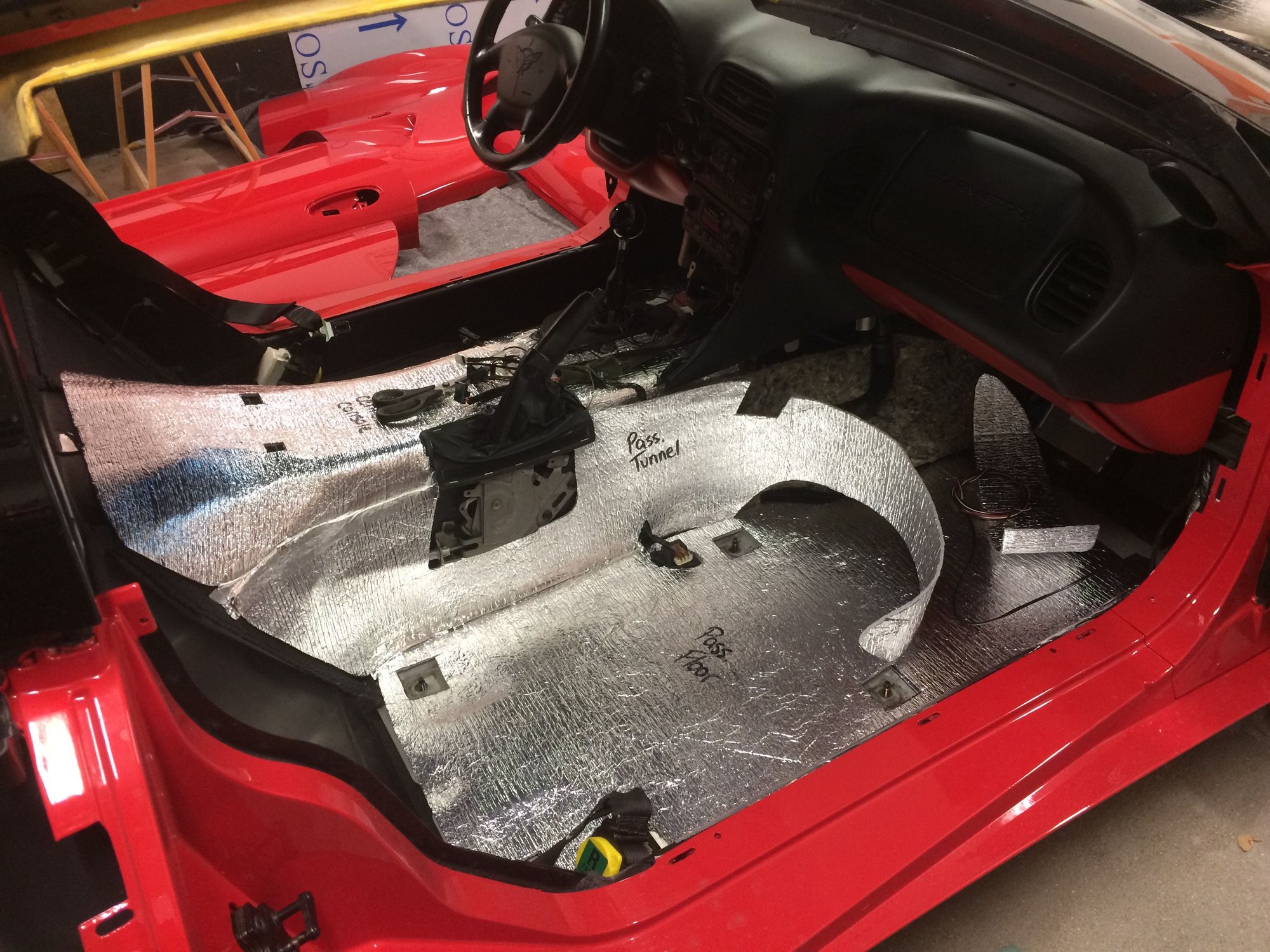

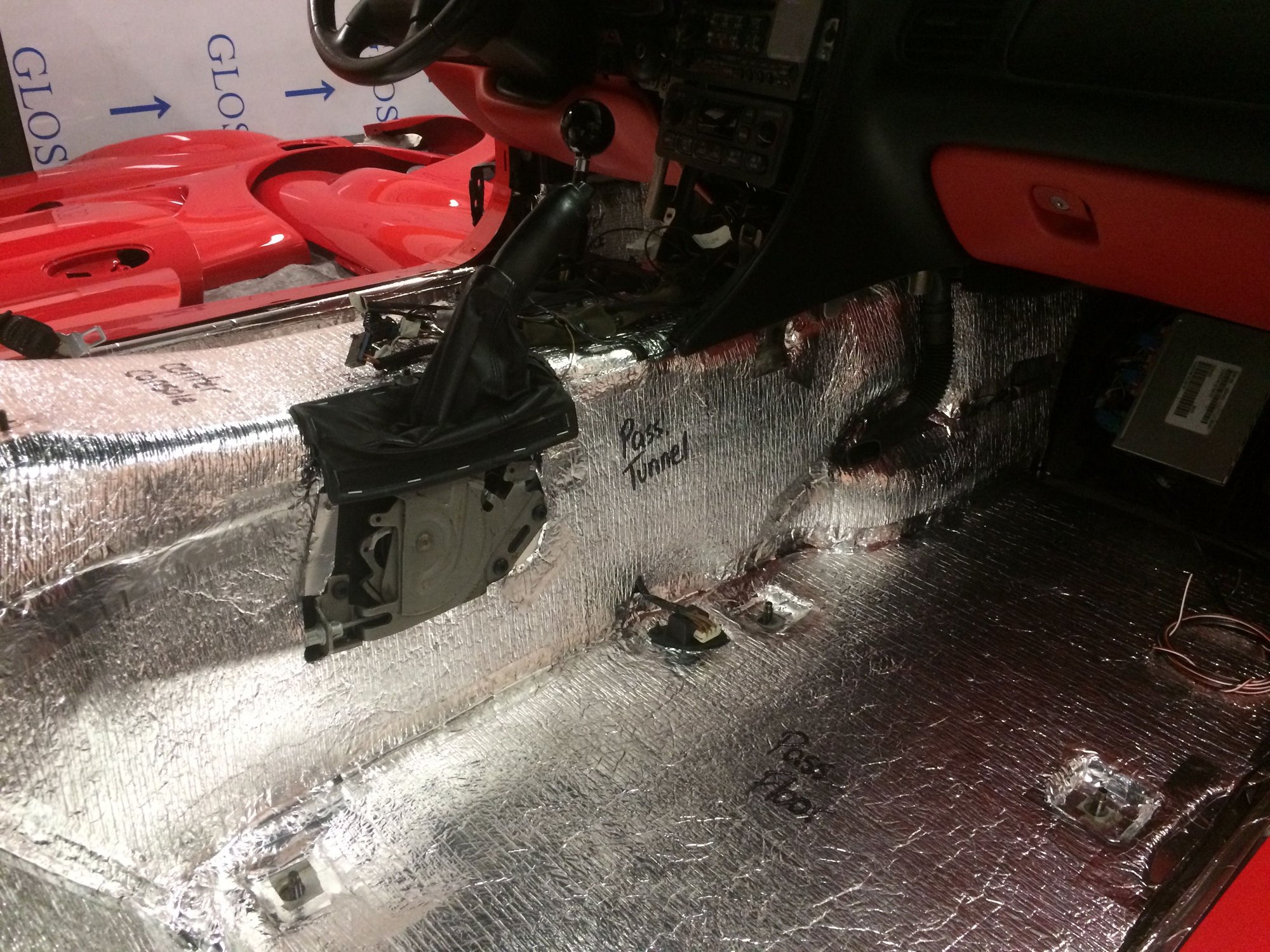

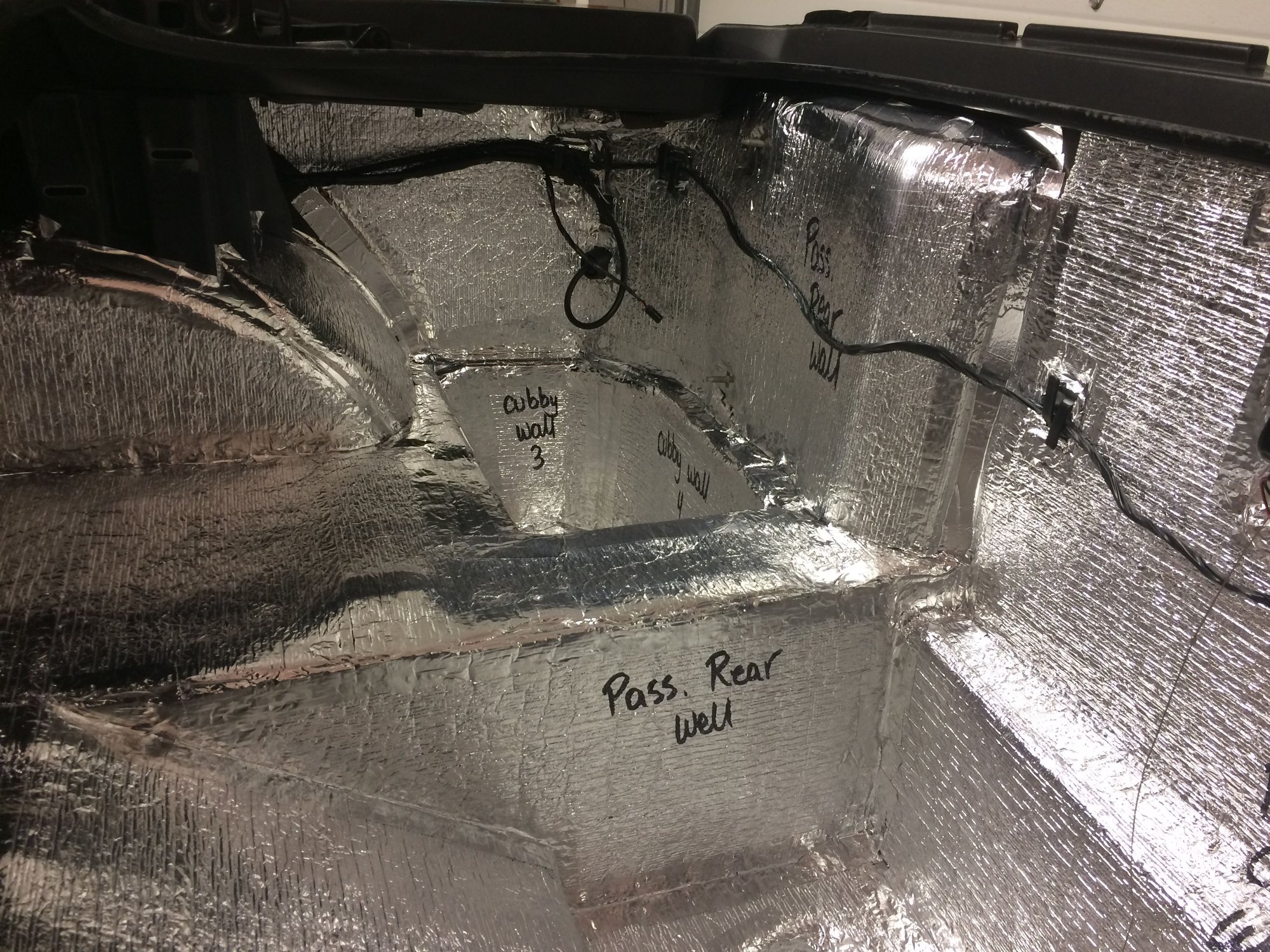

Tomorrow I will begin installing the insulation kit from Vettenuts, and doing the final mods to the harness (e.g. new hidden antenna behind the rear fascia & harness for future rear exhaust plate).
My plan is to get everything from rear fascia to the doors assembled during the next two weeks.
I like the result - though I might used more tape and spend more time detailing the edges than most would do

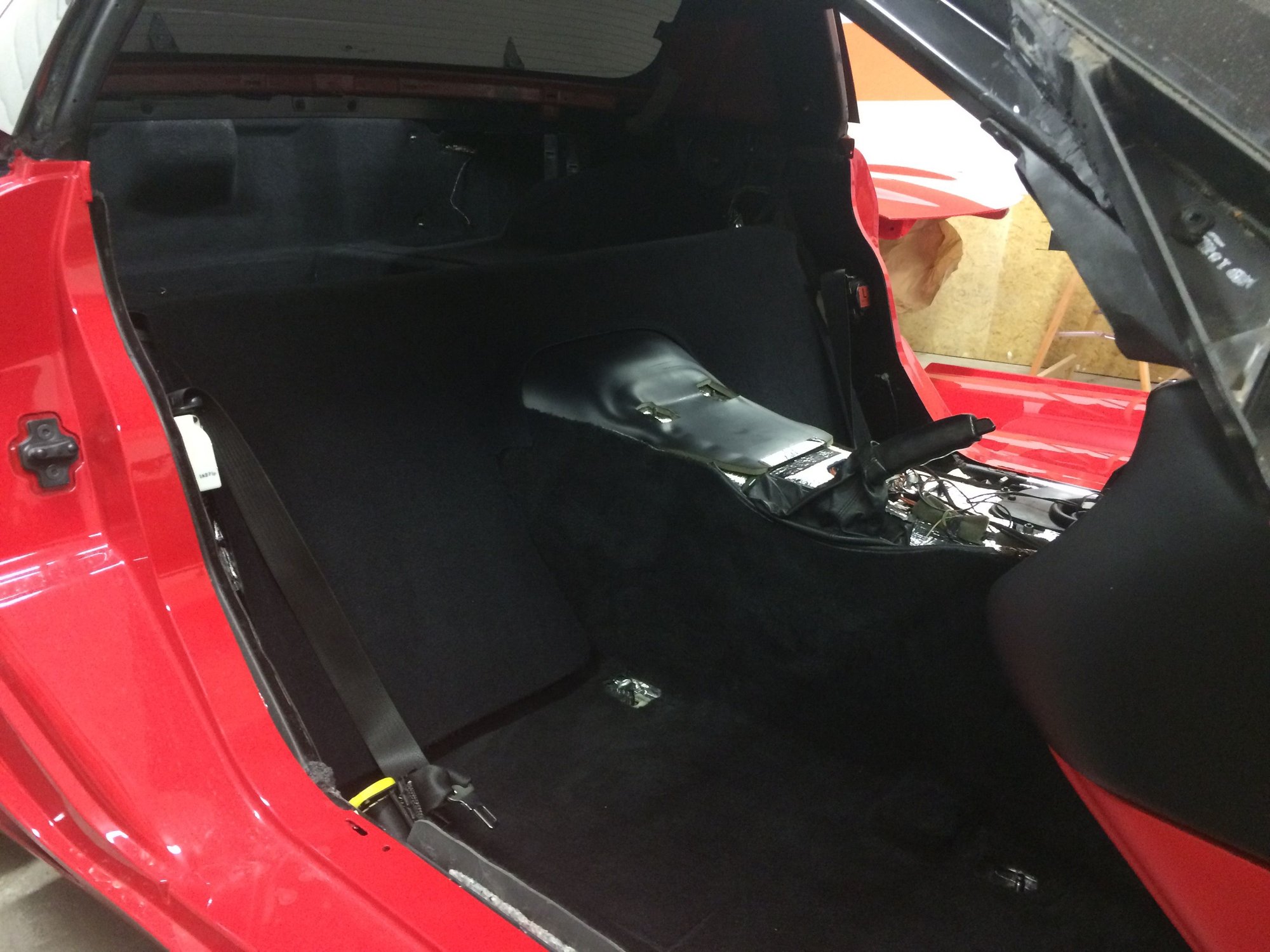

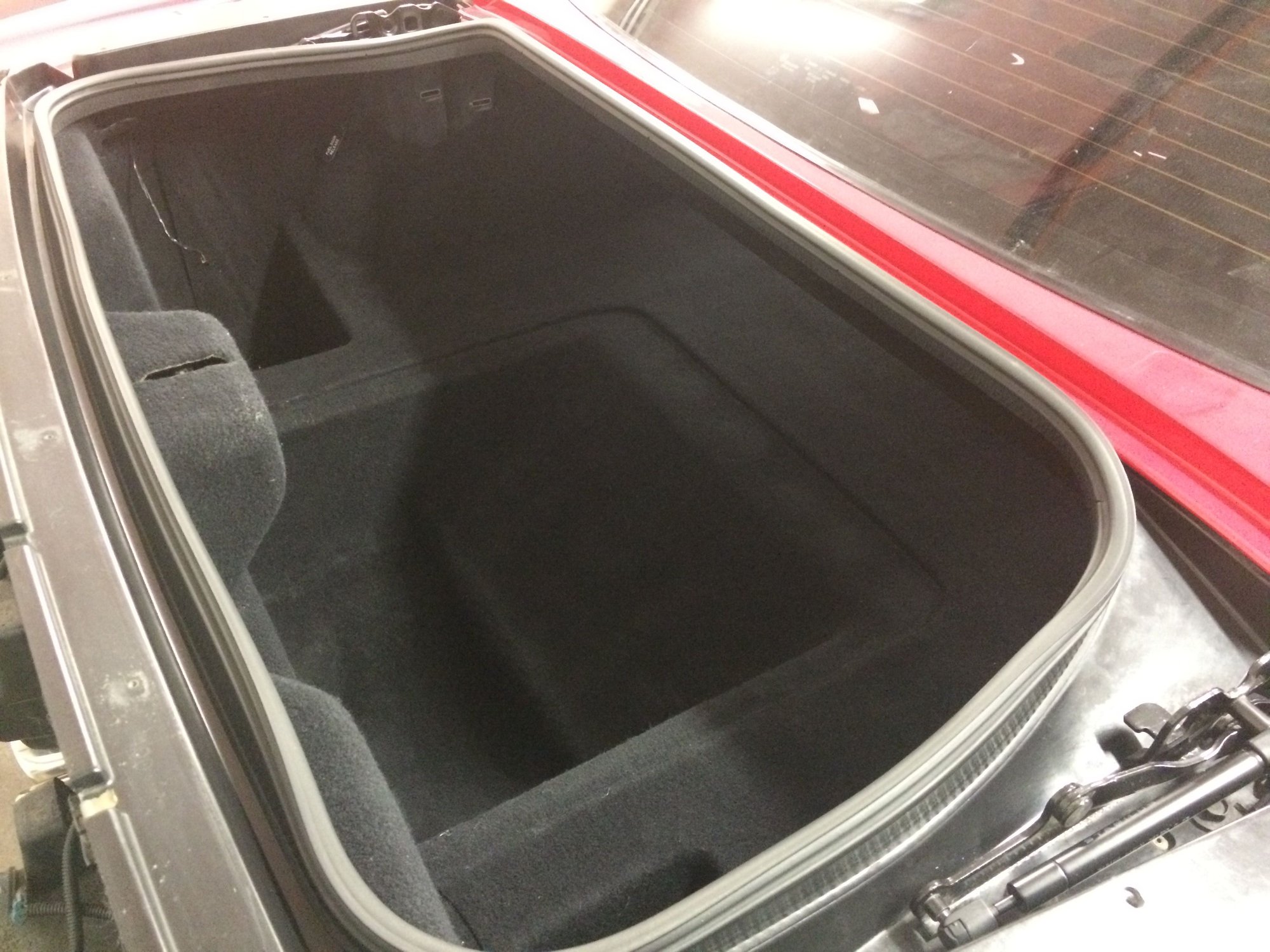

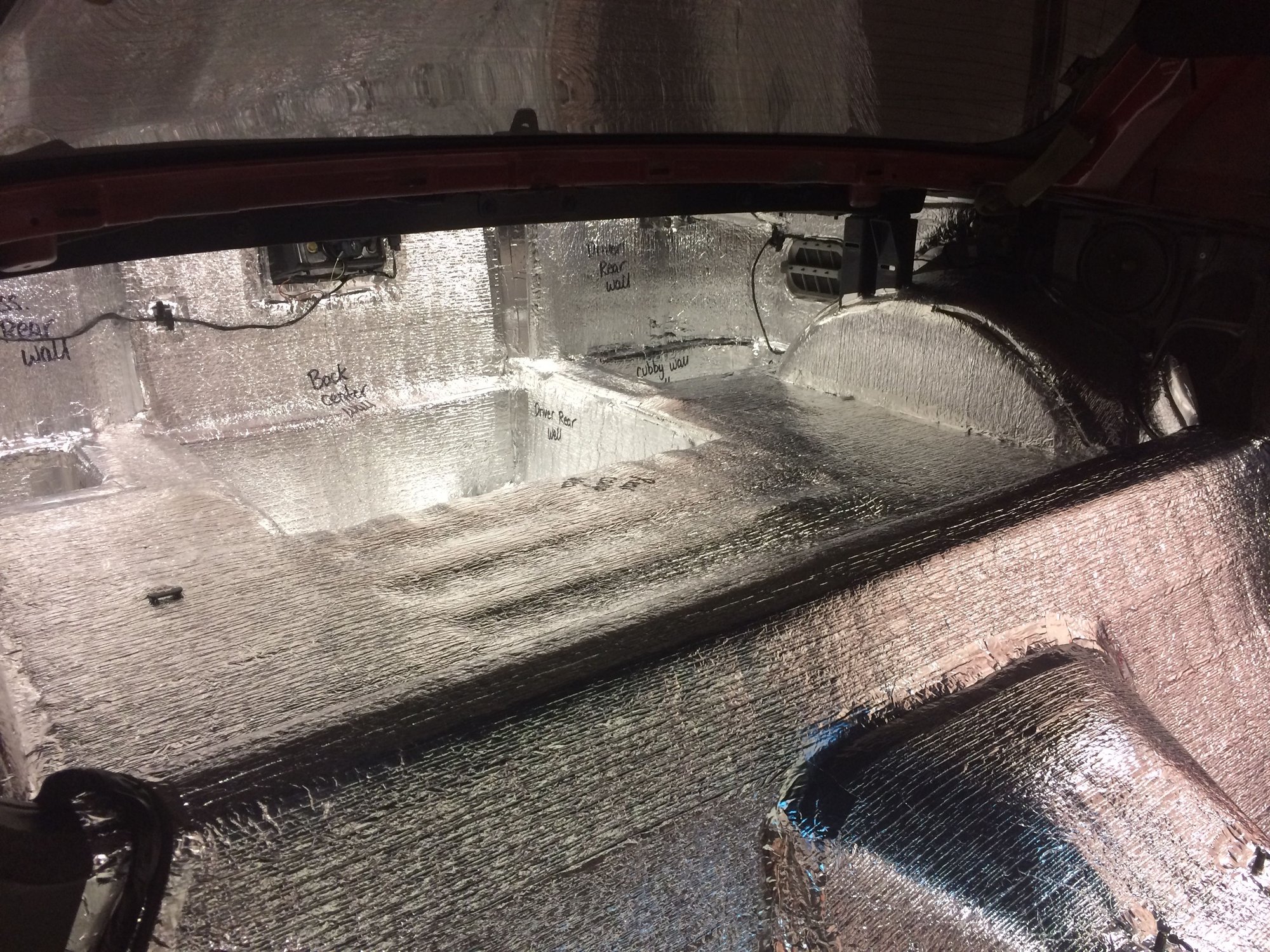

The carpet is re-installed again - fits nice and doesn´t reveal the extra material.
The Best of Corvette for Corvette Enthusiasts

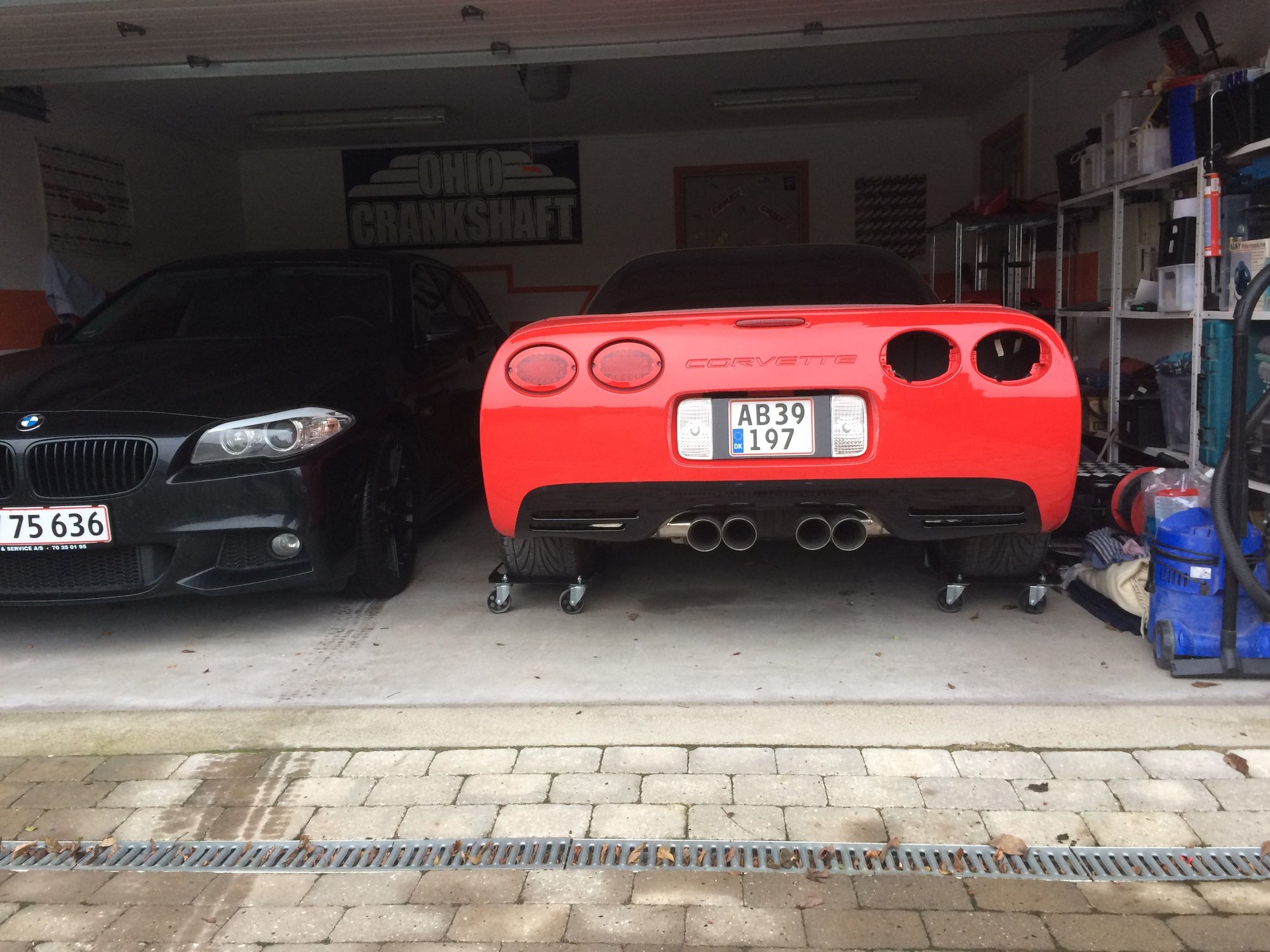

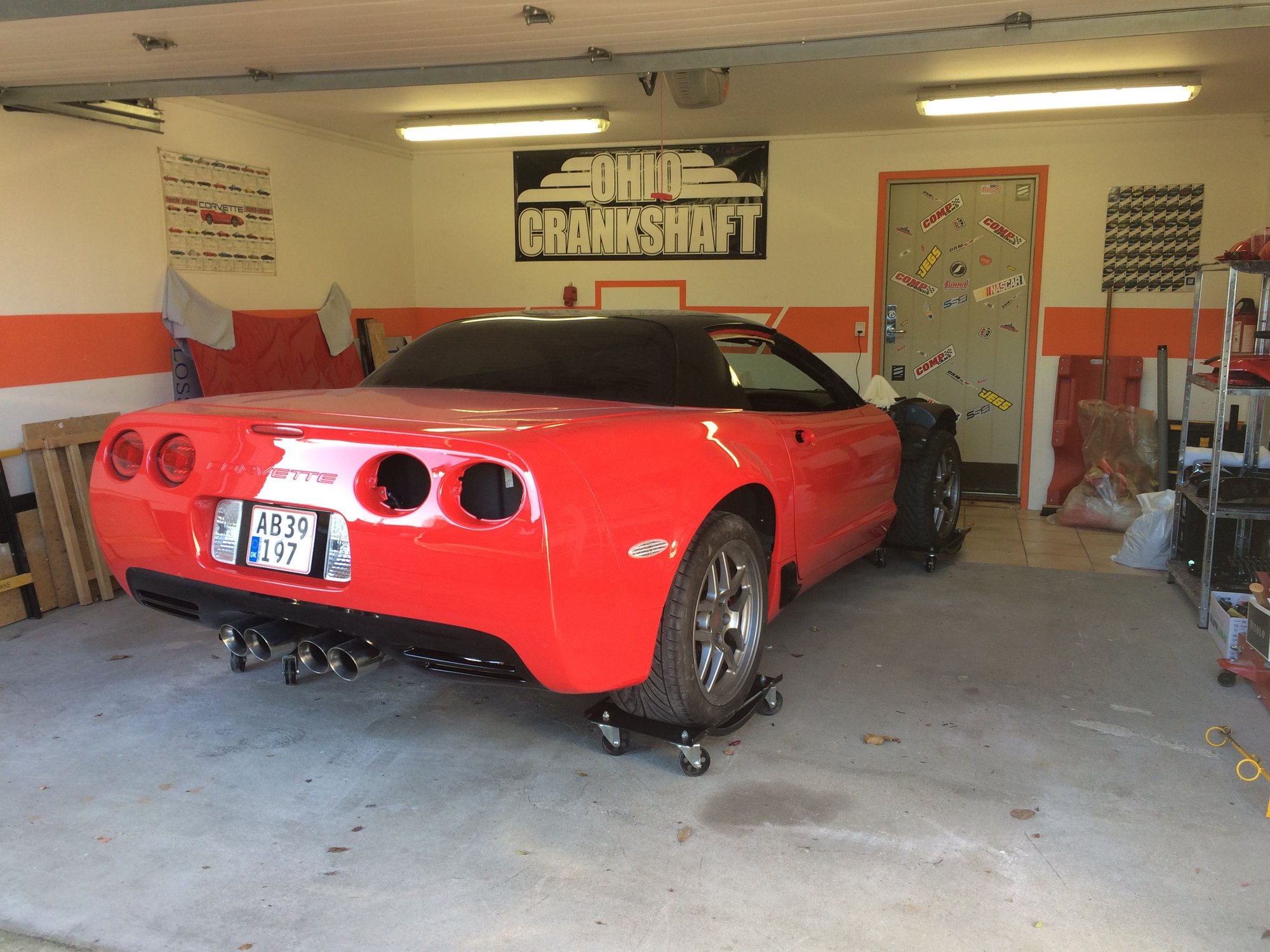

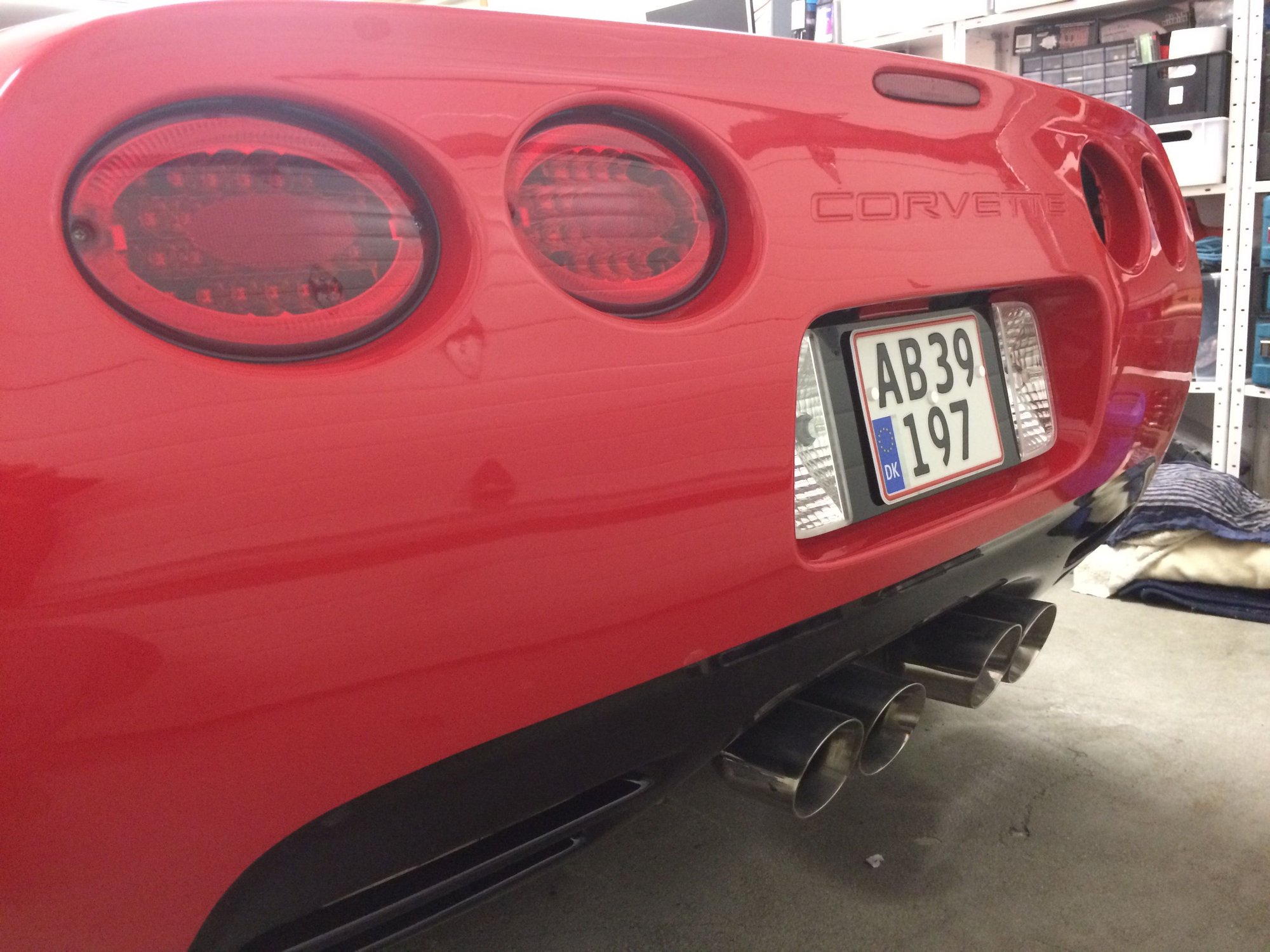

So far the rear part is 98% finished. I only need to mount the right side tail lights, when the new antenna is installed, but all other lights are in place. I really like the clean look of the halo mod tail lights from Radioflyer installed next to my custom black painted license plate mounting board - only the screw´s in the license plate itself is visible.

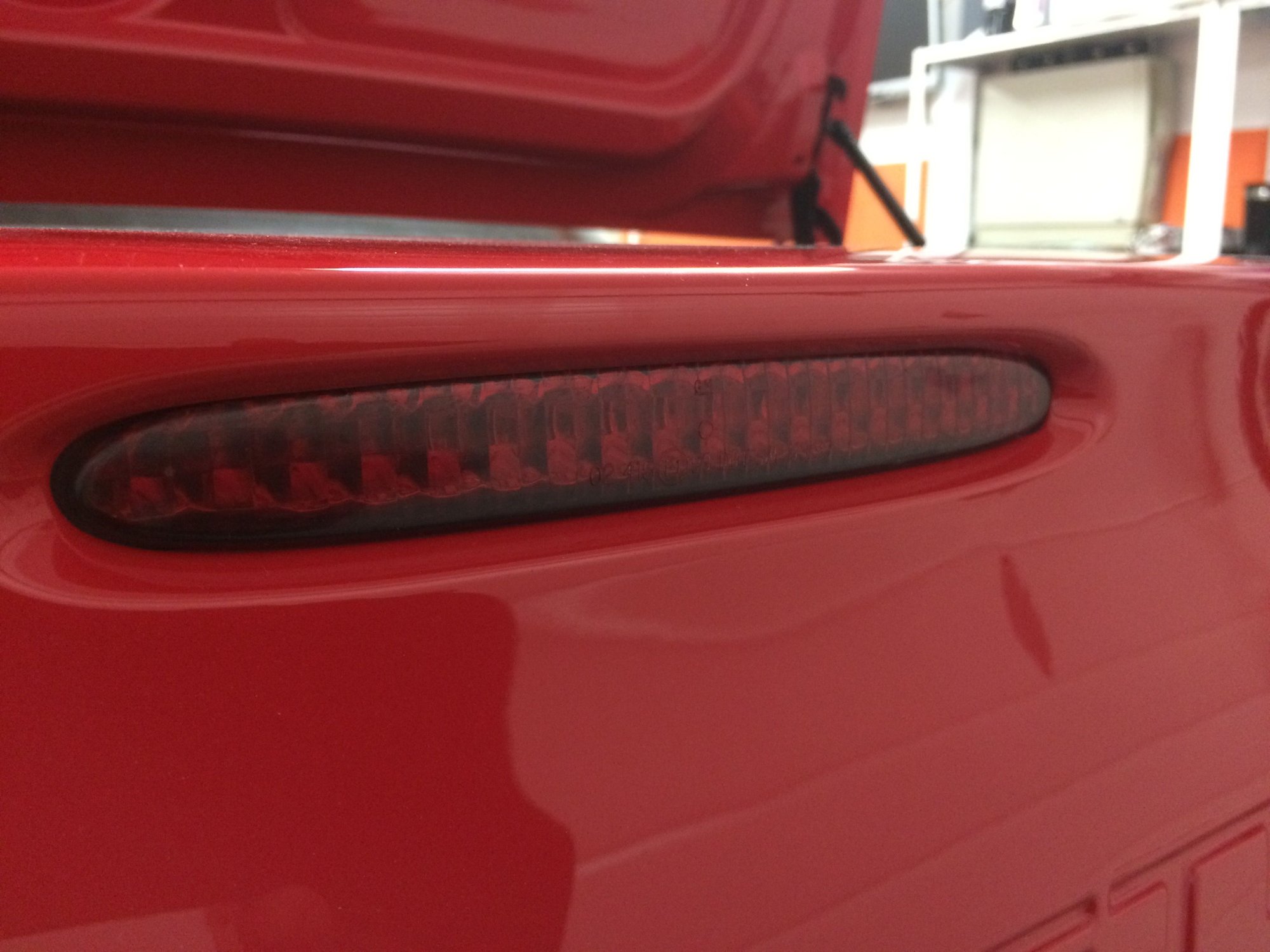

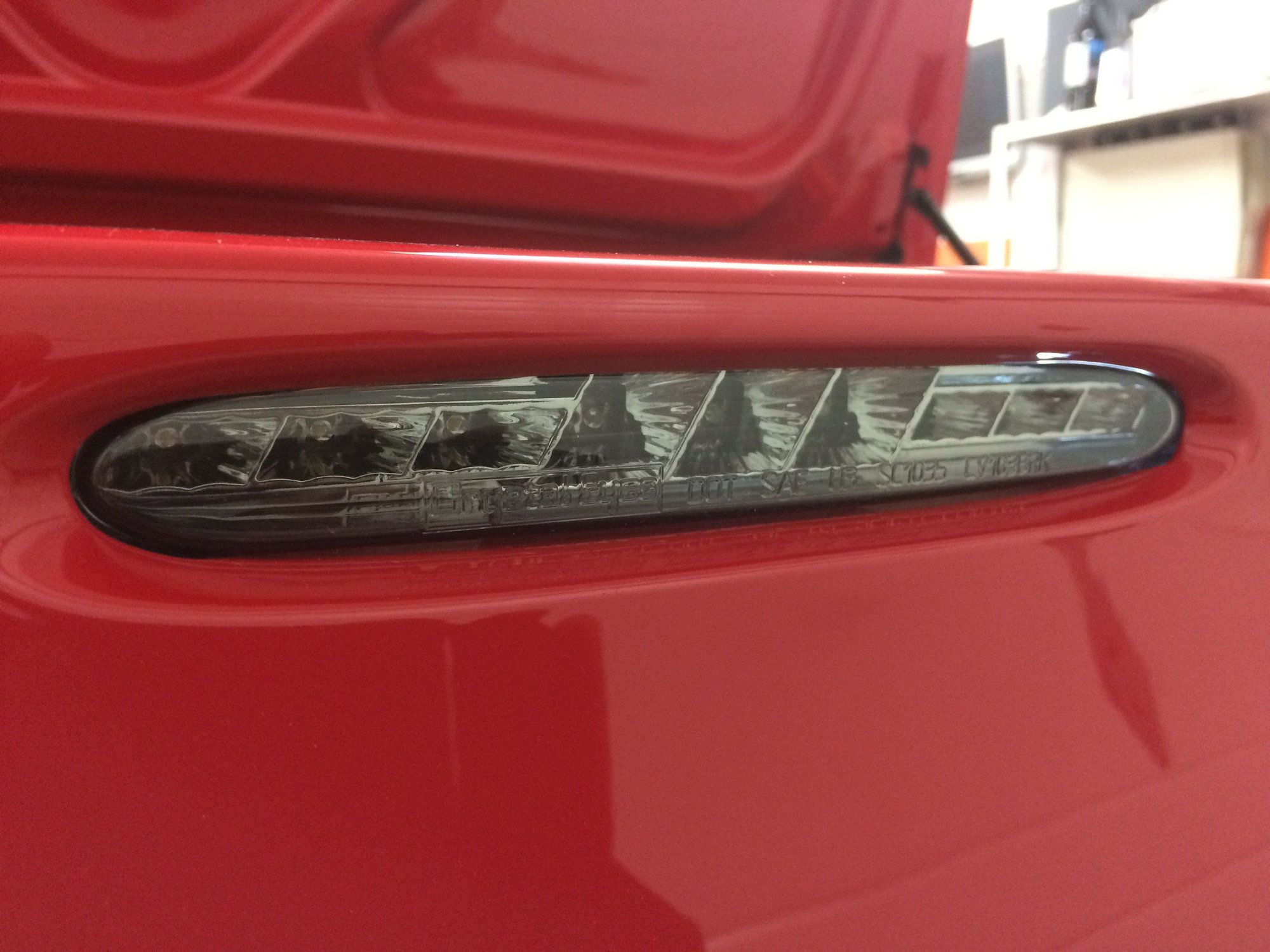

I planned to use this clear LED brake light, but IMO it just doesnt fit in with the halo tail lights. So I ended up re-installing the OEM brake light - which much better matches the design of the tail lights.

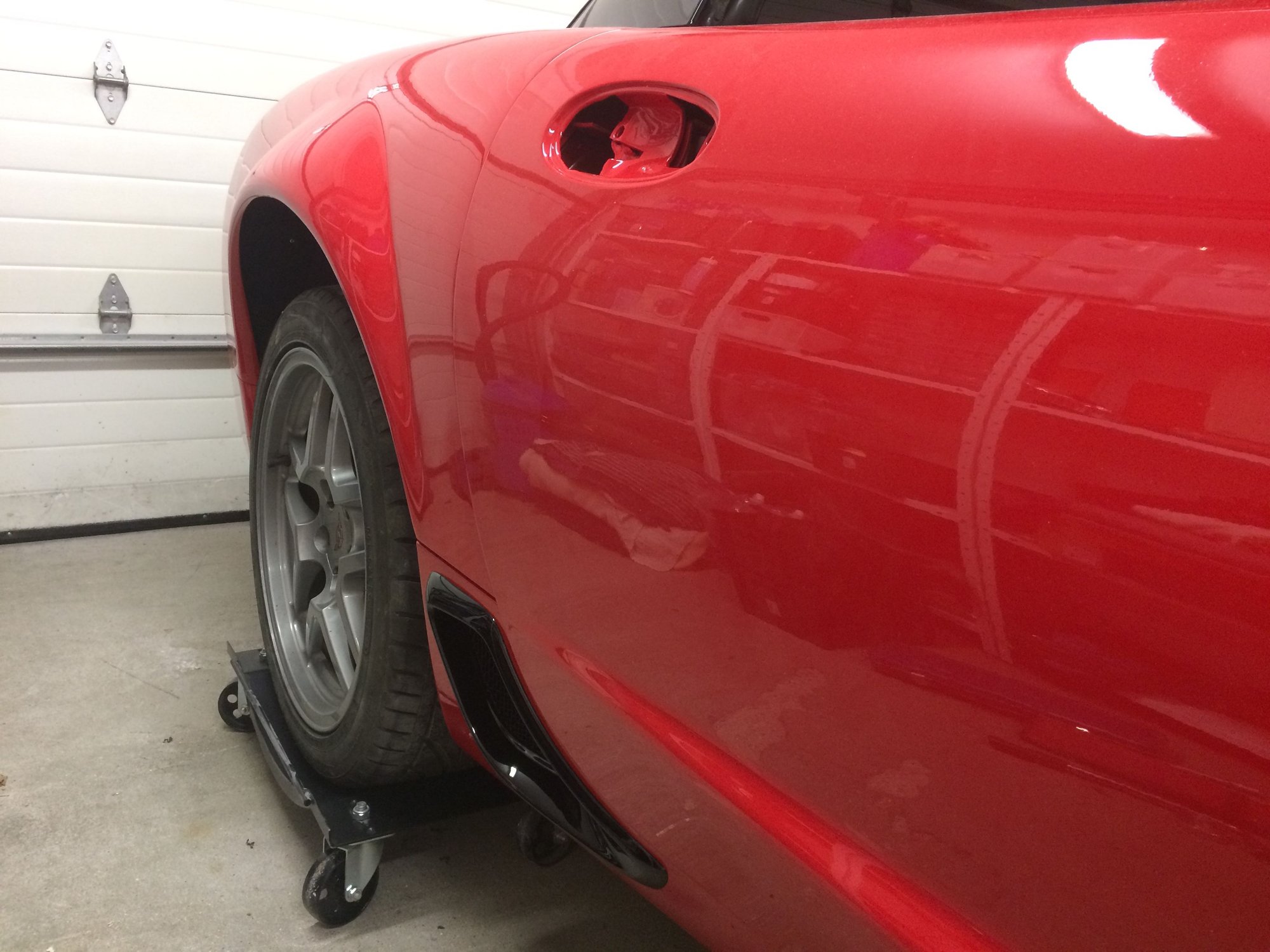

The brake ducts looks awesome in gloss black. They will get hit by rocks, but it´s always a risk being glossy

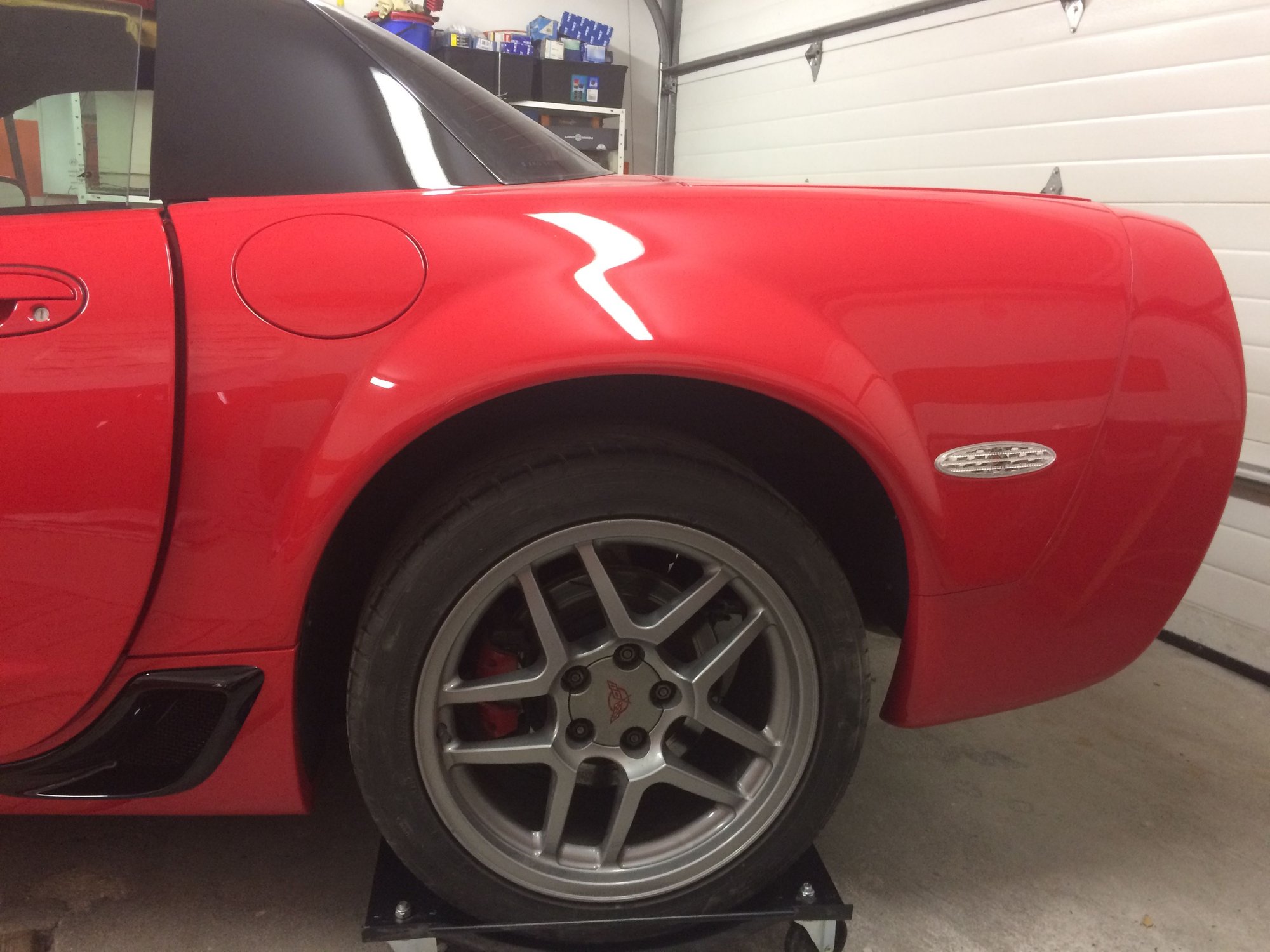

But the fenders really need the big rims...- the 295´s look skinny in there.

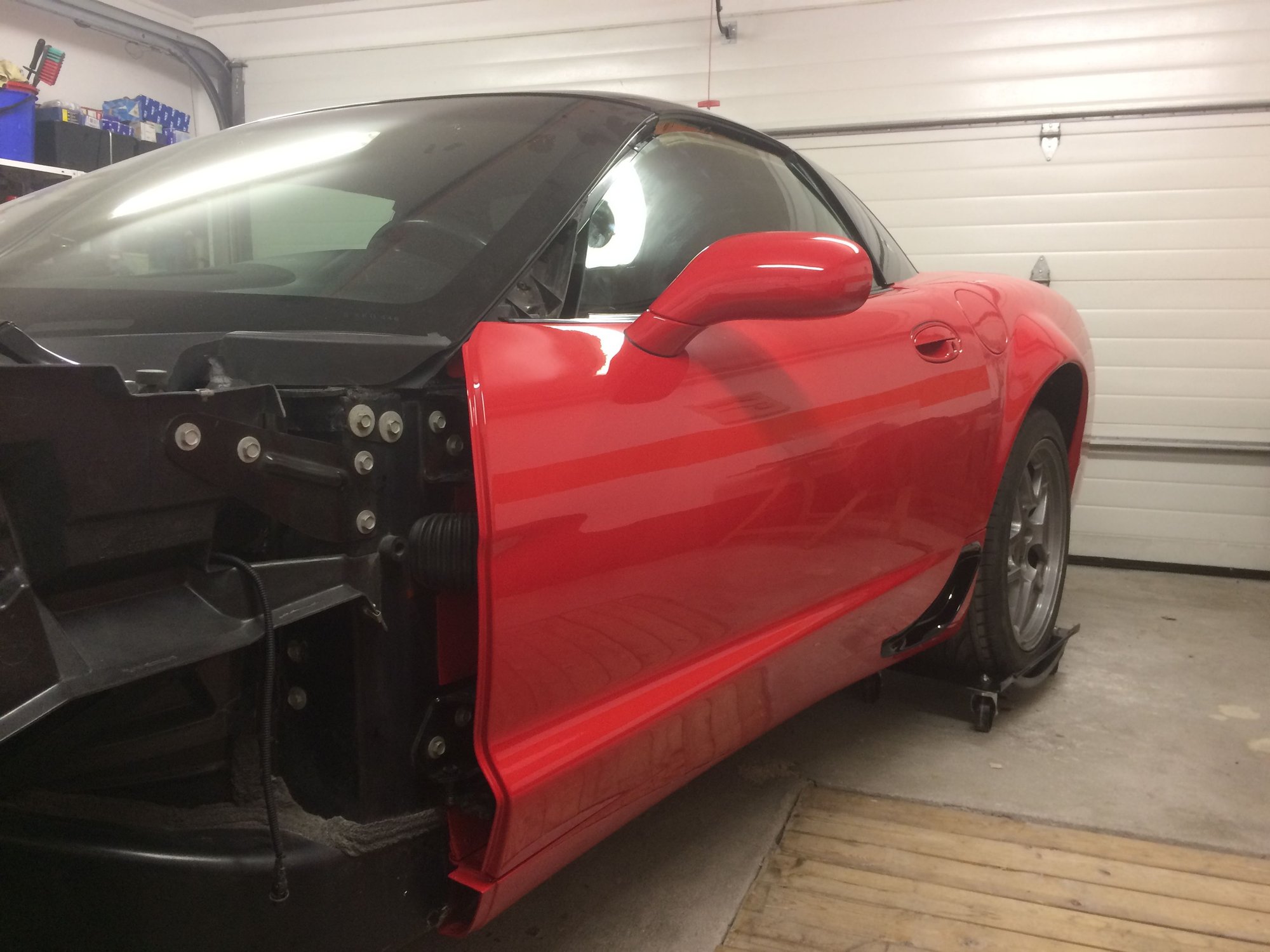

Next step is installing all the hardware in the doors and deck lid, adjust doors and lid - and work my way forward to the front fascia. And the wait for spring and sunshine - to take some nice photos outside where the paint can reflect the sun
Last edited by AndersT; May 13, 2017 at 05:26 PM.
Thanks for your inspiration

If getting the ducts wrapped on that day it would be wise to remove the duct and have it and the rocker panel area wrapped while separated. It will be a cleaner job and easier for the technician.
But now the DD is out again, and I´ve continued the built.

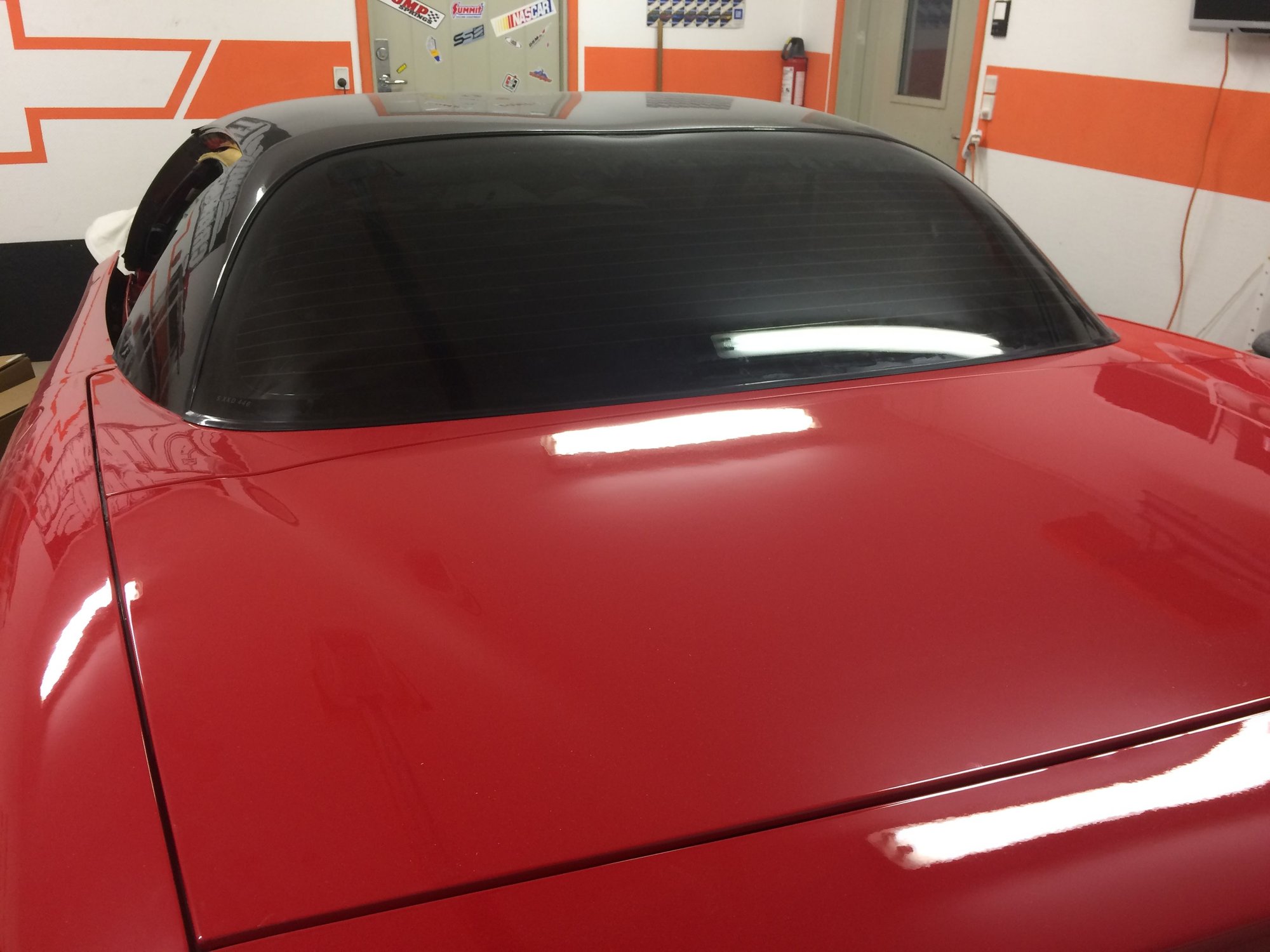

The rear part is all done (sorry for the lack of new pictures) including the new antenna hidden behind the passenger side tail lights. I really like the clean look with out making a hole through the fender - even though you can get some very short antennas. I still need to install the carravaggio rear spoiler but that will be one of the last steps in the built.

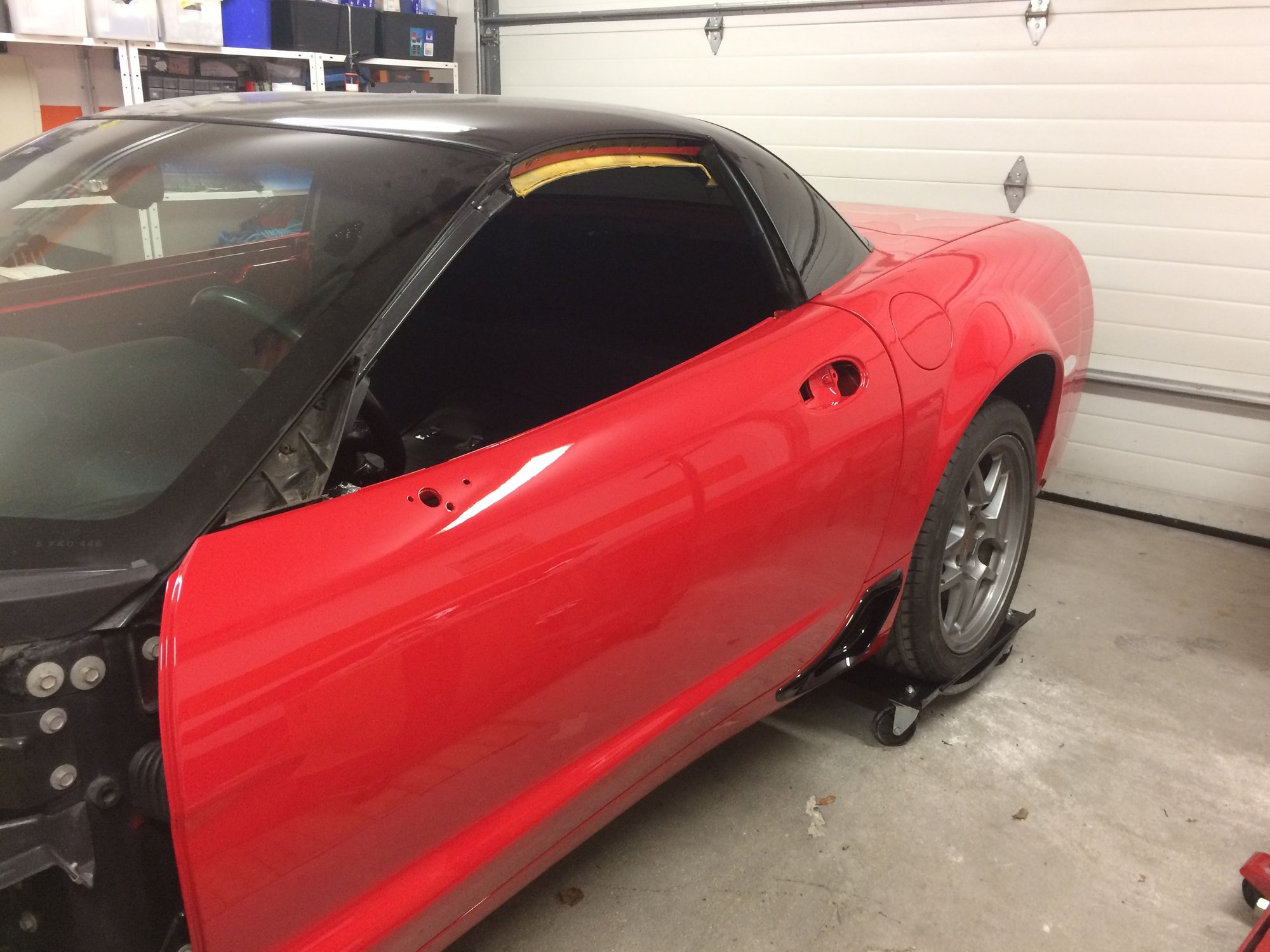

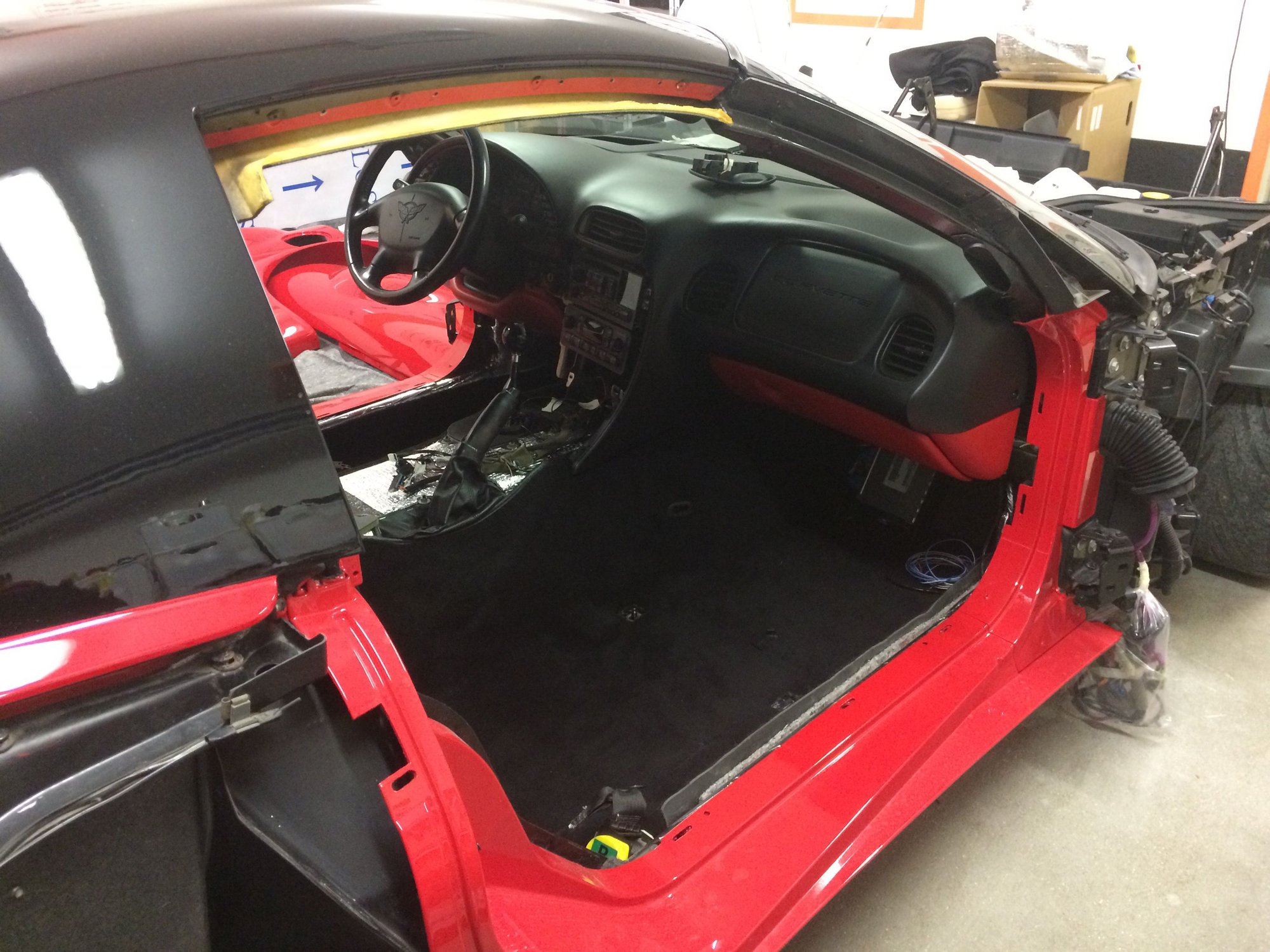

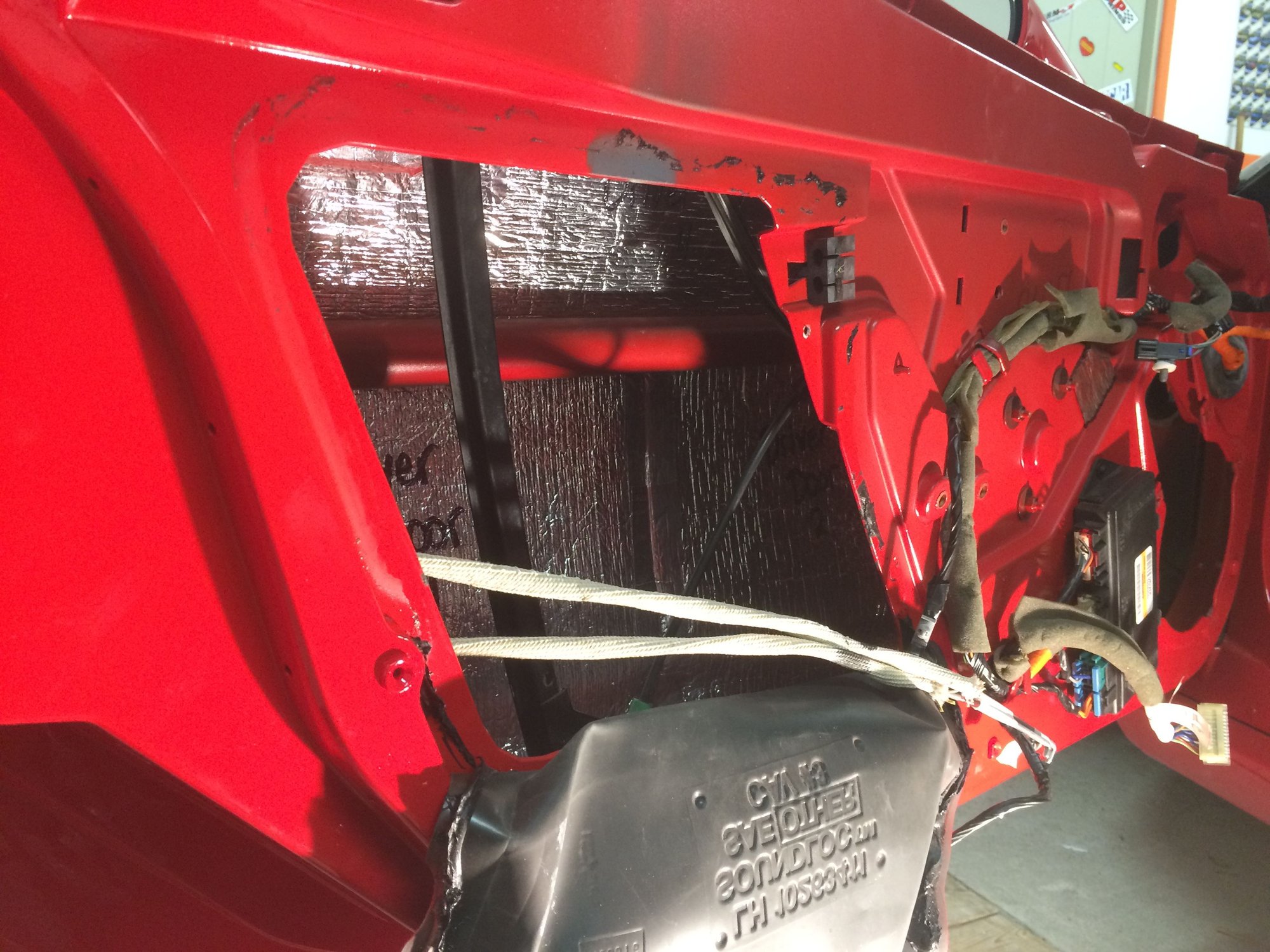

I´ve moved along and started installing all the hardware in the doors. It´s a pretty tight fit and I need to get room for the insulation kit too.
I will need some good advice setting the Stance coilover kit. The installation will be done later and looks pretty forward - but I could really use some experience in "settings" as I do want it to be low, but I dont want the fenders to hit the tires. My goal is a rear stance around 1,5 inch from tire to fender, and I´ve read many comments about using a setting between 8-12 out of 16. I would really like, if anybody could share their experience in setting coilovers with 345-tires and wide fenders. I dont like drilling a hole on top of the rear shock mounts - so I hope to be able to make the final installation at first attempt. I will start another threat with the subject - but please chime in here too if you have any good advice.

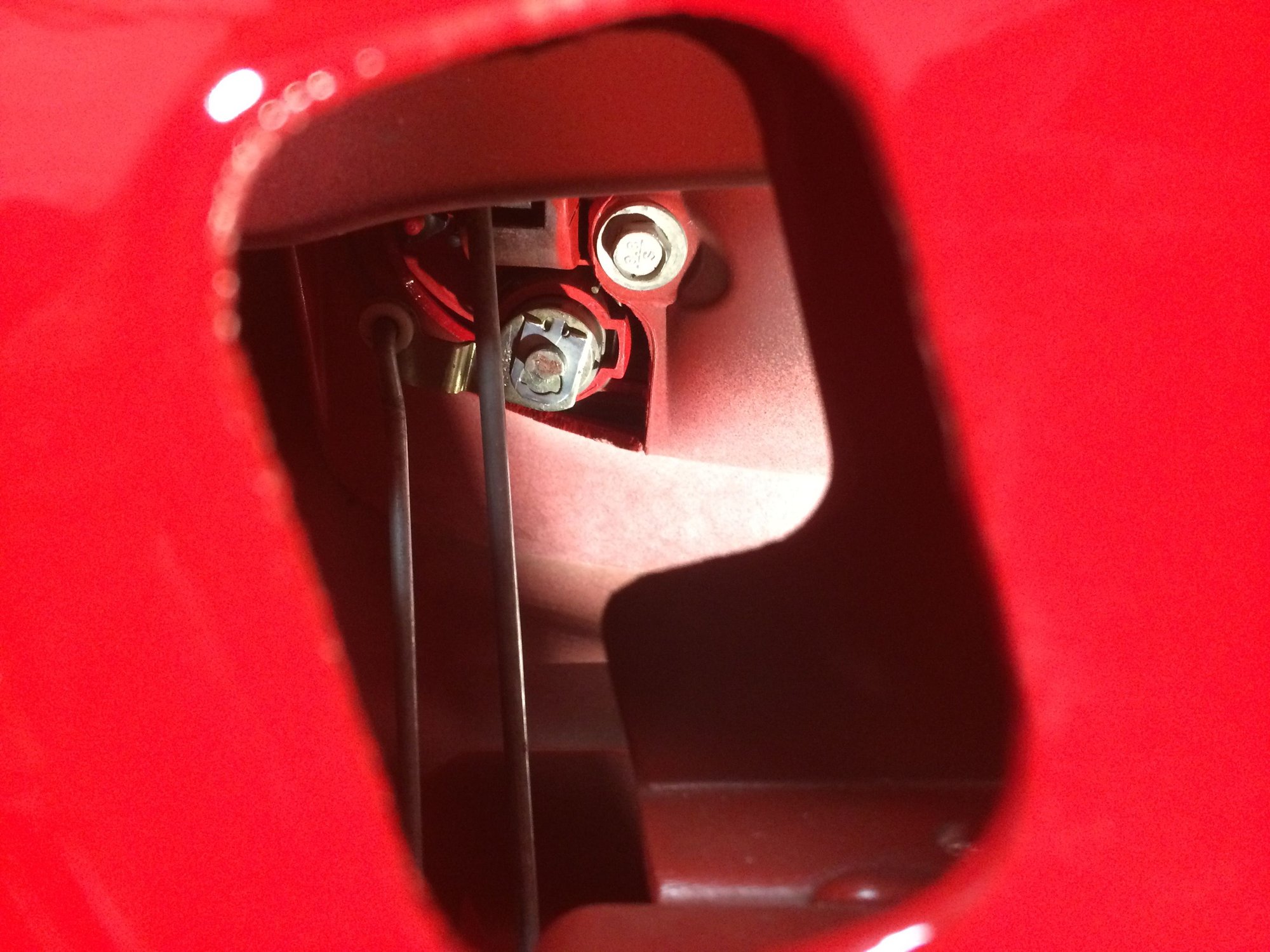

The little clip/retainer on the lock cylinder (drivers side) was a PIA to mount - not enough room for many tools - but after doing it once, it seems pretty forward to do again.

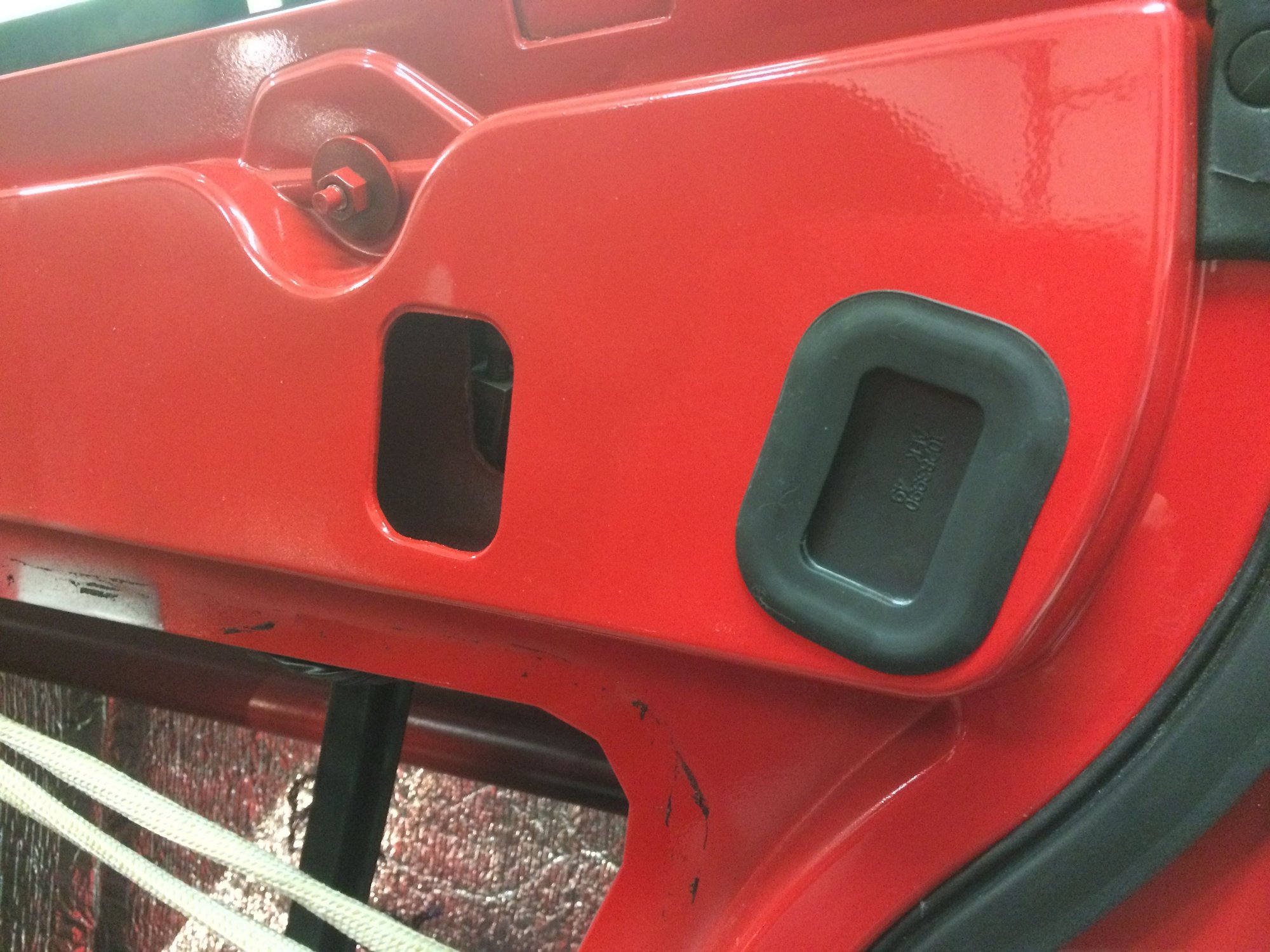

The factory had installed some sort of material to close the access holes in the doors - but I found these rubber plugs at Cultrag, that fits very nice - and best of all: they are not sticky and its very easy to get access (part no. 10283990). You need 4 for each door.

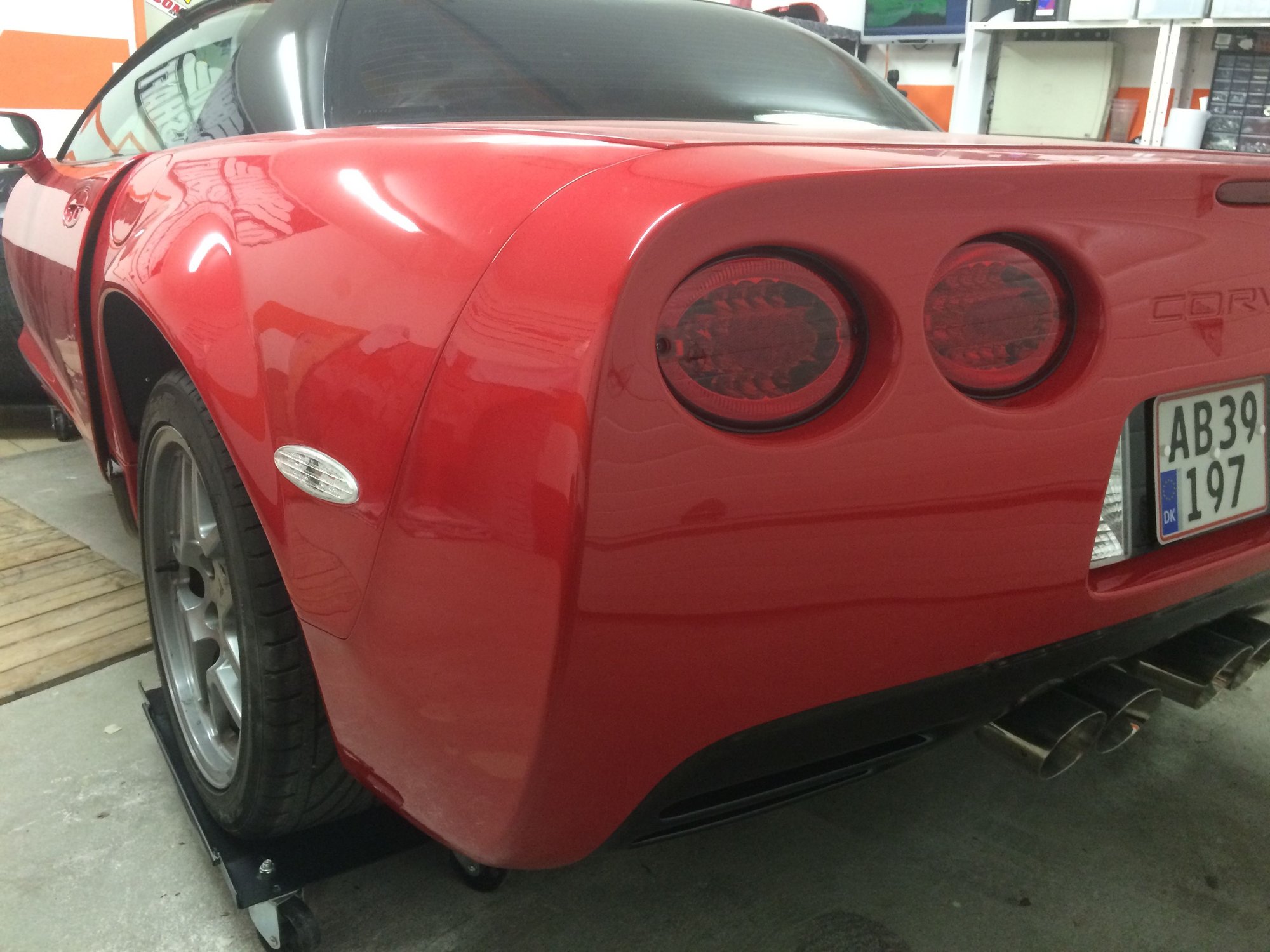

I´m not sure about the clear rear marker lights - but have to decide finally when the built is finished and see how it looks together with the clear front side markers. For now the rear markers seems pretty "visible" - maybe a little tint could be the solution - whats your opinion?

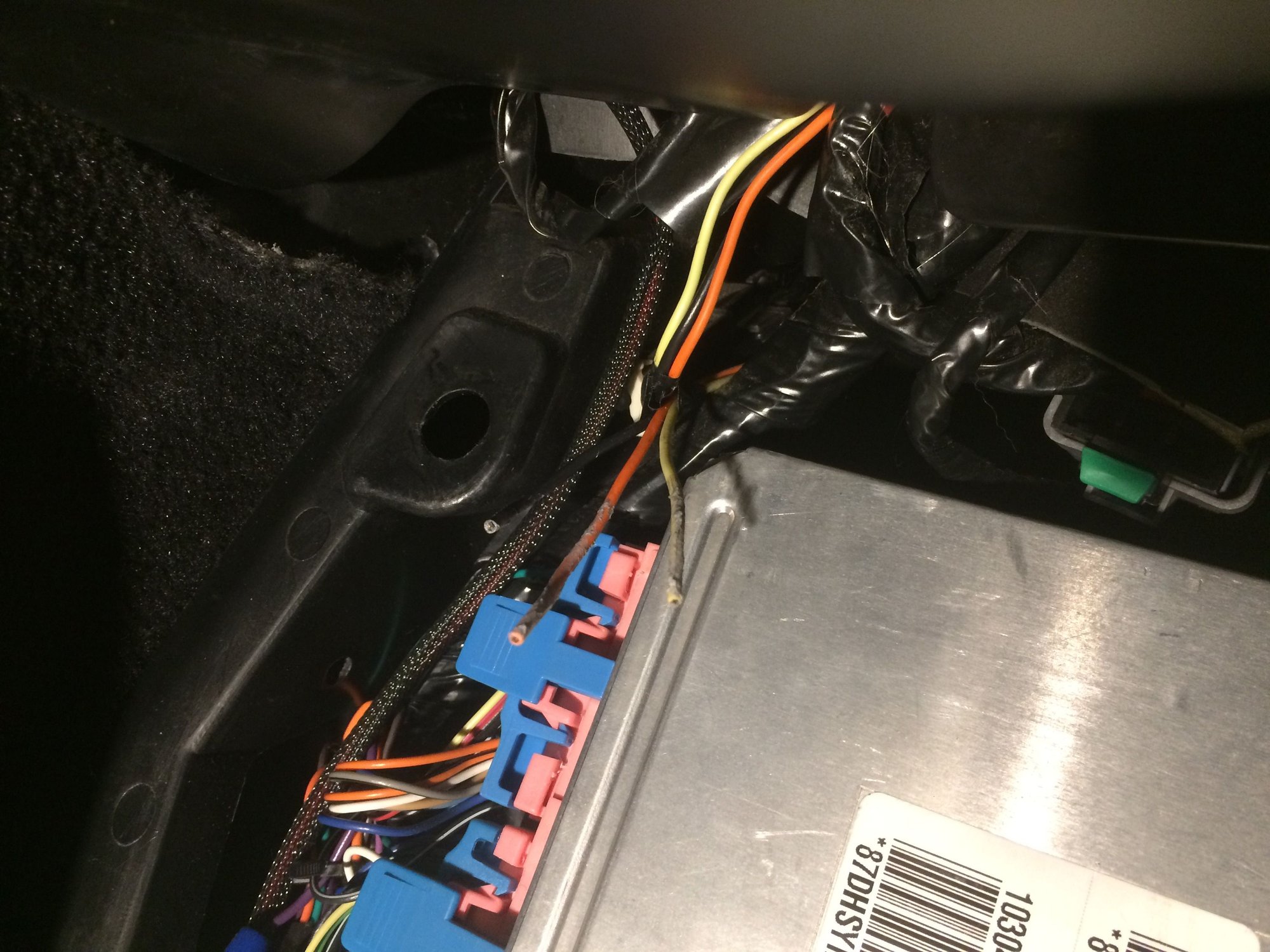

I need to access some accessory power - and I found these 3 wires tucked away in the passenger side (only wrapped together with some black tape). Is it correct that the yellow is switched power and the orange is hot? I would really like to use these instead of taping into an OEM circuit (I like to keep any add-on´s away from the OEM electronics).
Yes, the orange should be hot all the time, yellow is switched, and black is ground.
I have read that fuse number 22 in the fuse box here is a switched source. Use your operation manual that came with the car to identify where fuse 22 is located in the fuse rack. To use it you can buy a fuse adapter from any auto parts store. You replace the fuse that was in slot 22 with one similar except it has a pigtail coming out of the fuse that you can connect a wire to.
There is also a wire harness in this area that is not being used and can offer the same switched power. I have an 04 which does not have this 3 wire harness but in earlier years it is there. I think in the upper left hand corner area of the footwell there are 3 wires in a harness not connected to anything. I believe the yelow is the 12V switched but you can test with a meter easily.
Use the search feature on the audio forum and search for "footwell" or "switched power" and you should fine some good info.
for more current you can use an "add a circuit" adapter.















I like red. Cleaner look.
