Second attempt to align rear bar.

This time without rear valence etc I addjusted the two inner bar mounts so they were parallel. This brought one side of the taillight panel in slightly and moved the other side out.

This gave me a good starting point.

I also went to 1mm thick rubber on each of the bumper mounts to protect the paint (previously it was 1.5mm.





Alignment was good.











Ran the long level along and all looked good.

Test fitted the rear valence with 2 bolts to see how it then fitted.

















To get it to fit nicely I ended up opening up some of the fibreglass holes slightly to ensure bolts did not tough at all as well as elongate most of the bar holes to give me enough movement to get it all where i wanted it.

I also added some shims behind the two centre bar brackets so it sits flush on the glass with no bending pressure.

The side bolts have a 2.5" wide aluminium plate behind them to spread the load of the bolt when tightened as well.

Last edited by CraigH; 06-11-2019 at 01:02 AM.
CraigH is offline
The following 2 users liked this post by CraigH:
caskiguy (06-11-2019), Metalhead140 (06-14-2019)
Old 06-11-2019, 12:50 AM
  #1502
CraigH
CF Senior Member
Thread Starter

CraigH's Avatar

Member Since: Apr 2010
Location: Canberra Australia
Posts: 1,822
Received 187 Likes on 151 Posts
Default

Once I get the car all fitted I will pull the bars and get them re chromed.

Hopefully they will then just bolt up in place nicely
CraigH is offline
Old 06-11-2019, 12:47 PM
  #1503
Primoz
CF Senior Member

Member Since: Jul 2012
Location: Slovenia, EU
Posts: 803
Received 78 Likes on 58 Posts
2017 C3 of Year Finalist
Default


The rubber shims are great option for conserving the paint on the car. I also used them and they do their job nicely.
Primoz is offline
Old 06-12-2019, 06:39 AM
  #1504
CraigH
CF Senior Member
Thread Starter

CraigH's Avatar

Member Since: Apr 2010
Location: Canberra Australia
Posts: 1,822
Received 187 Likes on 151 Posts
Default

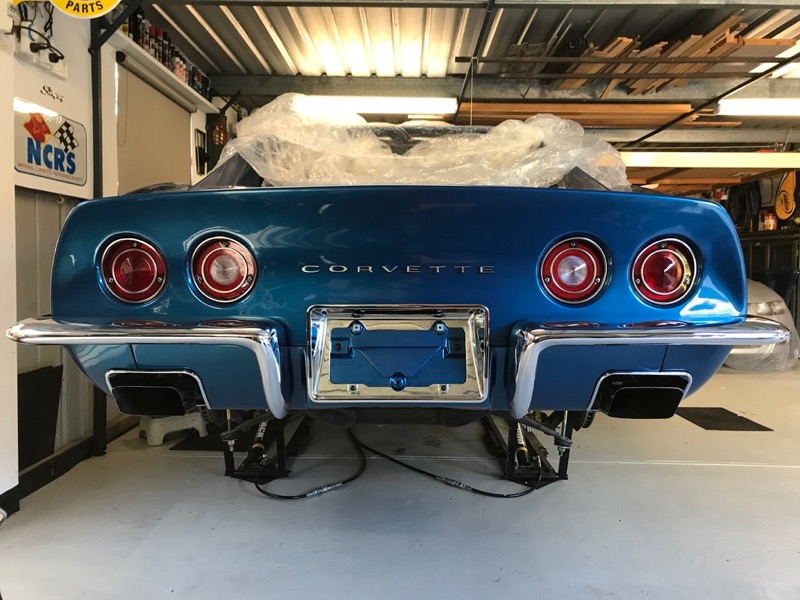

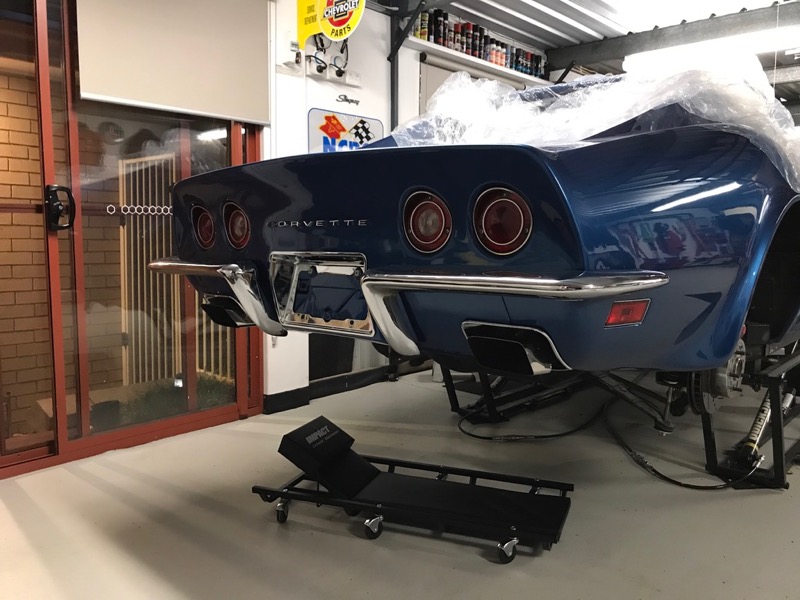

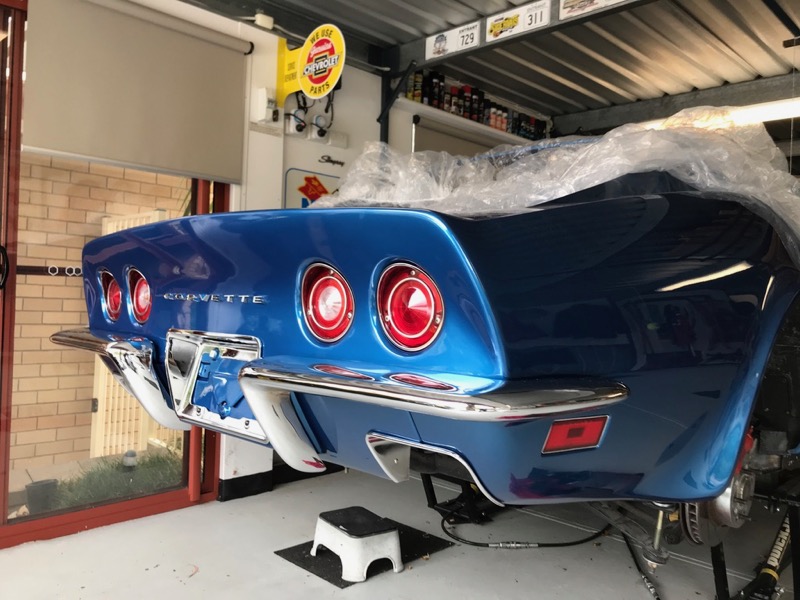

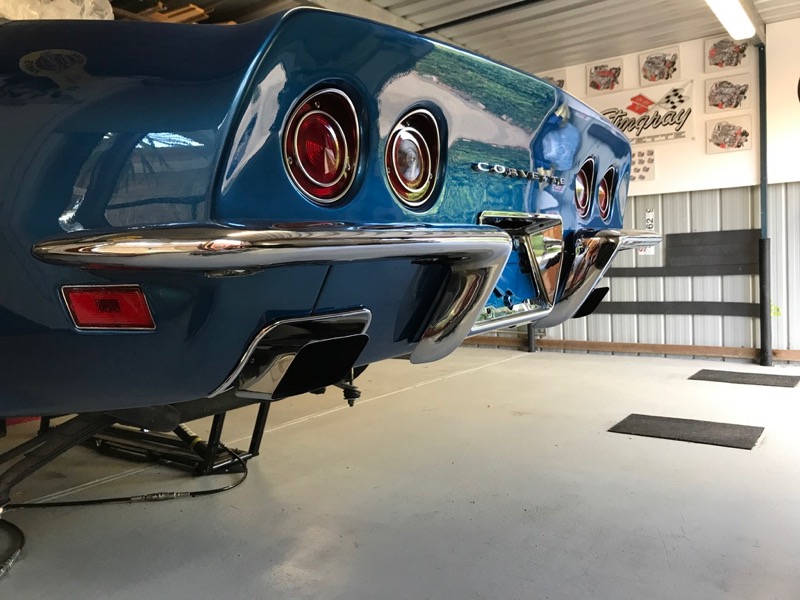

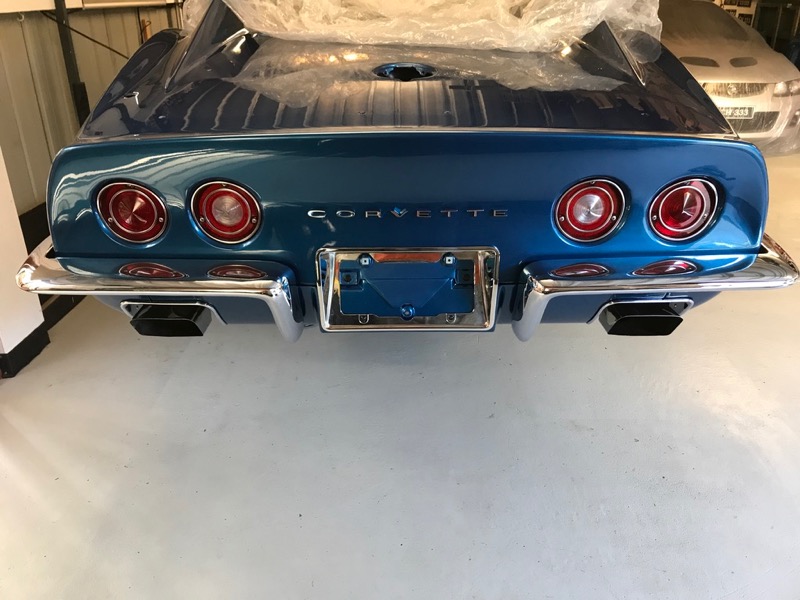

View from behind.





CraigH is offline
Old 06-12-2019, 06:42 AM
  #1505
CraigH
CF Senior Member
Thread Starter

CraigH's Avatar

Member Since: Apr 2010
Location: Canberra Australia
Posts: 1,822
Received 187 Likes on 151 Posts
Default

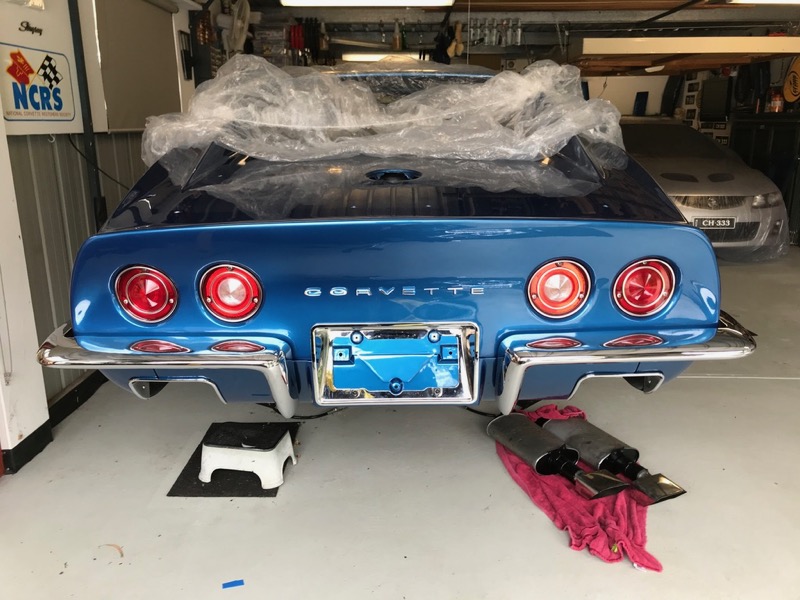

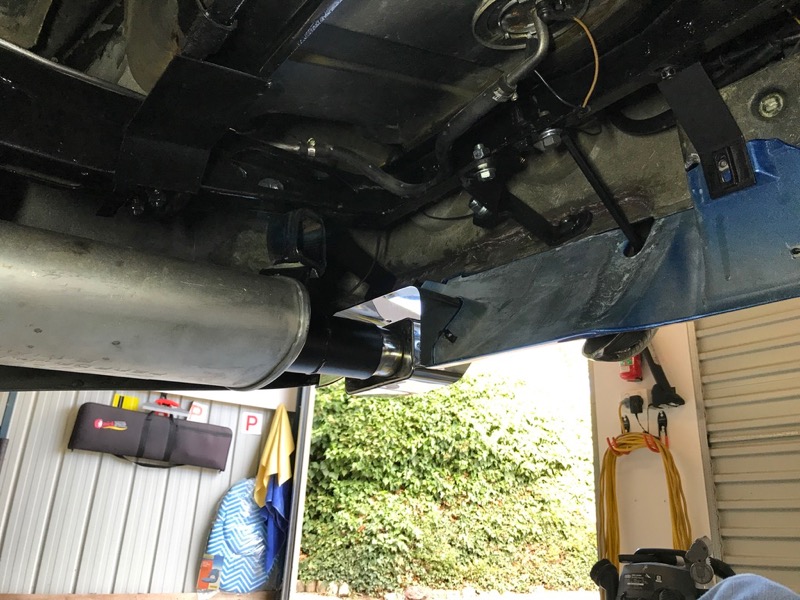

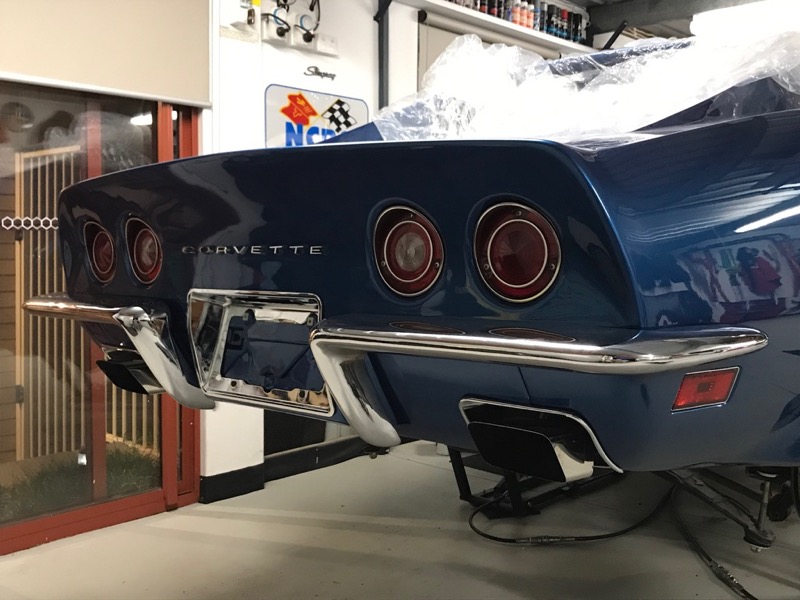

Spent some more time today and did a bit more adjustment as well as fitted up valence, exhaust trim etc.
