Original engine block bored 30 over. Eagle crank and rods, Dart iron eagle heads, crane cam and lifters, roller tipped rockers, cloyes double roller chain and edelbrock intake manifold and carb. Plus Moon direct read guages for that old school look.
Last edited by persuader; Apr 8, 2018 at 10:22 PM.

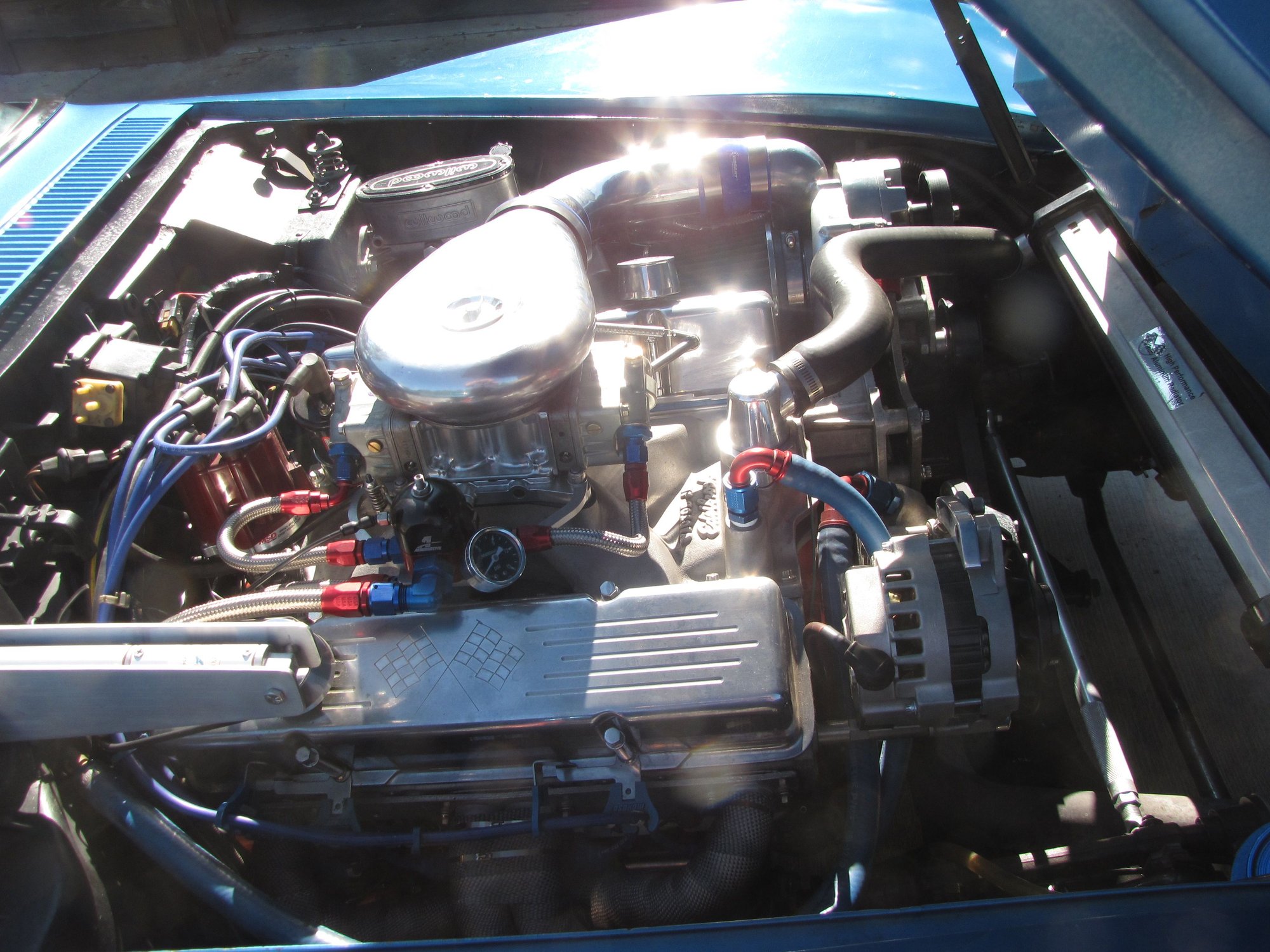

Another 355. Callies crank and 6" rods, Mahle pistons, splayed caps, AFR heads Straub tech cam, Morel lifters Harlan Sharps rockers,Victor JR CSU blow through carb, Vortec charger.
Or something a little tamer; SBC 434 4-bolt, full roller valve train, all forged internals, 6" rods. Dart Pro 1s. Ported exhaust manifolds. Sniper EFI.
T
Last edited by terrys6t8roadster; Apr 27, 2018 at 04:19 PM.

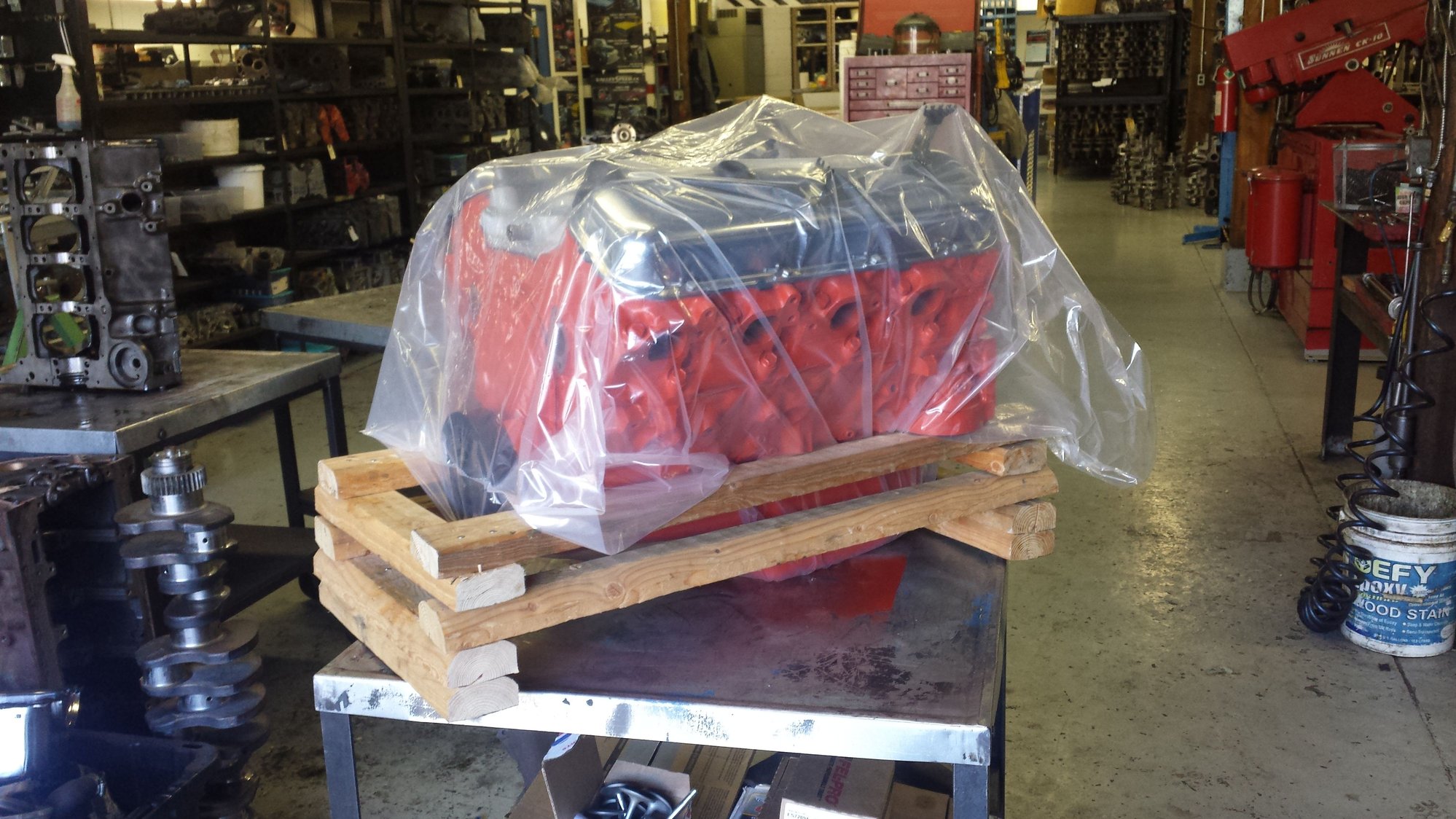

This is my late friend's engine that he built in ~1986 for his '69 coupe that's never been fired-up. It's an L71 "clone" with a 512, "CE", 427 block bored .030" over with '70 open chamber heads. It has this Engle, solid flat tappet cam (bottom photo). There was a family of mice living in the intake manifold when I got it. I pulled the heads, pan and oil pump and cleaned them up inside. It'll be both exciting and nerve-wracking as hell breaking it in. I'm no engine expert so I have no idea of what type of performance to expect.
Last edited by CrossedUp; Apr 9, 2018 at 08:36 AM.

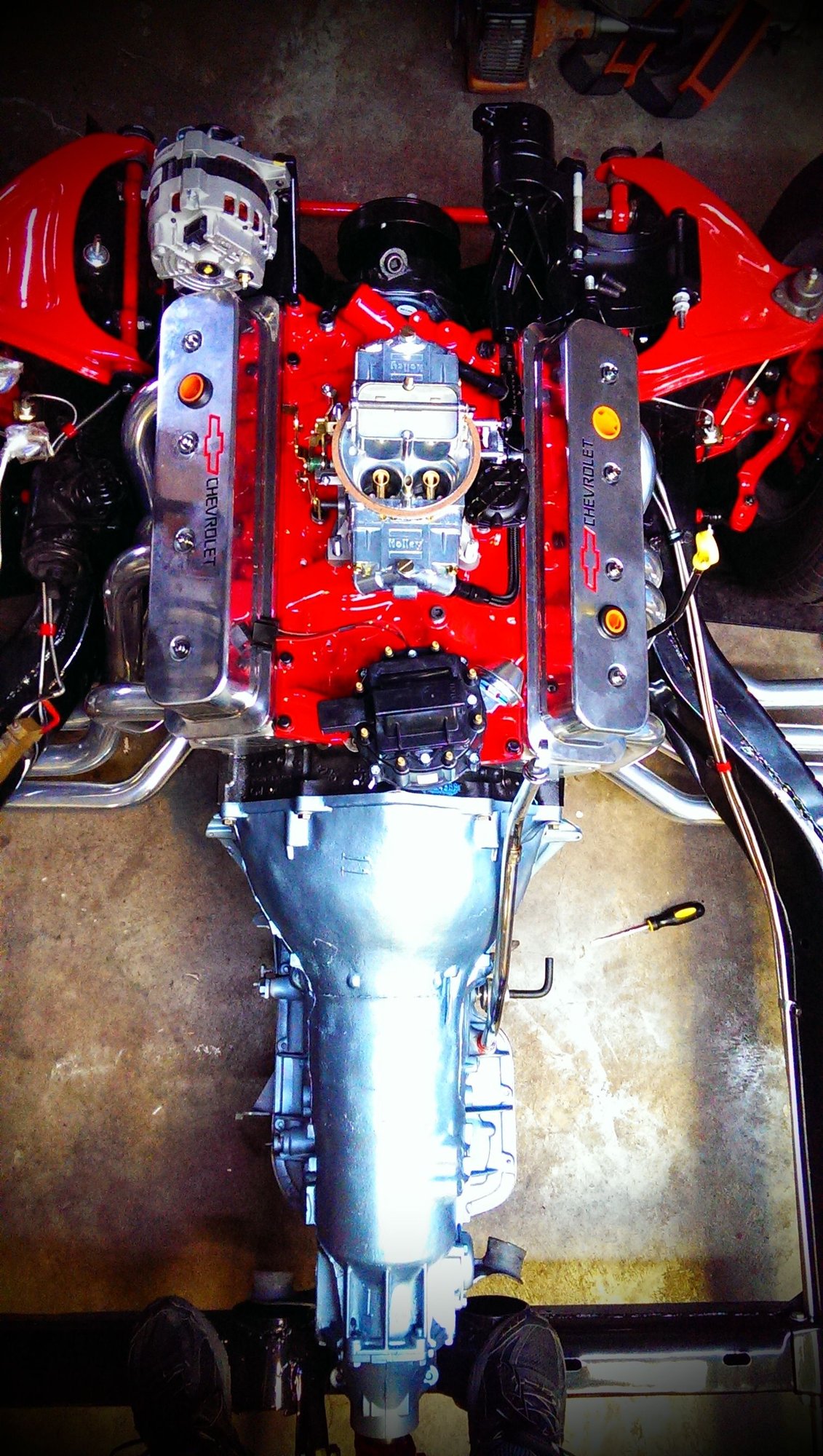

My Dart 200 head 406. Old flat tappet circle track grind (292H) ground on a 108 CL.....KB pistons..10.5to1...Eagle crank and rods...ported Team G. Simple yet very effective. Never dyno'd it but I think somewhere around 490-510 seems about right with a torque curve as flat as Kansas. Wicked fun with the stock Muncie and 3:36 gear.
Please forgive my "early" build photo...many things have been cleaned up since this shot.
Thanks JB . Just need to run at sea level and I would be there
Your best ET to date is at a DA of 2751? I'd say in reasonable conditions, by my standards, of DA around 1000, you'd be in the 12.9 range for sure. That correction factor brings the DA down to zero, I believe. What is the actual elevation of your track? Try to get to the track with temp and humidity as low as possible and barometer high as possible. From a hot day in July to a cool day in October my ETs will drop 3-4 tenths.
