The ECM doesn't have access to this info. You'd have to add an external sensor. In that case you have to setup the formulas to convert 0-5V to temps anyways, so just set one up for F and one up for C. Same as setting up a wideband.
Advanced
Joined: Feb 2017
Posts: 64
Likes: 2

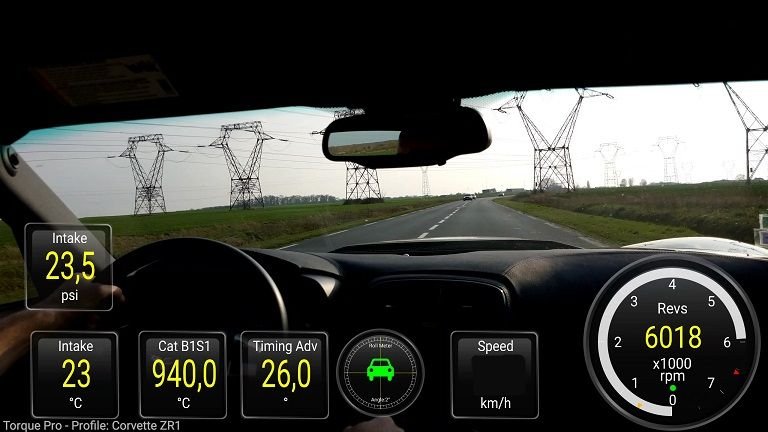

No need external sensor for EGT on the C6 ZR1. I've got EGT (bank 1 and 2) with just obd2 adaptator and torque app.
I think you just need to add the EGT pid to dashcontrol unit.
I think you just need to add the EGT pid to dashcontrol unit.
Last edited by rodolf911; Apr 10, 2017 at 10:12 AM.
Le Mans Master
Joined: Apr 2013
Posts: 5,376
Likes: 1,118
Sorry for the hijack, but I want to monitor fuel pressure via Dashlogic and was wondering what sensor and other hardware I needed to do that? I'm thinking all I should need is a sensor with a module that puts out a 0-5v analog signal and plug that into the Dashlogic, like with the PLX SMR output. Am I correct on that?
I've been looking online for some kind of kit, but can't seem to find exactly what I need.
I've been looking online for some kind of kit, but can't seem to find exactly what I need.
Race Director
Joined: May 2004
Posts: 16,667
Likes: 1,209
From: Raleigh, NC
St. Jude Donor '15
Sorry for the hijack, but I want to monitor fuel pressure via Dashlogic and was wondering what sensor and other hardware I needed to do that? I'm thinking all I should need is a sensor with a module that puts out a 0-5v analog signal and plug that into the Dashlogic, like with the PLX SMR output. Am I correct on that?
I've been looking online for some kind of kit, but can't seem to find exactly what I need.
I've been looking online for some kind of kit, but can't seem to find exactly what I need.
Basically you just need a pressure sensor with a linear 0-5V output that is in the ballpark range you'd need for fuel pressure. If you can let me know what your fuel system looks like now I can point you in the right direction (mainly which rails you're using). Honeywell makes a ton of sensors with all kinds of ranges and adapters, etc. to fit about anything so that is what I've been using for fuel and alky control pressure. I've never had one fail, even when used with methanol
Basically it ends up being 3 wires to the sensor: 5V+ (can pull from a coil or the MAP sensor), ground and a 0-5V ouptut which goes to dash logic, then you have to setup dash logic so it knows what to do with that 0-5V signal and presto wammo, fuel pressure reading
